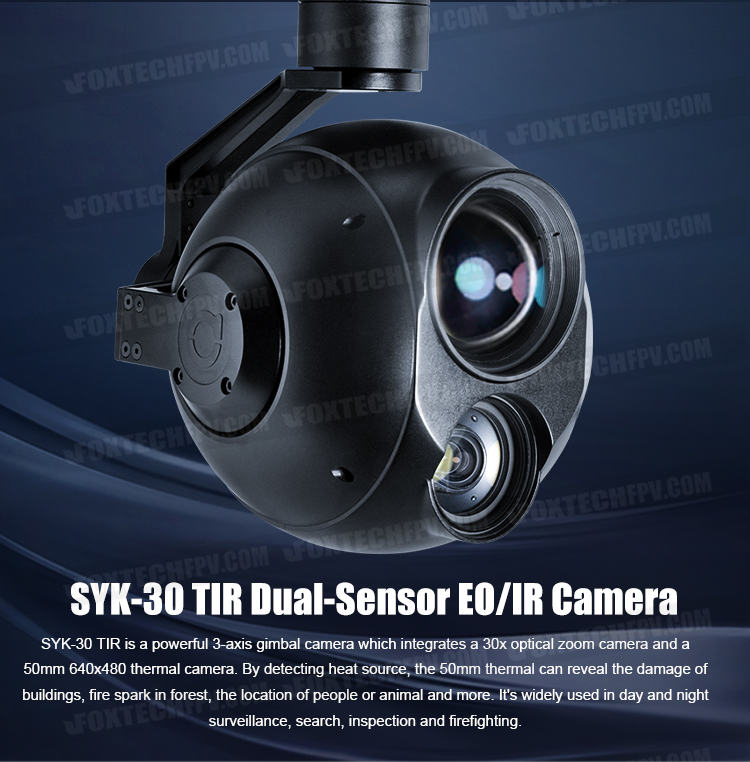

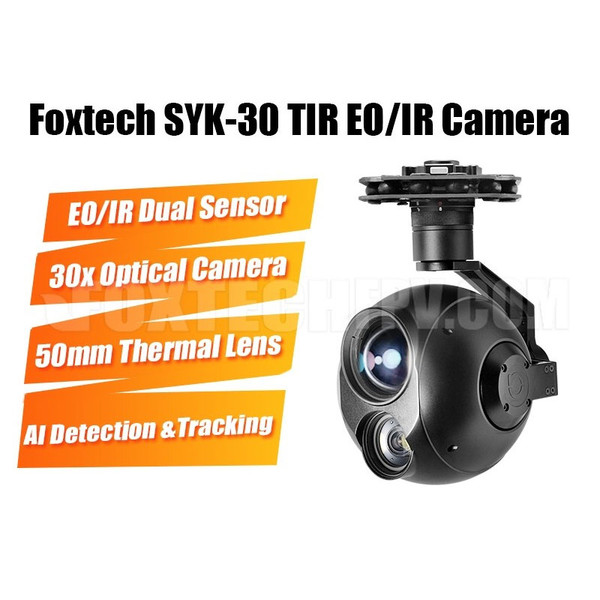

SYK-30 TIR Dual-Sensor EO/IR Camera

SYK-30 TIR is a powerful 3-axis gimbal camera that integrates a 30x optical zoom camera and a 50mm 640x480 thermal camera. The 3-axis gimbal based on FOC technology features high stability, accuracy and sensitivity. The image is very stable even at 30X optical zoom. By detecting heat source, the 50mm thermal can reveal the damage of buildings, fire spark in the forest, the location of people or animal and more. It's widely used in day and night surveillance, search, inspection and firefighting.

·30x Optical Zoom EO Camera

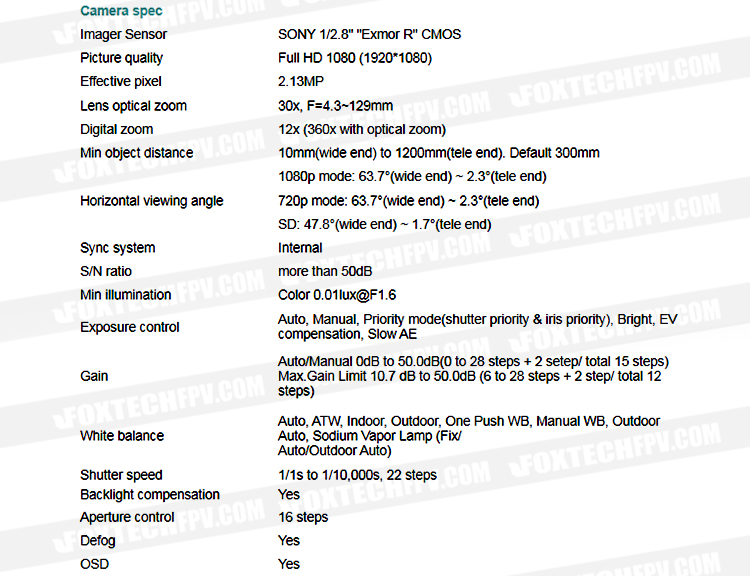

Powered by 30x optical zoom high-resolution camera module, SYK-30 TIR can recognize cars, buildings and structures within 3000 meters, which can meet the application requirements of various domains.

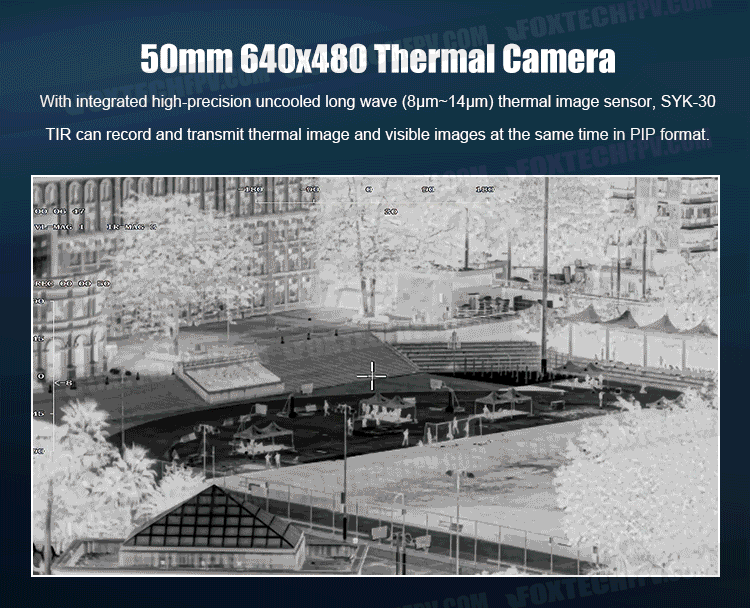

·Advanced IR Thermal Image

With an integrated high-precision uncooled long-wave (8μm~14μm) thermal image sensor, SYK-30 TIR can record and transmit thermal images and visible images at the same time in PIP format.

·Visible Light and Thermal Image Dual Sensors Object Tracking

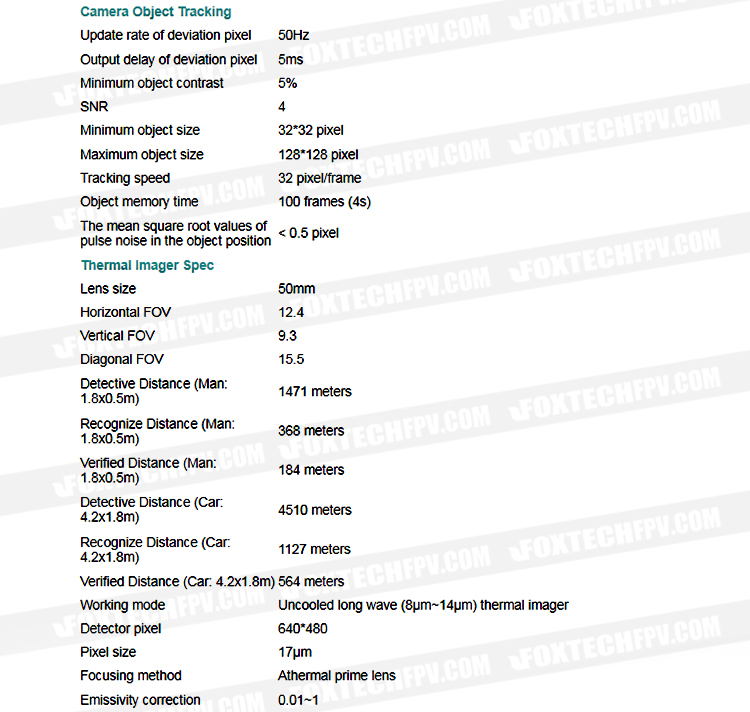

Build-in normalization, cross-correlation and tracking algorithm, combined with object missing recapture algorithm, achieve stable track of the target. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.

·Multi Output Methods Optional

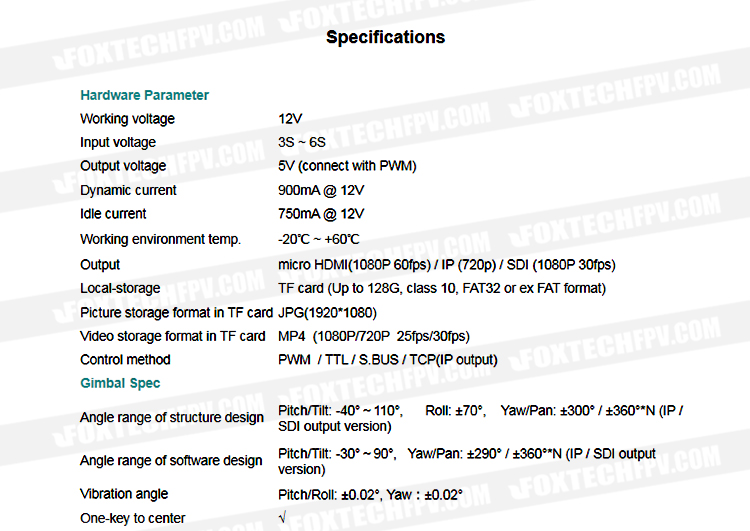

SYK-30 TIR supports HDMI output, Ethernet/IP output(Default) and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. (Only IP output and SDI output versions support 360degree endless pan.)

·Multi Control Methods

Default PWM and Serial port TTL control, SBUS is optional, IP output version also supports TCP control via Ethernet cable. With the software, you can fulfill IP output, TTL control and TCP control.

Optional thermometry version: With a temperature measuring sensor, it could accurately attain the temperature of objects and individuals. The thermal sensor allows three points’ temperature ranging between 0℃~120℃ to be measured and displayed on the screen. Adjust the different colors applied to the thermal data based on the needs of specific scenarios.

·Applications

Mainly supply in fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.

Feature:
30X Optical Zoom EO Sensor
50mm Thermal Lens
Ethernet output
3-axis Gimbal
360°Infinite Rotating

Your Purchase Includes:
1x Gimbal Camera
1x USB to TTL Cable
1x Power Cable
1x PWM Control Cable
1x TTL / S.BUS Control Cable
3x TTL Connect Cable
1x Ethernet Cable

USER MANUAL
SERIAL COMMAND COMMUNICATION PROTOCAL
