THEA 140 Hybrid Pro is upgraded with a new 2000W generator Halo-2000. Besides this, Halo-2000 generator adopts electrical starting method, which can be started through PWM or CAN-BUS, quick and convenient ; and a Monitoring Software is provided to monitoring the generator working status in real time, that greatly improves its safety.
THEA 140 Hybrid Pro is a quadcopter for industrial application. Made of carbon fiber, it features high ruggedness, compact folding arms and electric landing gears, empowering you to overcome any challenge, safely and efficiently.
THEA 140 Hybrid Pro adopts two-sided cabinets for placing the DJI A3 flight controller, BEC or more, leaving the central space unequipped to achieve lighter weight and thus longer endurance.
Equipped with DJI Lightbridge 2, it achieves a fairly long-distance signal transmission, allowing for more possibilities for those who demand aircrafts with long range control and endurance to perform tasks.
With the advanced propulsion system, the payload capacity is greatly enhanced.
The newly-designed folding arms, removable fuel tank and one set of retractable landing gears save you the space and strength to store and deliver it and at the same time, ensure the gimbal camera a better camera view.
Highly rugged and stable, THEA 140 Hybrid Pro is made of full carbon fiber reinforced plate, enabling it to stand against 8m/s strong wind.
An all-in-one three-position switch is in charge of three running modes of the generator, which is on, idle and off.
Being highly practical, tasks like inspection, police patrol, transmission line stringing, mapping, surveillance, searching and rescue would be no hard jobs by loading up one of the series of task-load cameras like 3DM V3 oblique camera, Map-A7R II mapping camera, EH30-TR 4K gimbal camera, DJI Zenmuse Z30, EH30-TIR 30x thermal camera, etc, which share some of their distinctive functions of object tracking or thermal imaging.
Your Purchase Includes:
Mapping Combo:
1x THEA 140 Hybrid Pro Frame
2x Foxtech 6S 5000mAh Lipo battery(spare power supply)
4x Motor
4x ESC
1x DJI A3 Flight Controller
1x Foxtech DA16S+ 16-Channel Radio Controller
1x Expansion Module for DJI Flight Controller
1x 3DM V3 Oblique Camera(100MP)
1x Emlid Reach PPK/RTK System
2x(pair) 30 inch Propeller
1x Foxtech GPS Folding Antenna Mount Holder
1x 11L Fuel Tank
1x Electric Landing Gear & 1x Fixed Landing Gear
1x Foxtech Halo-2000 Generator for Hybrid Drones
1x Assembly and Fly Test Package
1x Liquid Level Sensor
1x Carrying Case
A3 + Lightbridge 2 RTF Combo:
1x THEA 140 Hybrid Pro Frame
2x Foxtech 6S 5000mAh Lipo battery(spare power supply)
4x Motor
4x ESC
1x DJI A3 Flight Controller
1x DJI Lightbridge 2
2x(pair) 30 inch Propeller
1x Foxtech GPS Folding Antenna Mount Holder
1x 11L Fuel Tank
1x Electric Landing Gear & 1x Fixed Landing Gear
1x Foxtech Halo-2000 Generator for Hybrid Drones
1x Assembly and Fly Test Package
1x Liquid Level Sensor
1x Carrying Case
A3 + DA16S+ RTF Combo:
1x THEA 140 Hybrid Pro Frame
2x Foxtech 6S 5000mAh Lipo battery(spare power supply)
4x Motor
4x ESC
1x DJI A3 Flight Controller
1x Foxtech DA16S+ 16-Channel Radio Controller
1x Expansion Module for DJI Flight Controller
2x(pair) 30 inch Propeller
1x Foxtech GPS Folding Antenna Mount Holder
1x 11L Fuel Tank
1x Electric Landing Gear & 1x Fixed Landing Gear
1x Foxtech Halo-2000 Generator for Hybrid Drones
1x Assembly and Fly Test Package
1x Liquid Level Sensor
1x Carrying Case
TAURUS-2 RTF Combo(with DL900 Datalink):
1x THEA 140 Hybrid Pro Frame
2x Foxtech 6S 5000mAh Lipo battery(spare power supply)
4x Motor
4x ESC
1x TAURUS-2 Flight Control System
1x DL900 Datalink
2x(pair) 30 inch Propeller
1x Foxtech GPS Folding Antenna Mount Holder
1x 11L Fuel Tank
1x Electric Landing Gear & 1x Fixed Landing Gear
1x Foxtech Halo-2000 Generator for Hybrid Drones
1x Assembly and Fly Test Package
1x Fuel-monitoring Module
1x Liquid Level Sensor
1x Carrying Case
Pixhawk Cube Orange + DA16S+ Combo:
1x THEA 140 Hybrid Pro Frame
2x Foxtech 6S 5000mAh Lipo battery(spare power supply)
4x Motor
4x ESC
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x Foxtech DA16S+ 16-Channel Radio Controller
2x(pair) 30 inch Propeller
1x Foxtech GPS Folding Antenna Mount Holder
1x 11L Fuel Tank(with fuel-level sensor)
1x Electric Landing Gear & 1x Fixed Landing Gear
1x Foxtech Halo-2000 Generator for Hybrid Drones
1x Carrying Case
CUAV X7 Pro Combo:
1x THEA 140 Hybrid Pro Frame
2x Foxtech 6S 5000mAh Lipo battery(spare power supply)
4x Motor
4x ESC
1x CUAV X7 Pro Flight Controller with NEO 3 Pro GNSS
1x Foxtech DA16S+ 16-Channel Radio Controller
2x(pair) 30 inch Propeller
1x Foxtech GPS Folding Antenna Mount Holder
1x 11L Fuel Tank(with fuel-level sensor)
1x Electric Landing Gear & 1x Fixed Landing Gear
1x Foxtech Halo-2000 Generator for Hybrid Drones
1x Carrying Case
Optional:
Remote Controller Channel Expansion Kit for Lightbridge 2
24GHz Millimeter-Wave Obstacle Avoidance Radar
1x Reach Emlid PPK System
Fuel Level Calibration
Fuel Level Calibration
| Version | THEA 140 Hybrid Pro Version |
| Diagonal Wheelbase | 1.4 m |

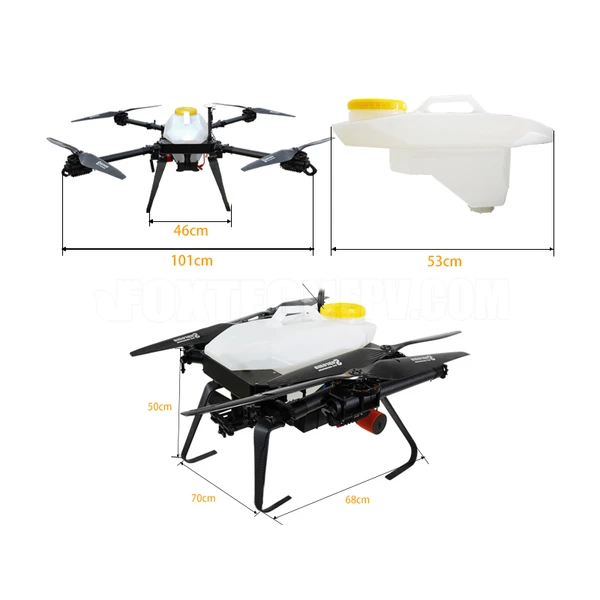

| Unfolded Dimensions | 1000*1000*500 mm |
| Folded Dimensions | 700*700*500 mm |
| Material | Carbon Fiber |
| Frame Weight | 3.8 kg (with landing gears and 11 L fuel tank) |
| Empty Weight | 14 kg (no batteries, no gasoline) |
| Max Take-off Weight | 22 kg |
| Suggested Max Payload | 5 kg (excluding 1.6 L gasoline) |
| Max Flying Speed | 14 m/s |
| Max Lifting Speed | 4 m/s |
| Max Descent Speed | 3 m/s |
| Max Angle of Bank | 25° |
| Suggested Flight Altitude | ≤500 m |
| Suggested Take-off Altitude | 0~2000 m |
| Working Voltage | 48 V |
| Fuel Consumption | 620 g/kW.h |
| Generator Weight | 4.5 kg |
| Generator Output | 1.8 kW(continuous), 2 kW(max) |
| Working temperature | -20℃-40℃ |
