8-Channel RC Receiver Signal Conversion Module TL2981

8-channel remote control receiver signal conversion module using 32-bit MCU to collect signals and conversion, the input signal automatically identified, without manual switching. Enter the normal receiver signal, output PPM and S.BUS signal; Enter the PPM signal, output PWM and S.BUS signal; Enter the S.BUS signal, output PWM and PPM signal.

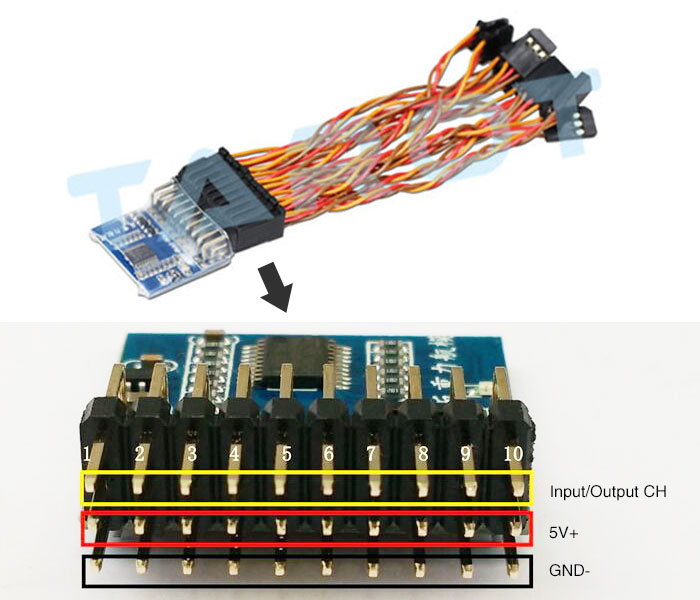

Wiring Instructions:
1-8 channel for the PWM signal input or output channel;
9th channel is PPM, SBUS input or PPM output channel;
Channel 10 is the output channel for PPM or SBUS.

The input signal is automatically recognized without manual switching.
1. When the PWM signal is input to any one or several channels in the 1 - 8 channel, the 9 channel
will output the PPM signal and the 10 channel will output the SBUS signal (the indicator will flash 1)
2. When 9-channel input PPM signal, 1 - 8 channel will output PWM signal, 10 channel will output SBUS
signal (indicator light flash 2)
3. When the 9-channel input SBUS signal, 1 - 8 channel will output PWM signal, 10 channel will output
PPM signal (indicator light flash 3)

Your Purchase Includes:
1x 8-Channel RC Receiver Signal Conversion Module
