AEROFOX Series Anti-Jamming GNSS Receiver Reliable Navigation for UAVs & Unmanned Systems
- SKU:
- S250828
- Weight:
- 0.50 KGS
The AEROFOX series provides compact, high-performance anti-jamming GNSS solutions for drones, unmanned vehicles, and other applications requiring reliable navigation. All models feature integrated antenna arrays, anti-jamming components, and GNSS receivers to ensure precise positioning and robust protection against interference and malicious attacks.

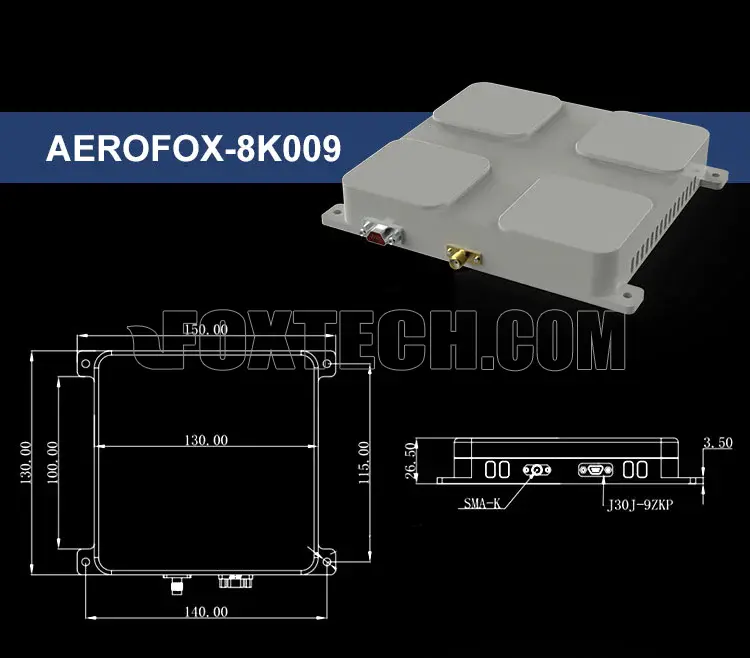

AEROFOX-8K009:
The AEROFOX-8K009 is a dual-frequency, 8-channel anti-jamming GNSS module designed for drones and industry applications. It supports BeiDou-2, BeiDou-3 RNSS B1/B3, and GPS L1 dual-frequency signal reception, with dual-system wideband anti-jamming capability, resisting up to three simultaneous interferences. Featuring integrated antenna arrays, anti-jamming components, and a GNSS receiver, it provides reliable navigation for drones, unmanned vehicles, and other applications, protecting user terminals from unintentional interference and malicious attacks, while significantly enhancing PNT information security.

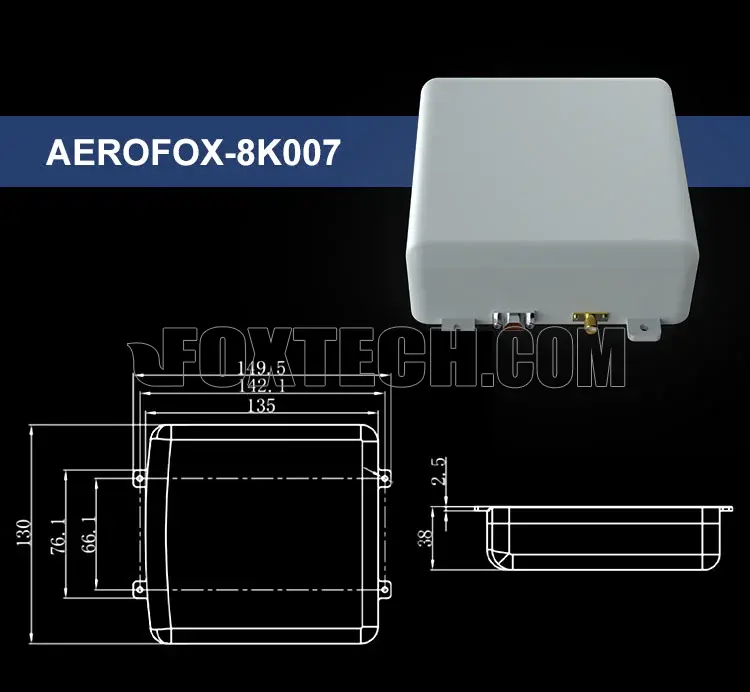

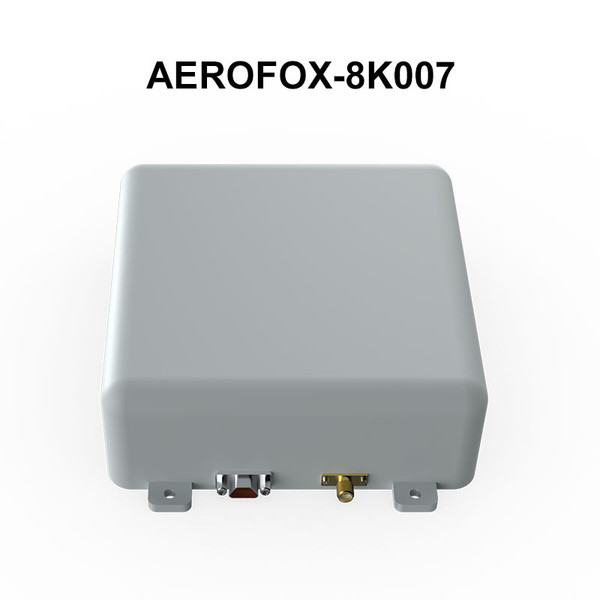

AEROFOX-8K007:
The AEROFOX-8K007 is a dual-frequency, 8-channel anti-jamming GNSS module designed for drones, unmanned vehicles, and other applications requiring reliable navigation. It supports BeiDou-2 B1/B3 and GPS L1 signals (B3: 1268.52 MHz ± 10.23 MHz; B1: 1575.42 MHz ± 16.368 MHz), providing robust protection against unintentional interference and malicious attacks, significantly enhancing PNT information security.

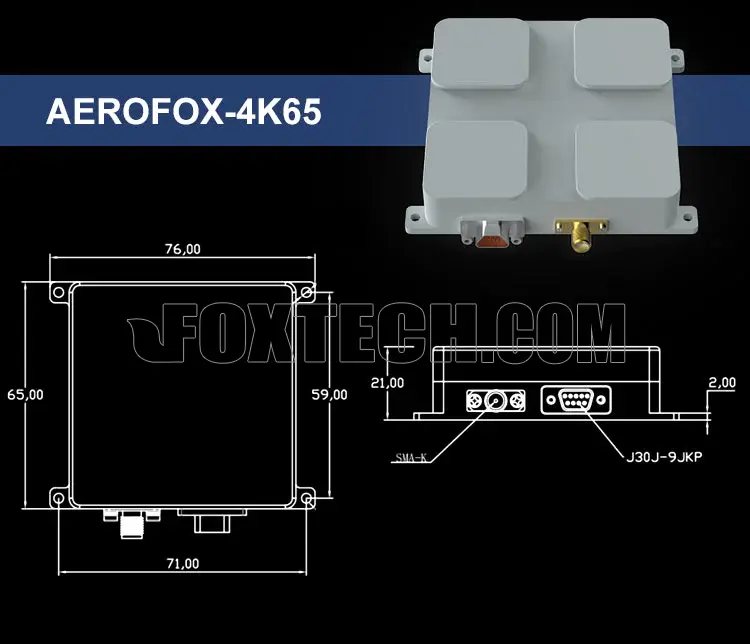

AEROFOX-4K65：
The AEROFOX-4K65 is an ultra-compact anti-jamming GNSS module designed for small and medium UAVs and other industry applications. It supports BeiDou B1 and GPS signal reception with wideband anti-jamming capability and precise positioning. Featuring integrated antenna arrays, anti-jamming components, and a GNSS receiver, the module is small, lightweight, and cost-effective, making it ideal for applications where size, weight, and affordability are critical.
Your Purchase Includes:
1x AEROFOX-8K009 (AEROFOX-8K007/AEROFOX-4K65) Anti-Jamming GNSS Receiver
1x Connection Cable
