Agility A1 Robotic Arm based on the OpenArm – Open-Source Humanoid Robot Arm with 7DOF, High Payload & Human-Level Dexterity

Note：The robotic arm is available in two color options: White and Black.

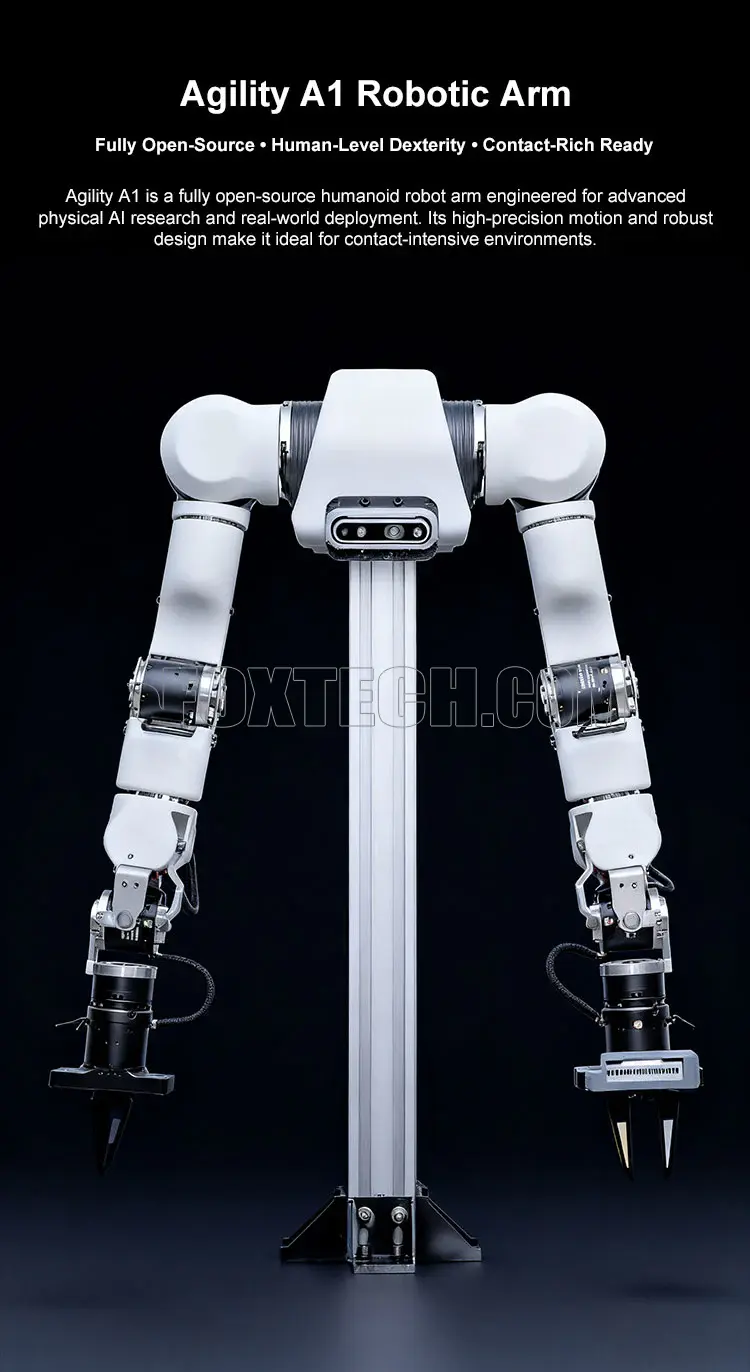

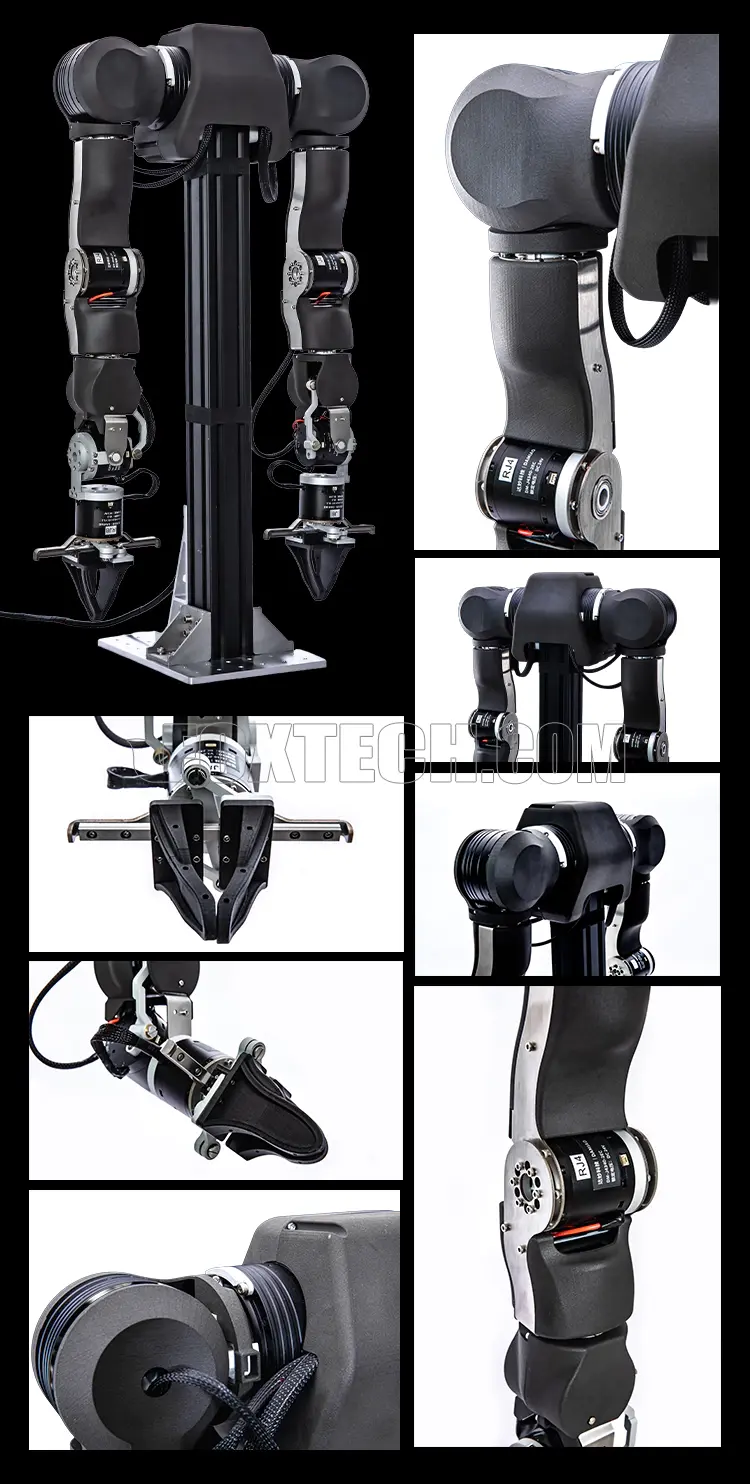

The Agility A1 is a fully open-source humanoid robot arm designed for advanced physical-AI research, manipulation studies, and real-world deployment. Built on the OpenArm platform, it follows widely adopted robotics research frameworks seen in leading institutions such as MIT and Stanford — making it naturally compatible with state-of-the-art robot learning pipelines.

Fully open-source from hardware design to software stack — including mechanical CAD files, PCB schematics, firmware source code, and PC control software. This greatly reduces users' development barriers and costs.

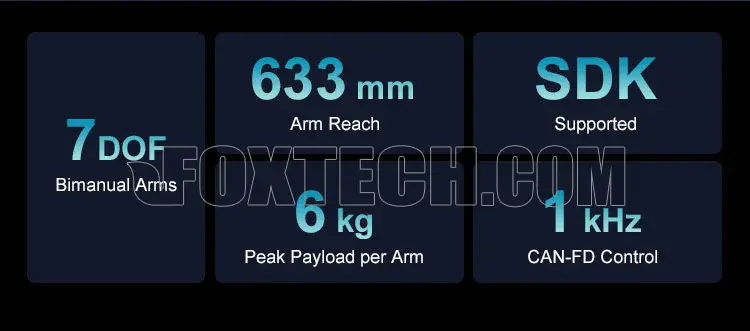

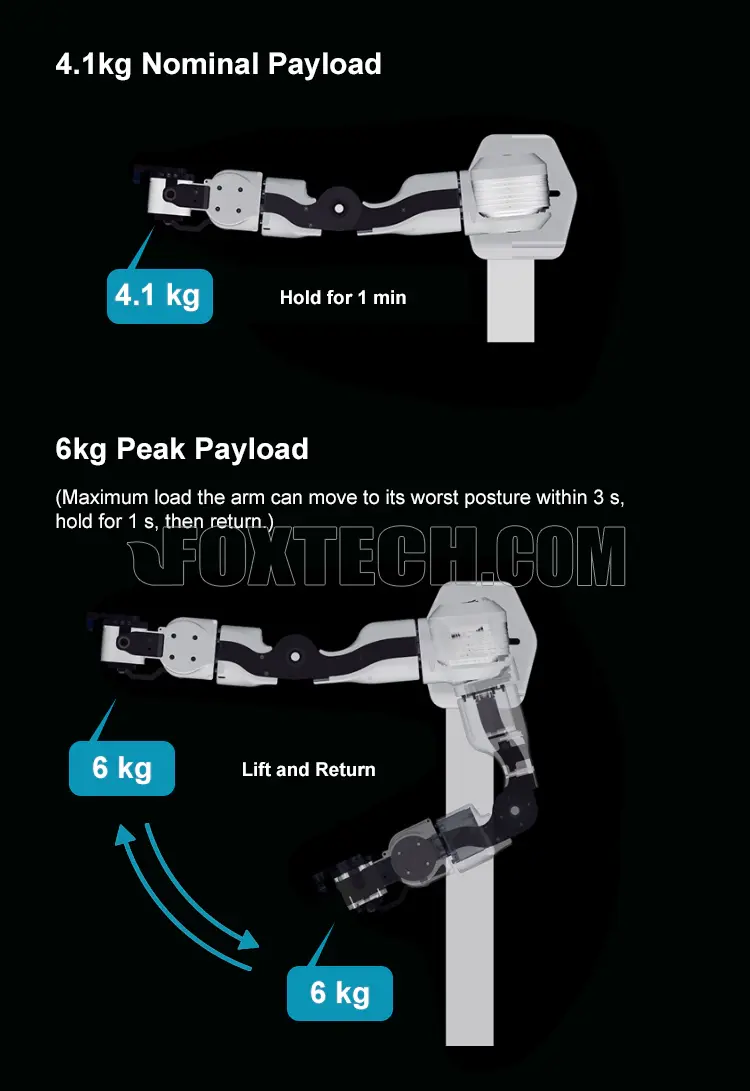

Each arm offers 7 degrees of freedom, 633 mm reach, 5.5 kg weight, and up to 6 kg peak payload, with high-speed 1 kHz CAN-FD control for precise, responsive motion.

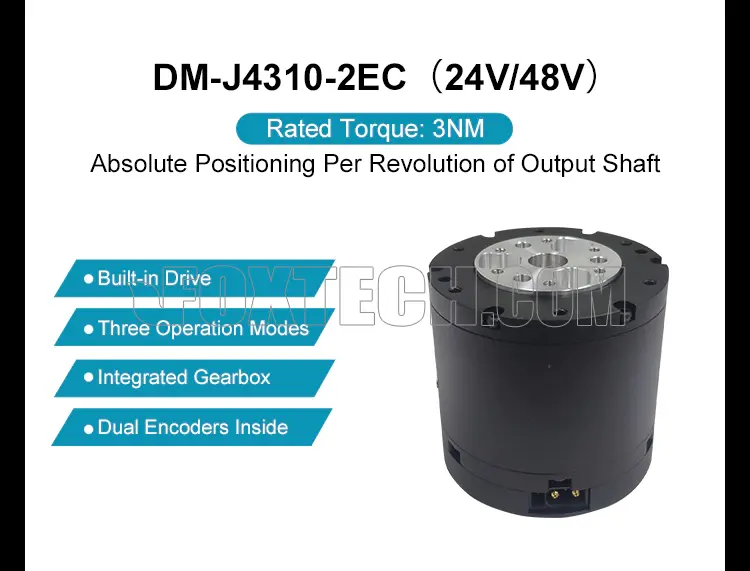

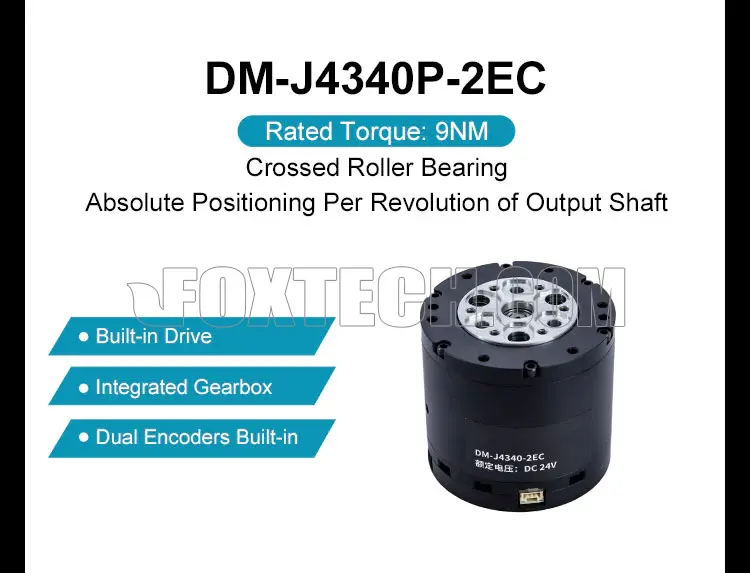

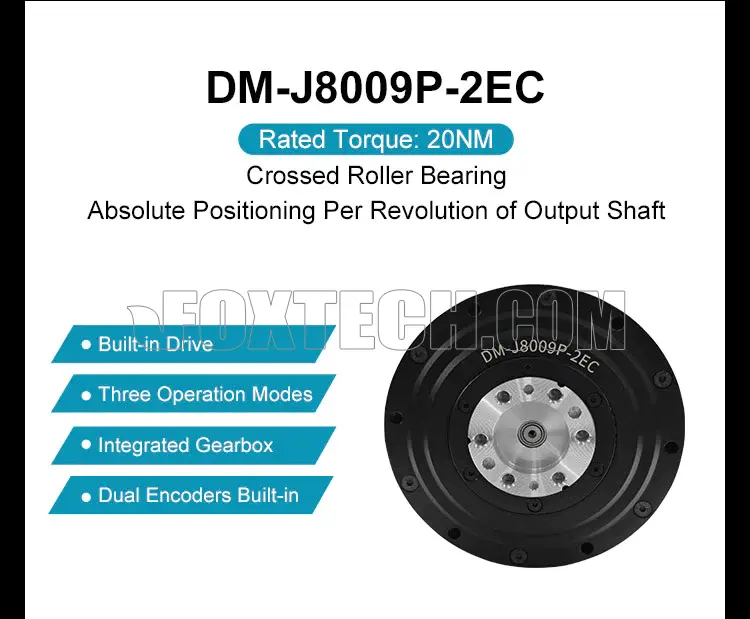

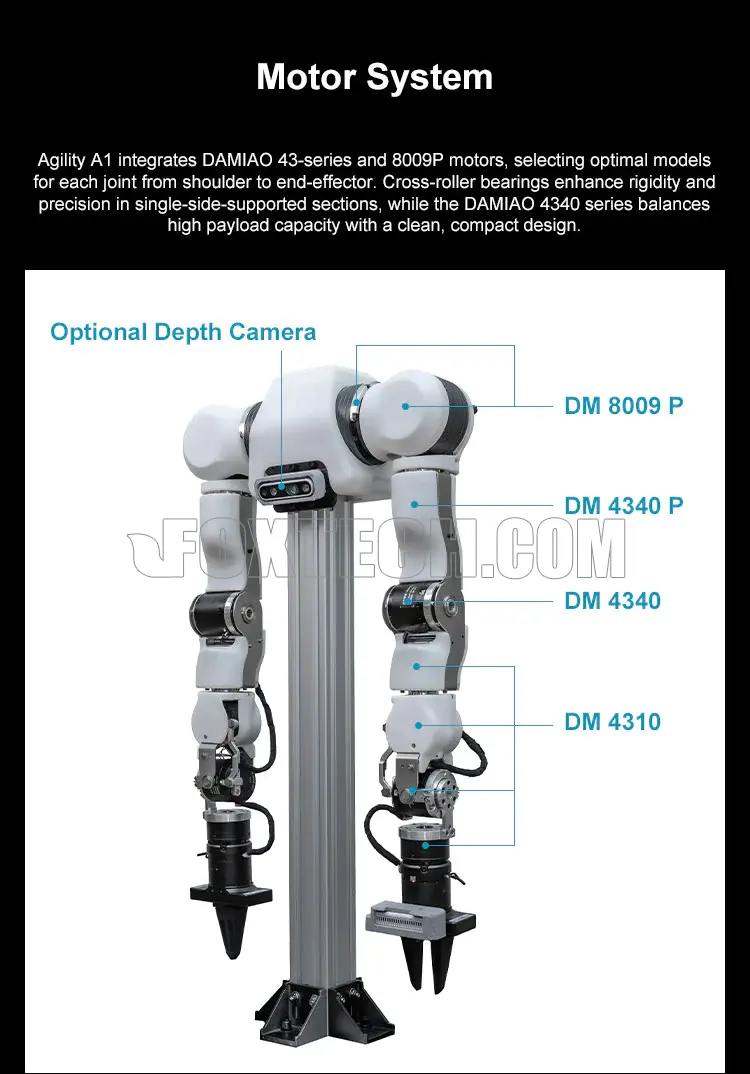

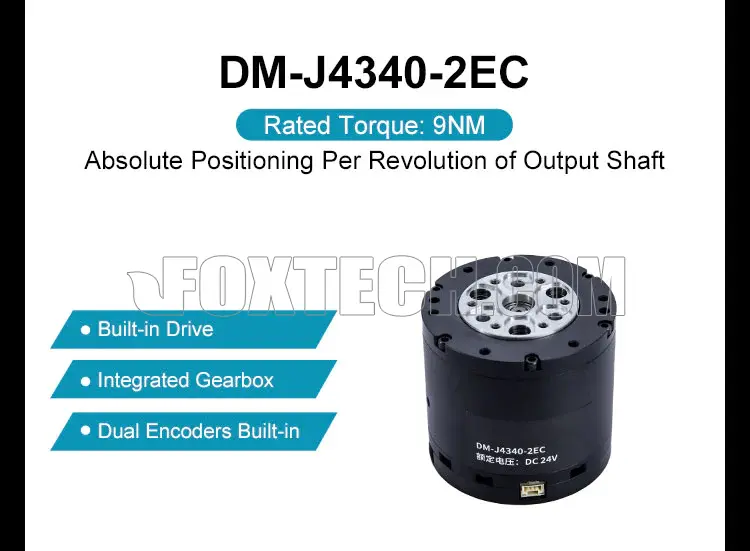

The motor system combines DAMIAO 43-series and 8009P motors, with cross-roller bearings for rigidity and precision, while the DAMIAO 4340 series delivers high payload capacity in a clean, compact form.

Complete CAD models, firmware, control code, and simulation tools are openly available, enabling rapid customization and development.

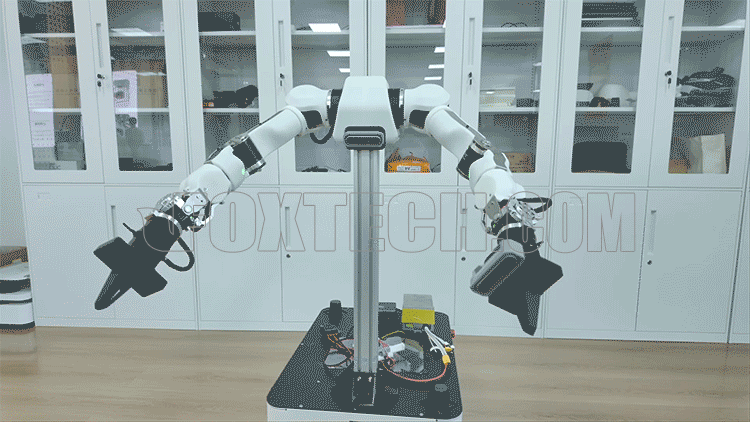

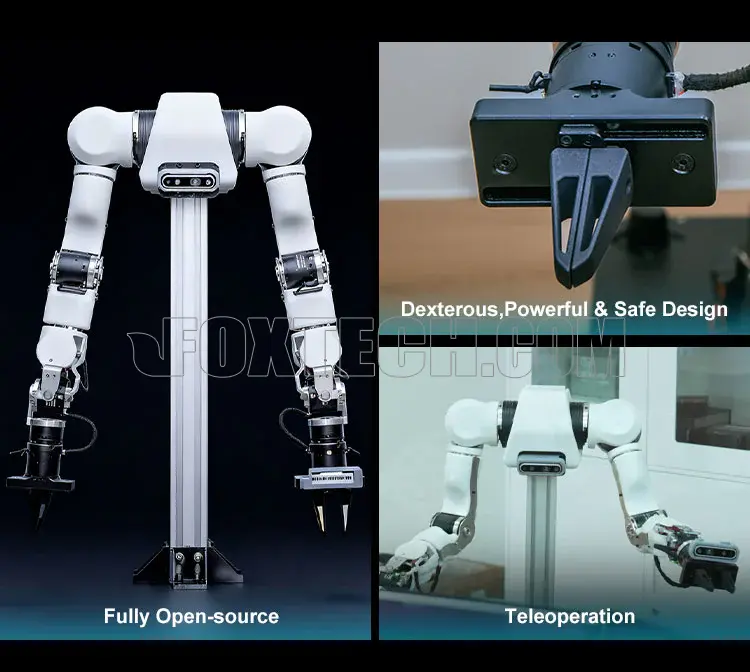

With smooth teleoperation, real-time gravity compensation, and compliant, backdrivable joints, Agility A1 provides dexterous, powerful, and safe interaction for contact-intensive environments.

(Note: Designed Based on the OpenArm Open-Source Platform)

Optional Exoskeleton Wearable Arm:

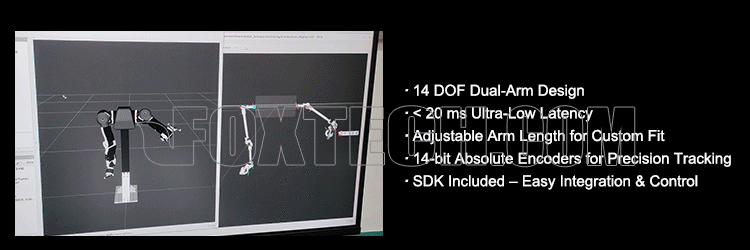

The ExoArm-7 Exoskeleton Teleoperation Arm is designed for seamless compatibility with the OpenArm robotic arm, offering intuitive, low-latency remote control and natural motion synchronization.

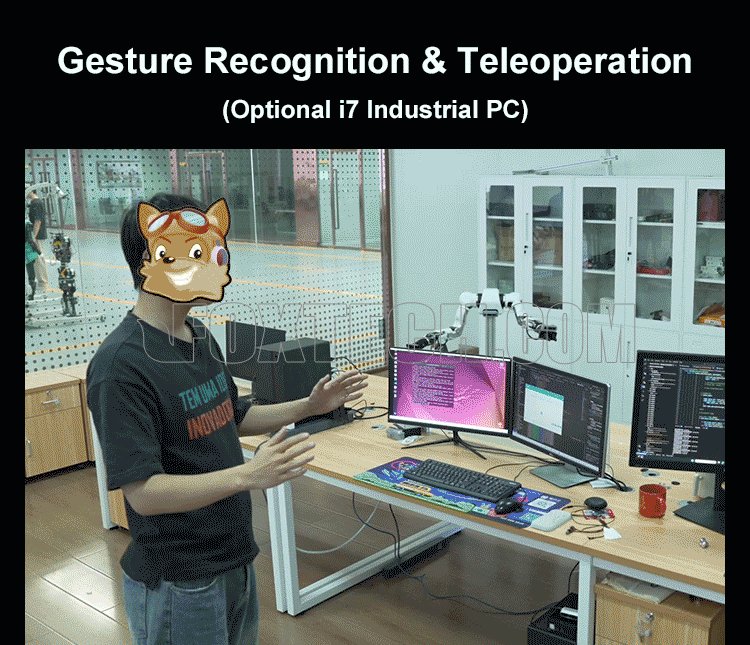

This wearable exoskeleton system employs drive-by-wire technology, enabling operators to control robotic arms in real time by mimicking human arm movements. Once worn, every movement of the user is precisely mapped to the robotic arm, allowing for natural, intuitive, and efficient control through an electronic signal-based system.

Applications:
Perfect for research, development, and industrial scenarios including:
Teleoperation & Remote Robotics: Control robotic arms safely in hazardous or hard-to-reach environments.
Data Acquisition & Motion Analysis: Collect precise motion data for learning, AI training, or robotics development.
Scientific & Educational Use: Ideal for research labs, universities, and robotics courses.

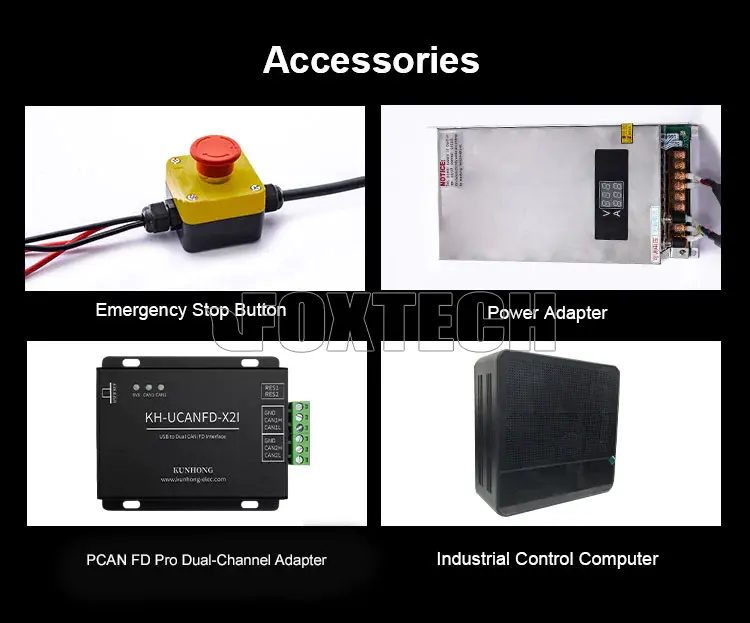

Your Purchase Includes:
1x Agility A1 Robotic Arm (Dual Robotic arms with grippers, aluminum profile)

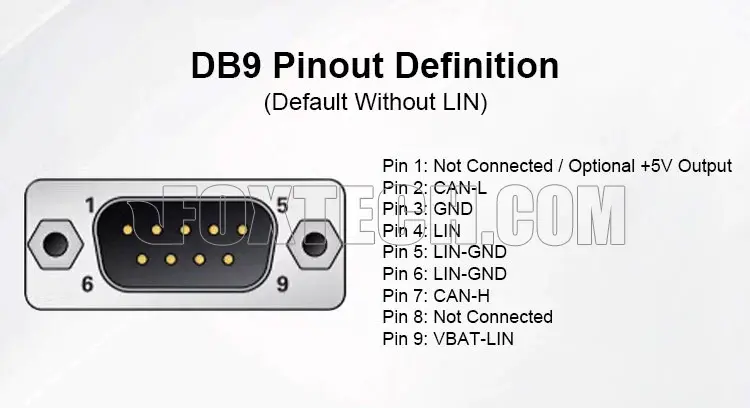

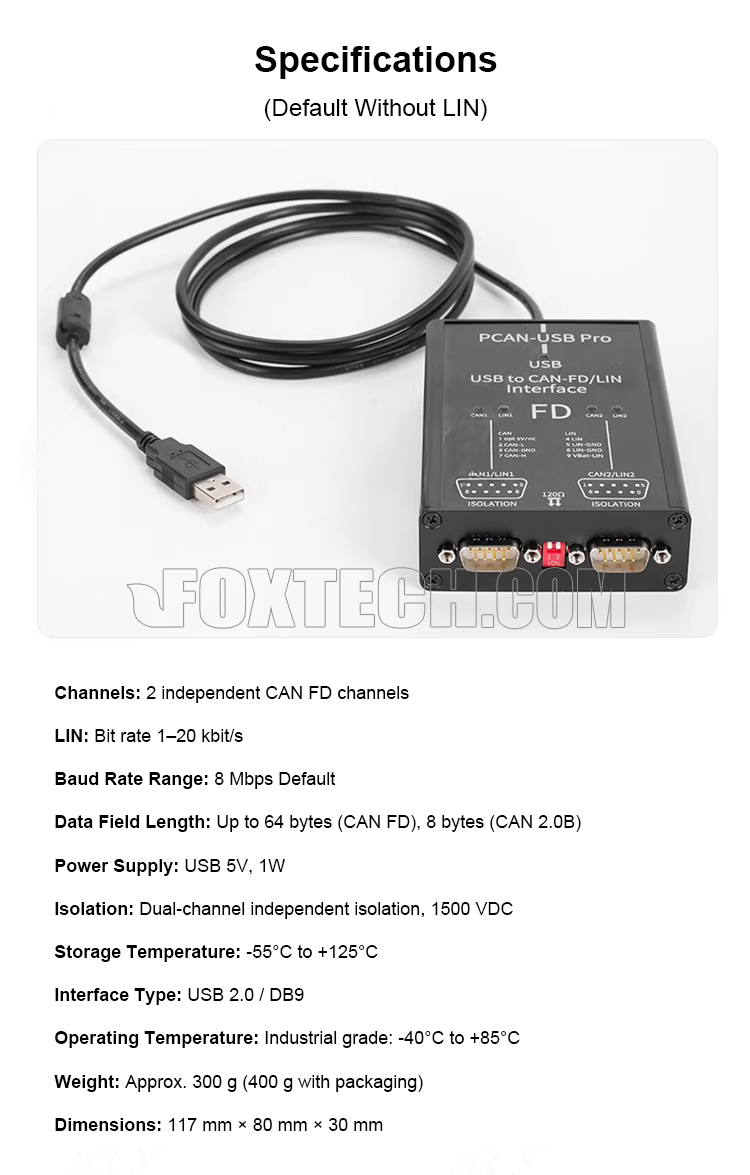

1x PCAN FD Pro Dual-Channel Adapter
1x AC/DC Adapter 100-240V 15A
1x Emergency Stop Switch
(Depth camera is optional)
