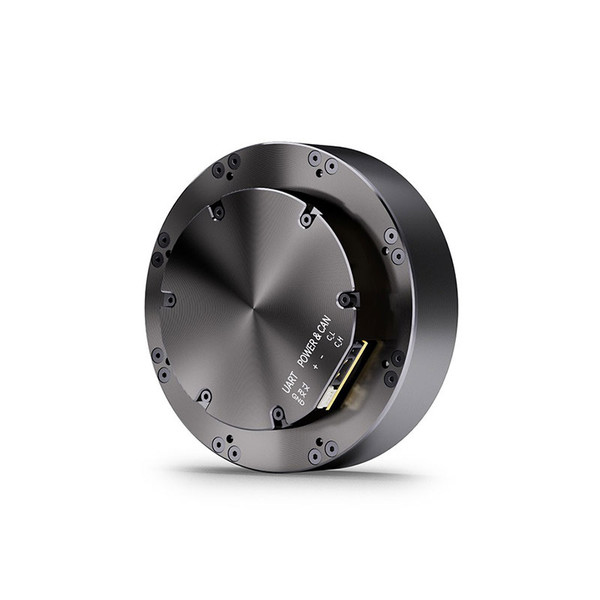

AK80-9 V3.0 KV100 Integrated Joint Motor | High-Torque Robotic Actuator
- SKU:
- 2510177
- Weight:
- 0.70 KGS
High-Dynamic Robotic Actuator for Precision Motion and Automation.

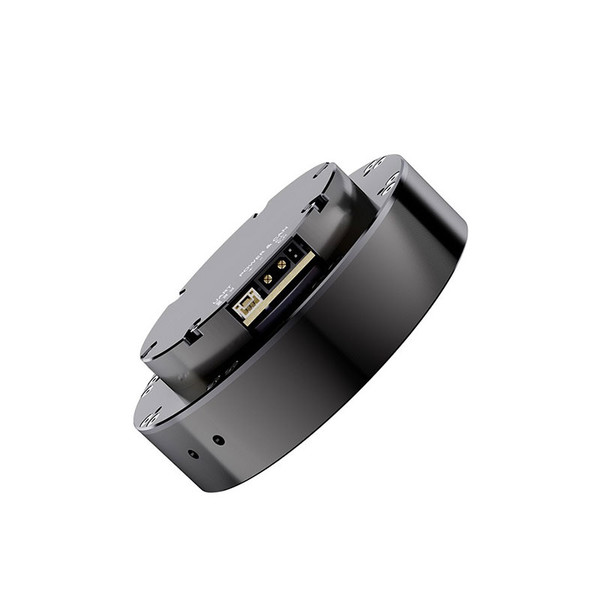

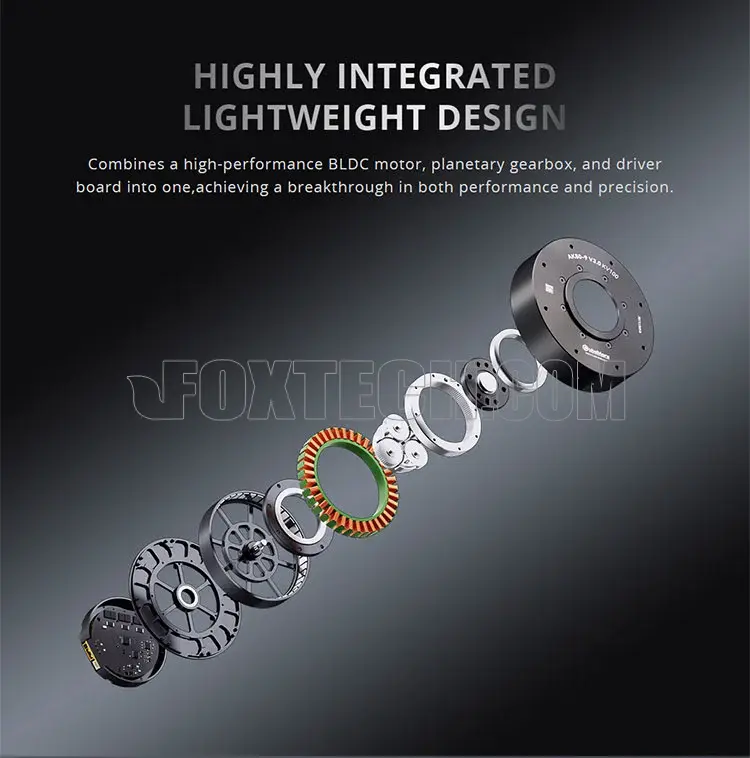

The CubeMars AK80-9 V3.0 is a highly integrated joint motor module that combines a high-performance brushless DC motor, planetary gearbox, and servo driver into one compact actuator. Engineered for robotic joints, medical devices, and industrial automation, it delivers high torque, smooth operation, and precise control for advanced motion systems.

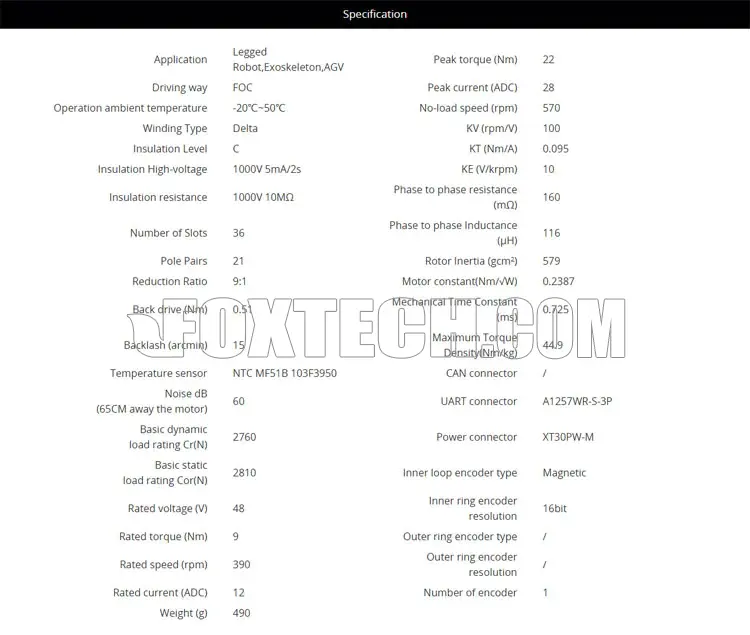

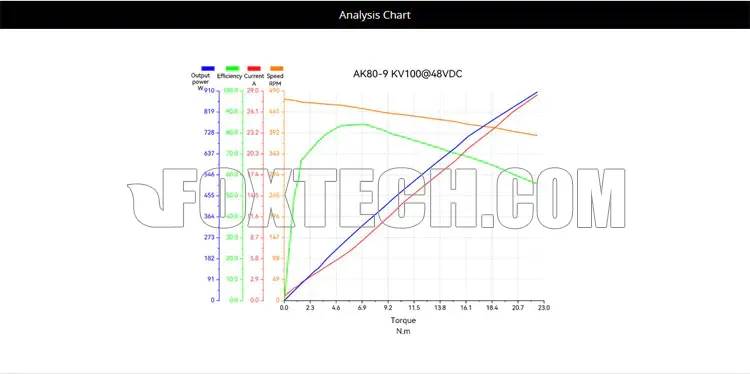

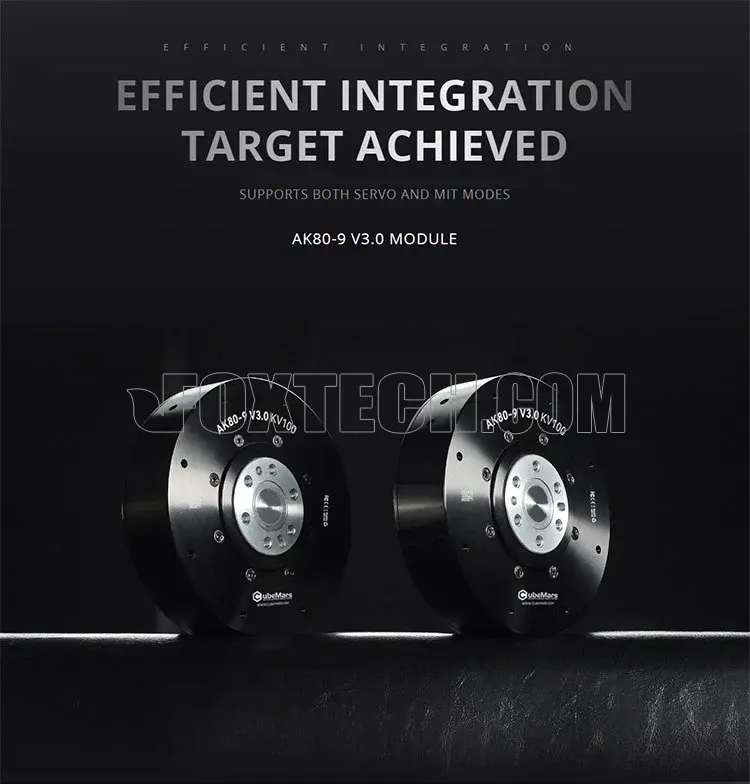

With peak torque up to 22 N·m, the AK80-9 offers exceptional torque density and dynamic response, making it ideal for applications that require fast, stable motion. The intelligent control system supports both Servo and MIT modes, achieving synchronized position, velocity, and acceleration control.
Its adaptive PID tuning and one-click parameter identification simplify setup—allowing users to achieve optimal performance without complex calibration. The result is a plug-and-play actuator that ensures accurate, efficient, and responsive motion control.
CubeMars also provides customizable joint motor modules to meet the specific requirements of robotics, automation, and scientific research.
