AKE60-8 KV80 Quasi Direct Drive Robotic Actuator
- SKU:
- 2510181
- Weight:
- 0.40 KGS
High-Precision, Lightweight Joint Motor for Exoskeletons and Robotics.

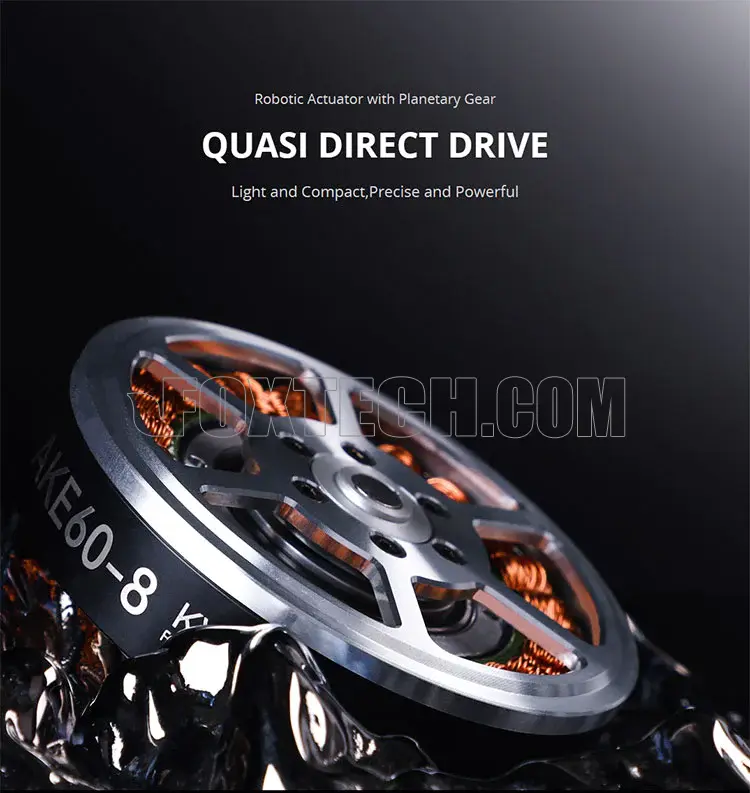

The CubeMars AKE60-8 KV80 is a quasi direct drive robotic actuator that integrates a high-efficiency motor and planetary gearbox into one compact unit. Designed for exoskeletons, bipedal robots, robotic arms, and industrial collaborative robots, it delivers high torque, low backlash, and smooth, precise motion control for next-generation robotic systems.

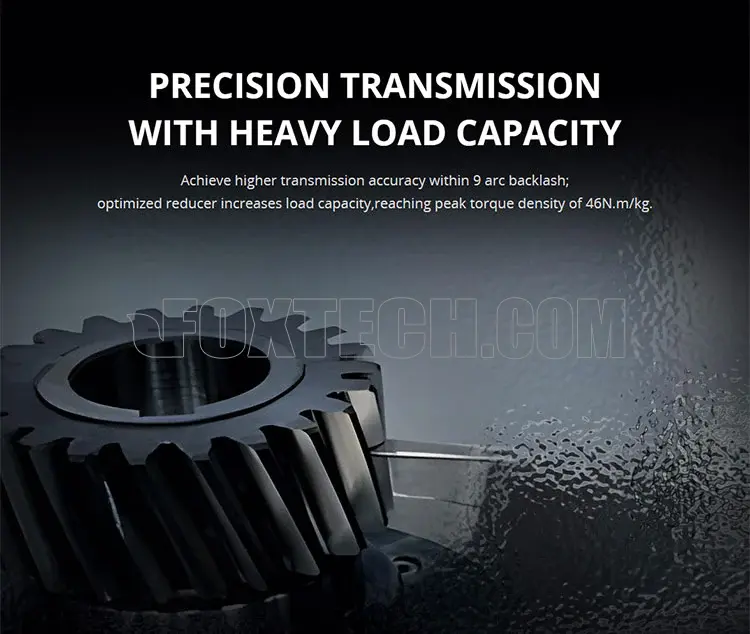

With an optimized gearbox design and manufacturing process, the AKE60-8 achieves a backlash of just 9 arcminutes and an impressive torque density of 46 N·m/kg. This results in powerful yet lightweight performance, ideal for dynamic motion and wearable robotics applications.

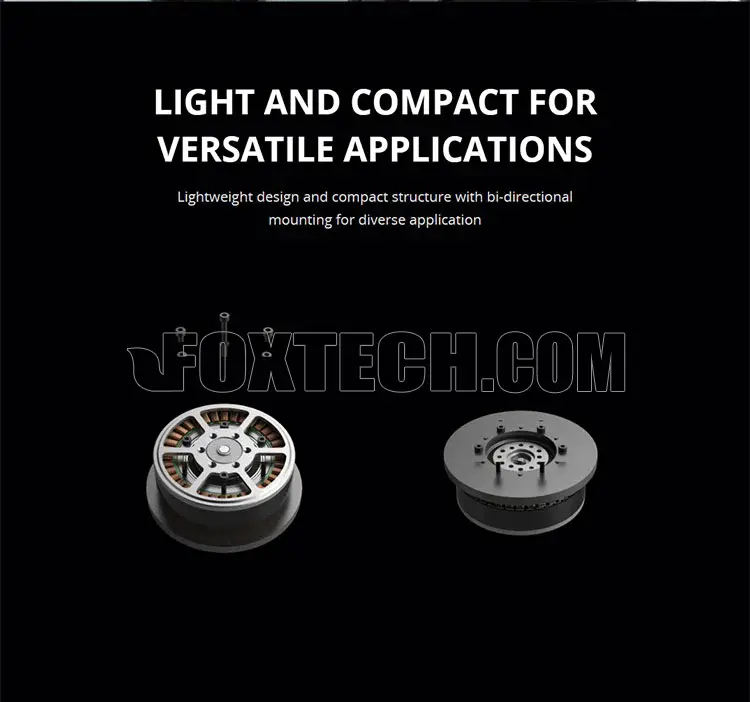

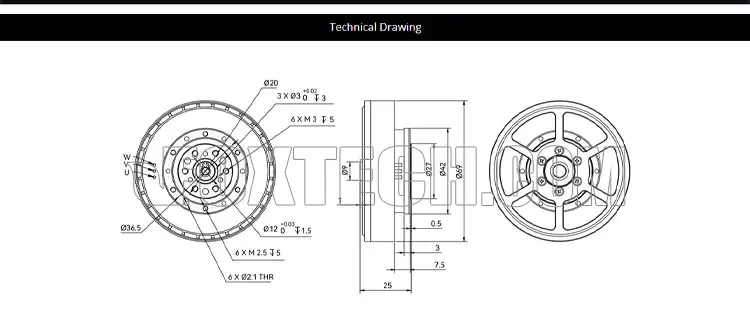

Its modular structure and bi-directional mounting design—featuring both threaded and through-hole bases—enable flexible installation, quick maintenance, and compatibility with diverse system architectures.
Built with advanced manufacturing technology and strict quality standards, CubeMars ensures consistent reliability and precision in every actuator. The AKE series represents the perfect balance between power, efficiency, and integration for modern robotic joint applications.
Features:
• Robotic Actuator with a Planetary Gear
• Flexible Installation with Bi-directional Mounting

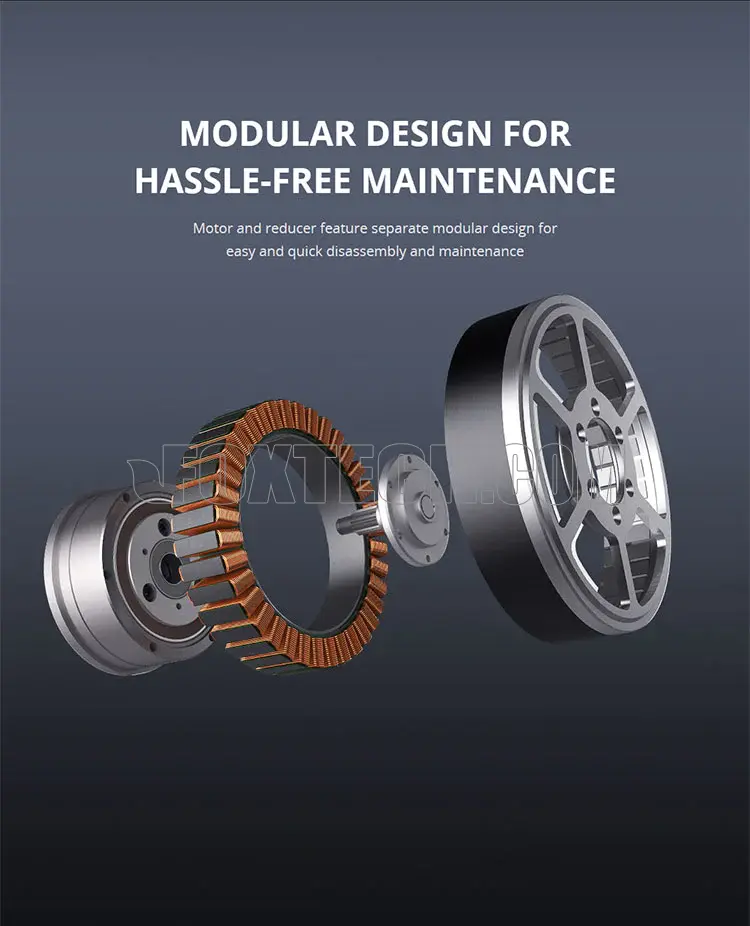

• Modular Design

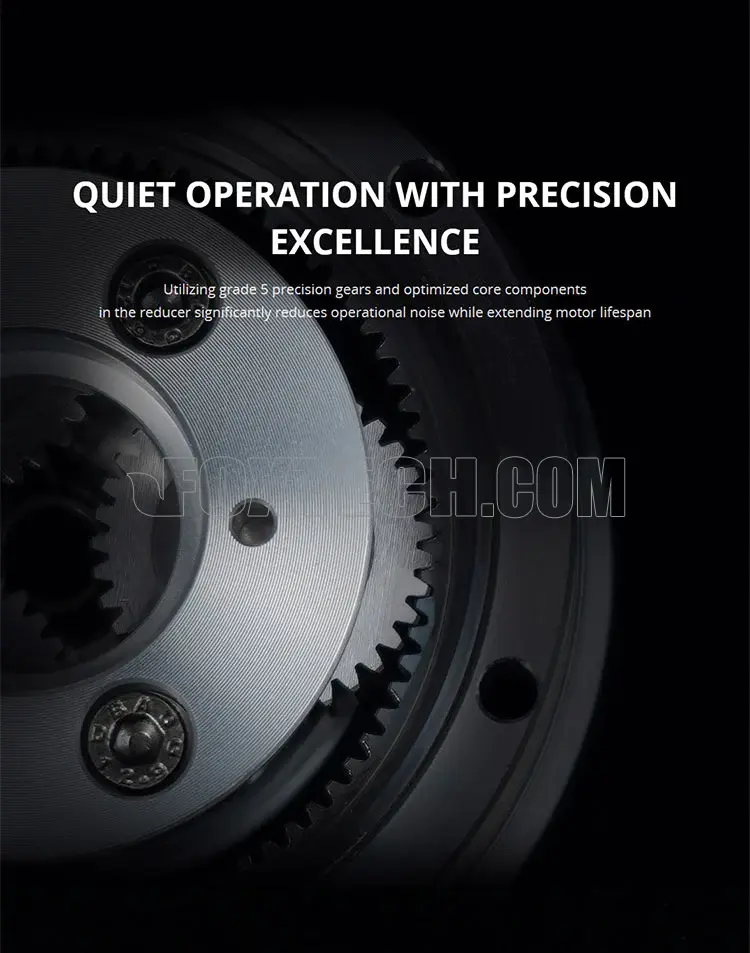

• Low Arcmin Backlash for High Precision
• Constantly Powerful Performance
• Specially for Exokseleton
