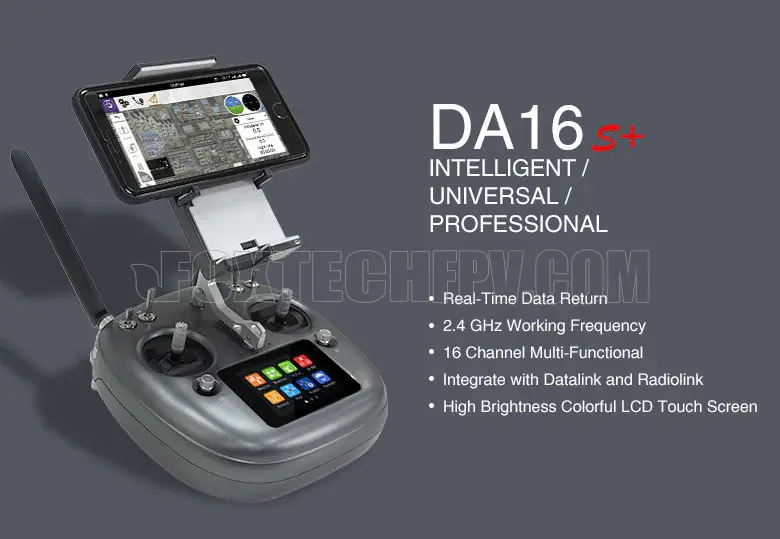

DA16S+ is a 16-Channel radio controller for VTOL and drones. DA16S+ radio controller has both datalink and radiolink built inside, and the standard range of datalink and radiolink is 8-10km. If equip the DA16S+ with RB20 signal relay, the RC range and data transmittion distance can reach 15km-30km.
The radio also has the Bluetooth function, which can send the data to your cellphone. So you can see all parameters or setting on you cellphone, also could link the radio to your laptop through USB cable, it is very convenient. It also has a high brightness colorful LCD touch screen. The DA16S+ Radio controller has a built-in lipo-battery, it can be connected through a USB cable for charging, and the endurance time is about 10 hours.

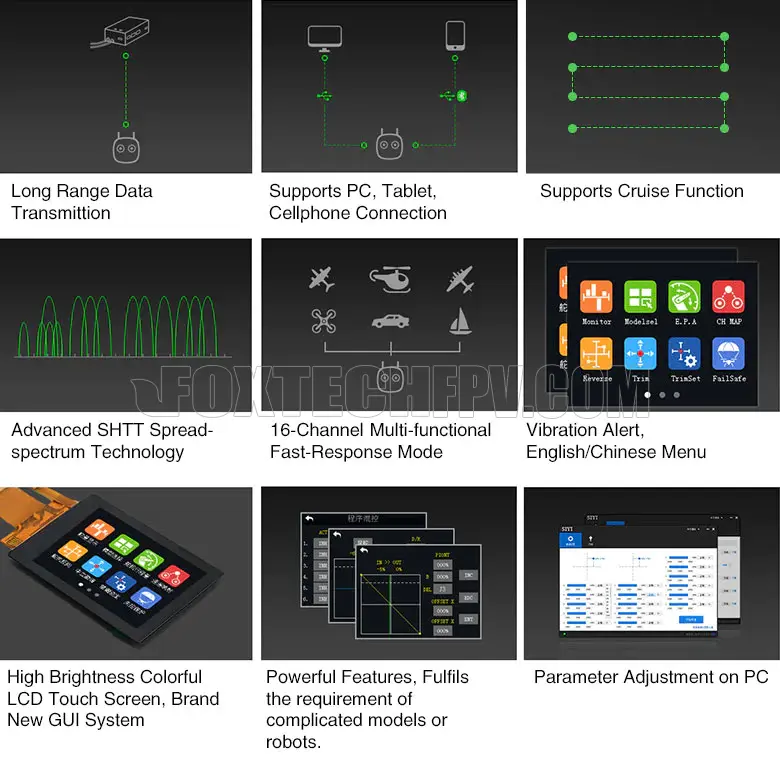

Highlights:
8km Transmission Distance
2.4 GHz Working Frequency
16 Channel Multi-Functional
Integrate with Datalink and Radiolink
High Brightness Colorful LCD Touch Screen
English/Chinese Menu
Parameter Adjustment on PC
Dual Self-Centering Dial
Customized VTOL Flying Mode
10h Endurance Time
Support Fixedwings/Multirotors/Helicopters
Your Purchase Includes:
1x Foxtech DA16S+ 16-Channel Radio Controller
Manual Download
| Transmission Distance | 8 km |
| Working Frequency | 2.4 GHz |
| Transmitting Radio Power | 27 dbm |
| Channel | 16 Channel |
| Bluetooth Pairing Password | 1234 |
| Admin Password | 8888 |
| Controller | |
| Size | 194.5*172.5*114 mm |
| Weight | 610 g |
| Battery | 4000 mAh 1S Lipo |
| Charging | Micro USB 5V 2A |
| Receiver | |
| Signal Output | 16-channel S.Bus, 9-channel PPM/PWM |
| FC Connecting Port | UART |
| Size | 51*38*14 mm |
| Weight | 22 g |
| Antenna Gain | 5 dBi |
| Working Voltage | 5 V-8.4 V |
| Working Temperature | -10℃-55℃ |
