DAMIAO
DAMIAO DM-2325 BLDC Planetary Gear Motor with Driver
- SKU:
- R2510222
- Weight:
- 1.00 KGS

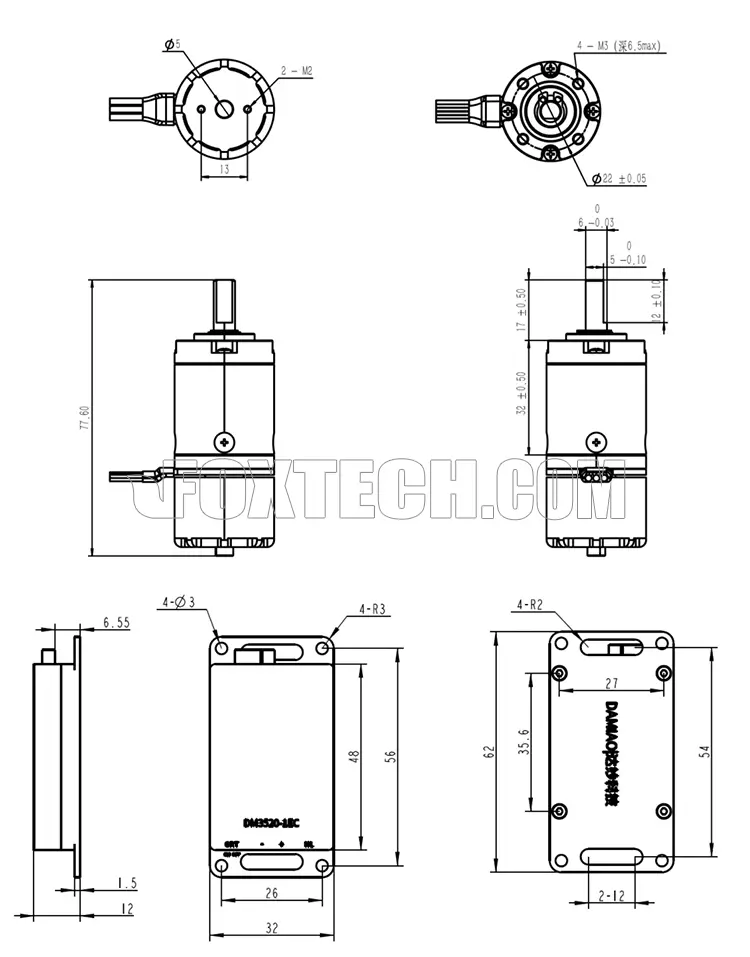

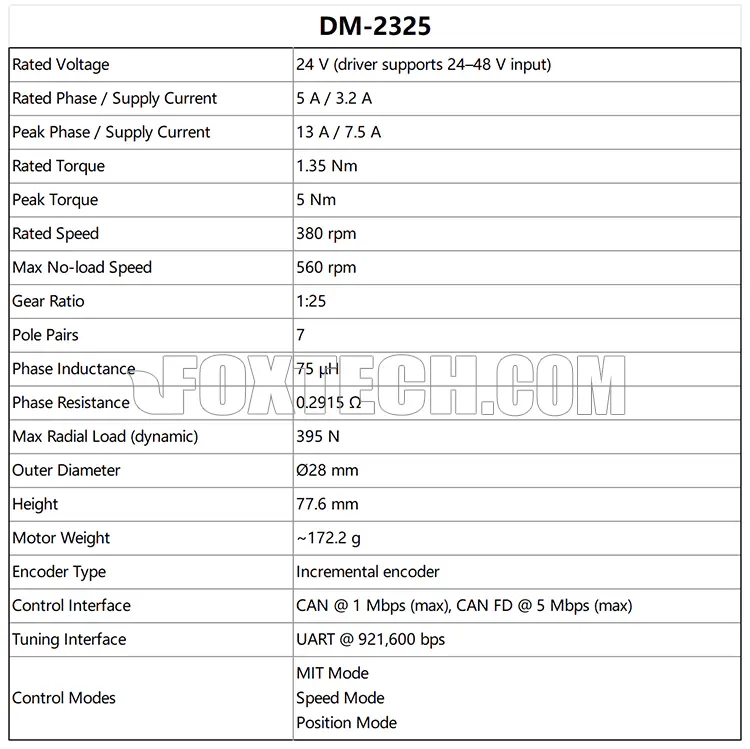

The DM-2325 is a compact 28 mm BLDC planetary gear motor paired with a matching driver for high-torque, low-speed motion in tight spaces. Running at 24 V (driver supports 24–48 V supply), it delivers 1.35 Nm rated torque and 5 Nm peak, with a rated speed of 380 rpm (no-load 560 rpm). The integrated control stack offers three control modes and CAN/CAN-FD communication for precise, responsive control, while UART (921,600 bps) is available for tuning and diagnostics. An incremental encoder provides reliable feedback, and the planetary 1:25 reducer ensures smooth output with strong load capacity (395 N max radial load).
Key Features:
Integrated motor + driver for a compact setup
Three operation modes for flexible control
Planetary reduction for high torque at low speed
Great value / cost-effective choice
Your Purchase Includes：
1xDM-2325 BLDC Planetary Gear Motor
