Eayload-150 Reliable Cargo Winch for Drone Delivery

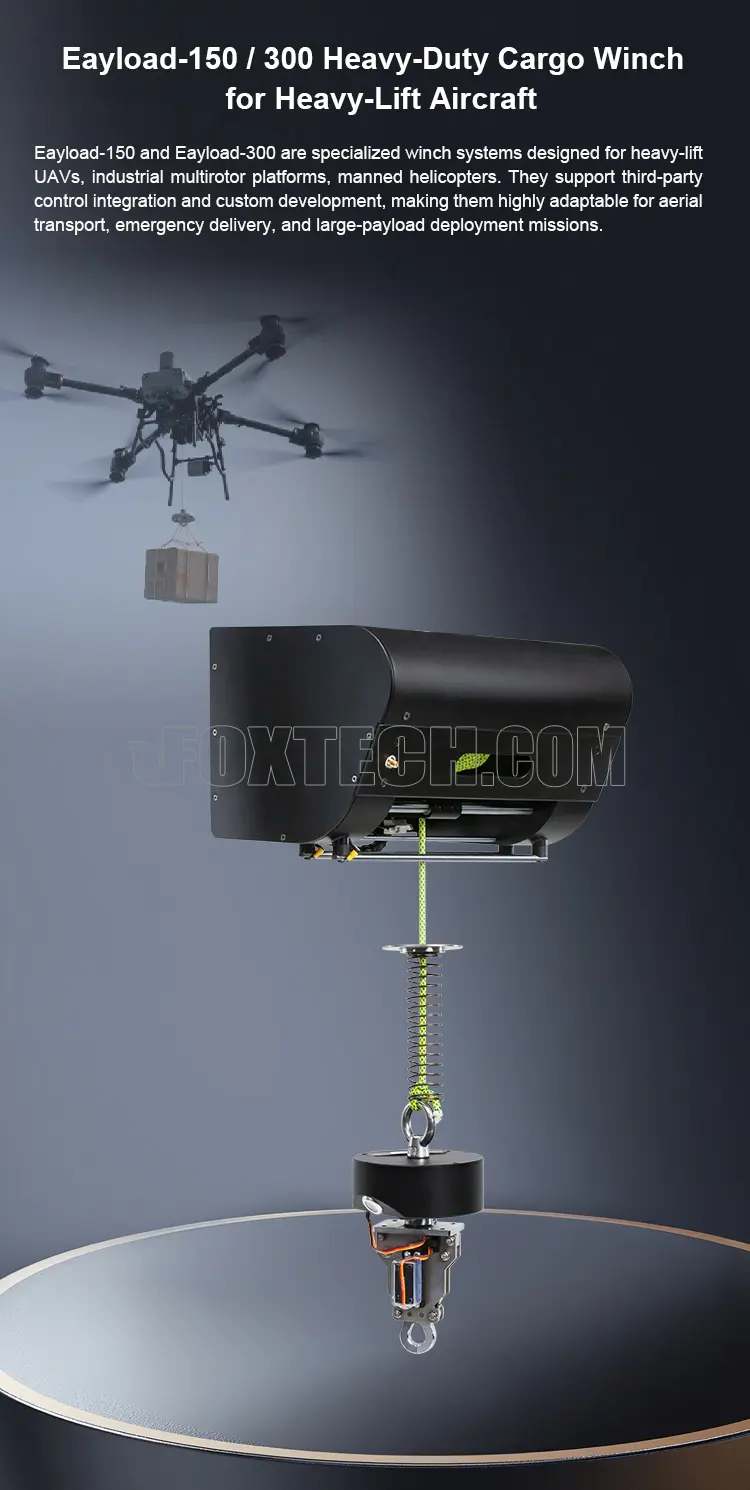

Eayload-150 is a specialized lifting device designed for heavy-lift drones and helicopters, with a maximum payload capacity of up to 150 kg. It supports third-party control integration and custom development, making it a highly adaptable solution for various drone-based transport applications.

Key Features
Electric Release System – Wireless control for precise mid-air cargo release.（Electric release hook only）
Anti-Twist Design – Prevents rope entanglement during operation.
One-Touch Cargo Release & Lift – Quick operation with ease of use.
Emergency Rope Cut-Off – Instantly severs the rope in critical situations.
Auto Hook Release upon Ground Contact – Automatically stops and releases the hook when touching down.（Electric release hook only）
Automatic Rope Management – Standard 30m cable with regulated winding.
Night Navigation Lights – Dual aviation lights for operation visibility.
Safe Stop at Top – Slows the ascent before reaching the top.

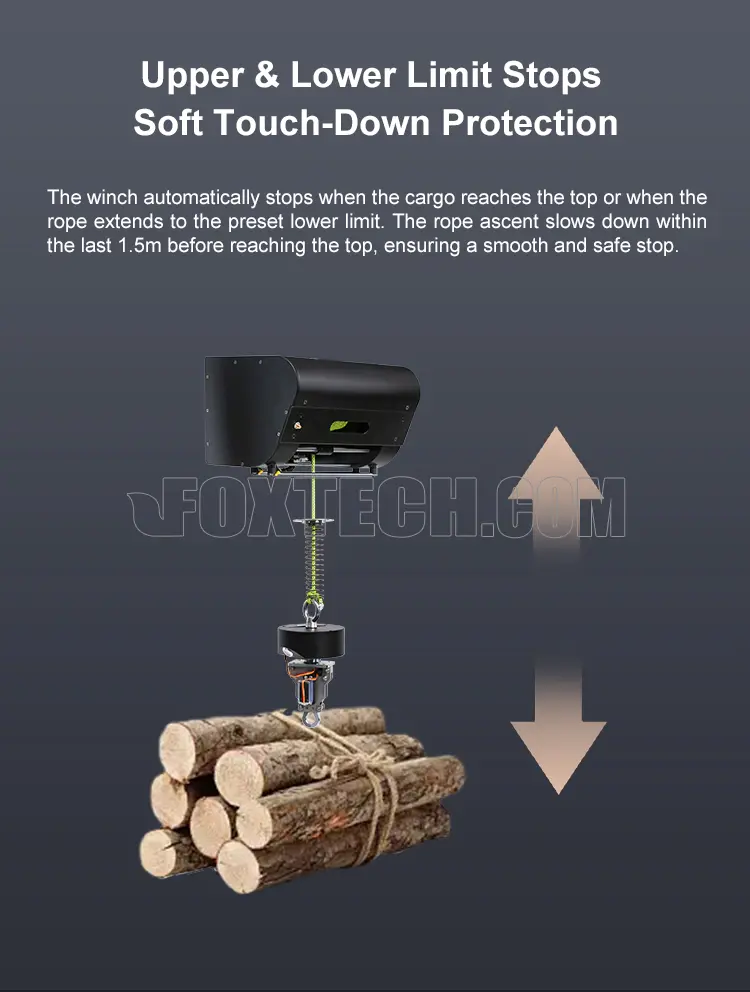

Upper & Lower Limit Stops – Automatically stops rope winding or unwinding at pre-set height limits.
Power Failure Braking – Automatically locks the winch to prevent unintended cargo drops.
Real-Time Tension Monitoring – Constantly tracks rope tension to ensure safe operation.
Swing Detection – Monitors rope sway, direction, and speed to optimize stability.

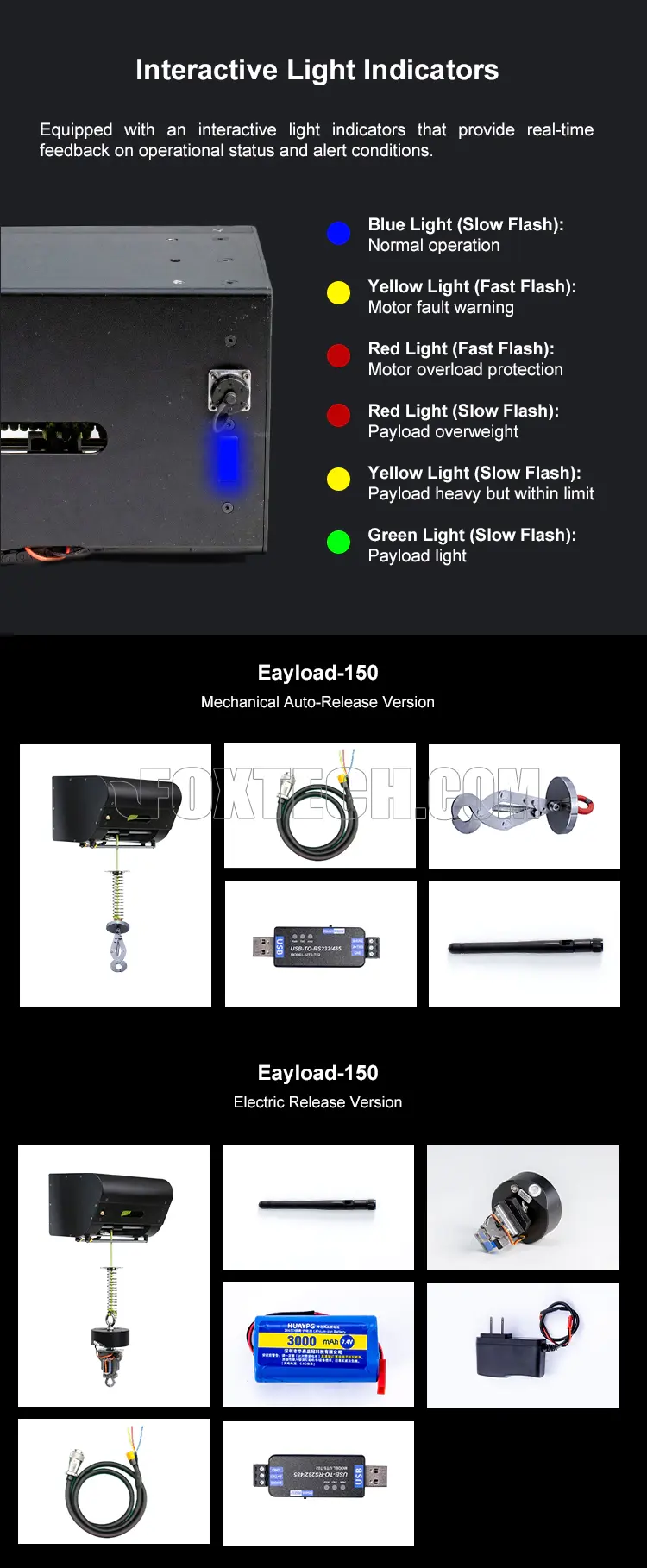

Your Purchase Includes
1x Eayload-150 Main Unit
1x Payload Release Module(Electric Release Version)
1x Electric Release Hook (Electric Release Version)
1x Upper Limit Trigger
1x Mechanical Release Hook (Mechanical Release Version)
1x User Manual
1x Certificate of Compliance
1x Battery Charger for Payload Module
1x Backup Battery for Payload Module
1x Integrated Power & Communication Cable
6x M8X20 Hex Bolts

Notes:
1. Do not use the fuse-cut function unless in an emergency. A dedicated fuse-cut test mode is available where the fuse wire is not heated; it only tests servo motor movement.
2. During actual heavy lifting tests, with the standard 30m rope, no more than 3 meters should remain inside the winch to prevent the load from being compressed onto the inner spool layers due to excessive weight.
3. To close the electric release hook properly, press the switch and wait for the servo activation sound before manually locking the hook.
