Foxtech

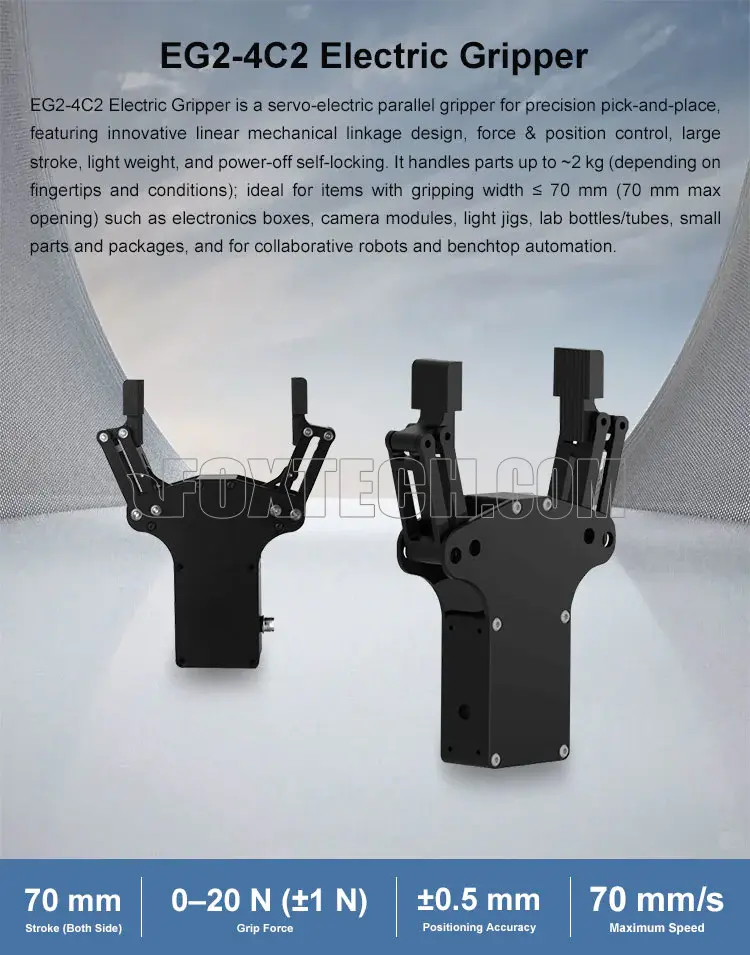

EG2-4C2 Electric Gripper for Precision Pick-and-Place
- SKU:
- 2508211
- Weight:
- 1.00 KGS

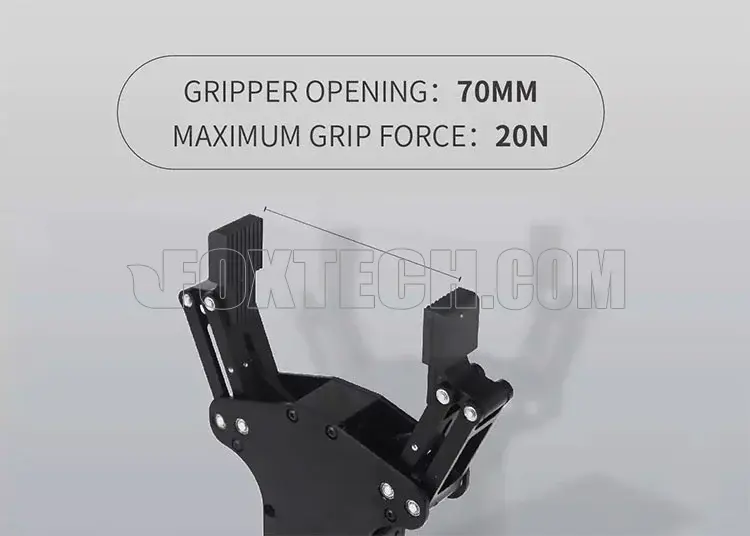

EG2-4C2 Electric Gripper is a servo-electric parallel gripper for precision pick-and-place, featuring innovative linear mechanical linkage design, force & position control, large stroke, light weight, and power-off self-locking. It handles parts up to ~2 kg (depending on fingertips and conditions); ideal for items with gripping width ≤ 70 mm (70 mm max opening) such as electronics boxes, camera modules, light jigs, lab bottles/tubes, small parts and packages, and for collaborative robots and benchtop automation.

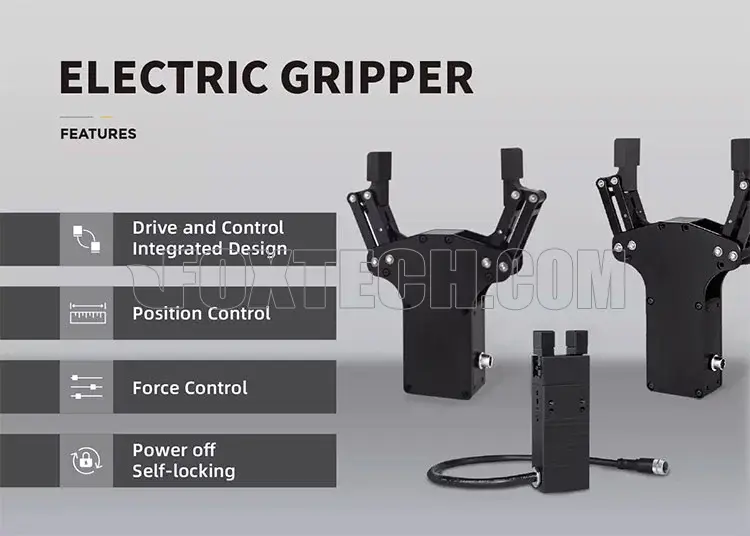

Key Features
Innovative linear mechanical linkage design
Force and position control
Large stroke
Light weight
Power-off self-locking
Your Purchase Includes：
1x EG2-4C2 Electric Gripper
