Specification:

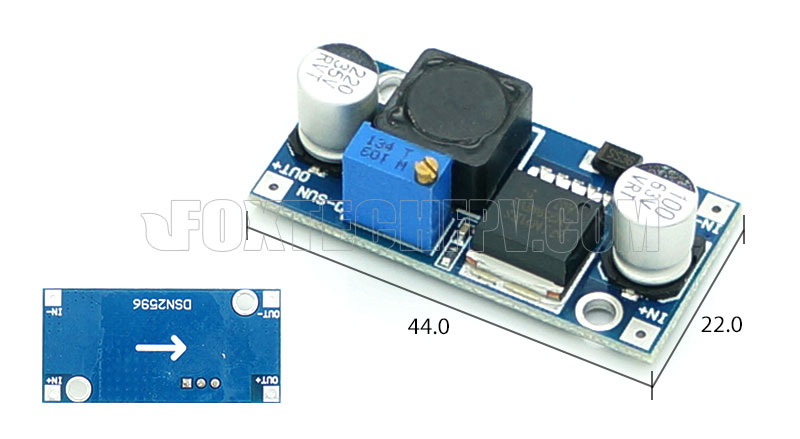

Dimension: 44x22mm
Voltage input: 4.5V-60V
Voltage output: 3V-35V(Continuously adjustable.Suggest no-load debugging)
Current output: Rated current is 2A,Maximum 3A
Conversion efficiency: 92%(Highest)
Load regulation: ±0.1%
Voltage regulation: ± 0.5%
Operating temperature: Industrial (-40 ℃ to +85 ℃)
Static power consumption is only about 6mA
Your Pruchase Includes:

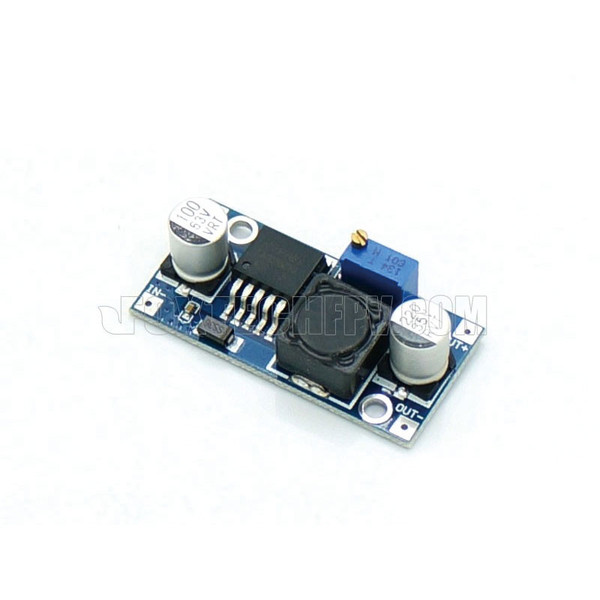

1x FOXTECH Heavy Duty Regulator Naked HV
Related Products
Foxtech
Foxtech 3DM V4 Oblique Camera
Foxtech 3DM V4 is an ultra-light, small size and easy-to-use 3D modeling oblique camera with total 120 mega pixels, which can be used to generate high-precision orthophoto maps and digital elevation...
Foxtech
FOXTECH 3DM V3 Oblique Camera for Mapping and Survey
Note: The 3DM V3 is equipped with the Sony α5100 camera module, which is a discontinued model. All modules are sourced from the second-hand market, and as a result, the shutter count may vary...
Foxtech

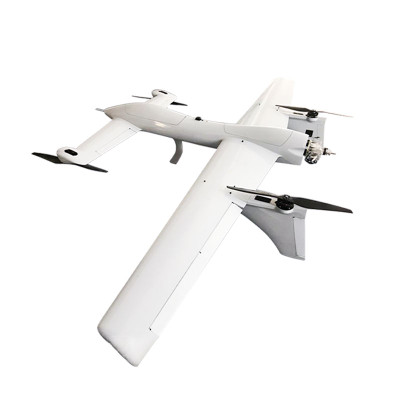

Foxtech REX 340 Canard Hybrid VTOL Drone
