Foxtech 8.4V 7A HV BEC with 1500Vdc high I/O isolation voltage and 88% conversion efficiency features small size and low noise. It supports an input voltage between 36V-72V, and 8.32V-8.48V output voltage. It can be used for fixed-wing VTOL UAVs such as Great Shark 330, AYK-250 etc.
Foxtech 8.4V 6A/12V 4A HV BEC has a 1500Vdc high I/O isolation voltage and 85% conversion efficiency. It supports 8.4V&12V dual output from 36V-72V input. With short-circuit protection, it is much safer for the device.
Foxtech 12V 10A HV BEC has 1500Vdc high I/O isolation voltage, 88% conversion efficiency and 20MHz low noise. It supports 36V-72V input, and delivers to 12V output. With short-circuit protection, it is much safer for the device.
Foxtech 12V 6A/24V 3A HV BEC has 1500Vdc high I/O isolation voltage and 85% conversion efficiency. It supports 12V&24V dual output from 36V-72V input. With short-circuit protection, it is much safer for the device.
Foxtech 24V 5A HV BEC has 1500Vdc high I/O isolation voltage, 88% conversion efficiency and 20MHz low noise. It supports 36V-72V input voltage, and delivers to 24V output voltage. With short-circuit protection, it is much safer for the device.
| 8.4V 7A | |
| Output voltage | 8.4 V |
| Input voltage | 36 V-72 V |
| Output power | 60 W |
| Max output current | 7 A |
| Size | 60*50.8*19 mm (L*W*H) |
| Working temperature | -40℃~ +85℃ |
| Weight | 90 g |
| Wire length | 300 mm |
| 8.4V 6A/12V 4A | |
| Output voltage 1 | 8.4 V |
| Output voltage 2 | 12 V |
| Input voltage | 36 V-72 V |
| Output power | 100 W |
| Max output current 1 | 6 A |
| Max output current 2 | 4 A |
| Size | 81.5*68*17 mm (L*W*H) |
| Working temperature | -40℃~ +95℃ |
| Weight | 200 g |
| Wire length | 300 mm |
| 12V 10A | |
| Output voltage | 12 V |
| Input voltage | 36 V-72 V |
| Output power | 120 W |
| Max output current | 10 A |
| Size | 68*50*17 mm (L*W*H) |
| Working temperature | -40℃~ +95℃ |
| Weight | 200 g |
| Wire length | 300 mm |
| 12V 6A/24V 3A | |
| Output voltage 1 | 12 V |
| Output voltage 2 | 24 V |
| Input voltage | 36 V-72 V |
| Output power | 150 W |
| Max output current 1 | 6 A |
| Max output current 2 | 3 A |
| Size | 81.5*68*17 mm (L*W*H) |
| Working temperature | -40℃~ +95℃ |
| Weight | 200 g |
| Wire length | 300 mm |
| 24V 5A | |
| Output voltage | 24 V |
| Input voltage | 36 V-72 V |
| Output power | 120 W |
| Max output current | 5 A |
| Size | 68*50*17 mm (L*W*H) |
| Working temperature | -40℃~ +95℃ |
| Weight | 200 g |
| Wire length | 300 mm |
Related Products
Hobbywing
XRotor 40A ESC(no BEC)
Features:-Multirotor professional programme, very quick throttle response speed, surpass all kinds of open source software-Specially designed for disc motor optimized firmware, has excellent...
Diamond Battery

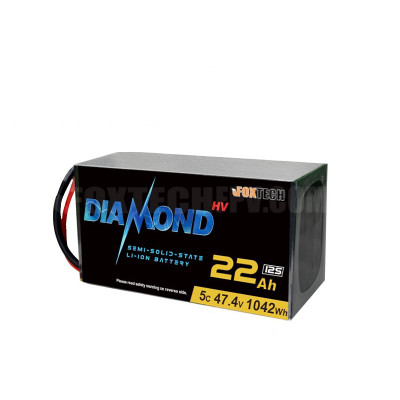

Diamond 4.45V Series Semi-solid-state Li-ion battery 12S 20000 mAh~38000 mAh
