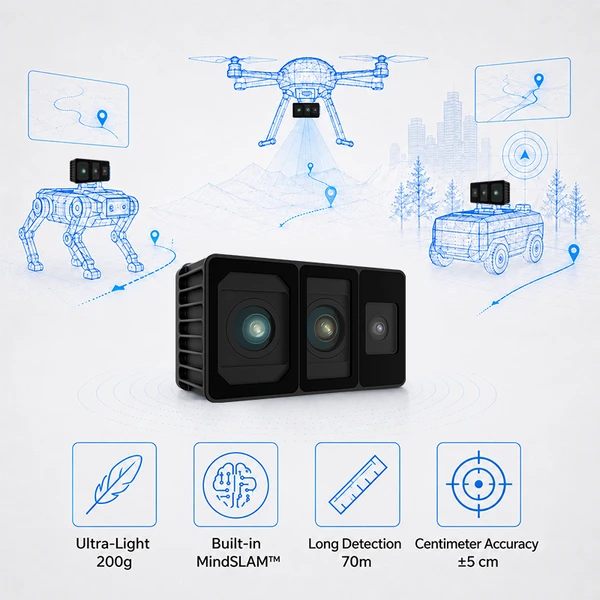

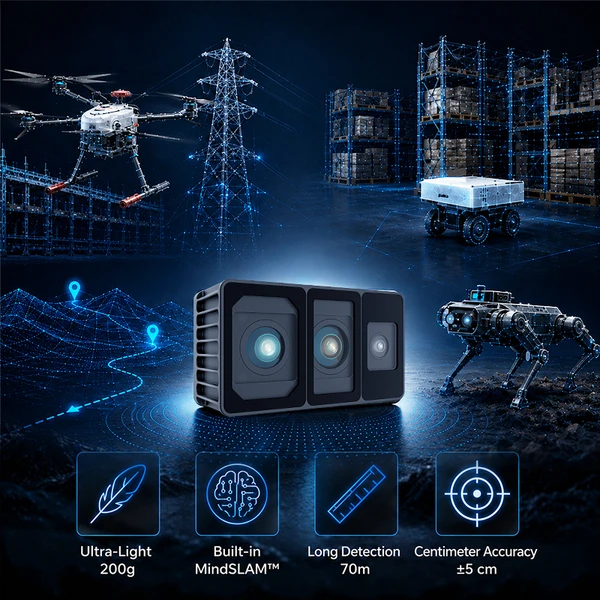

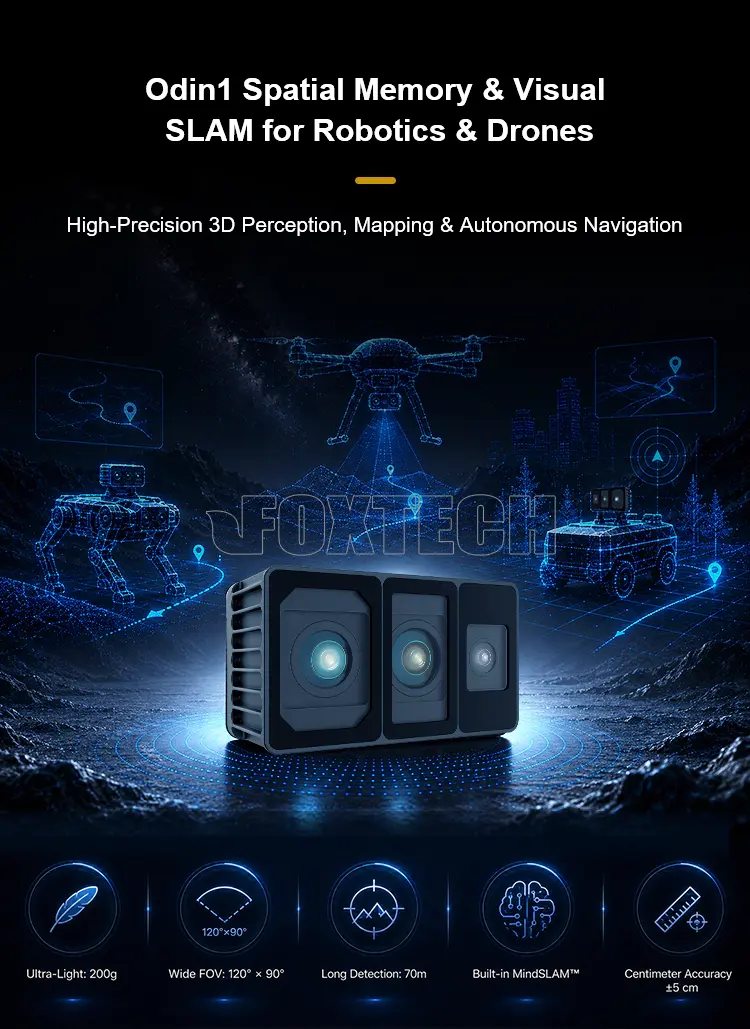

LiDAR & RGB 3D Perception, SLAM Navigation for Robots & Drones – Odin1 Spatial Memory Module

Product Description:
The Odin1 spatial memory module combines LiDAR and vision sensors with the built-in MindSLAM™ high-performance fusion SLAM algorithm, delivering real-time, high-precision 3D perception, mapping, and localization. It enables machines to not only "see" their environment, but also understand, remember, and navigate it intelligently, with persistent spatial memory akin to a brain’s hippocampus.

Ideal for:

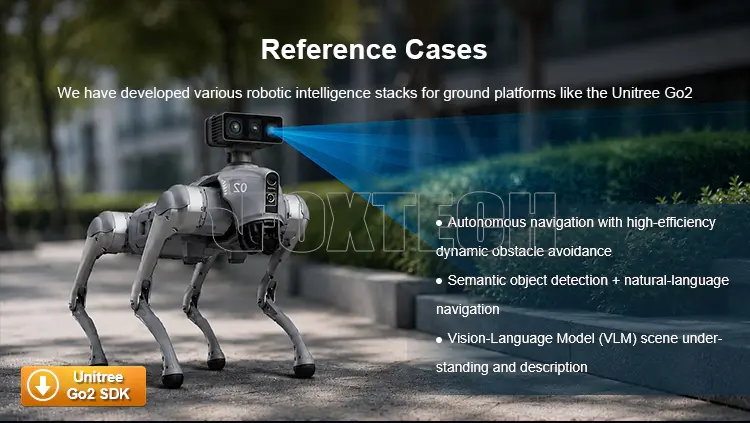

Autonomous Robots: Warehouse, service, and agricultural robots requiring stable navigation and path planning.
UAV Inspection & Surveying: Drones performing bridge inspection, building facade checks, or powerline monitoring in GPS-denied or degraded environments.
Intelligent Edge Devices: Any platform needing fast, reliable deployment of advanced 3D perception and navigation capabilities.

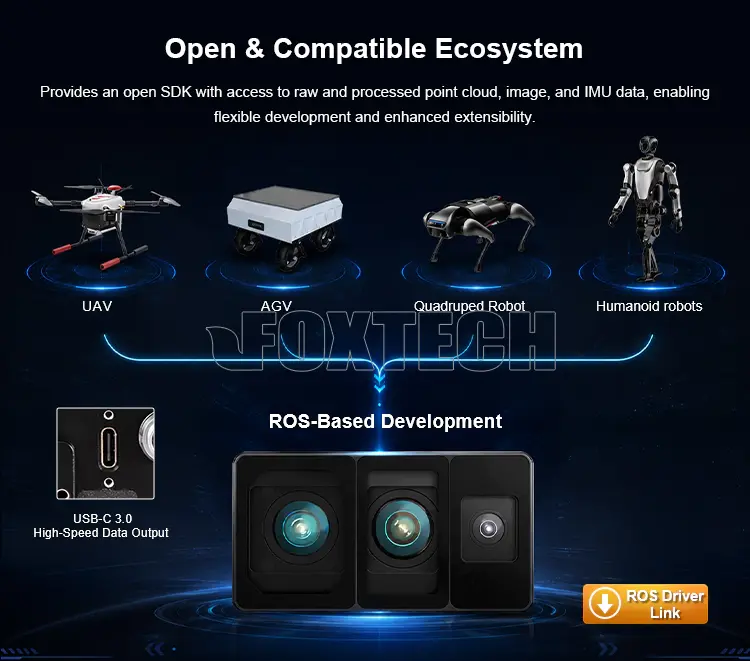

SDK Link:
Odin_ROS_Driver
Odin_Nav_Stack

Product Description:
Odin1 enables fast integration, stable operation, and intelligent navigation in diverse environments, empowering robots and drones with human-like spatial awareness and memory.

Key Advantages:
Accurate 3D Mapping: Deep fusion of LiDAR and camera data ensures stable mapping and precise positioning, even in complex indoor and outdoor environments.
High-Resolution Sensing: Long-range depth sensing (up to 70m at 90% reflectivity), ultra-wide field of view (120° × 90°), and high-density point clouds (up to 700,000 points/sec) support detailed 3D reconstruction and obstacle detection.
Robust SLAM Performance: Centimeter-level global positioning accuracy (±5 cm), ultra-high pose update rate (up to 1000 Hz), reliable operation in low light, reflective surfaces, or water environments.
Edge-Friendly: Outputs maps and trajectories directly, reducing onboard computation requirements for faster integration.

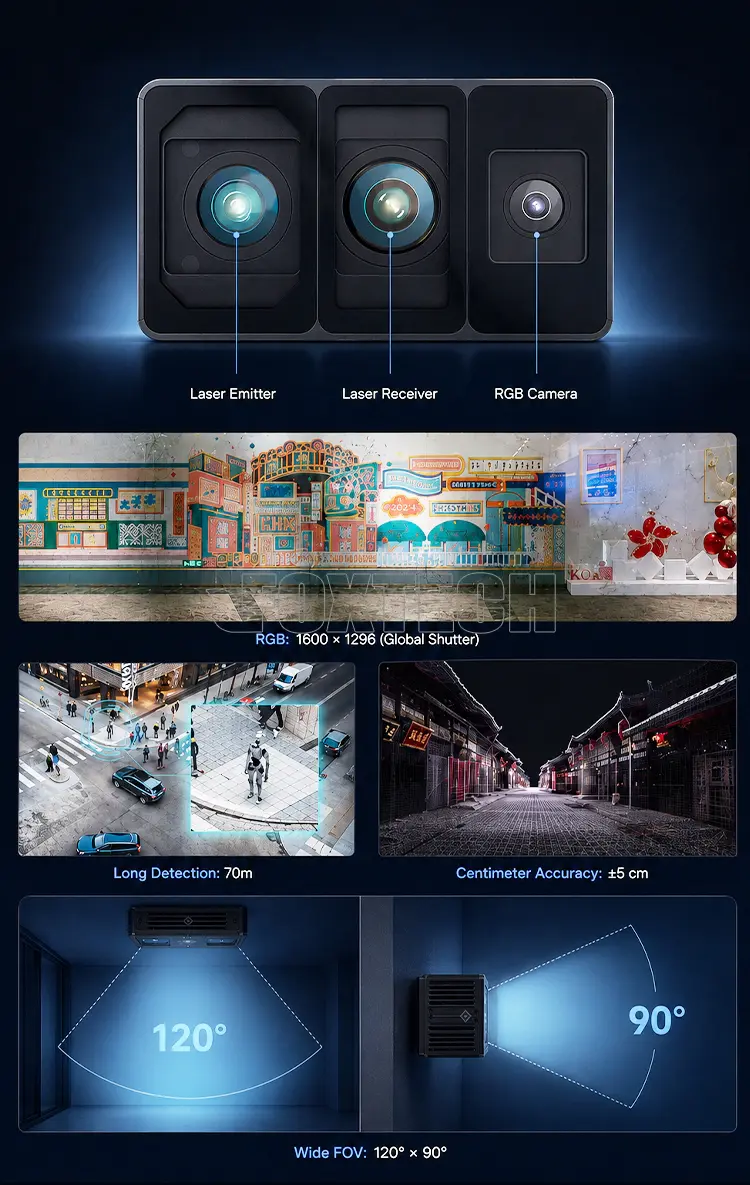

Advanced Spatial Perception (3D Vision & Mapping)
Empower your system with high-precision environmental awareness beyond traditional RGB-D cameras.

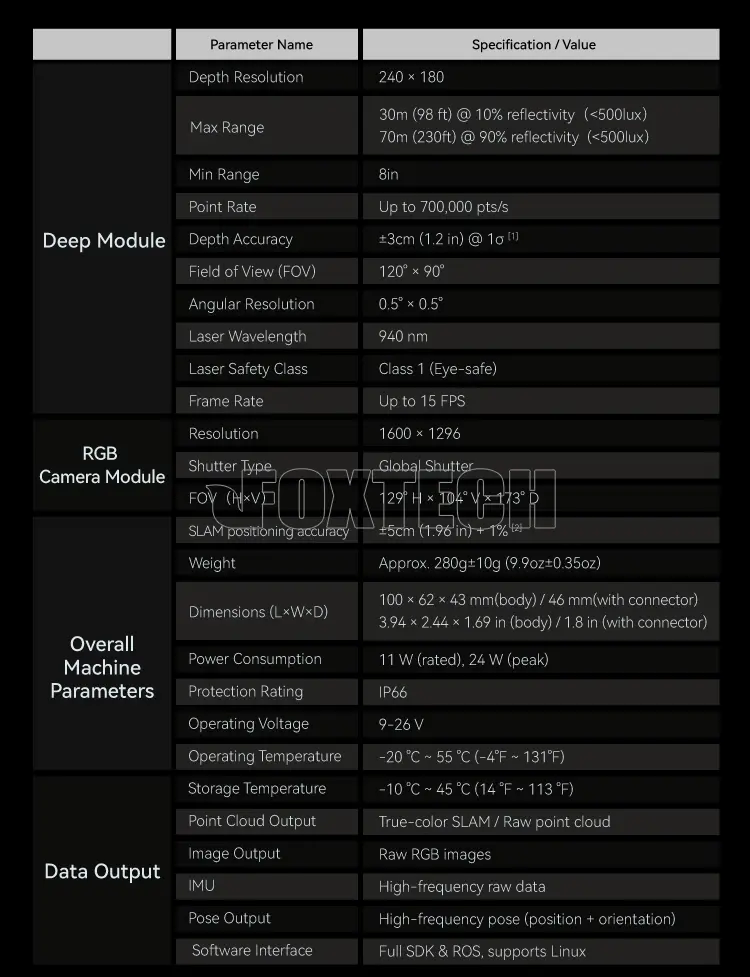

- Long-Range Depth Sensing: Up to 70m (90% reflectivity) / 30m (10% reflectivity)
- Ultra-Wide Field of View: 120° × 90° FOV for broader coverage and fewer blind spots

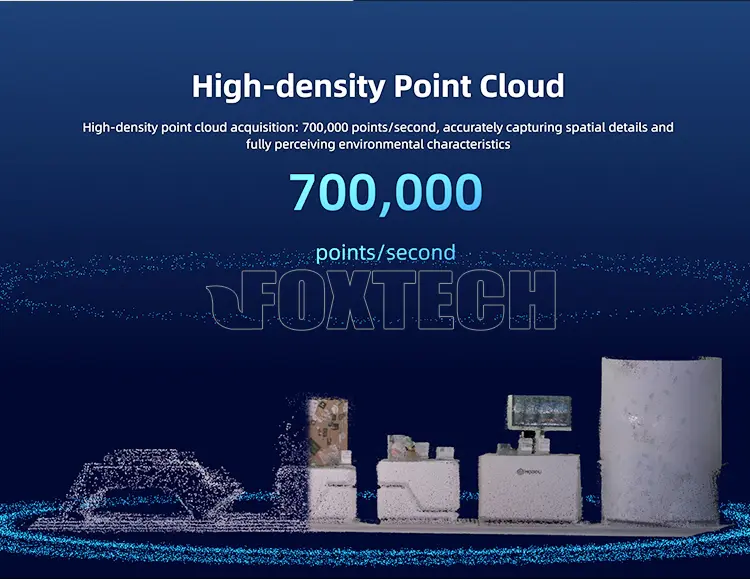

- High-Density Point Cloud: Up to 700,000 points/sec for detailed 3D mapping
- High-Resolution Capture:
Depth: 240 × 180
RGB: 1600 × 1296 (Global Shutter)
-Enables high-fidelity 3D reconstruction, environment mapping, and obstacle detection

Persistent Spatial Memory (SLAM & Localization)
Transform machines with human-like spatial cognition and navigation capabilities.
- Built-in MindSLAM™ high-performance fusion SLAM algorithm
- Centimeter-Level Accuracy: ±5 cm global positioning precision
- Ultra-High Pose Update Rate: Up to 1000 Hz
- Robust in Complex Environments: Works reliably in low light, reflective surfaces (glass), and water scenes
- Edge Computing Offload: Outputs trajectory and map directly, reducing onboard computation load

Your Purchase Includes:

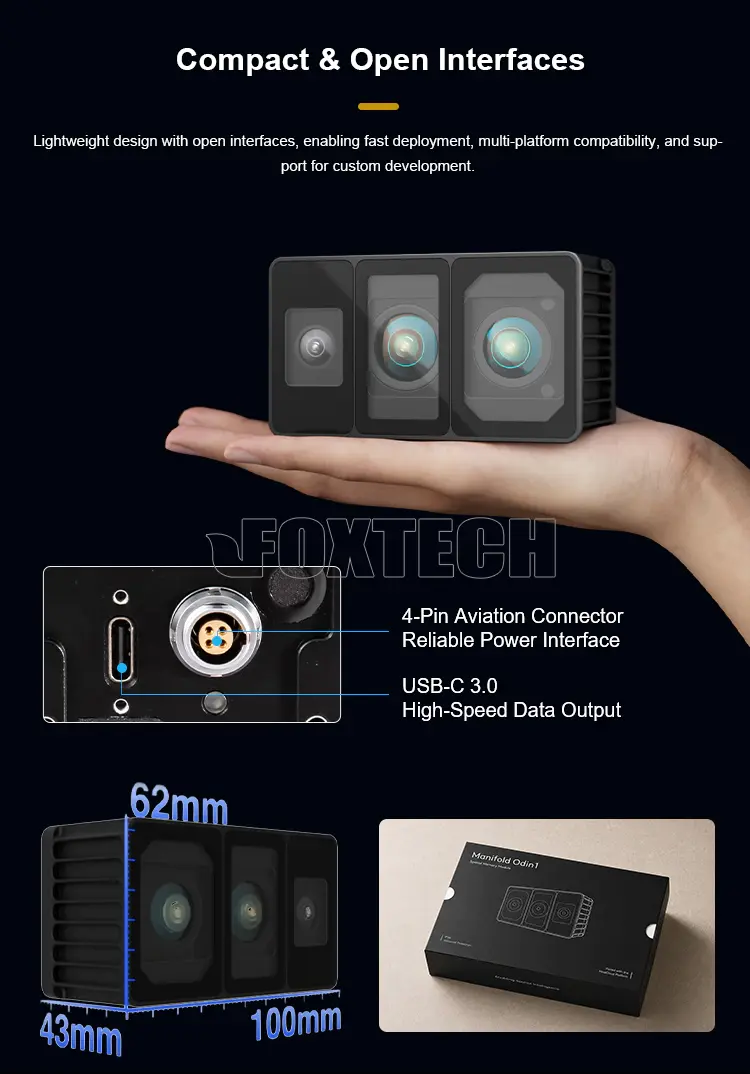

1x Odin1 Spatial Memory Module
1x Power Cable
1x Signal Cable
