RDD-2/100/100A/120 Payload Release and Drop Device

The RDD Series payload release systems are designed for multi-role drone applications such as emergency rescue, material delivery, power line deployment, and firefighting. With high-performance multi-channel release capabilities and seamless integration with DJI flight platforms, the RDD series offers reliable, flexible, and efficient solutions for aerial delivery missions. The product lineup supports a range of payload capacities, from lightweight to heavy-duty scenarios, meeting the needs of various industries.

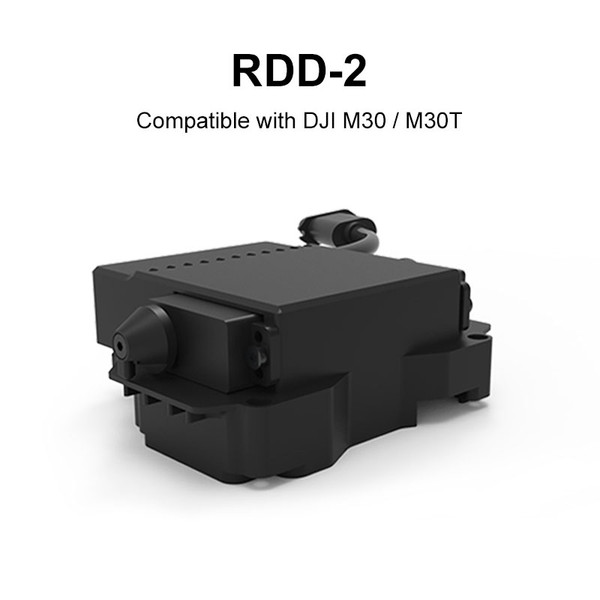

RDD-2
A compact dual-channel release module compatible with DJI M30/M30T drones. Developed based on the DJI PSDK framework, it integrates seamlessly with the Pilot2 software. Each channel is driven by a high-performance digital servo with a maximum payload of 2kg. The unique slanted sliding hook design minimizes device volume without requiring any drone modification. Features include a manual hook button for quick on-site operation and a reserved interface for warning light integration. Ideal for light-duty delivery and emergency scenarios.

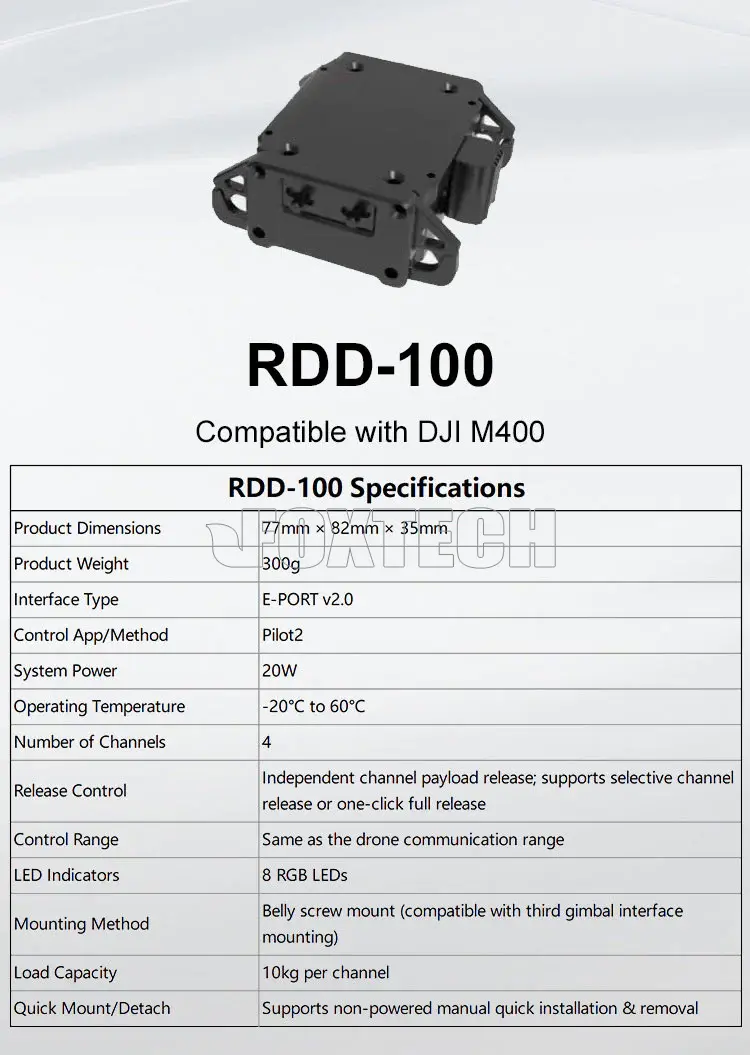

RDD-100
RDD-100 is a 4-channel payload release & drop device for DJI drones with E-PORT V2.0, compatible with Pilot2 for auto-recognition and plug-and-play use. One-step installation, easy operation. It supports independent multi-channel release with selectable channel numbers, and integrates adjustable RGB warning lights for emergency response, firefighting payload drops, supply delivery, and power line stringing.

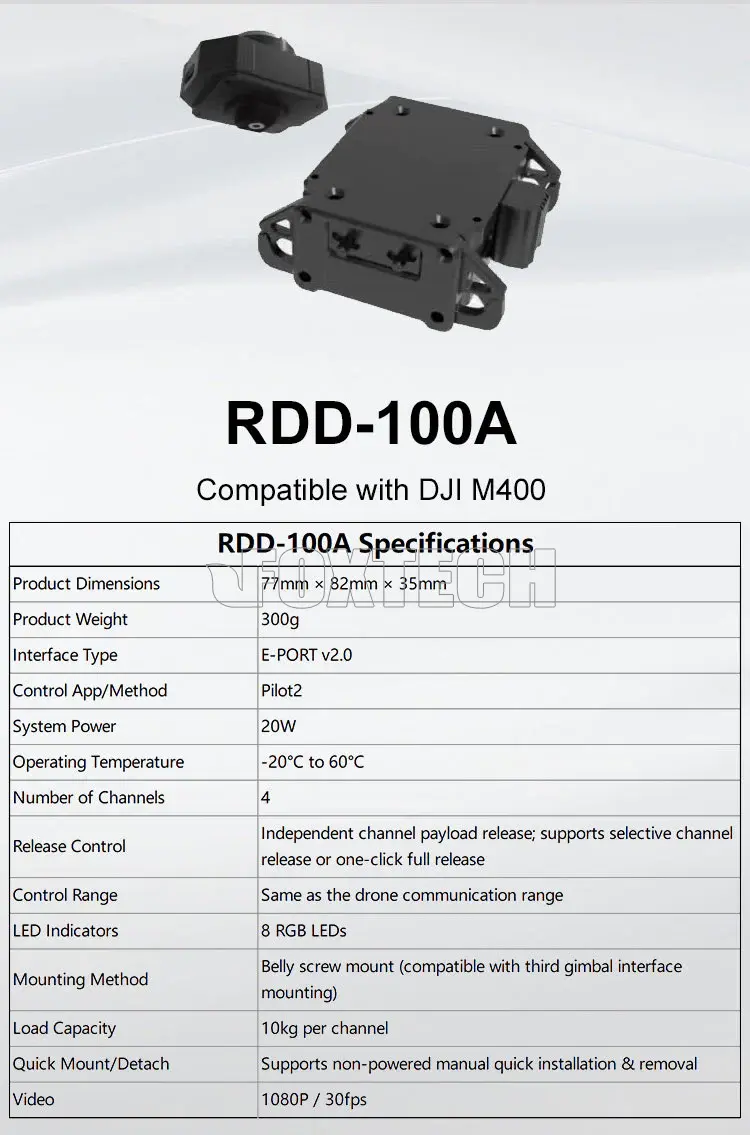

RDD-100A
RDD-100A is a visual modular payload release system for DJI drones with E-PORT V2.0, compatible with Pilot2 for auto-recognition and plug-and-play use. It includes a Video Capture Module + 4-Channel Release Module, streaming the downward view to the remote for more accurate drops. Independent multi-channel release with selectable channel numbers, plus adjustable RGB warning lights for multi-scenario operations such as emergency response, firefighting, supply delivery, and line stringing.

RDD-120
A heavy-duty four-channel release system built for DJI FC30 drones. Each release module can handle up to 30kg, with a total system capacity of 120kg. Payloads are released sequentially to maintain flight stability and precision. This model is ideal for large-scale material delivery, fire suppressant deployment, power line tasks, and other high-load operations.

Note:
All payload capacities listed refer to the maximum load capacity of each individual RDD release module. These values do not represent the payload capacity of the DJI drone itself. Please ensure that the total mounted weight does not exceed the rated payload limit of your drone platform.

Your Purchase Includes
RDD-2
1 × Dual-Channel Payload Release Unit
1 × Packaging Box
12 × Payload Release Hook Rings
1 × Certificate of Conformity

RDD-100
1× 4-Channel Payload Release Device
1× Carrying Case
20× Steel Wire Rings for Drop Hooks
1× Certificate of Conformity
1× Screw & Mounting Kit

RDD-100A
1× 4-Channel Payload Release Device
1× Video Capture Module
1× Carrying Case
20× Steel Wire Rings for Drop Hooks
1× Certificate of Conformity
1× Screw & Mounting Kit

RDD-120
1 × Payload Release Unit
10 × Screws
1 × Screwdriver
1 × Packaging Box
1 × Certificate of Conformity
