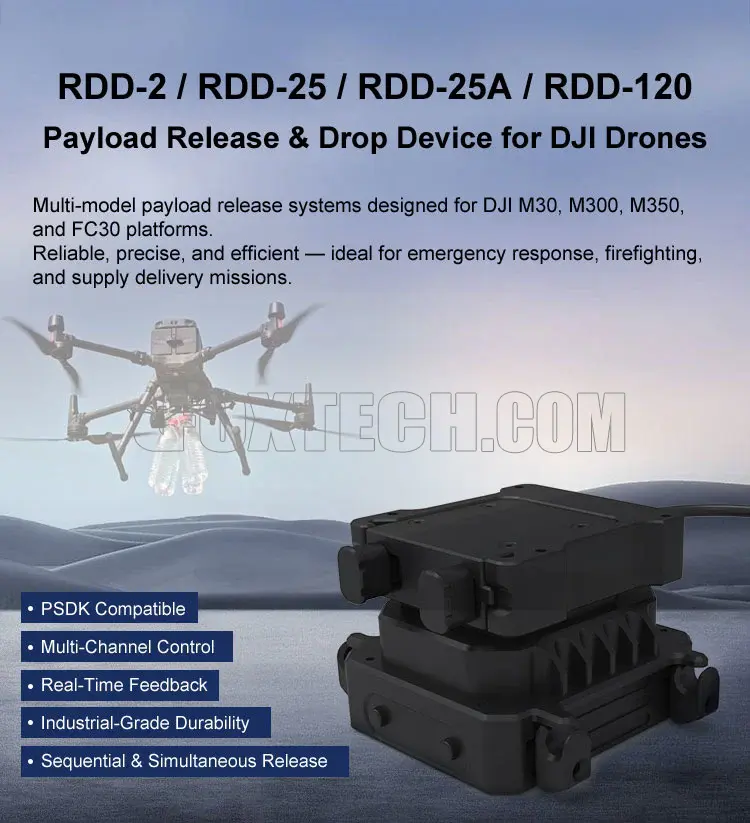

RDD-2/25/25A/120 Payload Release and Drop Device

The RDD Series payload release systems are designed for multi-role drone applications such as emergency rescue, material delivery, power line deployment, and firefighting. With high-performance multi-channel release capabilities and seamless integration with DJI flight platforms, the RDD series offers reliable, flexible, and efficient solutions for aerial delivery missions. The product lineup supports a range of payload capacities, from lightweight to heavy-duty scenarios, meeting the needs of various industries.

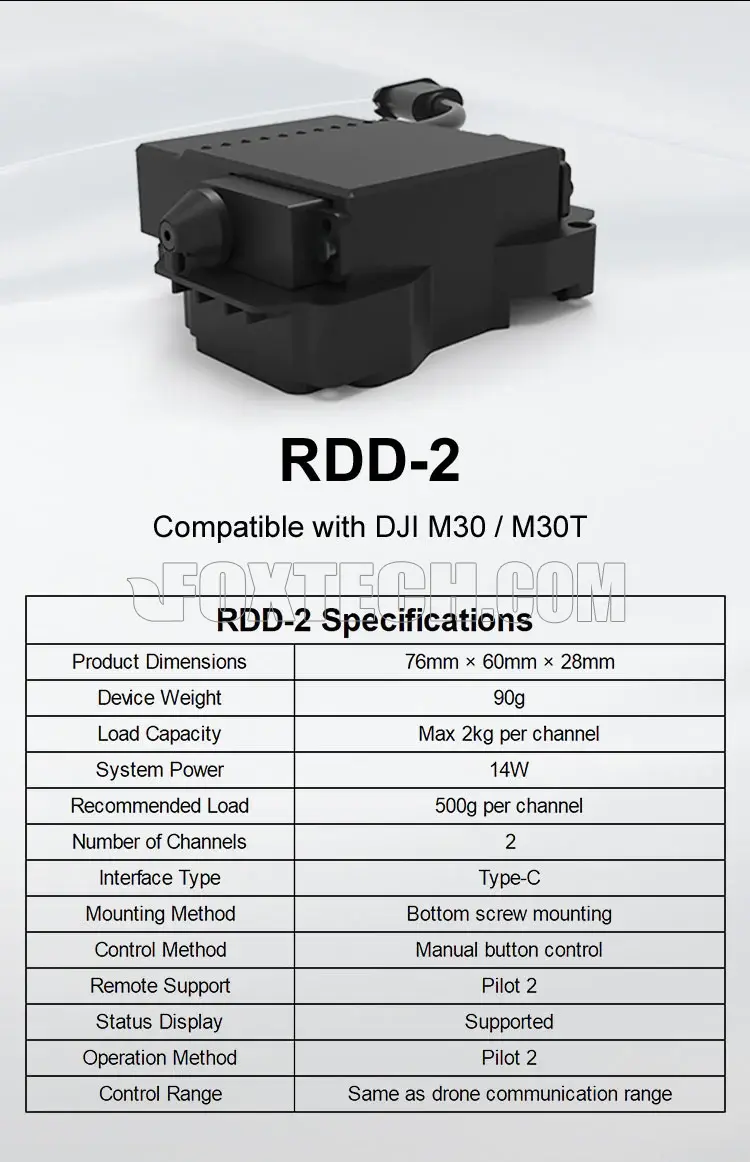

RDD-2
A compact dual-channel release module compatible with DJI M30/M30T drones. Developed based on the DJI PSDK framework, it integrates seamlessly with the Pilot2 software. Each channel is driven by a high-performance digital servo with a maximum payload of 2kg. The unique slanted sliding hook design minimizes device volume without requiring any drone modification. Features include a manual hook button for quick on-site operation and a reserved interface for warning light integration. Ideal for light-duty delivery and emergency scenarios.

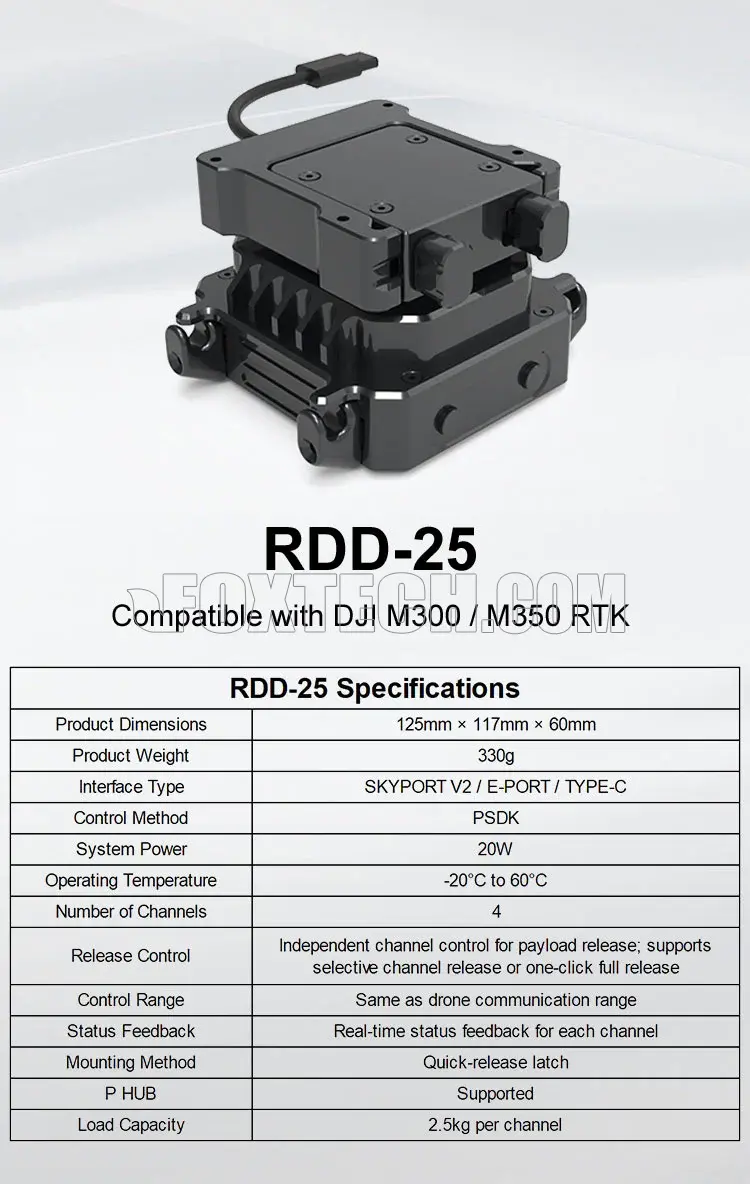

RDD-25
A four-channel payload drop system designed for DJI M300/M350 drones. Each module supports up to 2.5kg payload, with a total system capacity of 10kg. The payloads can be released sequentially, allowing for accurate multi-point delivery. This model is suitable for fire extinguisher deployment, emergency supply drops, power line stringing, and urgent rescue tasks.

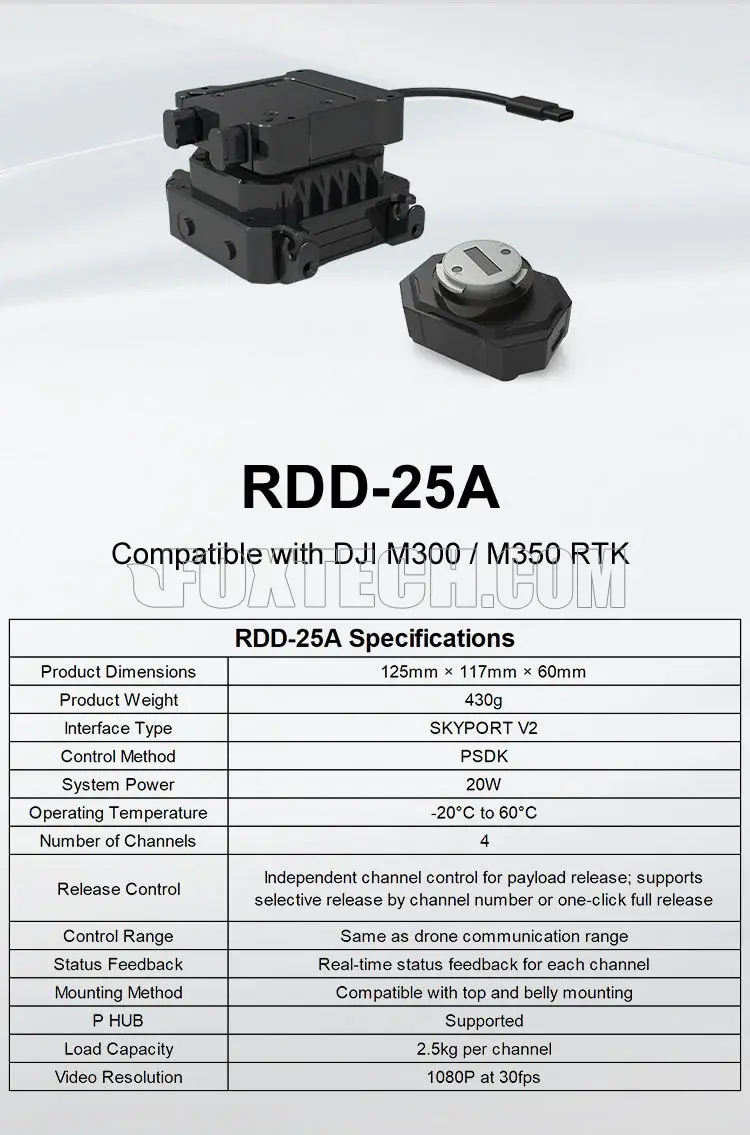

RDD-25A
A modular visualized payload drop system for DJI M300/M350 drones. It includes a video transmission unit and a four-channel drop module. The video module mounts to the gimbal interface, providing real-time downward video feed to the remote controller. The payload module attaches to the drone belly and connects to the video unit via Type-C, sharing the PSDK port. Each module supports 2.5kg payload, with sequential and simultaneous release options. Perfect for precision delivery and missions requiring visual confirmation.

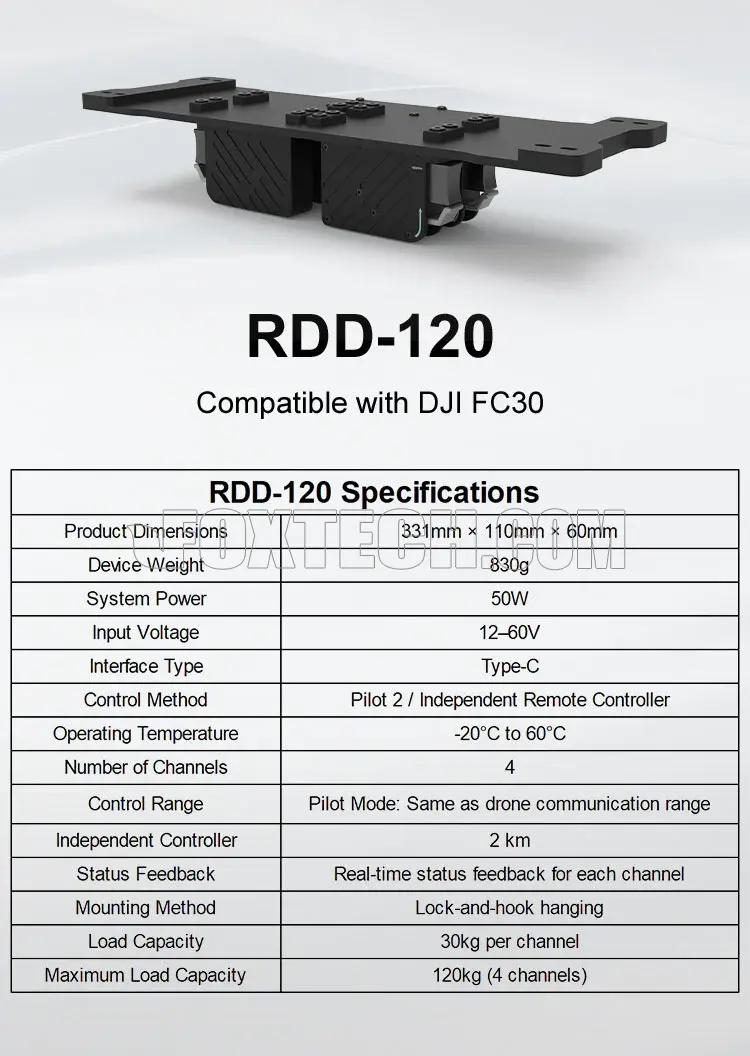

RDD-120
A heavy-duty four-channel release system built for DJI FC30 drones. Each release module can handle up to 30kg, with a total system capacity of 120kg. Payloads are released sequentially to maintain flight stability and precision. This model is ideal for large-scale material delivery, fire suppressant deployment, power line tasks, and other high-load operations.

Note:
All payload capacities listed refer to the maximum load capacity of each individual RDD release module. These values do not represent the payload capacity of the DJI drone itself. Please ensure that the total mounted weight does not exceed the rated payload limit of your drone platform.

Your Purchase Includes
RDD-2
1 × Dual-Channel Payload Release Unit
1 × Packaging Box
12 × Payload Release Hook Rings
1 × Certificate of Conformity

RDD-25
1 × 4-Channel Payload Release Unit
1 × Packaging Box
12 × Payload Release Hook Rings
1 × Certificate of Conformity

RDD-25A
1 × 4-Channel Payload Release Unit
1 × Visual Module
1 × Packaging Box
12 × Payload Release Hook Rings
1 × Certificate of Conformity

RDD-120
1 × Payload Release Unit
10 × Screws
1 × Screwdriver
1 × Packaging Box
1 × Certificate of Conformity
