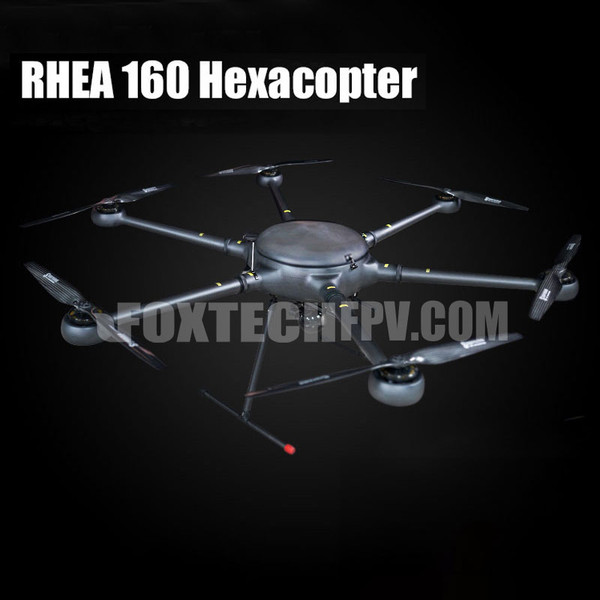

RHEA 160 is a very unique hexacopter featuring high pressure molding full carbon fiber body, light weight and super high strength. To keep its super cool natural carbon fiber appearance, we left it unpainted. It is perfect platform for mapping, surveillance, logistics and a lot more applications.
RHEA 160 also features wonderful quick-detach arms and landing gear, making it convenient for storage and easy to transport. Also the new landing gear and gimbal mounting point, new wiring method, create a really vast internal space.
The empty weight is 9 kg (U8) and (1005) 9.6kg.
The max take-off Weight is 22 kg(U8) and 30 kg (1005).
GPS on RHEA 160 is installed on a space-saving, easy to transport foldable GPS antenna mount holder, whose unique tube design allows GPS wires to be placed inside the tube to avoid abrasion and fatigue.
RHEA 160 is equipped with high efficiency power system. It can be widely used in surveillance, inspection, survey and mapping loading with different devices.
By loading with zoom camera, and also VDC long range video transmission system, RHEA 160 can be used for long range inspection, the video transmission distance can reach 15km.
RHEA 160 is also able to load with Map-02, Map-A7R and 3DM V4 oblique mapping camera and PPK system for high definition and precision mapping jobs.
Note: For our valued customers from Jordan interested in purchasing our drones, please kindly contact our distributor directly at carol@foxtechfpv.com. We appreciate your understanding and thank you immensely for considering our products.
Hightlights:
High Pressure Molding Full Carbon Fiber Body
Quick-mount Design
Your Purchase Includes:
Pixhawk Cube Orange RTF Combo:
1x RHEA 160 Hexacopter
1x Foxtech PIVOT V4 Auto Landing Gear
6x T-MOTOR U8 Lite KV85 ( or MN1005 Motor)
3x Foxtech Diamond 2995 Propeller (or Diamond 3010 Propeller )
6x T-MOTOR Flame 60A ESC
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x DA16S+ Radio Controller
1x Power Monitor Module
1x Assembling, tuned and Flying Test Service
1x Foxtech GPS Folding Antenna Mount Holder for RHEA 160
A3 Pro RTF Combo:
1x RHEA 160 Hexacopter
1x Foxtech PIVOT V4 Auto Landing Gear
6x T-MOTOR U8 Lite KV85 ( or MN1005 Motor)
3x Foxtech Diamond 2995 Propeller (or Diamond 3010 Propeller )
6x T-MOTOR Flame 60A ESC
1x DJI A3 Pro Flight Controller
1x DJI Lightbridge 2
1x Power Monitor Module
1x Assembling, tuned and Flying Test Service
1x Remote Controller Channel Expansion Kit for Lightbridge 2
1x Foxtech GPS Folding Antenna Mount Holder for RHEA 160
CUAV V5+ RTF Combo:
1x RHEA 160 Hexacopter
1x Foxtech PIVOT V4 Auto Landing Gear
6x T-MOTOR U8 Lite KV85 ( or MN1005 Motor)
3x Foxtech Diamond 2995 Propeller (or Diamond 3010 Propeller )
6x T-MOTOR Flame 60A ESC
1x CUAV V5+ Flight Controller with NEO V3 Pro GNSS
1x DA16S+ Radio Controller
1x Power Monitor Module
1x Assembling, tuned and Flying Test Service
1x Foxtech GPS Folding Antenna Mount Holder for RHEA 160
Optional:
VDC-7/VDC-15 Long Range Video/Data/RC Transmission System
Foxtech Diamond 6s 22000mah HV*4
| Version | MN1005 Motor Version |
| Wheelbase | 1600mm |
| Frame Weight | 3.8 kg(with landing gear) |
| Basic Empty Weight | 6.8 kg(no battery) |
| Max Take-off Weight | 32 kg |
| Flight Time | 90 minutes(no payload)(4x 6s 30000mAh Li-ion battery) |
| 70 minutes(no payload)(4x 6s 22000mAh Lipo battery) | |
| Voltage | 48V |
| Battery | 6S 22000mAh Lipo x4; or 6S 30000mAh Li-ion x4 |
