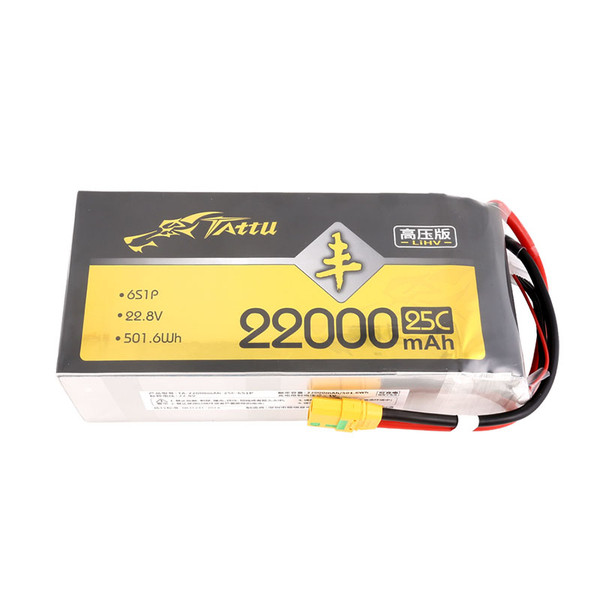

Tattu HV 4.35V Series 6S 22000mAh Lipo 25C 22.8V 6S1P XT90-S UAV Drone Battery

The Tattu High Voltage Soft Pack 22000mAh Drone Battery is engineered for superior performance and extended flight times. Featuring high-performance, high-energy-density lithium cells, this battery offers enhanced endurance and longer service life without increasing size or weight. Its advanced manufacturing technology results in significant improvements in energy density and battery longevity, providing better performance while reducing operational costs for drone applications.

Specification:
Nominal Voltage: 22.8V
Fast Charging: Continuous Current: 11A, Continuous Voltage: 26.1V, Cutoff Current: 0.02C;
Cell Configuration: 6S1P
Charging Time: Standard Charging: 7.5 hours (Reference)
Fast Charging: 3 hours (Reference)
Nominal Capacity: 22000mAh
Discharge Cutoff Voltage: 19.2V
Minimum Capacity: 19600mAh
Max Continuous Discharge Current: 4400mA (0.2C); (-20~0℃)
Battery Shipping Voltage: 22.5~23.1V (Cell 3.75-3.85V)
Max Continuous Discharge Current: 11000mA (0.5C); (0~10℃ / 45~60℃)

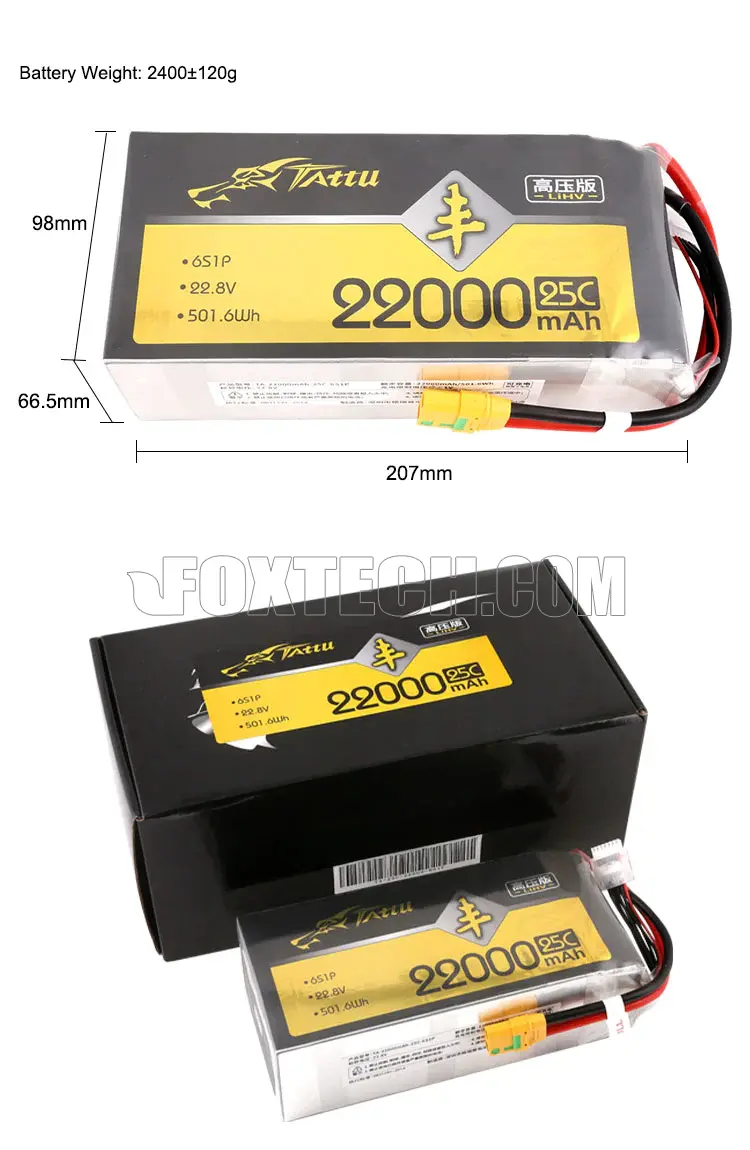

Battery Dimensions: 66.5*98*207 mm
Battery Weight: 2400±120g
Max Continuous Discharge Current: 60000mA (2.73C); (10~45℃)
Max Instantaneous Discharge Current: 100A(Instantaneous Current ), Duration: ≤3S
Standard Charging Method: 4.4A CC (Constant Current) charging to 26.1V, then CV (Constant Voltage 26.1V)
charging until current ≤0.02C
C-rate Discharge Performance: ≥19.8 min
Standard Charging/Rest 5-minute Discharge to 19.2V with 60A

Your Purchase Includes:

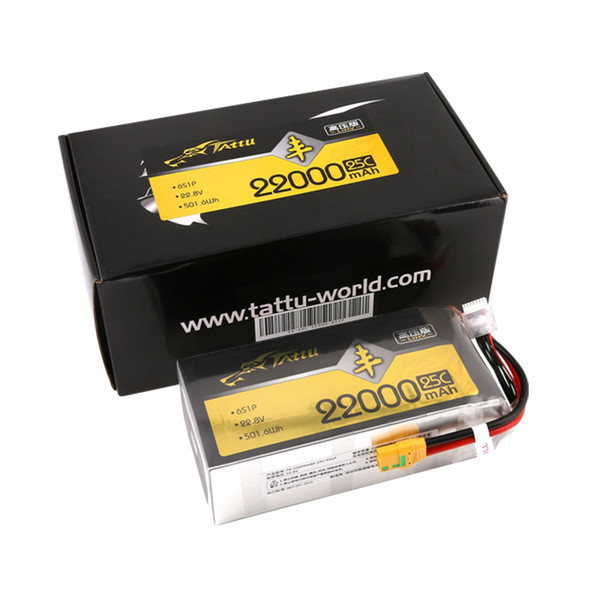

1x Tattu HV 4.35V Series 6S 22000mAh 25C 22.8V 6S1P XT90-S
