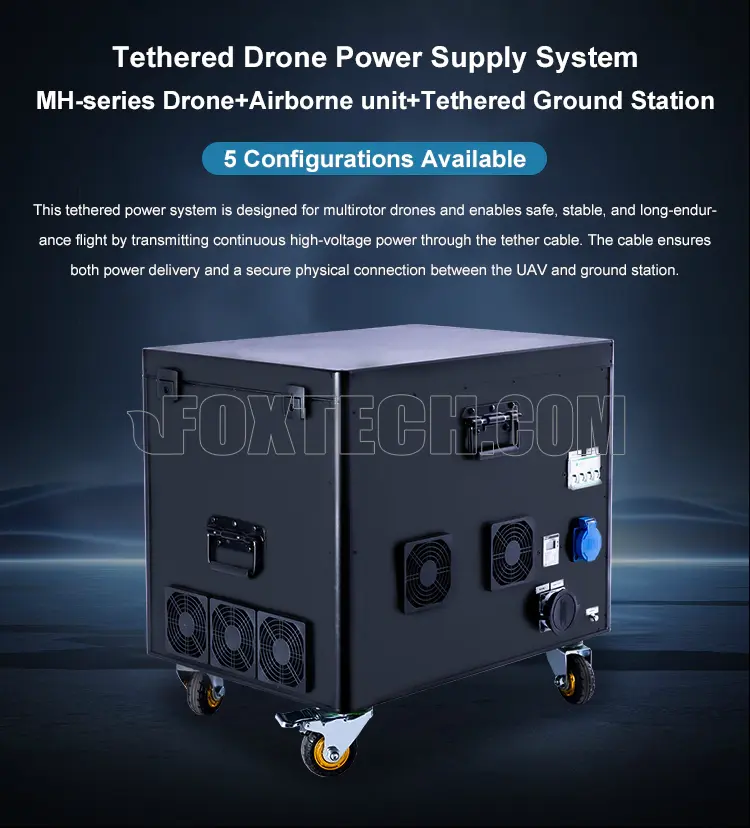

UT35/UT60/UT80/UT100/UT200 Tethered Drone Power Supply System

Complete system: including MH-series drone, airborne unit, and tethered ground station.

This tethered drone power system is designed for multirotor drones and enables safe, stable, and long-endurance flight by transmitting continuous high-voltage power through the tether cable. The cable ensures both power delivery and a secure physical connection between the UAV and ground station.

The system offers five high-performance configurations, each including a tethered airborne unit and a ground-based tethered power station. With output power up to 30kW, automatic cable management, and safety controls, it is widely used in firefighting, signal relay, and security operations—allowing uninterrupted UAV missions without battery limitations.

Note:
LG55/LG70 (industrial plug) models require 220V input.
For regions with 110V mains power, customers must prepare a voltage converter (110V to 220V) before use. Make sure the plug's maximum current is kept within 16A.
Please confirm local voltage and plug type in advance to ensure compatibility.

Features：
High power output up to 30kW
Max altitude support: 120m to 300m
5 modular configurations for different UAV platforms

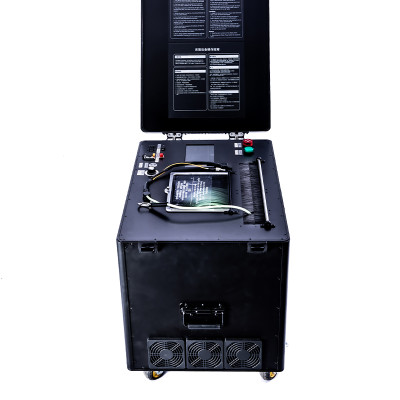

Compact ground stations in suitcase-type or industrial-grade enclosures
Reliable power delivery for long-endurance missions

Advantages
1. Adaptive tracking compensation voltage

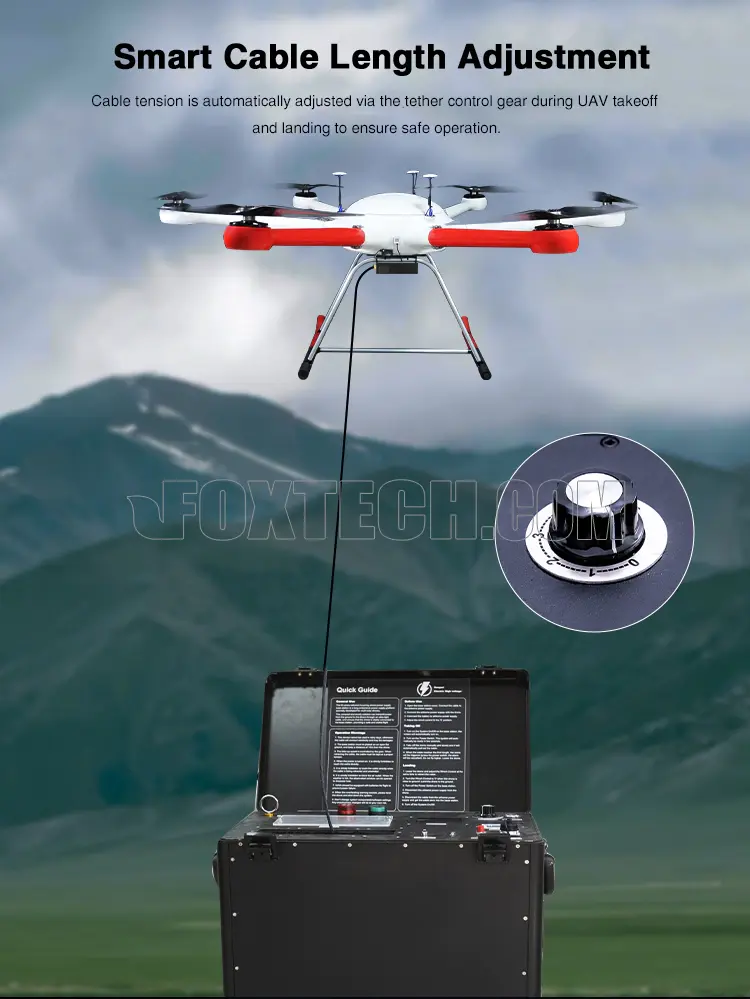

2. Adaptive cable automatic winding and unwinding function
3. Internal menu can be on the voltage and current cable length temperature display, the error is not more than 5 per cent
4. With over-current, over-voltage, short-circuit, over-temperature alarms
5. Comes with observation window, can be manually collected cable
6. Protection rating: IP54
7. Configure special computer software to display the real-time data of the tethered base station.
8. Full aluminium milling shell, military grade shockproof
9. Reliable grounding system, tethered box box with grounding

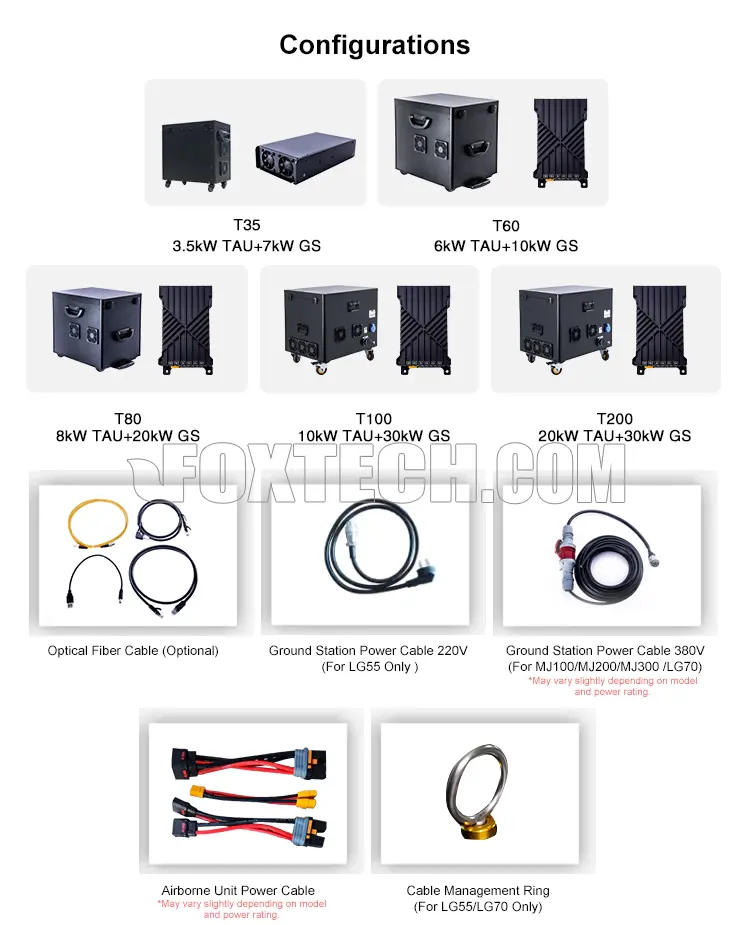

Configurations：

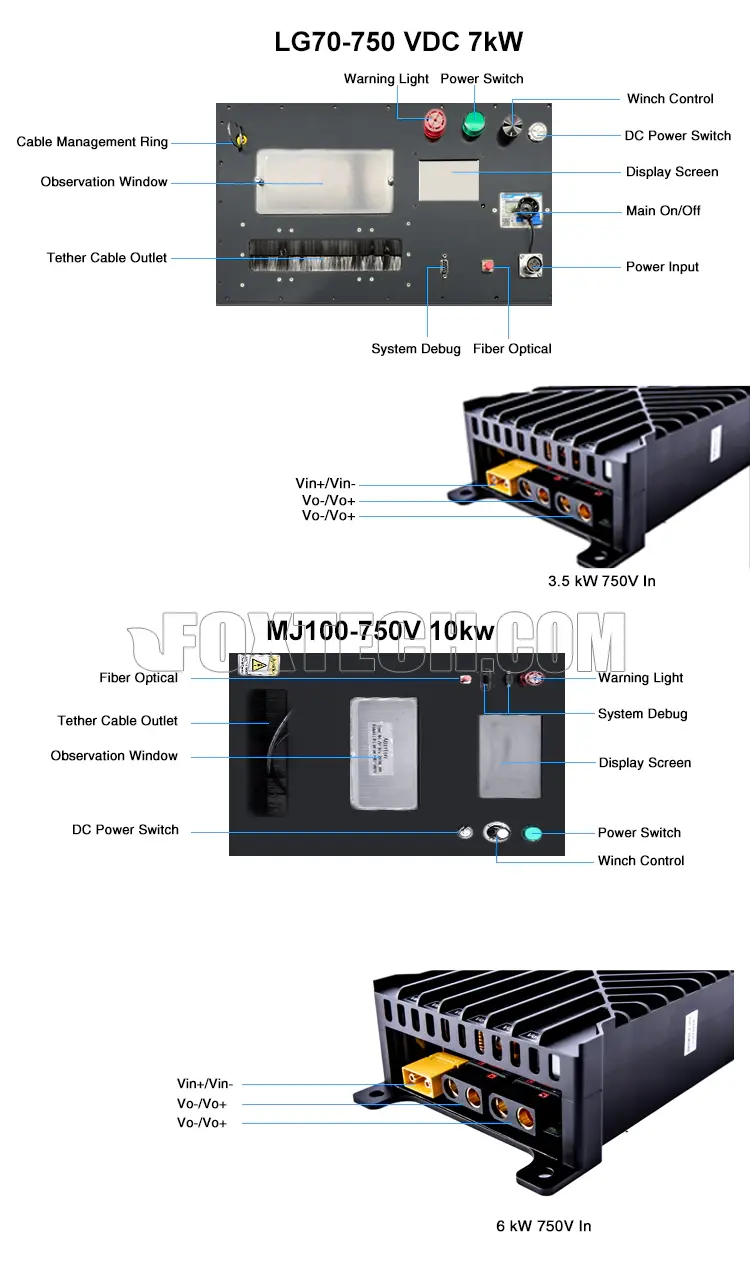

UT35 – MH5 UAV+3.5kW airborne unit + LG55 – 400VDC 5.5kW ground station / LG70 – 750VDC 7kW ground station (Optional)
UT60 – MH10 UAV+6kW airborne unit + MJ100 – 750V 10kW ground station

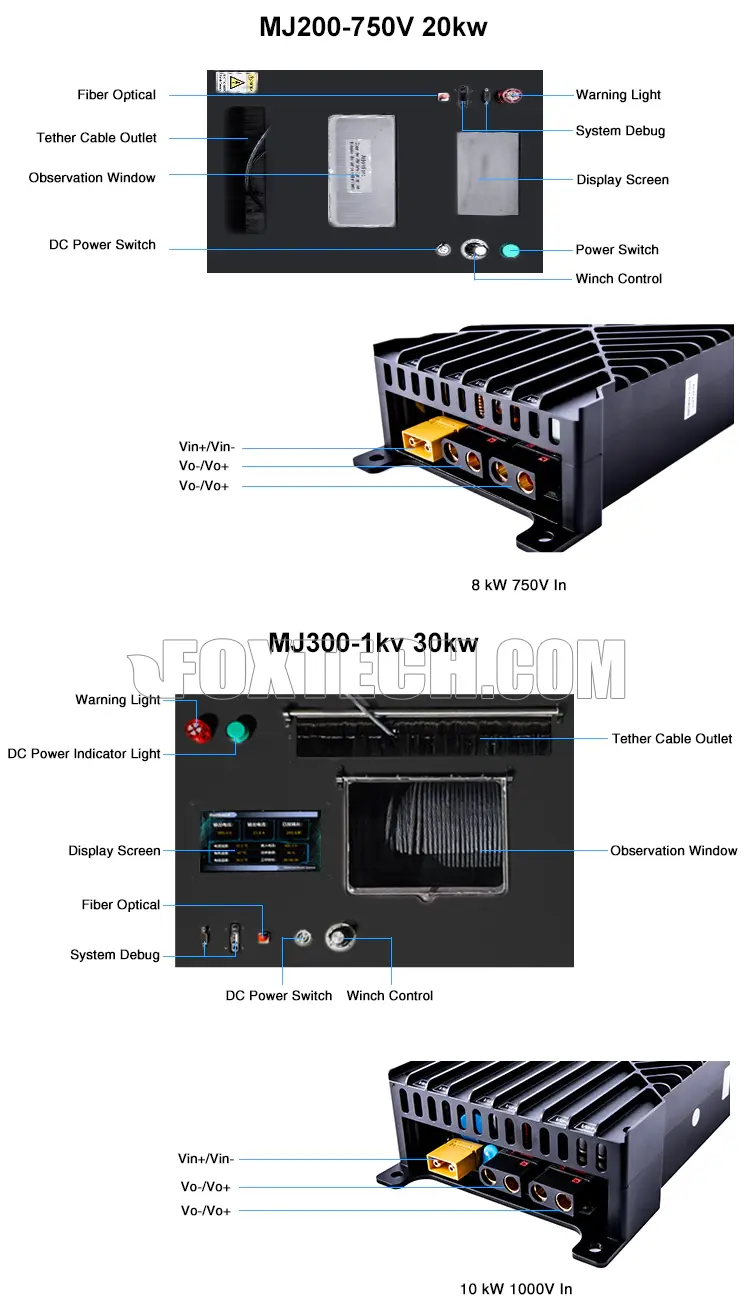

UT80 – MH20 UAV+8kW airborne unit + MJ200 – 750V 20kW ground station
UT100 – MH30 UAV+10kW airborne unit + MJ300 – 1000V 30kW ground station
UT200 – MH50 UAV+20kW airborne unit + MJ300 – 1000V 30kW ground station

Your Purchase Includes:
1x MH-Series Drone
1× Tethered Power Ground Station
1× Tethered Power Airborne Unit
1× Ground Station Power Cable
1× Airborne Power Cable

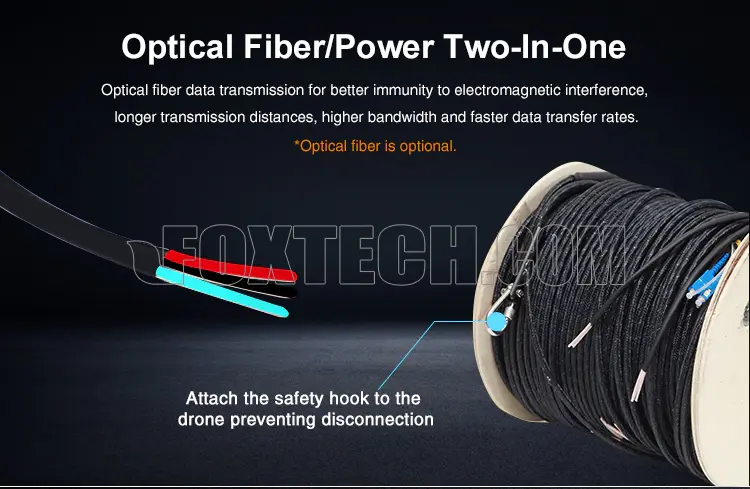

1× Optical Fiber Cable (Optional)

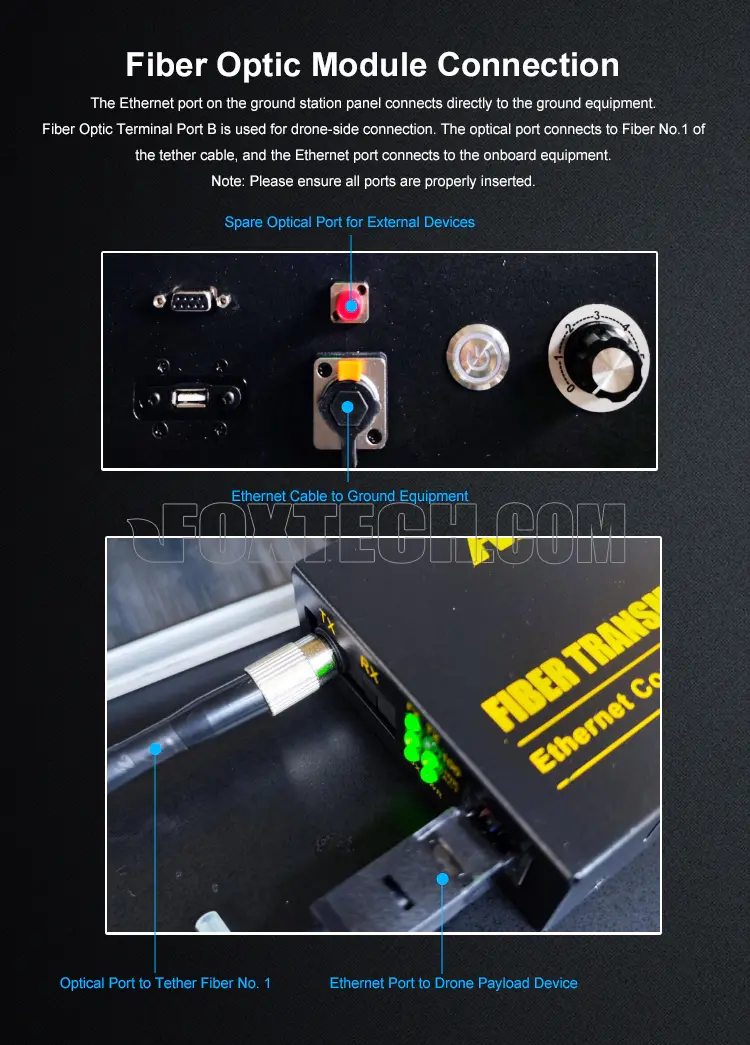

1× Optical Fiber Equipment (Optional)
LG55/LG70 User Manual
MJ100/MJ200/MJ300 User Manual
