VDC-48 Pro FDD+TDD Bi-directional Video/Data Transmission System

The VDC-48 Pro is a self-developed TDD bi-directional video/data transmission system with a maximum transmission distance of 48KM that utilizes both uplink and downlink FDD methods for wireless transmission. The product features real-time interference detection, adaptive frequency selection, adaptive bit rate, automatic retransmission, and automatic power control. These functionalities significantly enhance its multipath and interference resistance, making it highly reliable, stable, and low-latency. It is ideal for applications such as inspection, and monitoring.

Feature：
Asymmetric Transmission: Utilizes TDD+FDD for communication transmission.
Long-Distance Transmission: Supports a maximum transmission distance of up to 48 km.
High Bandwidth Transmission: Supports up to 16Mbps @ 10MHz.
Automatic Relay Transmission: Supports automatic relay joining.
Multiple Interface Design: Features dual Ethernet ports and four serial ports, supporting RS232/TTL/RS422/SBUS.
Automatic Frequency Selection: Detects interference signals in real-time and selects the optimal frequency point.
Automatic Retransmission: Automatically retransmits burst error data, improving data reliability.
Adaptive Bit Rate: Automatically adjusts the channel modulation method based on real-time signal quality.
Automatic Power Control: Adjusts transmission power for close distances to reduce power consumption.
Automatic Antenna Selection: Selects the optimal antenna for transmission in real-time based on obstructions.
Dynamic Uplink and Downlink Allocation: Automatically allocates uplink and downlink bandwidth based on actual data volume.
Multiple System Coexistence: Supports simultaneous fixed-frequency use of multiple devices.
Frequency Pairing: Allows frequency pairing through software configuration or hardware buttons.

Your Purchase Include：
Standard Version
2x VDC-48 Pro Video/Data Module
2x 2dBi Small fiberglass stick antenna
2x 1 m Small antenna extension cable
1x 6dBi/9dBi Fiberglass antenna
1x 3 m Fiberglass antenna extension cable
2x 30 cm J30J-25pin cable
1x 13dBi flat directional antenna
1x 4m Extension cable for directional antenna
2x Antenna stand

Airlink Integrated Version
1x Airlink ground station
4x Lemo wiring
2x 6dBi Medium White Antenna
1x Bracket + Clip
1x VDC-48 Pro Air Unit
2x 2dBi Small Fiberglass Antenna (1400~1460MHz & 1700~1760MHz)
2x 1m Small Antenna Extension Cable
1x 30cm J30J Small Antenna Extension Cable
1x XT30 to XT60 Power Cable

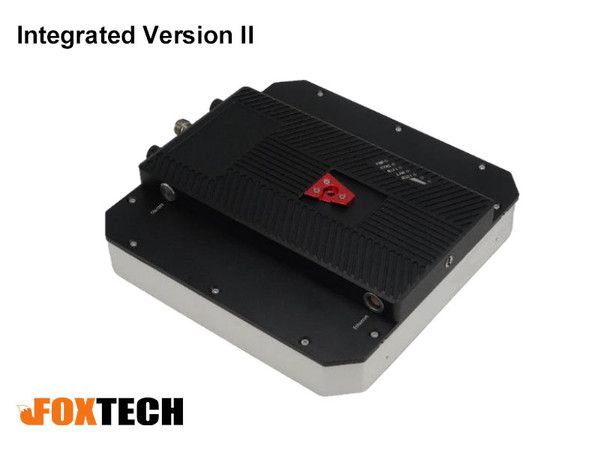

AirLink Integrated Version II
1x AirLink-II Ground Station
1x Lemo-4PIN External Power Cord
1x Lemo-26PIN Data Cable
1x 1400~1460MHz & 1700~1760MHz 6dBi Fiberglass antenna
1x Mounting Bracket+Square clip
1x 4S Battery Pack (Optional)
