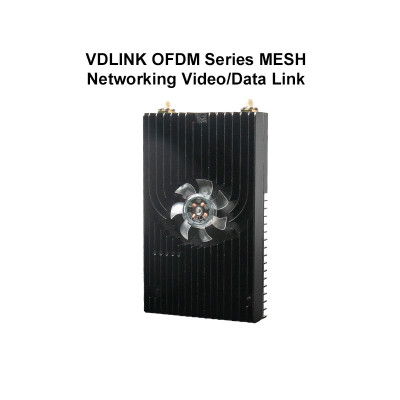

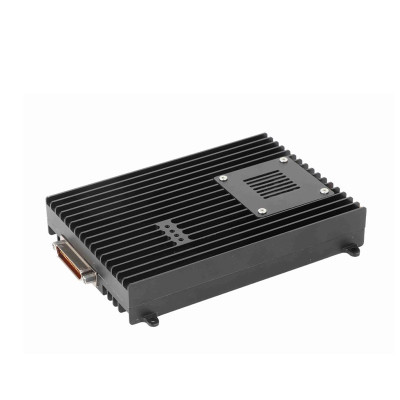

VDLINK OFDM DB30 600MHz 1.4G Dual-Band Frequency Hopping Video/Data Transmission System

VDLINK OFDM DB30 is a TDD bi-directional dual-band wireless transmission device that seamlessly integrates both video and data communication. Designed for high-performance, it features dynamic frequency selection to automatically detect and avoid interference, ensuring a stable and reliable connection.
The device utilizes multi-band technology and frequency hopping to further enhance its ability to maintain uninterrupted transmission, even in challenging environments.
With real-time interference detection, adaptive bitrate control, and automatic retransmission, the system guarantees high anti-interference and superior resistance to multipath issues.
These capabilities combine to provide low latency transmission with exceptional stability and reliability, making it ideal for demanding applications like aerial surveillance, remote inspections, and real-time video streaming.

This wireless video/data transmission system is ideal for firefighting, inspection, monitoring, and other applications. In optimal line-of-sight air-to-ground conditions, the transmission range can reach 30KM.

Features:
- Dual-Band Transmission: Supports independent frequency hopping for uplink and downlink.
- Long-Range Transmission: Achieves 30km+ line-of-sight transmission with a 4Mbps data stream.
- High Bandwidth Support: Maximum transmission rate of 23.9Mbps @ 20MHz.

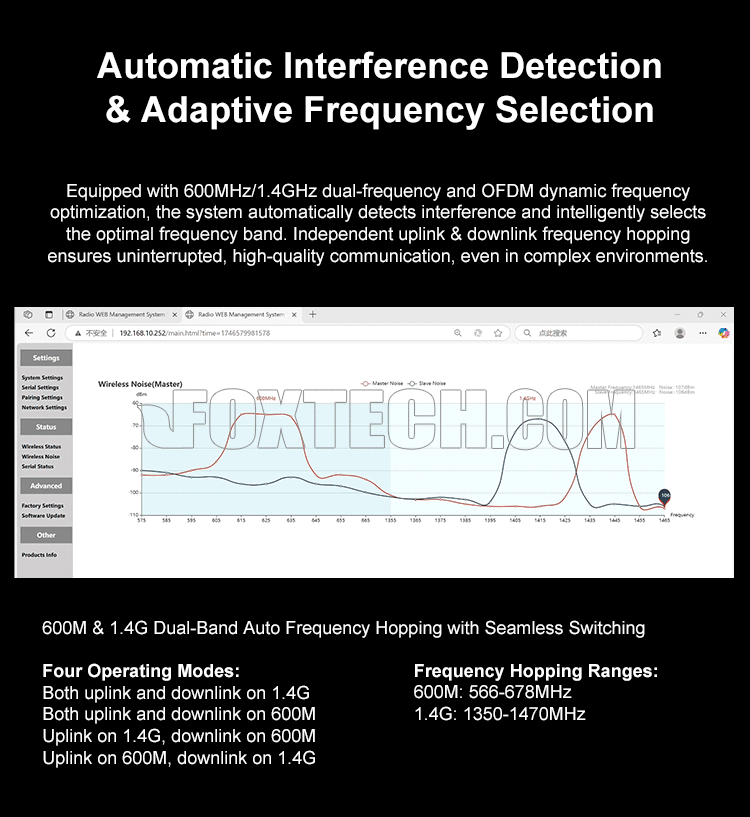

- Automatic Frequency Selection: Detects interference in real time and selects the optimal frequency.
- Automatic Retransmission: Ensures data reliability by retransmitting burst error packets.
- Adaptive Bitrate Control: Dynamically adjusts modulation based on signal quality.
- Automatic Power Control: Adjusts transmit power for close-range operation to reduce power consumption.
- Automatic Antenna Selection: Selects the best antenna based on real-time obstruction detection.
- Dynamic Uplink & Downlink Allocation: Automatically adjusts bandwidth distribution based on data flow.
- Frequency Pairing Function: Supports software-based and hardware button-based frequency pairing.
- Utilizes TDD+FDD for communication transmission.

Your Purchase Includes:
1× VDLINK OFDM DB30 Air Unit
1× VDLINK OFDM DB30 Ground Unit
2× 30cm J30J-15pin Cables
2× 2.5dBi Small Fiberglass Antennas
2× 1m Small Fiberglass Antenna Extension Cables
1× 6dBi/9dBi Omni-Directional Antenna
1× 3m Omni-Directional Antenna Extension Cable
1× 13dBi Flat Panel Directional Antenna
1× 4m Directional Antenna Extension Cable
1× 3m Mounting Bracket + Hand Crank + U-Bolt Kit
