Foxtech

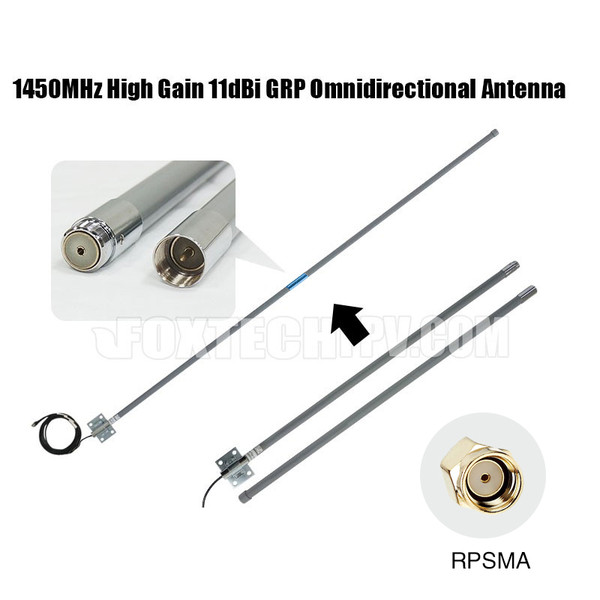

1450MHz High Gain 11dBi GRP Omnidirectional Antenna(2 Segments)
- SKU:
- S81030
- Weight:
- 1.50 KGS
This 1450MHz high gain 11dBi omnidirectional antenna is enclosed with glass-fiber reinforced plastics, which help to protect antenna against environmental conditions like rain, snow, wind and dirt etc.
Features:
High Performance
Assembly with 2 Segments
All Weather Operation
Heavy-Duty Steel Mounting Brackets
Your Purchase Includes:
2x Antenna (800 mm)
1x Pack of installation accessories
| Frequency Range | 1450±40 MHz |
| Bandwidth | 80 MHz |
| Gain | 11 dbi |
| Vertical Beamwidth | 16° |
| VSWR | ≤1.5 |
| Polarization | Vertical |
| Maximum Power | 100 W |
| Impedance | 50 Ω |
| Size | Ф20x1600(800+800) mm |
| Weight | 2 kg |
| Working Temperature | -30～60℃ |
| Wind-Resistant | 60 m/s |
