AeroClean S2/S4 Solar Panel Cleaning Kit for DJI T-Series Agricultural Drones | High-Pressure PV Cleaning System

The AeroClean S2/S4 Solar Panel Cleaning Kit is a high-pressure drone-mounted cleaning system designed for DJI T-Series agricultural drones, with 2 / 4 nozzle configurations available.
It helps turn existing agricultural drones into solar panel cleaning equipment, making it suitable for efficient cleaning operations in solar farms, rooftop PV systems, and complex outdoor environments.

IDEAL FOR:
- UAV service providers
- Solar panel cleaning teams
- Solar farm operators / EPC contractors
- DJI T-Series agricultural drone users
- Rooftop, water-surface, and mountain PV cleaning scenarios

NOTE:
- Actual package contents may vary depending on the selected 2-nozzle, or 4-nozzle configuration.
- When the swing mechanism stalls, shut down the system immediately and inspect the swing motor for any entangled hoses or cables.

DESCRIPTION:

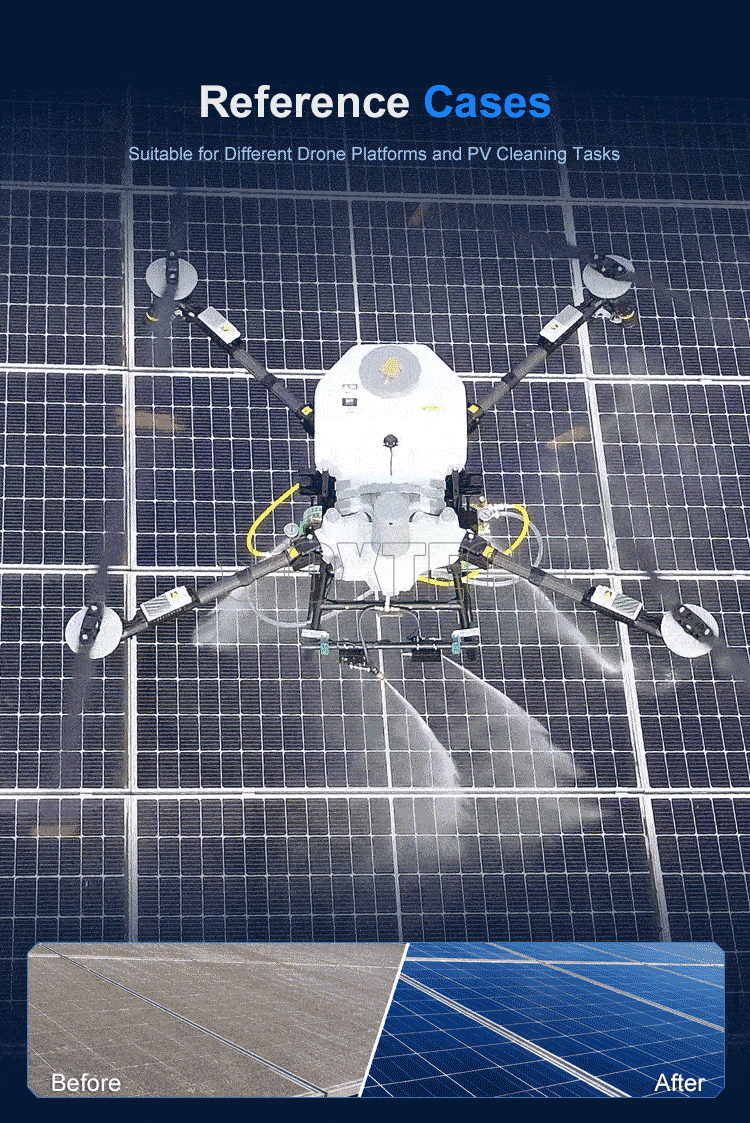

The AeroClean S2/S4 Solar Panel Cleaning Kit helps replace manual climbing, scaffolding, and high-pressure vehicle cleaning in rooftop, water-surface, mountain, and utility-scale PV cleaning scenarios.

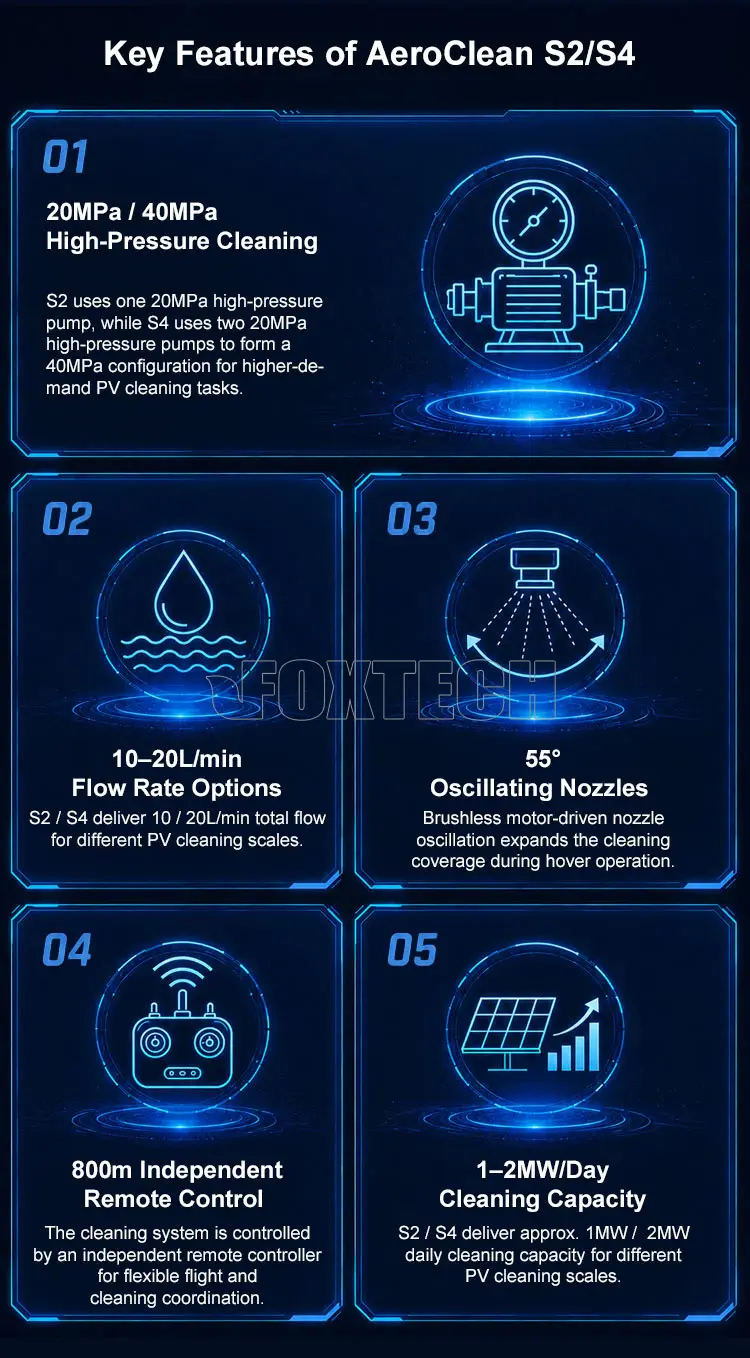

KEY FEATURES:
- DJI T-Series Drone Compatibility:

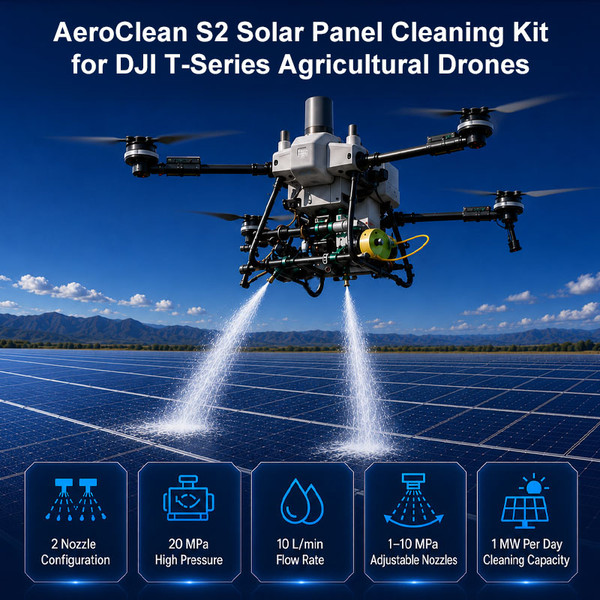

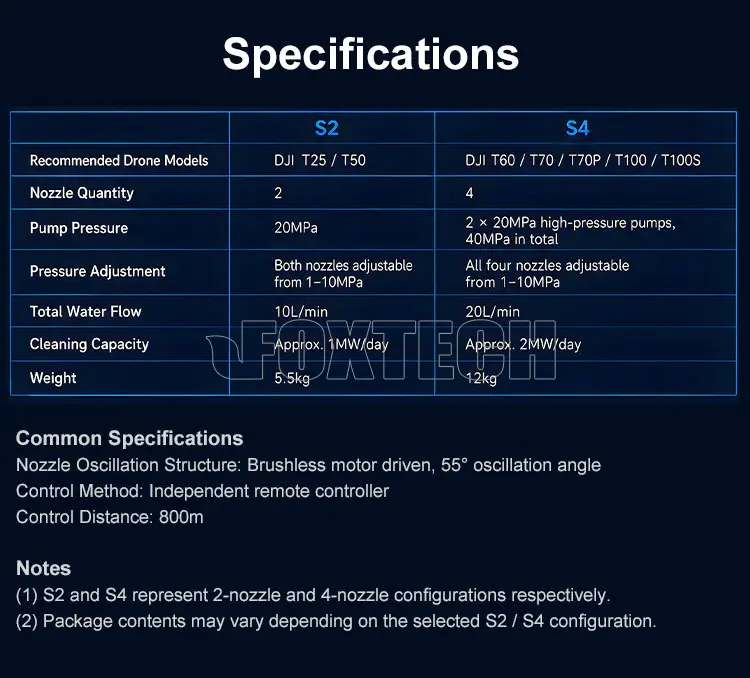

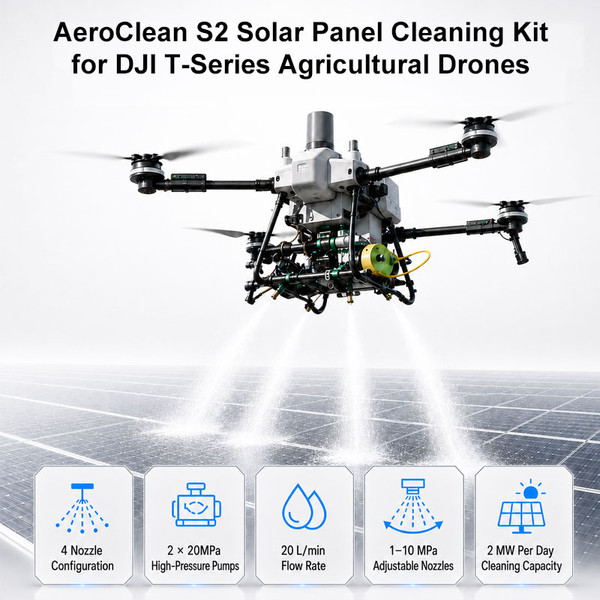

The S2 (2-nozzle) version is designed for DJI T25、T50 drones,while the S4 (4-nozzle) version is compatible with DJI T60, T70, T70P, T100, and T100S agricultural drones.
- 2 / 4 Nozzle Options:
Different nozzle configurations are available based on drone payload, cleaning area, and operating efficiency requirements.
- 20MPa / 40MPa High-Pressure Cleaning:
S2 uses a 20MPa pump, while S4 features two 20MPa high-pressure pumps to form a 40MPa configuration for enhanced cleaning performance.
- 10–20L/min High-Flow Water Delivery:
The S2 system delivers 10L/min total flow, while the S4 system reaches 20L/min for higher-efficiency solar panel cleaning operations.
- Scalable Cleaning Coverage:
The S2 configuration supports approximately 1MW of solar panel cleaning per day, while the S4 configuration can cover up to 2MW per day for larger PV maintenance projects.
- 55° Oscillating Nozzle Design:
Brushless-motor-driven oscillating nozzles expand the cleaning coverage during hovering operations.
- 800m Independent Remote Control:
The cleaning system is controlled by a separate remote controller, allowing flexible coordination between flight control and cleaning operation.
- Fast Drone Business Expansion:
Helps agricultural drones continue working beyond spraying seasons by expanding into solar panel cleaning services.

ADVANCED ADVANTAGES:
- Lower Manual Cleaning Risk:
Drone-based hovering cleaning helps reduce risks from climbing, water-surface work, and slope operations, making it suitable for complex or hazardous areas.
- Multiple Configurations for Different Workloads:
The 2-nozzle version fits lightweight tasks, and the 4-nozzle version is designed for larger-area, higher-efficiency operations.
- Better for High-Frequency Solar O&M:
Suitable for regular PV cleaning tasks in environments with dust, bird droppings, sand, and surface dirt accumulation.

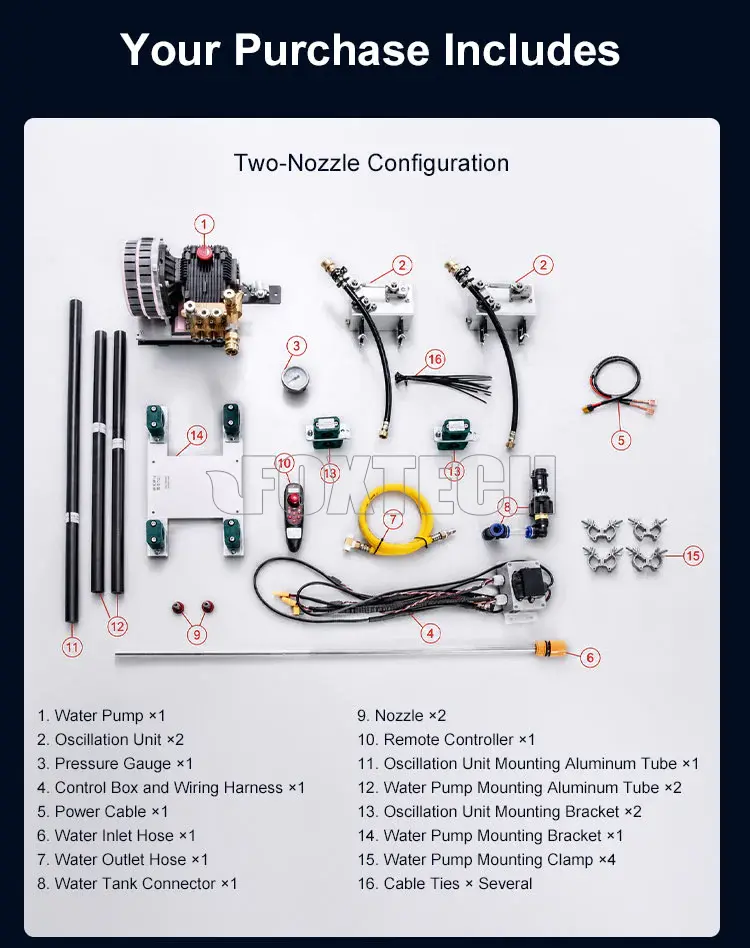

YOUR PURCHASE INCLUDES:
Two-Nozzle Configuration:
Water Pump ×1
Oscillation Unit ×2
Pressure Gauge ×1
Control Box and Wiring Harness ×1
Power Cable ×1
Water Inlet Hose ×1
Water Outlet Hose ×1
Water Tank Connector ×1
Nozzle ×2
Remote Controller ×1
Oscillation Unit Mounting Aluminum Tube ×1
Water Pump Mounting Aluminum Tube ×2
Oscillation Unit Mounting Bracket ×2
Water Pump Mounting Clamp ×4
Water Pump Mounting Bracket ×1
Cable Ties × Several

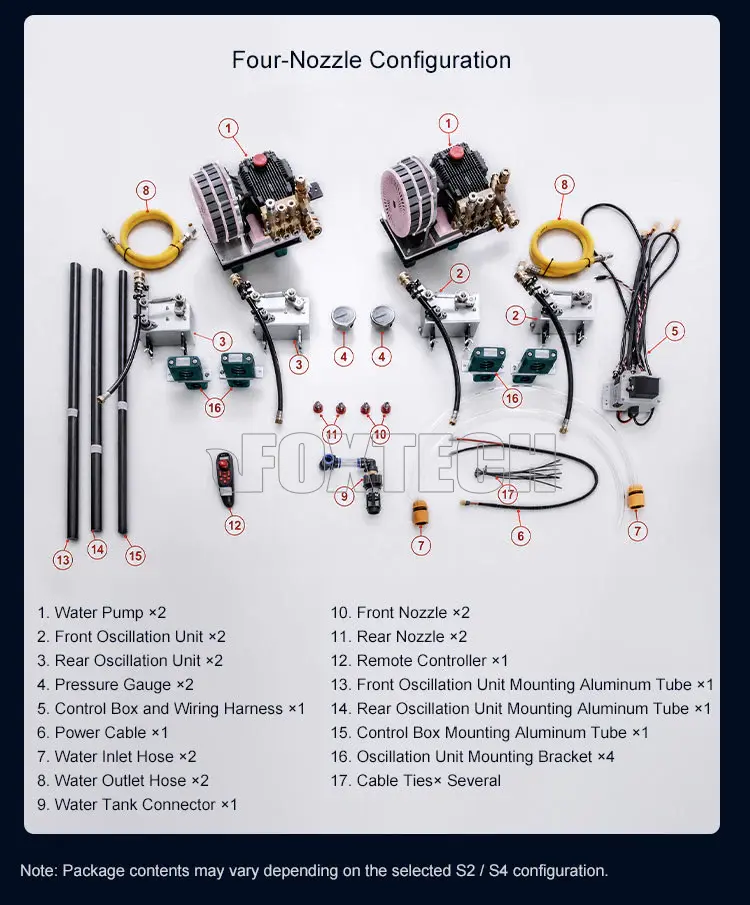

Four-Nozzle Configuration:
Water Pump ×2
Front Oscillation Unit ×2
Rear Oscillation Unit ×2
Pressure Gauge ×2
Control Box and Wiring Harness ×1
Power Cable ×1
Water Inlet Hose ×2
Water Outlet Hose ×2
Water Tank Connector ×1
Front Nozzle ×2
Rear Nozzle ×2
Remote Controller ×1
Front Oscillation Unit Mounting Aluminum Tube ×1
Rear Oscillation Unit Mounting Aluminum Tube ×1
Control Box Mounting Aluminum Tube ×1
Oscillation Unit Mounting Bracket ×4
Cable Ties× Several
