CUAV CAN PMU is a UAV power management unit module with a built-in STM32F4 processor. It runs CUAV ITT algorithm, which are able to accurately real-time measure UAV voltage and current. CAN PMU supports for the maximum 6-62V voltage and 110A current, and can output 5.4V 5A (maximum instantaneous 8A/120s, constant 5A) to power the flight controller, It also uses CAN bus communication and supports standard UAV CAN protocol. Each PMU unit is calibrated by the factory to ensure good consistency and high accuracy.
Your Purchase Includes:
1x CAN PMU Module
1x Battery Cable
1x ESC Cable
1x V5 Series Power Cable
1x Pixhack Series Power
1x CAN Cable
| Size | 46.5*38.5*22.5 mm |
| Weight | 76 g |
| Processor | STM32F412 100Mhz 512K Flash 256K RAM |
| Voltage Input | 6-62 V (2-15S) |
| Max Current | 110 A |
| Voltage Accuracy | ± 0.05 V |
| Current Accuracy | ± 0.1 A |
| Resolution 0.01A / V | |
| Max Output Power | 6000 W/90S |
| Max Stable Output Power | 5000 W |
| Power Port Output | 5.4 V/5 A |
| Protocol | UAVCAN |
| Operating Temperature | -20℃ ~ +100℃ |
| Firmware Upgrade | Support |
| Calibration Settings | Factory Calibration, No User Calibration |
| Interface Type | |
| IN/OUT | XT90 (cable end) / Amass 8.0 (module end) |
| Power | 5025850670 |
| CAN | GHR-04V-S |
Related Products
Foxtech
AEROFOX CAN Isolation Power Module
Aerofox CAN Isolation power module is designed to elevate safety to new heights. The module's isolation feature ensures that electrical circuits are kept separate, preventing potential ground loops...
CUAV
CUAV C-RTK 9Ps High-Precision Positioning Module
The C-RTK 9Ps is a highly reliable Real Time GNSS system that consists of two C-RTK 9Ps modules: one for the aircraft and the other for the base station. It offers a dual DPS for yaw, which...
Foxtech

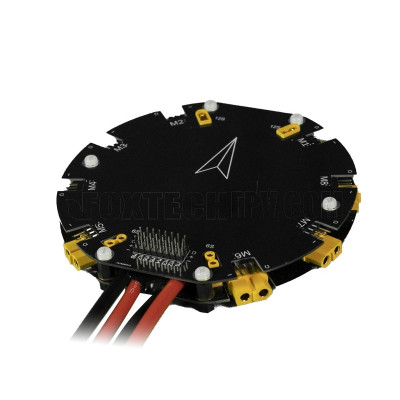

EFT High Current Power Distribution Board
