CUAV MS4525 Airspeed Sensor with Pitot Tube
Price Available Upon Inquiry
- SKU:
- 2604211
- Weight:
- 0.50 KGS
The CUAV MS4525 Airspeed Sensor with Pitot Tube is an airspeed measurement module designed for UAV. Based on the MS4525 pressure sensor, it measures the relative speed between the unmanned system and the surrounding air, helping the aircraft maintain reliable control margins and avoid stalling in windy conditions.
Key Features
Integrated CUAV airspeed sensor module using the MS4525 pressure sensor

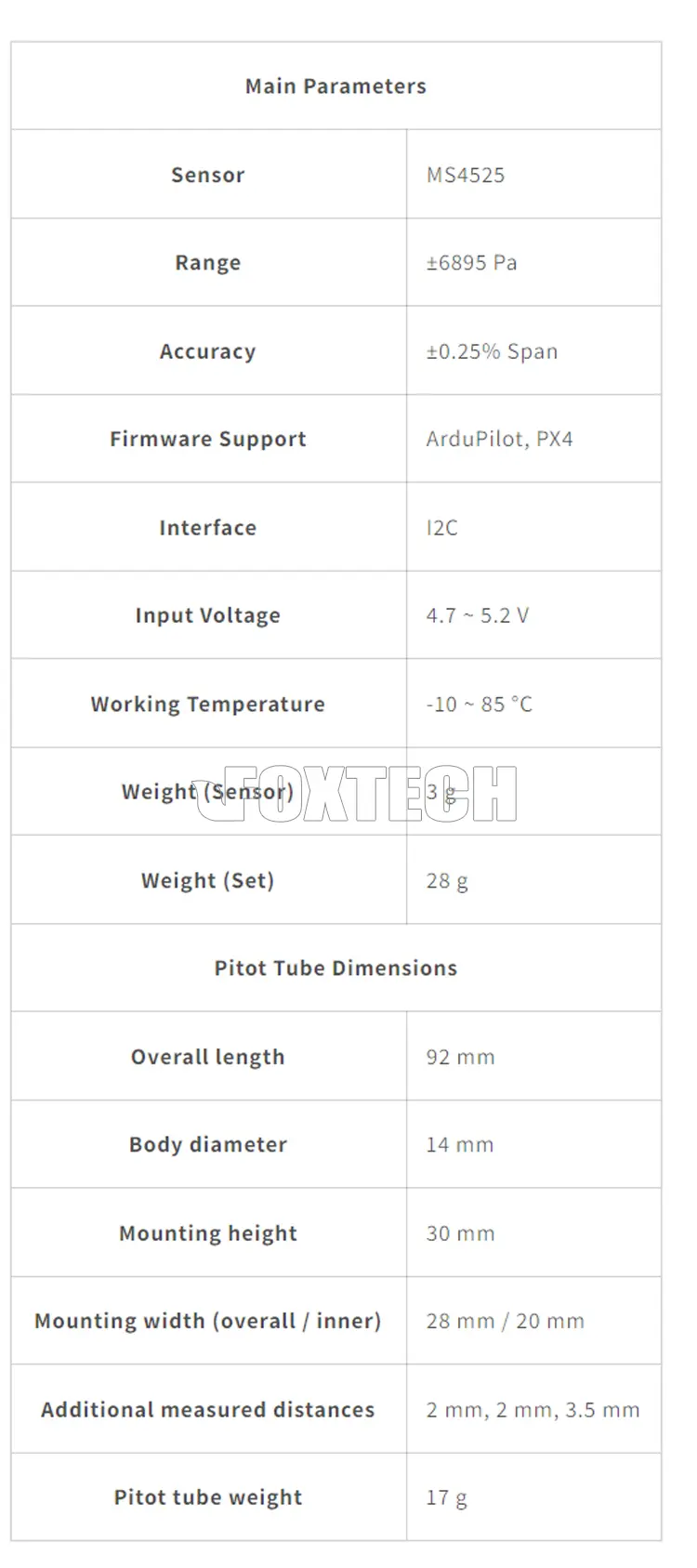

Measurement range of ±6895 Pa with ±0.25% Span accuracy
Compatible firmware support: ArduPilot and PX4
I2C interface for easy connection to supported flight controllers
Input voltage range 4.7 – 5.2 V
Operating temperature range from -10 to 85 °C
Lightweight sensor module: 3 g; complete set: 28 g
Metal pitot tube with compact 92 mm length and 14 mm body diameter
Pitot tube mounting base with 28 mm overall width, 20 mm mounting span and 30 mm height
Pitot tube weight: 17 g

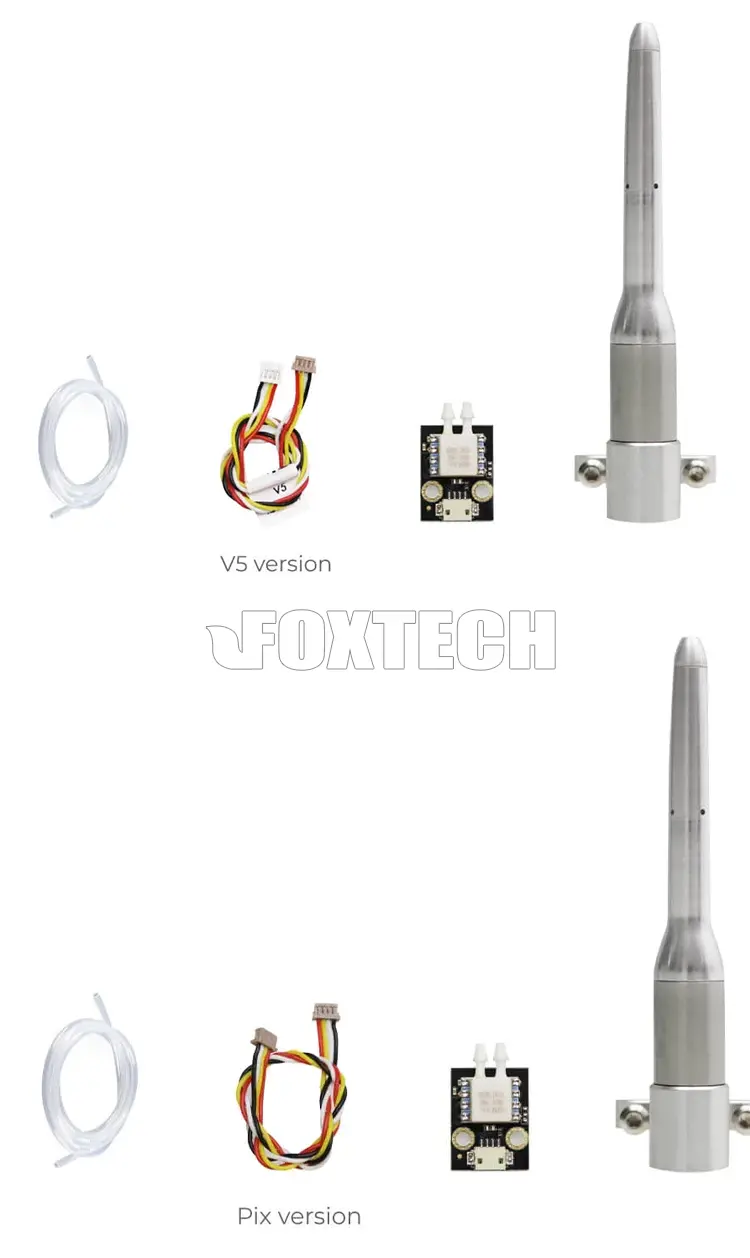

Available with two cable options shown in the product images: V5 version cable and Pix version cable
Your Purchase Includes:
1 x CUAV MS4525 airspeed sensor module
1 x Metal pitot tube
1 x Air tube (plastic hose)
1 x Connection cable (V5 version or Pix version, as shown for the selected kit)
