DAMIAO
DAMIAO DM-JH11 Harmonic Joint Motor Module with Dual Inductive Encoder, High Precision
Price Available Upon Inquiry
- SKU:
- S260204
- Weight:
- 1.00 KGS

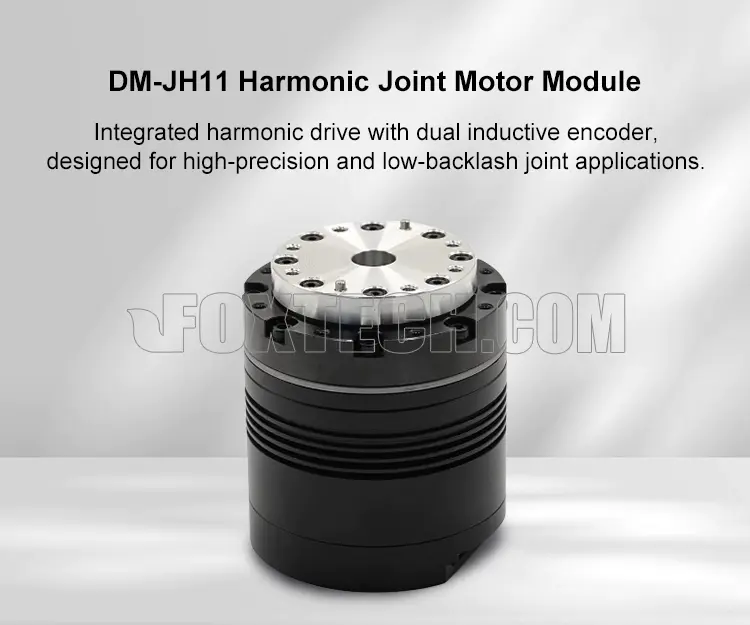

The DM-JH11 Harmonic Joint Motor Module is an integrated joint motor combining a harmonic drive and a dual inductive encoder, featuring low backlash, high precision, and excellent repeatability.
It is available with 51:1 and 101:1 reduction ratio options, making it suitable for robotic arms, humanoid robots, and other precision joint applications.
Key Features

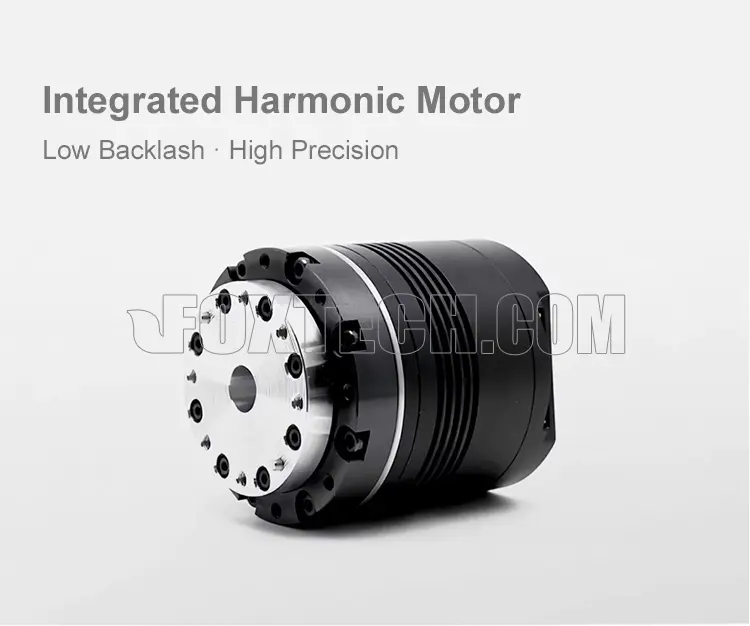

Integrated harmonic joint motor module design
Dual inductive encoder for high-precision feedback

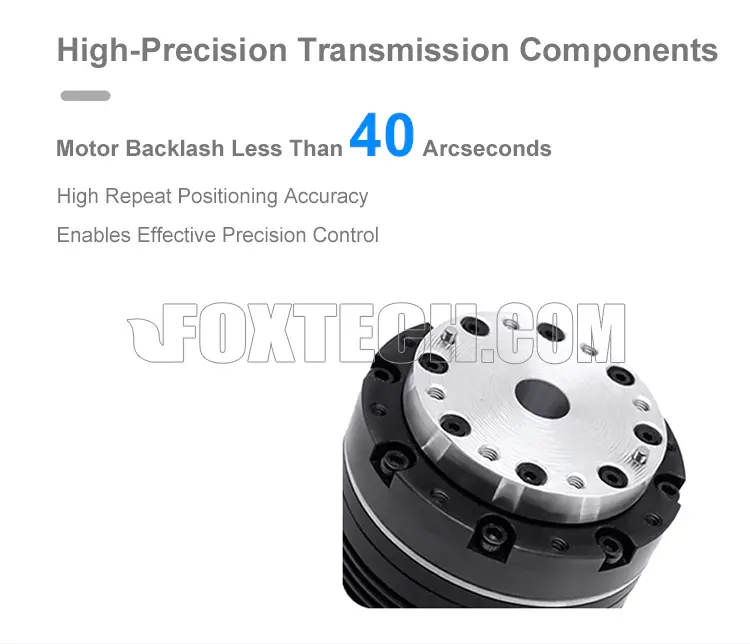

Low backlash for improved repeat positioning accuracy
Available with 51:1 and 101:1 reduction ratio options
Supports CAN and CAN FD communication
Suitable for various robotic joint applications
Your Purchase Includes
1x DM-JH11 Harmonic Joint Motor Module

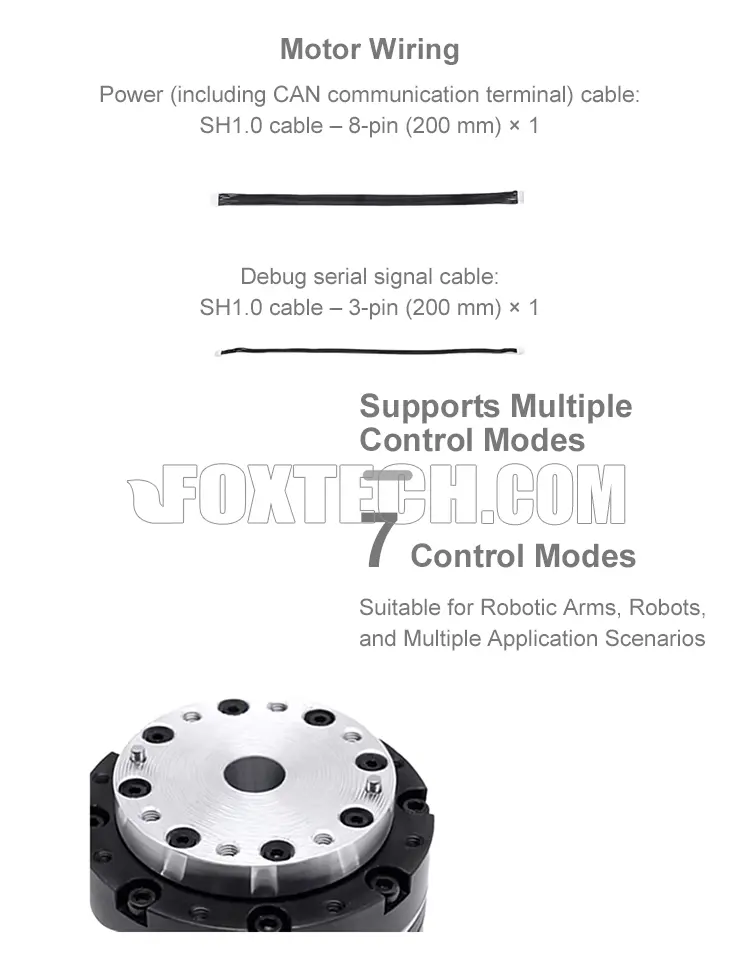

1x Power / CAN communication cable (8-pin, 200 mm) × 1
1x Debug serial signal cable (3-pin, 200 mm) × 1
