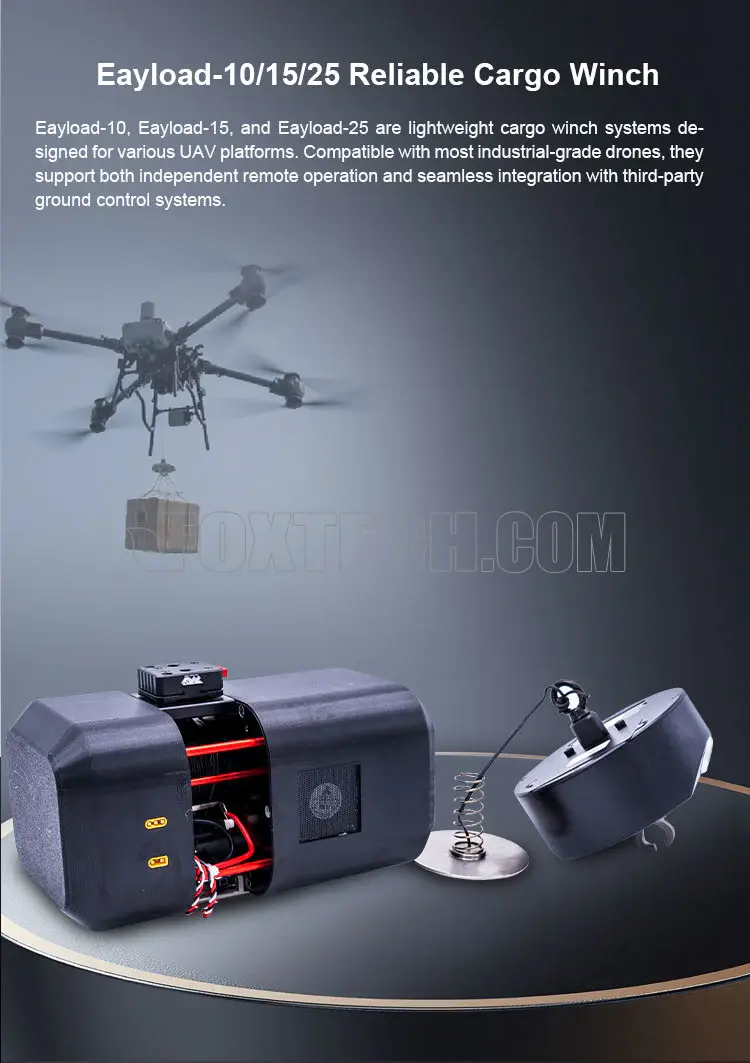

Eayload-10/15/25 Reliable Cargo Winch For Heavy-Duty Industrial Drones

Eayload-10, Eayload-10 DJI SDK, Eayload-15, and Eayload-25 are lightweight cargo winch systems designed for various UAV platforms. Compatible with most industrial-grade drones, they support both independent remote operation and seamless integration with third-party ground control systems.

For DJI models other than the M300 and M350, as well as third-party UAVs, the standard control method is SBUS, with a control range of up to 500 meters (LOS). Optional control methods include PWM or protocol-based integration, selectable based on specific use cases.

Key Features：

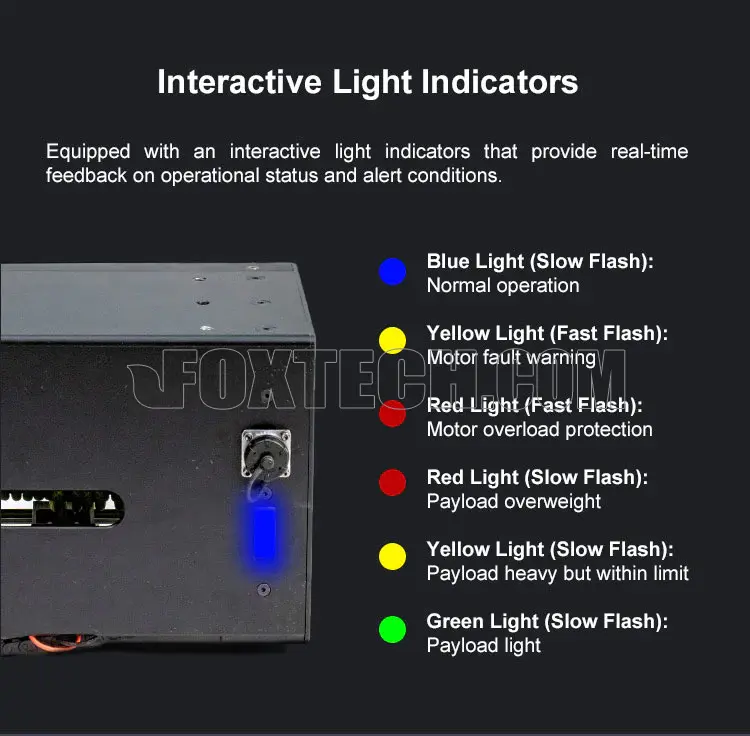

Payload Weight Indicator Light
Anti-Tangle Design

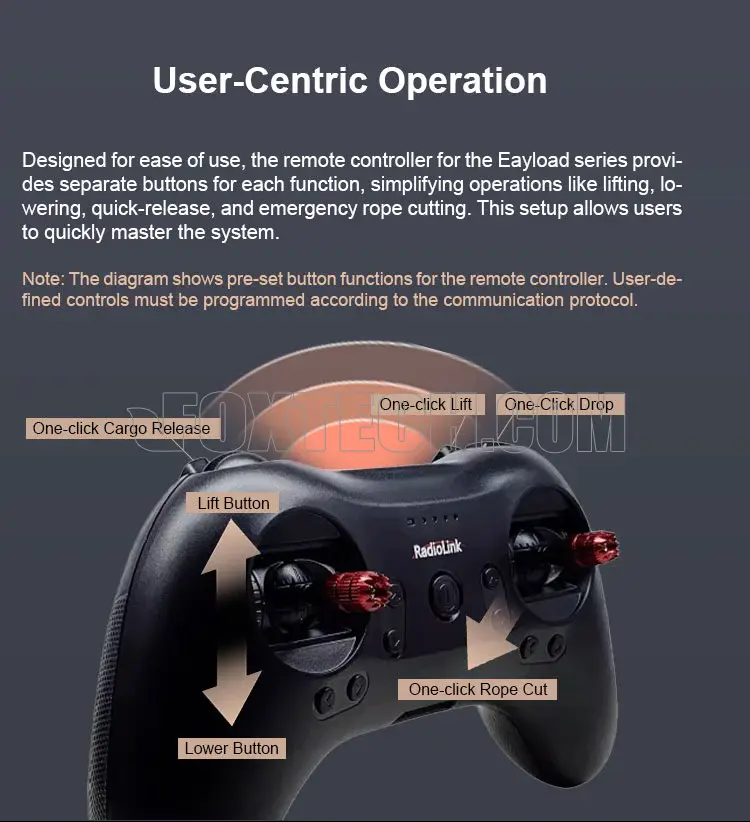

One-Click Release & Lift
2s Emergency Rope Cut
Automatic Unhooking and Stop Upon Ground Contact
Power-Off Brake (available on all models except Eayload-10)
Additional features exclusive to the electric control version:
Wireless Electric Aerial Drop
Dual Navigation Lights

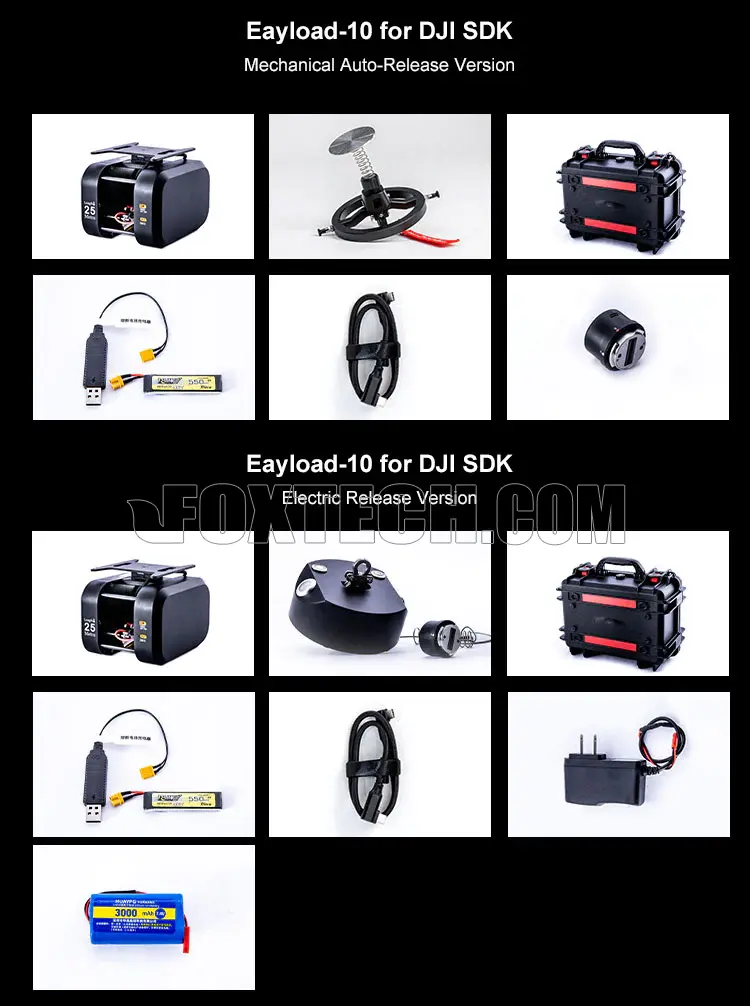

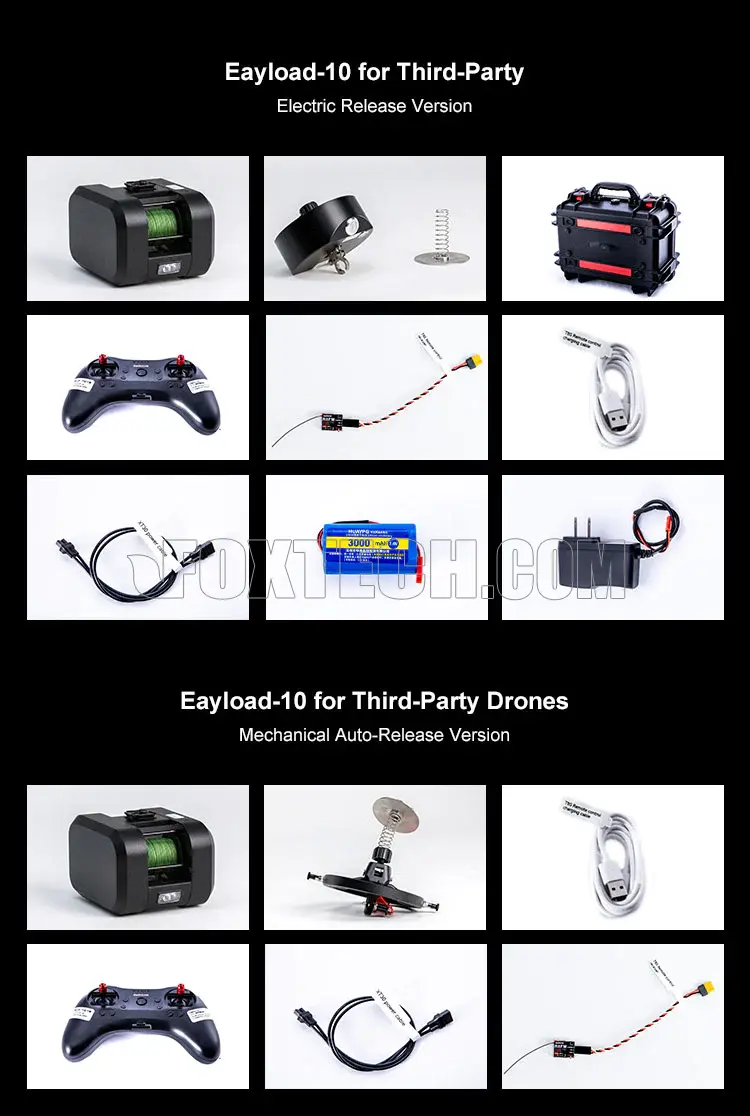

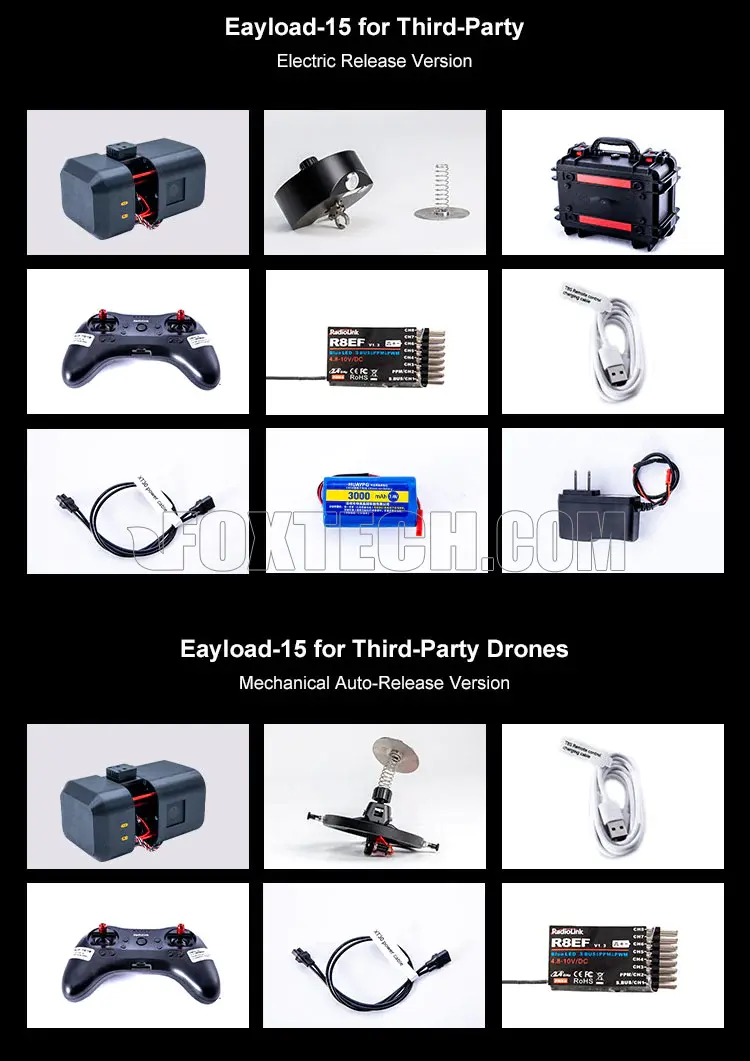

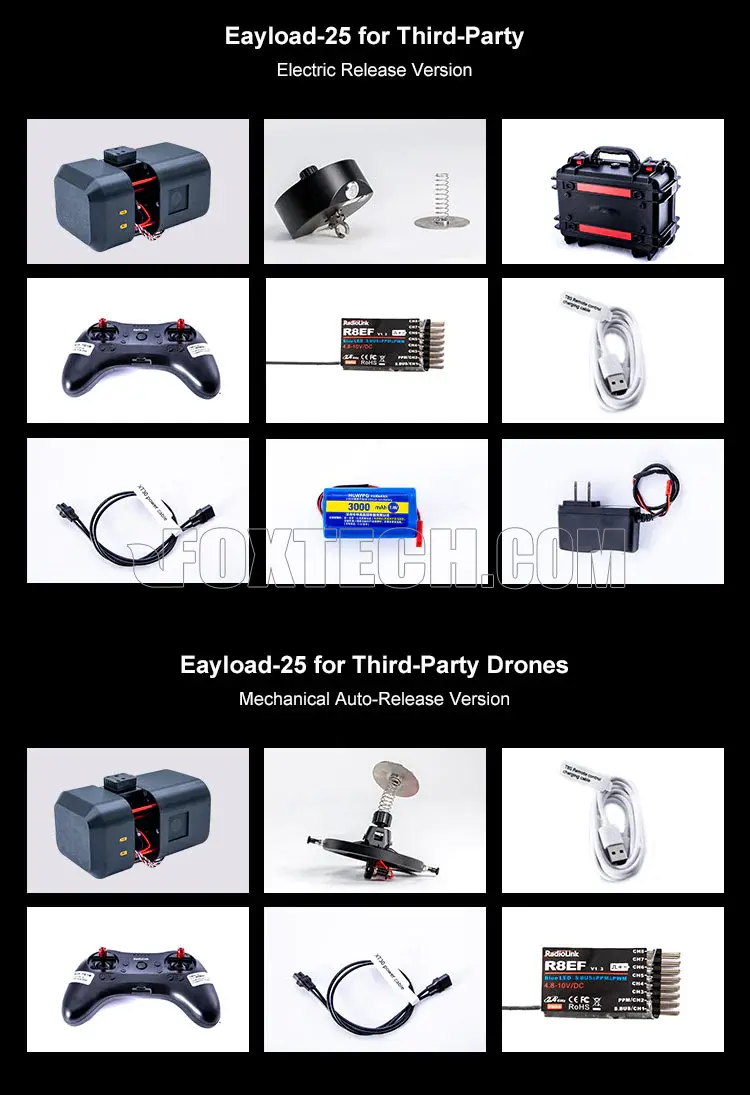

Your Purchase Includes：
1x Eayload-10/15/25 Main Unit
1x Set of Counterweight Ring + Counterweight Arm
1x Electric/Mechanical Auto-Release Device
1x Custom Protective Case
1x Quick-Release Mounting Kit
1x Set of Upper Limit Stopper + Buffer Spring
1x XT30 Power Cable
4x M5x12 Hex Socket Screws with Washers
1x Release Device Battery+Charger
1x Remote Controller + Receiver + Charging Cable

Notes:
1. When using SBUS or PWM control, after the one-touch lift and one-touch cargo release buttons have been fully executed, they must be promptly returned to the neutral position. (Applies only to third-party versions of the winch.)
2. During ground testing of the one-touch cargo release function, ensure the height is greater than 1.5 meters.
3. The Eayload DJI-version supports a maximum payload of 3 kg; however, the M300/M350 platform limits payloads to 2.7 kg. After deducting the winch’s own weight, this defines the actual allowable lifting weight. Overloading is strictly prohibited. (Applies only to the Eayload DJI-version .)
4. The outer shell has been upgraded to a high-strength molded housing for improved durability and wear resistance. (Eayload-10 Electric Release Version)
5. The fuse-break battery is now built-in and supports automatic recharging. Do not use the emergency rope-cut function unless absolutely necessary. (Eayload-10 Electric Release Version)
