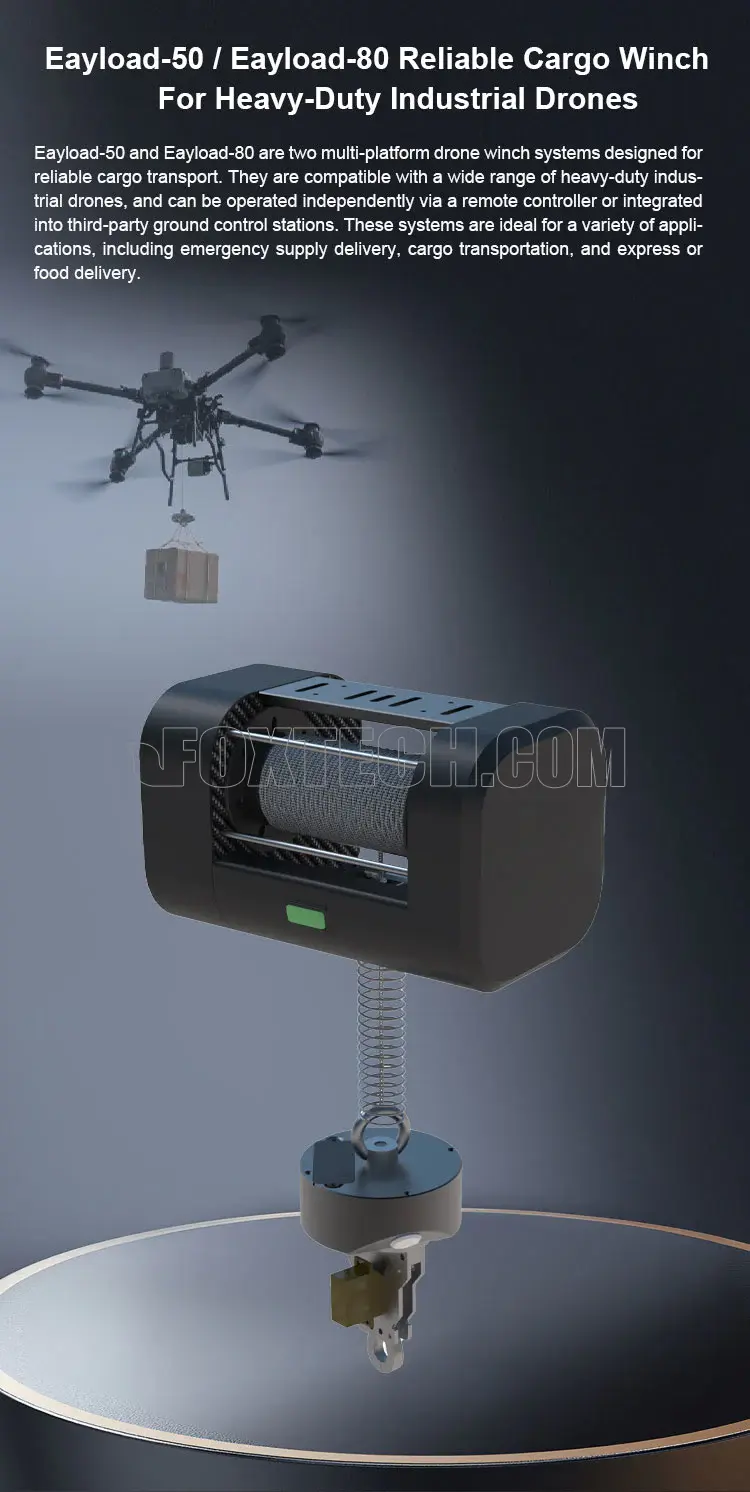

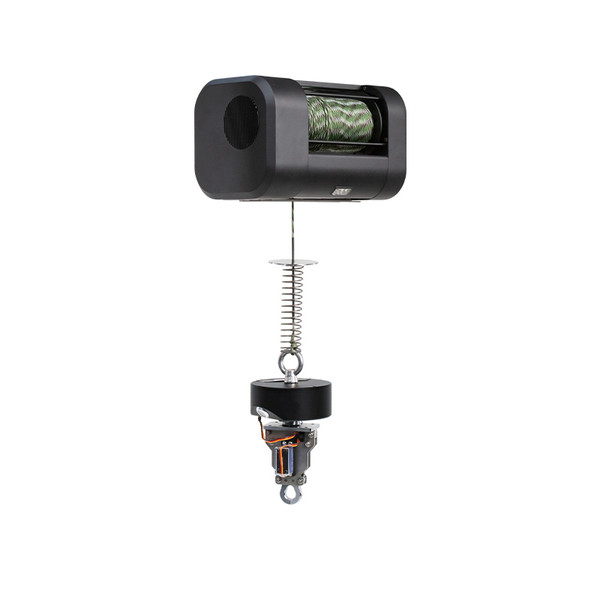

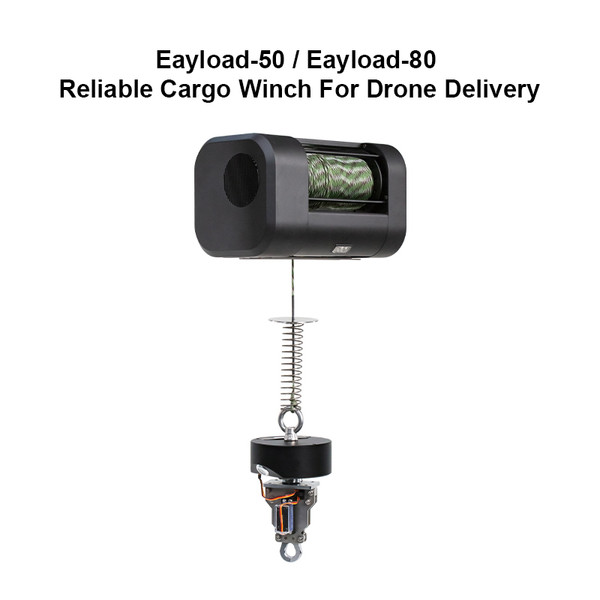

Eayload-50 / Eayload-80 Reliable Cargo Winch For Heavy-Duty Industrial Drones

Eayload-50 and Eayload-80 are two multi-platform drone winch systems designed for reliable cargo transport. They are compatible with a wide range of heavy-duty industrial drones, and can be operated independently via a remote controller or integrated into third-party ground control stations. These systems are ideal for a variety of applications, including emergency supply delivery, cargo transportation, and express or food delivery.

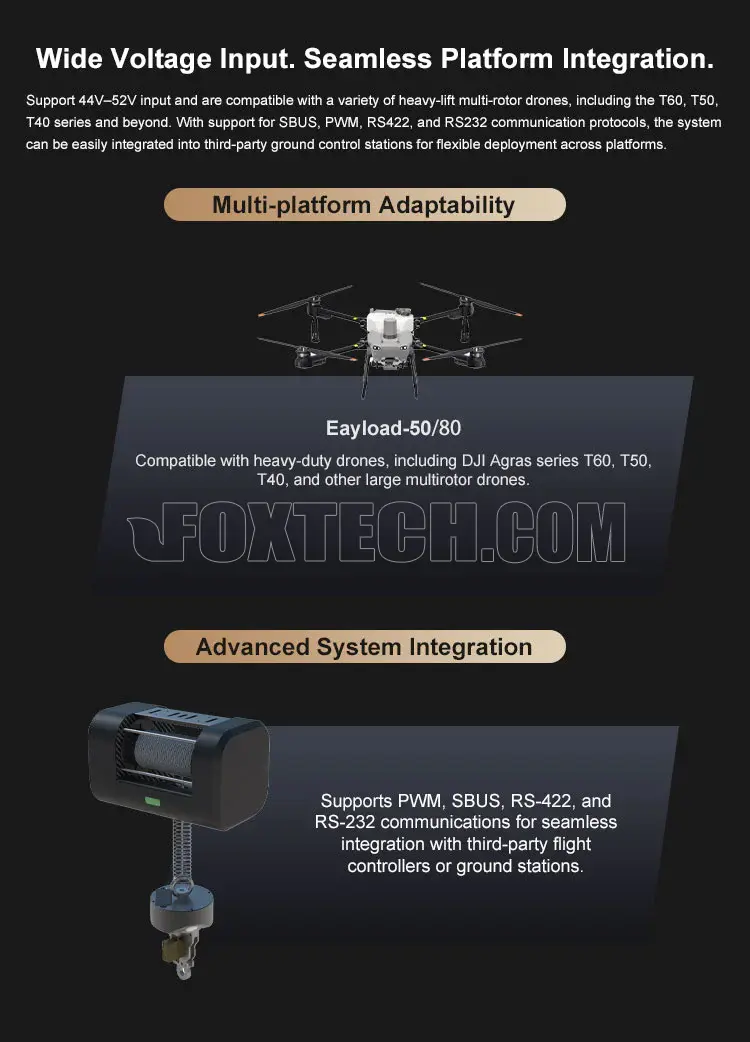

Control Method: SBUS (500m line-of-sight), PWM, and protocol control.

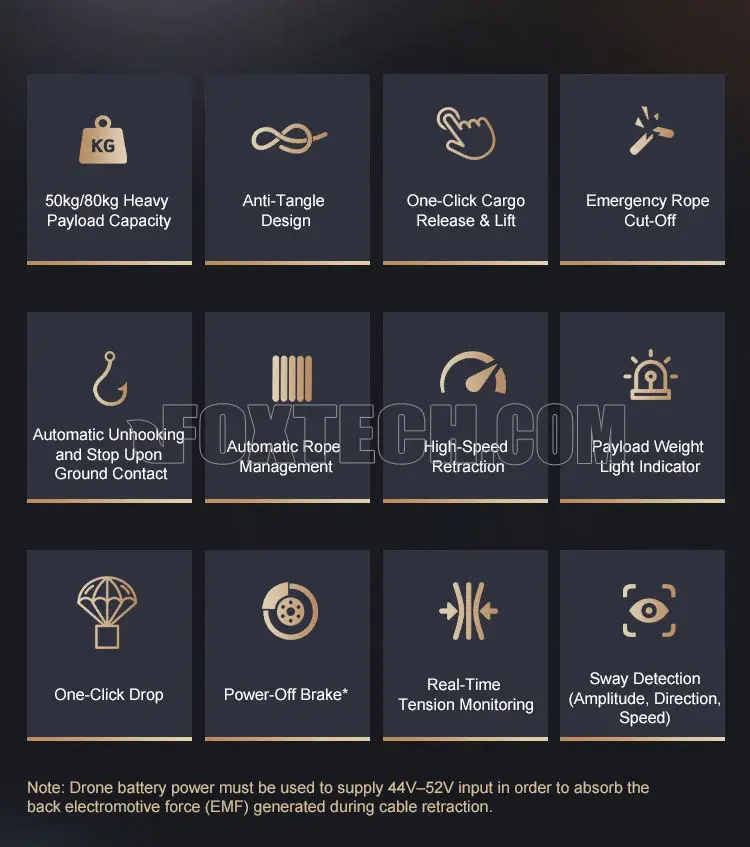

Key Features
50kg/80kg Heavy Payload Capacity
Anti-Tangle Design
One-Click Cargo Release & Lift
Emergency Rope Cut-Off

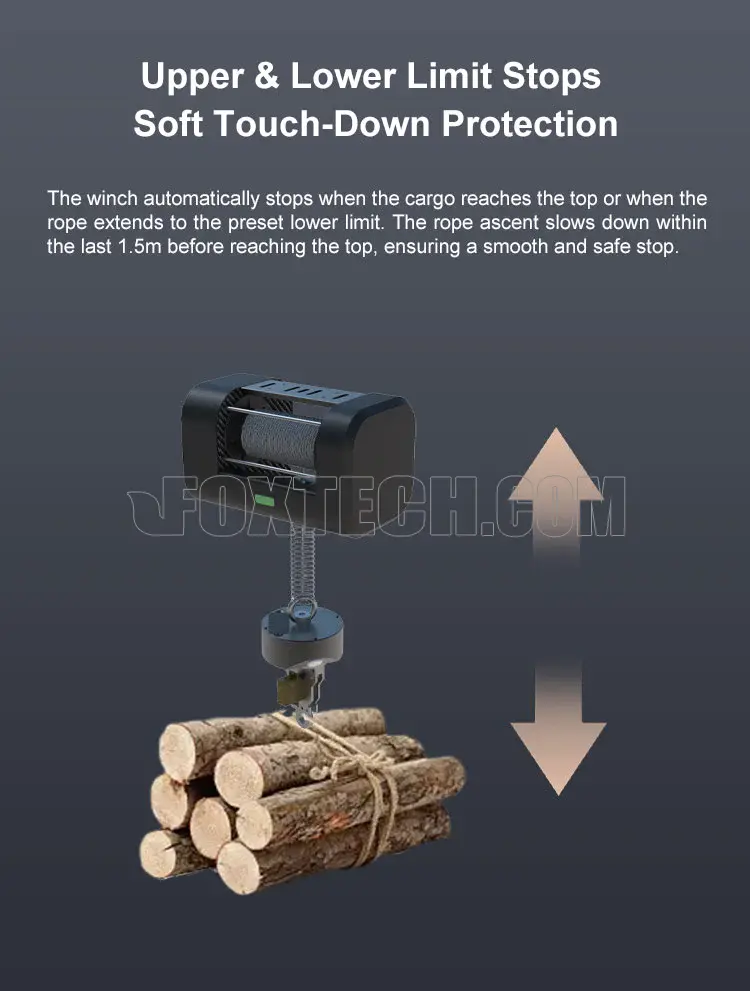

Automatic Unhooking and Stop Upon Ground Contact
Automatic Rope Management

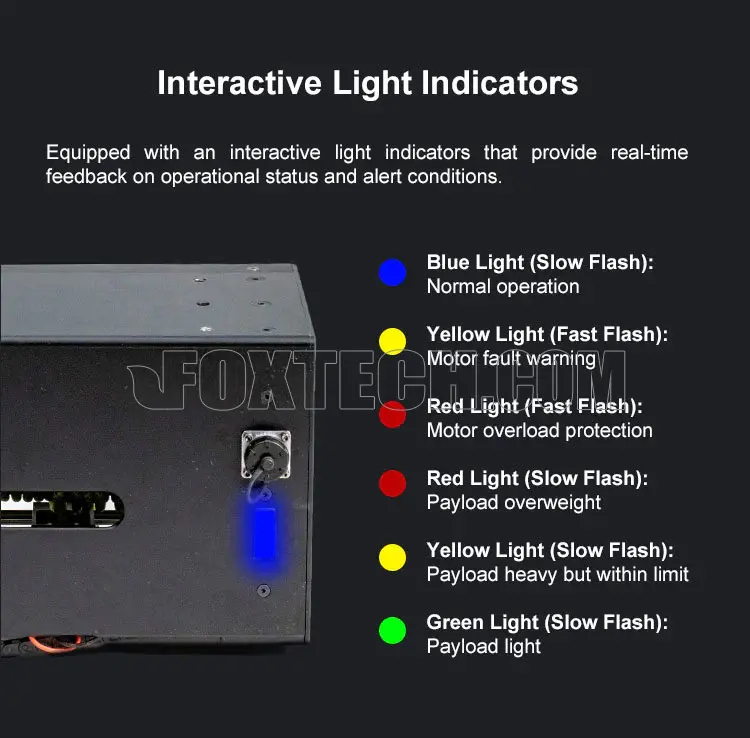

Payload Weight Light Indicator
One-Click Drop
Power-Off Brake
Real-Time Tension Monitoring
Sway Detection (Amplitude, Direction, Speed)

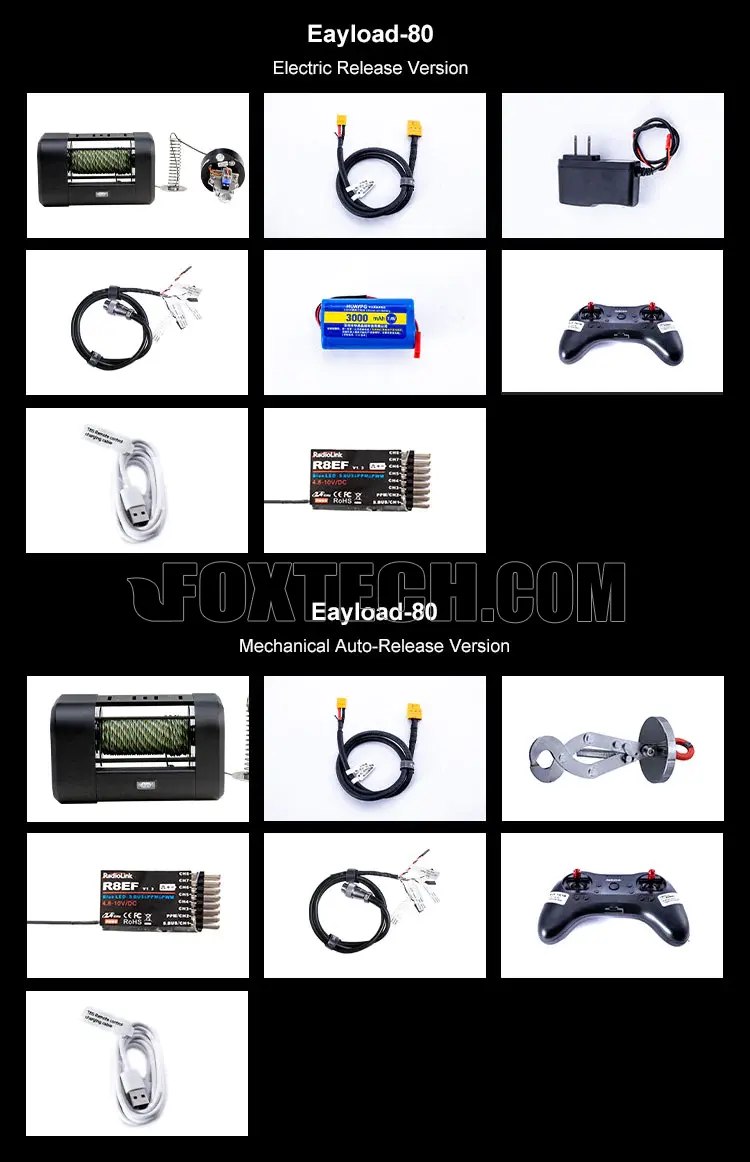

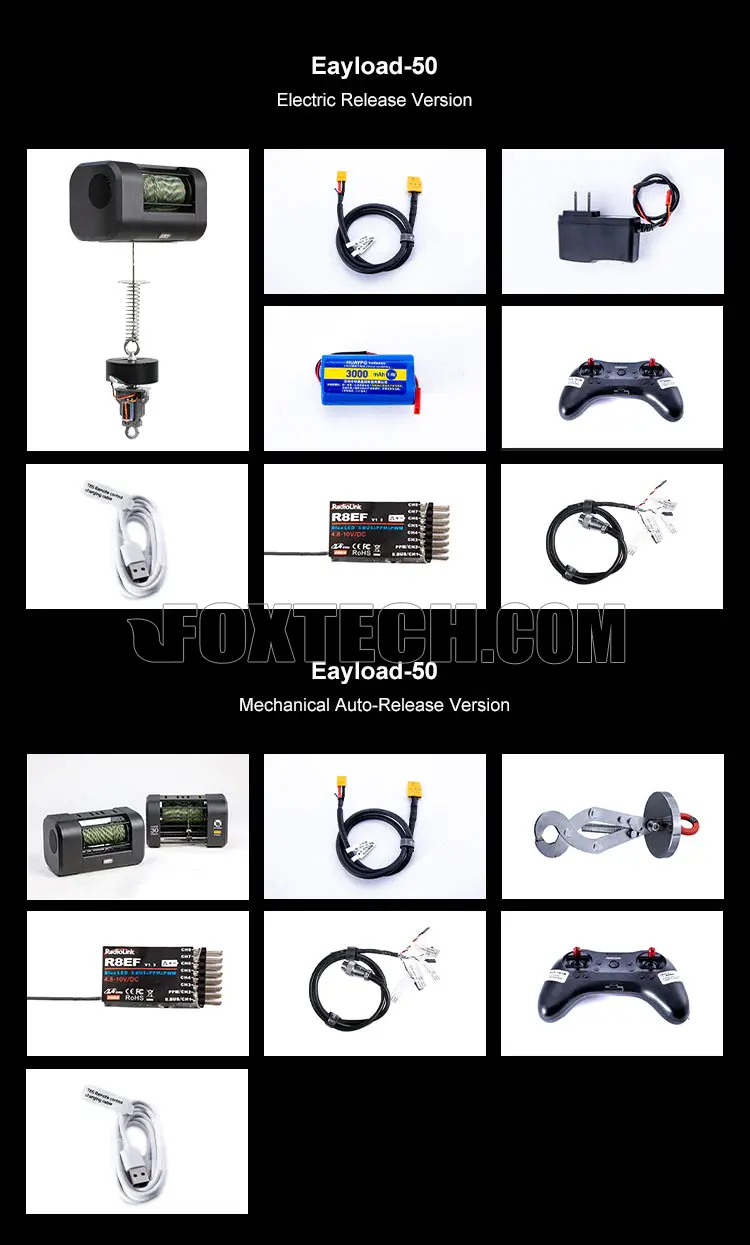

Your Purchase Includes
1x Eayload-50/80 Main Unit
1x Payload Release Module
1x Electric/Mechanical Release Hook
1x Upper Limit Trigger
1x Remote Controller & Charging Cable
1x Battery Charger for Payload Release Hook
1x Backup Battery for Payload Release Hook
1x User Manual
1x Certificate
1x 1x Aviation Connector + POWER COM Cable Set
6x M5×20 Hex Bolts
1x Release Device+Charger
1x Receiver

1. When using SBUS or PWM control, after the one-touch lift and one-touch cargo release buttons have been fully executed, they must be promptly returned to the neutral position.
2. During ground testing of the one-touch cargo release function, ensure the height is greater than 1.5 meters.
3. During actual heavy lifting tests, with the standard 30m rope, no more than 3 meters should remain inside the winch to prevent the rope from being compressed onto the inner spool layers due to excessive load.
4. The outer shell has been upgraded to a high-strength molded housing for improved durability and wear resistance.
5. The fuse-break battery is now built-in and supports automatic recharging. Do not use the emergency rope-cut function unless absolutely necessary.
