EXO-KER Lite Lightweight Portable Wearable Exoskeleton for Robot Teleoperation, Open-Source Development & Imitation Learning Data Collection

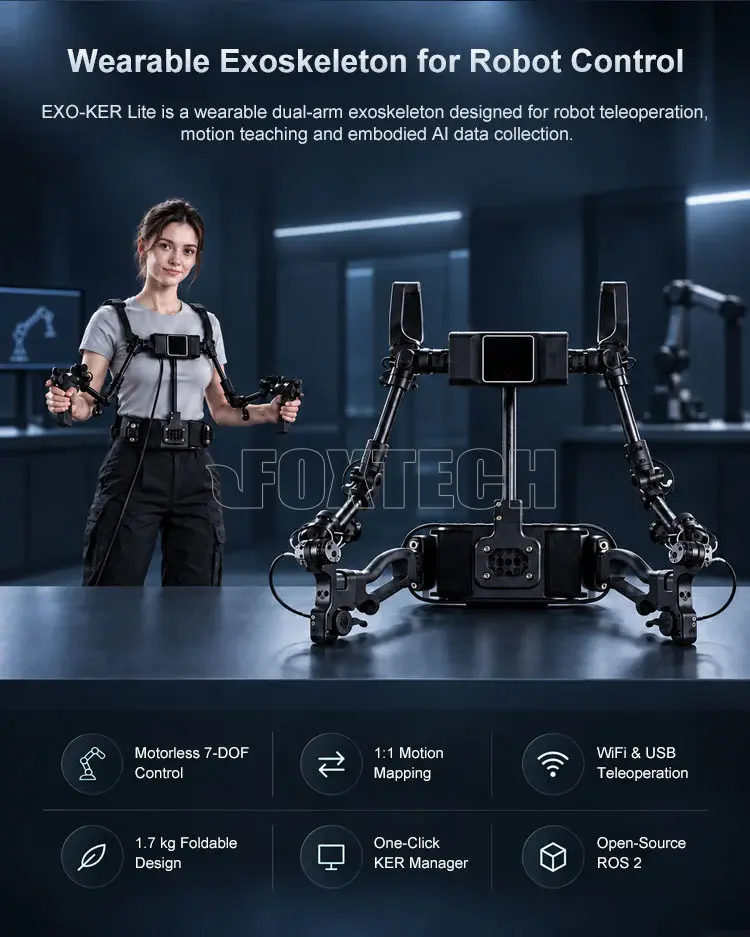

EXO-KER Lite is a lightweight, motorless wearable exoskeleton designed for robot teleoperation and imitation-learning data collection. Its passive dual-arm structure captures 16 channels of joint-angle data and transmits the operator’s movements to robot control systems through WiFi or USB.

IDEAL FOR
Humanoid Robot Teaching
Imitation-Learning Data Collection
Embodied AI Research
Robotics Education
Custom Robot Integration

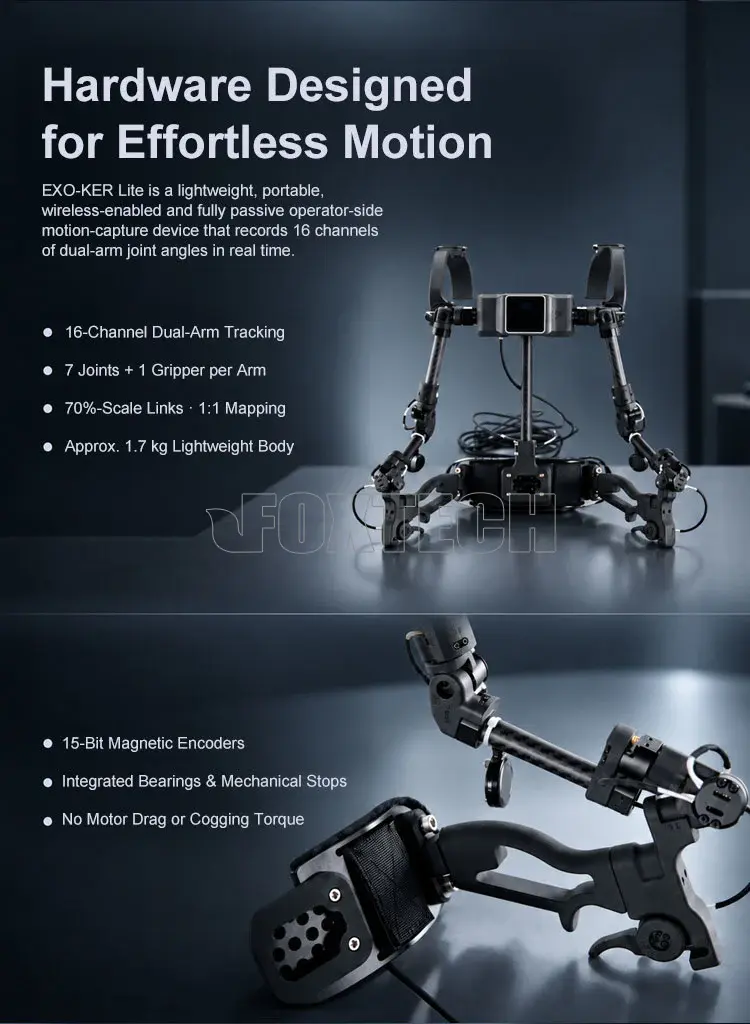

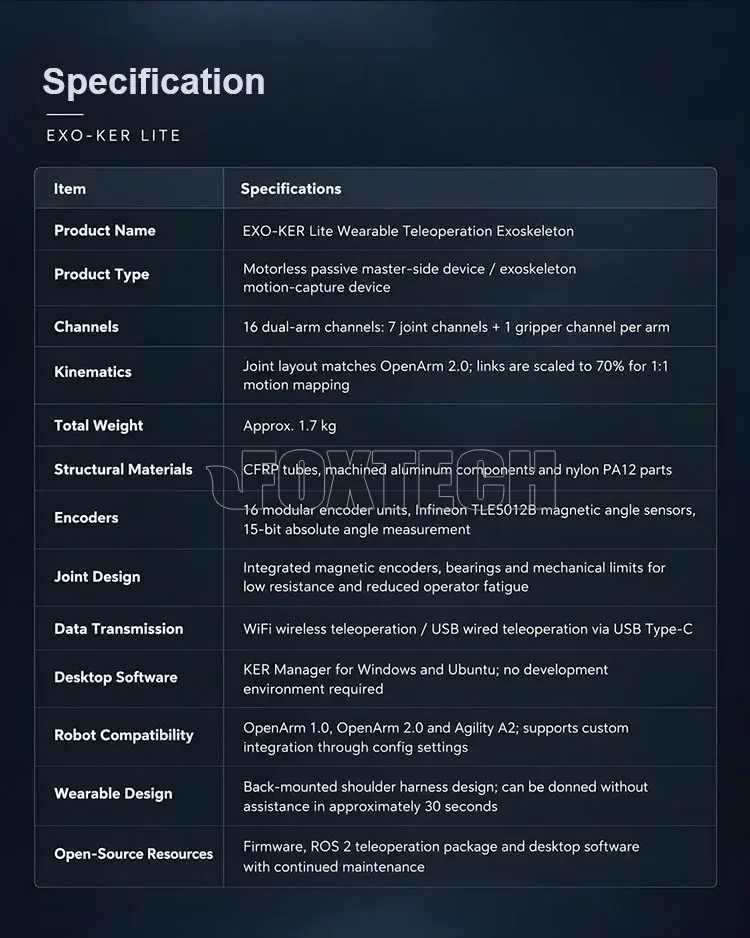

Based on a Kinematic Equivalent Replica design, EXO-KER Lite uses 16 modular 15-bit absolute magnetic encoder units to capture bilateral arm movements. Its approximately 1.7 kg foldable structure works with KER Manager and a configurable ROS 2 teleoperation package for calibration, monitoring, firmware management and multi-robot joint mapping.

KEY FEATURES
- 16-Channel 15-Bit Dual-Arm Tracking
16 modular 15-bit absolute magnetic encoder units track seven joints and one grip channel per arm for bilateral motion capture and robot joint mapping.
- WiFi and USB Connectivity
Switch between wireless WiFi operation and wired USB Type-C connectivity to suit mobile teaching, setup and debugging workflows.

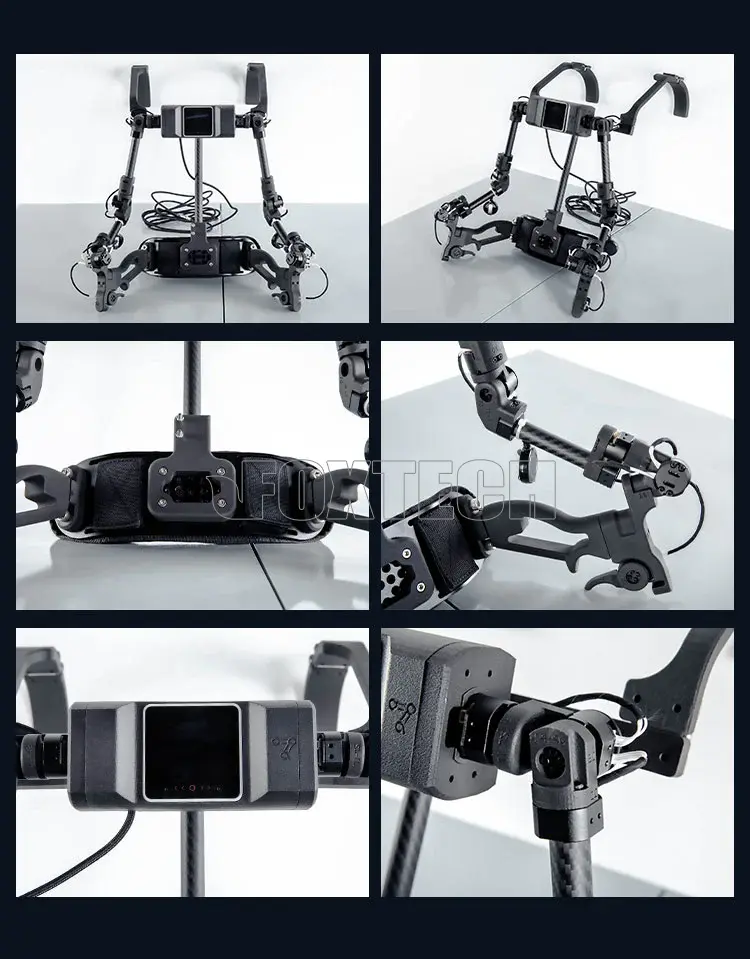

- Lightweight Foldable Structure
The approximately 1.7 kg shoulder-back design folds for easier transport and supports fast wear setup in about 30 seconds.
- Kinematic Mapping & Compatibility
The kinematically equivalent joint structure enables intuitive 1:1 motion mapping and supports Agility A2, OpenArm 1.0/2.0 and third-party robot integration.

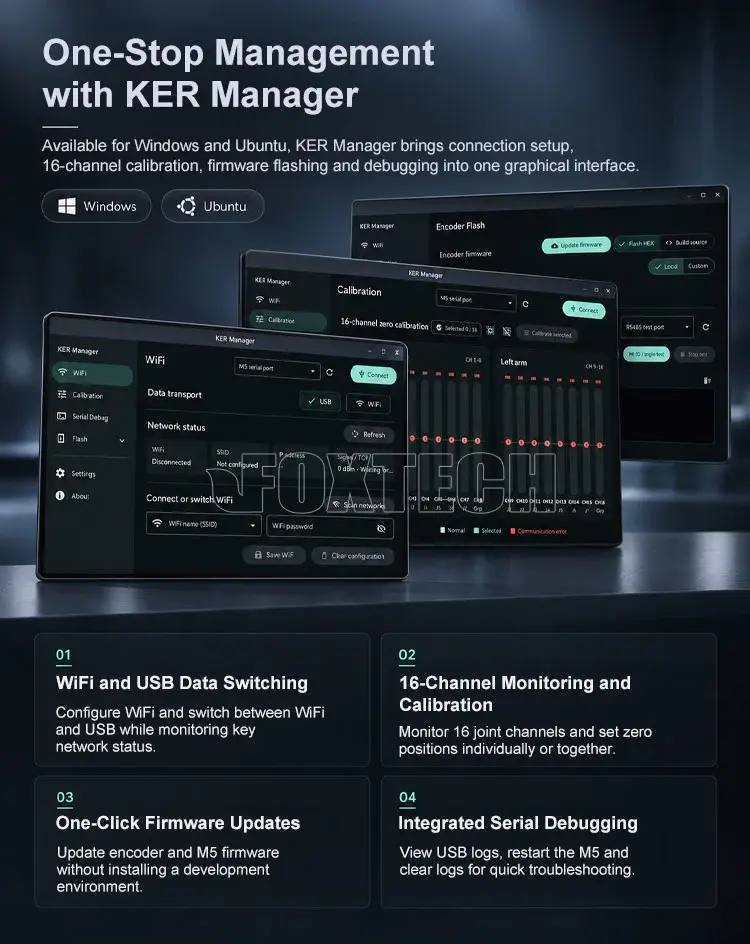

- KER Manager Software
The Windows and Ubuntu desktop software supports calibration, angle monitoring, connection switching, firmware updates and debugging.

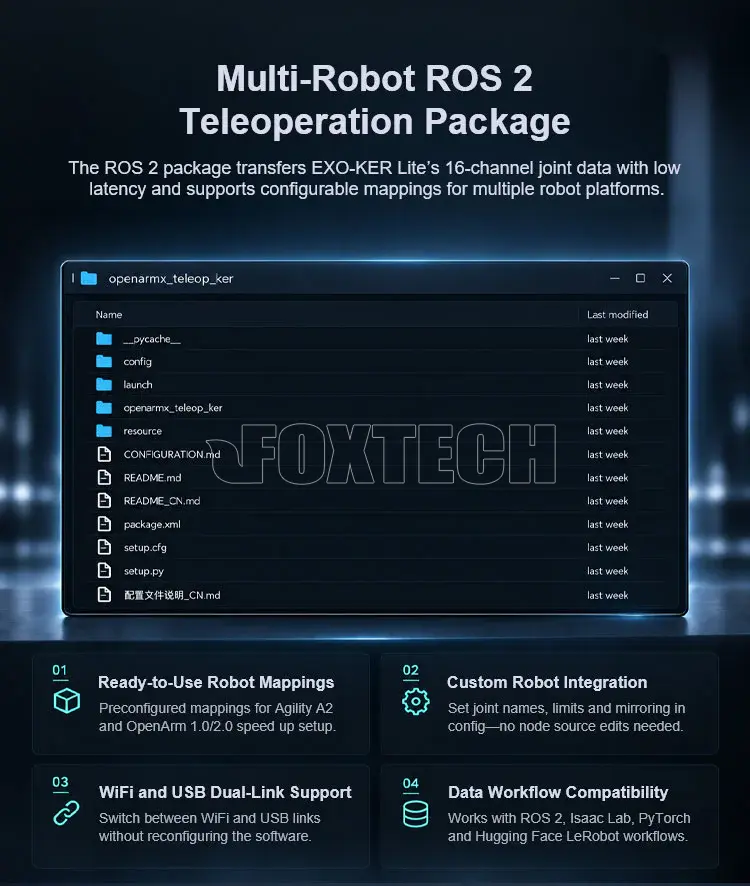

- Configurable ROS 2 Package
The supplied teleoperation package supports default robot mappings and config-based integration without modifying the node source code.
- Open-Source Development Resources
Firmware, teleoperation tools and KER Manager repositories support software inspection, customization and continued development.

YOUR PURCHASE INCLUDES
1× EXO-KER Lite Motorless Wearable Exoskeleton
