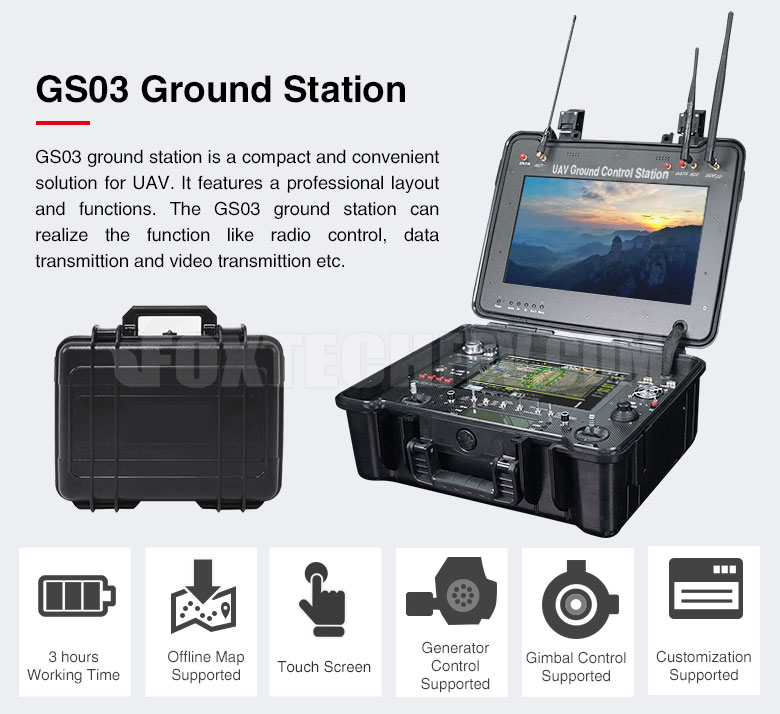

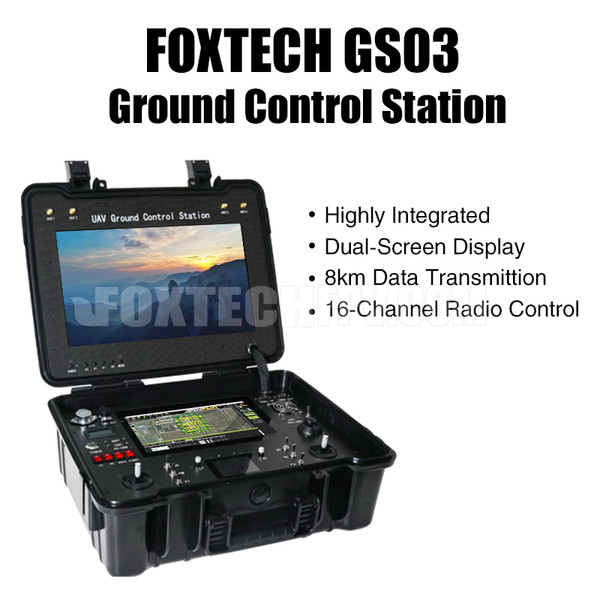

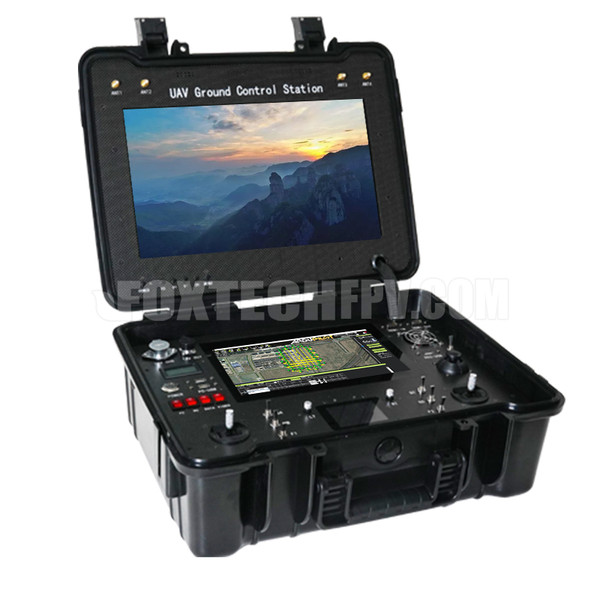

GS03 ground station is a compact and convenient solution for UAV. It features a professional layout and functions. The GS03 ground station can realize the functions like radio control, data transmission and video(optional) transmission etc. And all theses functions can be controlled separately.
The GS03 ground station is equipped with a 15.6 inch bright daylight monitor, which is used for checking onboard video. You also can set the contrast, brightness and other functions by the buttons on the ground station.

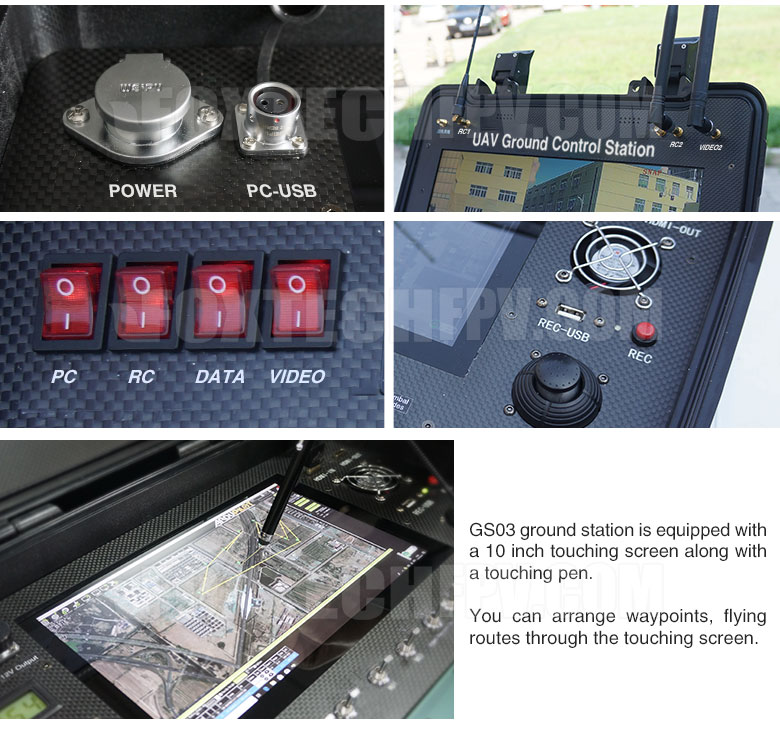

Except the 15.6 inch monitor, the GS03 ground station is also equipped with a 10 inch touching screen. The touching screen features fast response due to the built-in computer the processor of which is i7. You can arrange waypoints, flying routes through the touching screen.
The ground station also can be used to control our GAIA 160 Elite HYBRID drone, there is a three stage switch to control the stop, idle and work mode of generator. And there is also a joy stick, through which you can control the gimbal on your drone.
The GS03 ground station is built in a 20000mah Lithium battery for 3 hours operation time. You also could link a charger from your car, so that you can use the ground station without any time limit.
Hightlights:
Dual-screen Display
8KM Data Transmission
Built-in DA16S+ Radio Controller
Your Purchase Includes:
1x FOXTECH GS03 Ground Station (built-in DA16S+)
Option:
VD Pro 15~150km Video/Data Wireless Transmission System
Dimensions | 460 x 350 x 180 mm |
Operating Temperature | -20°C to +60°C |
Case Features | Rugged Plastic Case, Carry handle,Pressure Purge Valve |
Battery Type | Lipo Battery |
Operating Temperature | 3S 20000mAh |
Battery Operation time | 3 Hours |
DC Power Output | 12V |
Display | 15.6 Inch Monitor,10 Inch Touching Screen |
Built-in 16-channel Radio Control | 8KM Data Transmission Range |
