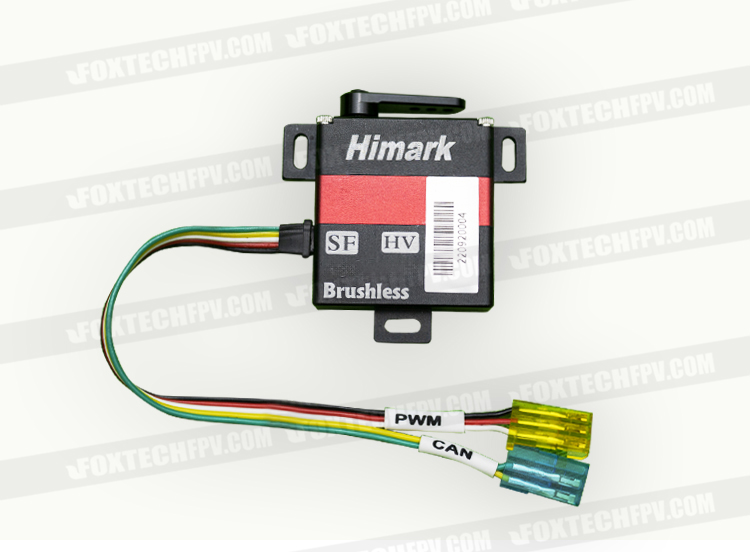

Himark SF8008MG HV Brushless Digital Servo
- SKU:
- C209140
- Weight:
- 0.15 KGS
The SF8008MG is a brushless digital servo specifically designed for a wide range of applications, including VTOL, fixed-wing aircraft, helicopters, and unmanned boats. It offers comprehensive data feedback capabilities, providing information on voltage, current, temperature, and position.
With its versatile control options, the SF8008MG supports both PWM and CAN control interfaces, ensuring compatibility with various systems. It delivers a reliable and consistent performance with a rated torque of 4 kg/cm, making it suitable for demanding tasks.
Features:
-Various data feedback: voltage, current, temperature, position (angle).
-Multiple control modes: PWM/CAN
-High efficiency and long-lived brushless motor
-32-bit microcontroller, high resolution (4096) magnetic encoder potentiometer
-Current overload protection
-CNC aluminum alloy casing, good for heat dissipation
-Metal gears, steel gears
-Wide stroke
| Control Mode | PWM, CAN |
| No-load Current | 0.3 A |
| Operating Voltage Range | 4.8-8.4 V (2S) |
| Stall Current | 1 A |
| No-load Operating Speed | 0.08 s/60° |
| Dimension | 30*10*33 mm |
| Stall Torque | 8 kg.cm |
| Motor Type | Brushless |
| Standing Torque | 4 kg/cm (7.4 V) |
| Potentiometer Type | Magnetic coding |
| Weight | 27.5 g |
| Input power line definition | |
| PWM | White: PWM Signal + |
| Red: + | |
| Black: GND | |
| CAN | Red: + |
| Black: GND | |
| Red: CANL | |
| White: CANH |
