SEEKER-10 TIRM EO+IR Dual-Sensor Laser Rangefinder 10X Zoom Camera with 3-axis Gimbal
- SKU:
- 2102054
- Weight:
- 3.80 KGS

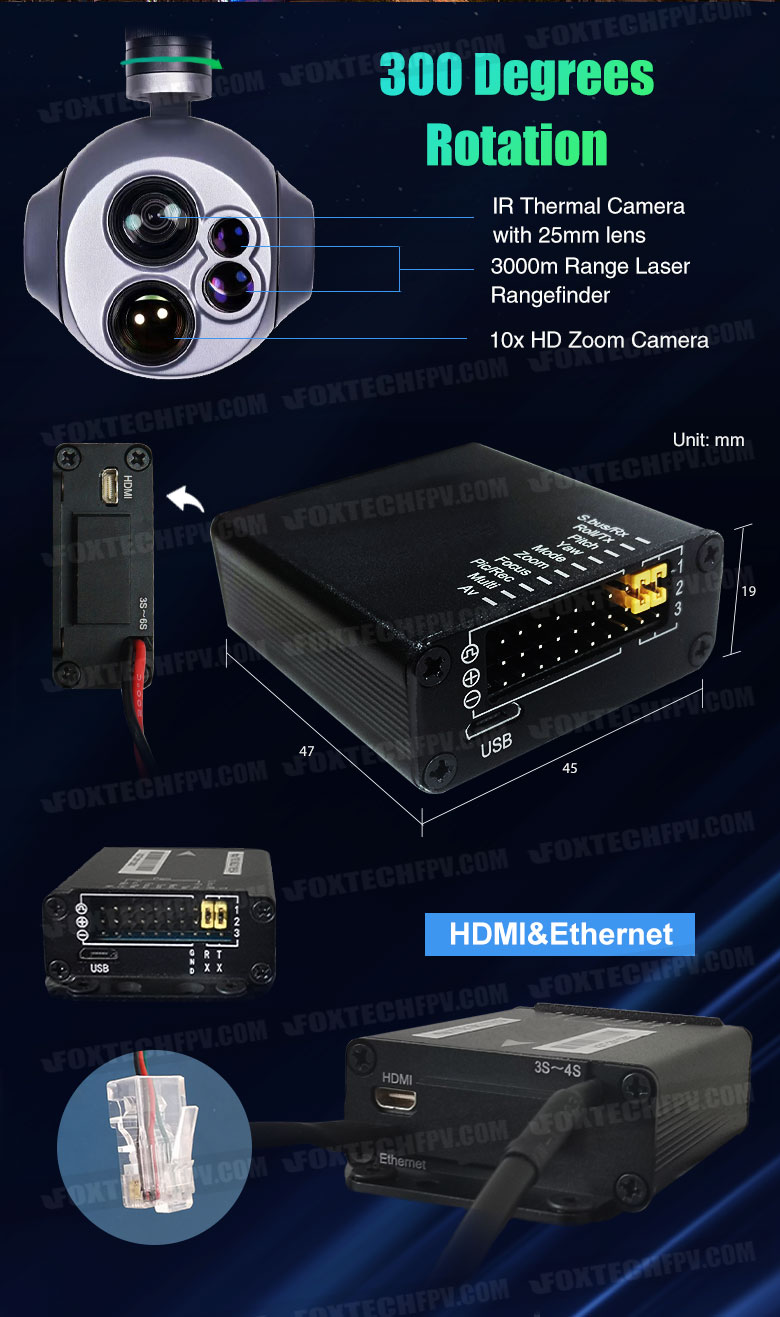

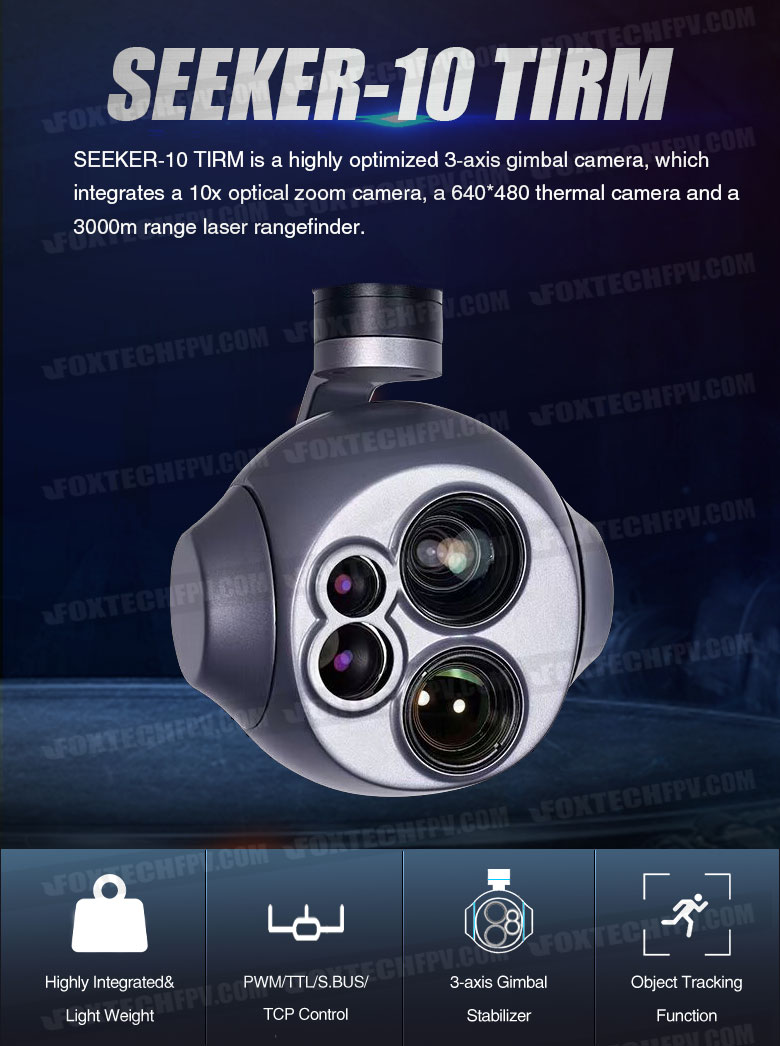

SEEKER-10 TIRM is a highly optimized 3-axis gimbal camera, which integrates a 10x optical zoom camera, a 640*480 thermal camera and a 3000m range laser rangefinder.
It is developed based on FOC technology, featuring high stability, accuracy, sensitivity and low power consumption. The gimbal has 2 smart speed modes: FAST speed and LOW speed. Fast speed mode is used for small zooming range, low speed mode is used for large zooming range.
The high-precision laser rangefinder can accurately analyze the longitude and latitude, and the distance of the object within 3000 meters. The information will be displayed on the screen, making the camera more applicable. Besides, SEEKER-10 TIRM supports EO+IR dual sensors object tracking. The tracking speed is up to 32 pixels/frame, the object size range is from 32*32 pixels to 128*128 pixels with the minimum signal-to-noise ratio(SNR) of 4dB, and the mean square root values of pulse noise in the object position is less than 0.5 pixel of visible light camera, which greatly improve the accuracy and tracking effect.
SEEKER-10TIRM can be loaded on RHEA 160 hexacopter and can be applied in many fields like police surveillance and evidence collection, power line inspection, disaster prevention, emergency monitoring and inspection, police enforcement, search and rescue, etc.
Highlights:
10x optical zoom camera
640*480 IR thermal camera with 25mm lens
3000m range laser rangefinder
GPS location resolving
Object tracking for both EO & IR cameras
Two gimbal control speed modes: FAST speed and LOW speed

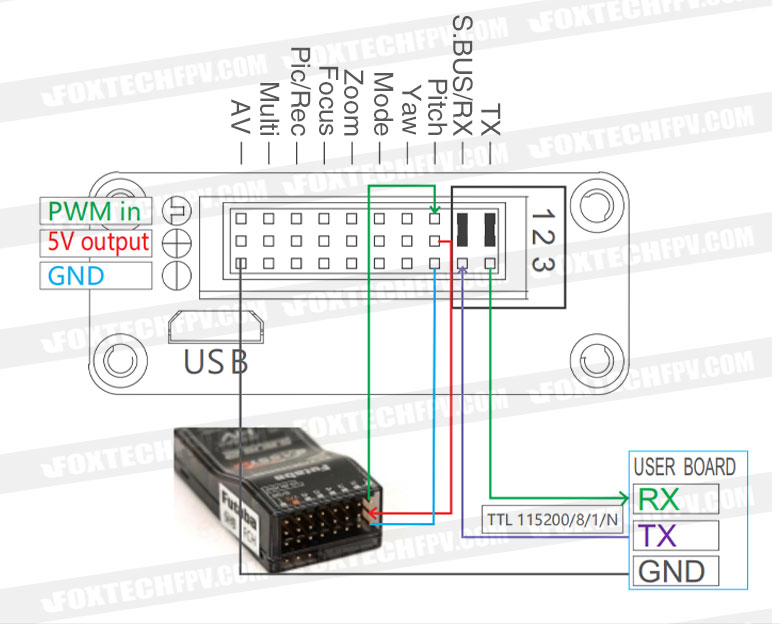

PWM/TTL/S.BUS/TCP multiple control methods
Your Purchase Includes:
1x SEEKER-10TIRM Dual-Sensor 10x Zoom Camera with 3-axis Gimbal
1x Accessory Kits
4X Damping Ball
4x Copper Cylinder
Specifications: | |
Weight | 716g |

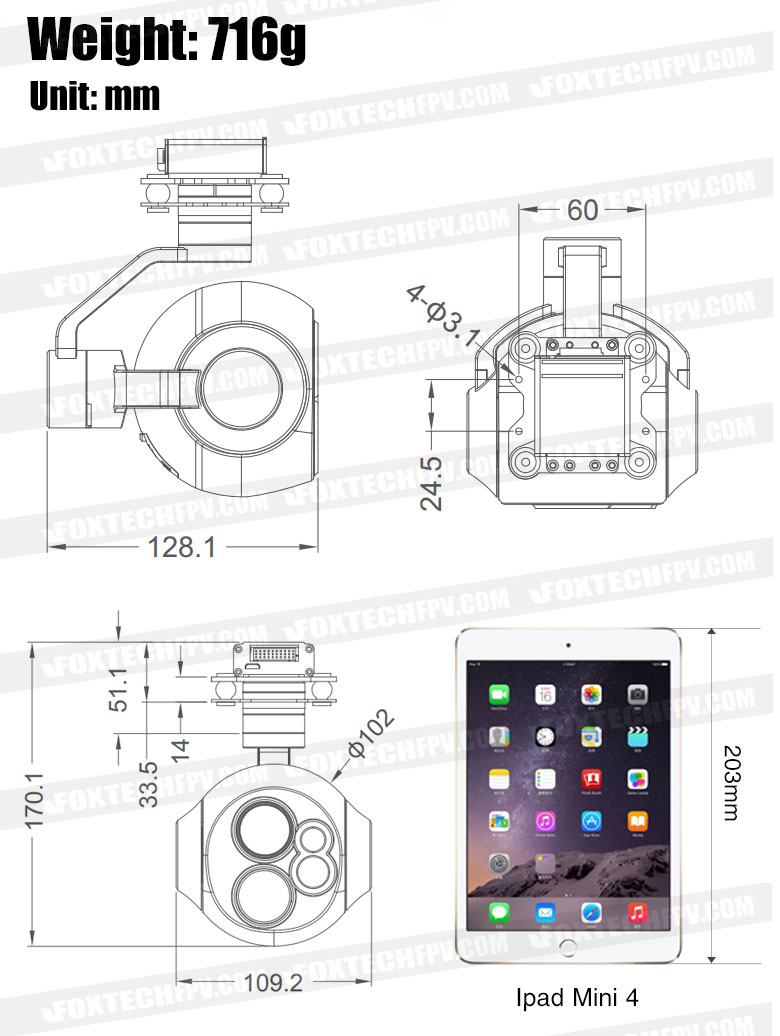

Size | 109.2*128.1*170.1mm |
Working Voltage | 12V |
Dynamic Current | 1100mA @ 12V |
Idle Current | 950mA @ 12V |
Working environment temp. | -20℃ ~ +60℃ |
Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
Gimbal Spec: | |
Mechanical Range: | Pitch/Tilt: -50°~105°, Roll: ±60°, Yaw/Pan: ±300° |
Controllable Range | Pitch/Tilt: -45°~90°, Yaw/Pan: ±290° |
Vibration angle | Pitch/Roll: ±0.02°, Yaw:±0.02° |
One-key to center | supported |
Visible Light Camera Spec: | |
Sensor | 1/3" Panasonic CMOS Sensor |
Total Pixel | 2.48M |
Image Resolution | Full HD 1080 (1920*1080) |
Optical Zoom | 10x, f = 5.1mm ~ 51mm |
Video Output | 1080p/60, 1080p/50, 1080p/30, 1080p/25 |
Sync. System | Internal |
S/N ratio | more than 50dB |
Defog | Yes |
OSD | Yes |
Thermal Imager Spec: | |
Lens Size | 25mm |
Digital Zoom | 1x ~ 4x |
Detector pixel | 640*480 |
Pixel size | 17μm |
Detective Distance (Man: 1.8x0.5m) | 735 meters |
Recognize Distance (Man: 1.8x0.5m) | 184 meters |
Verified Distance (Man: 1.8x0.5m) | 92 meters |
Detective Distance (Car: 4.2x1.8m) | 2255 meters |
Recognize Distance (Car: 4.2x1.8m) | 564 meters |
Verified Distance (Car: 4.2x1.8m) | 282 meters |
Image enhancement | Auto adjust image brightness and contrast ratio |
Emissivity correction | 0.01~1 |
Color Palette | White, iron red, pseudo color |
IR Laser Rangefinder Spec: | |
Laser Wavelengths | 1550nm |
Optical aperture | Transmit 13mm / Receive17 mm |
Measure ability | 3000m |
Measurement frequency | 2Hz |
Multi-target measuring | Max.3 targets distance values returning |
Object Resolution (Typical value) | 30m |
