SEEKER
SEEKER-50 TIR Single Sensor Thermal Camera with 3-axis Gimbal
- SKU:
- 210430
- Weight:
- 3.00 KGS

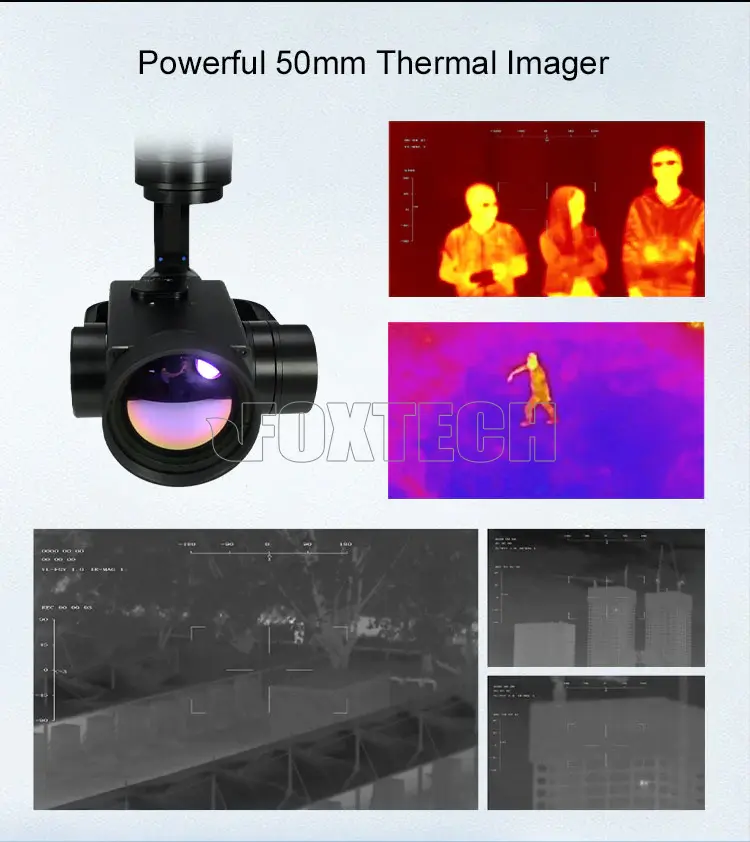

SEEKER-50 TIR is a 50mm single-sensor 640*480 thermal camera with 3-axis gimbal, which supports HDMI& Ethernet output, 2x-4x digital zoom and max.128G SD card. SEEKER-50 also supports object tracking function. The tracking speed is ±32 pixel/frame and the object size range is from 16*16 pixels to 128*128 pixels.
SEEKER-50 high-precision 3-axis gimbal is developed based on FOC technology, featuring high stability and low power consumption. The gimbal has 2 smart speed modes: FAST speed and LOW speed. Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick; low speed mode is used for large zooming range, which makes the gimbal control more accurate.

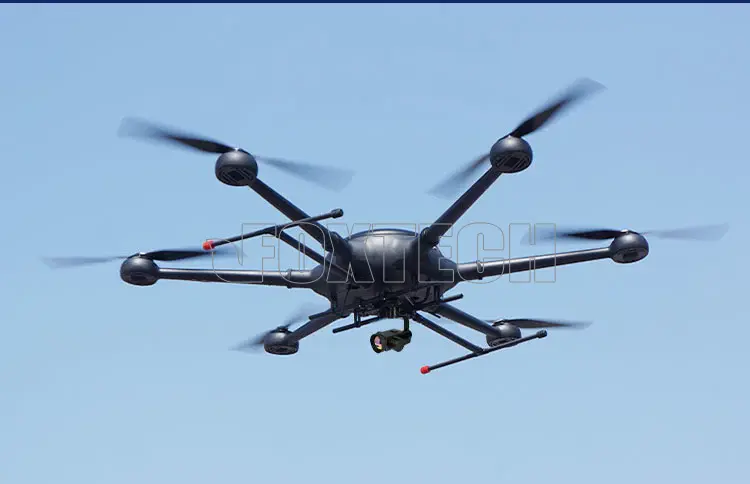

Thanks to small volume and 1210g lightweight, SEEKER-50 is easy to be mounted on a variety of fixed wings and multi-rotors, like Great Shark, AYK-250 VTOL, and RHEA 160 hexacopter etc, which can be applied in many fields like solar panels inspection, long distance surveillance, fire fighting and searching etc.
Main Features:
2X-4X Digital Zoom
640*480 IR Thermal Camera with 50mm Lens
Max. 128G SD Card
Object Tracking
Two Gimbal Control Speed Modes: FAST speed and LOW speed

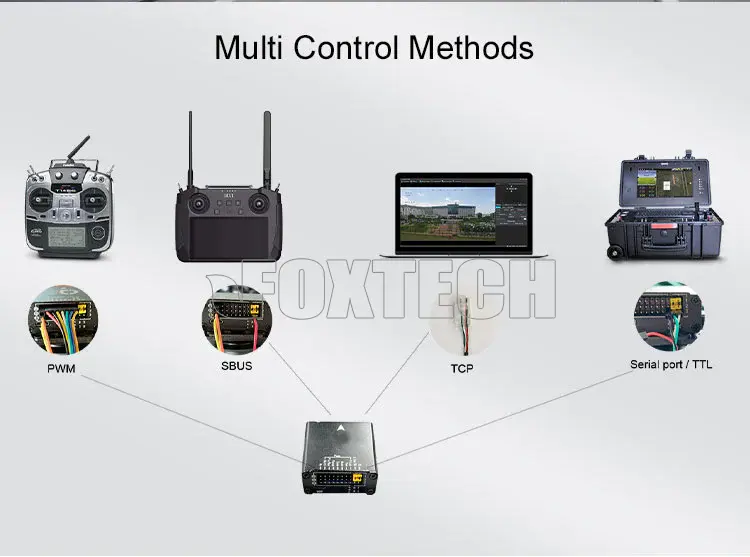

PWM/S.BUS/TTL/TCP Multiple Control Methods
Detective Distance (Man: 1.8x0.5 m): 1471 Meters
Recognize Distance (Man: 1.8x0.5 m): 368 Meters
Verified Distance (Man: 1.8x0.5 m): 184 Meters
Detective Distance (Car: 4.2x1.8 m): 4510 Meters
Recognize Distance (Car: 4.2x1.8 m): 1127 Meters
Verified Distance (Car: 4.2x1.8 m): 564 Meters
Your Purchase Includes:
1x SEEKER-50 TIR Thermal Camera with 3-axis Gimbal
4x Copper Cylinder
12X Damping Ball
1x Accessory Kits
