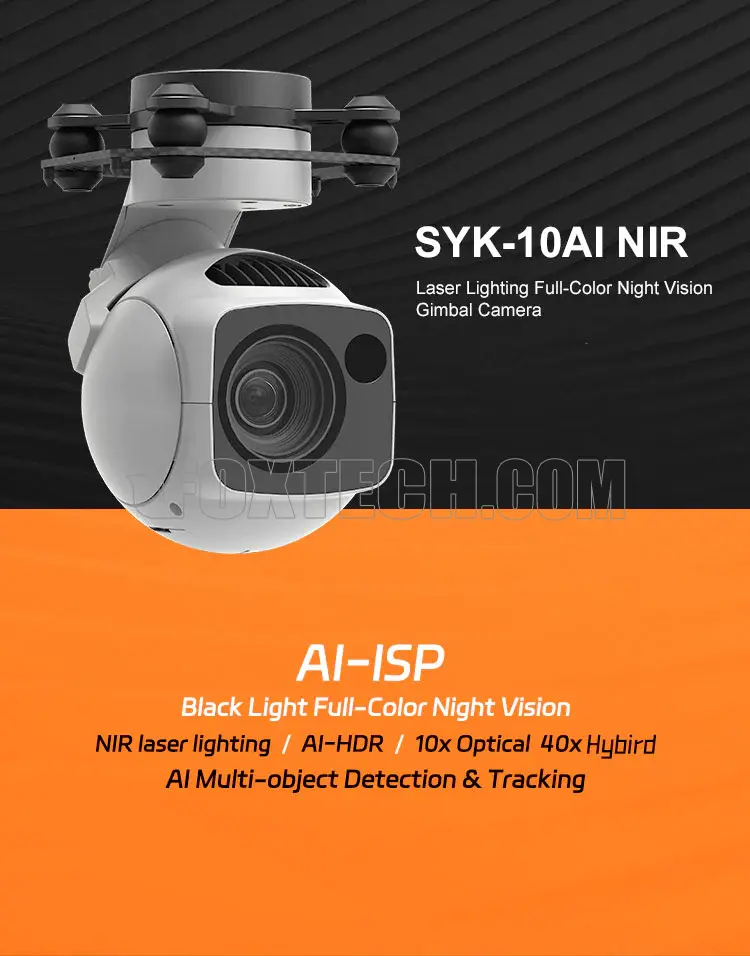

SYK-10AI NIR Laser Lighting Full-Color Night Vision Gimbal Camera

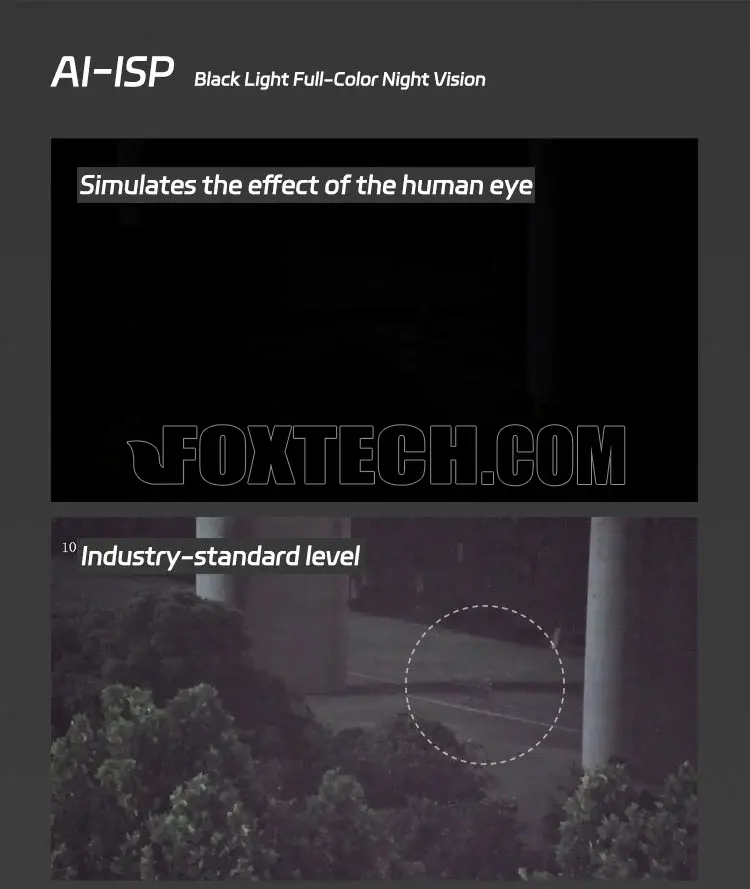

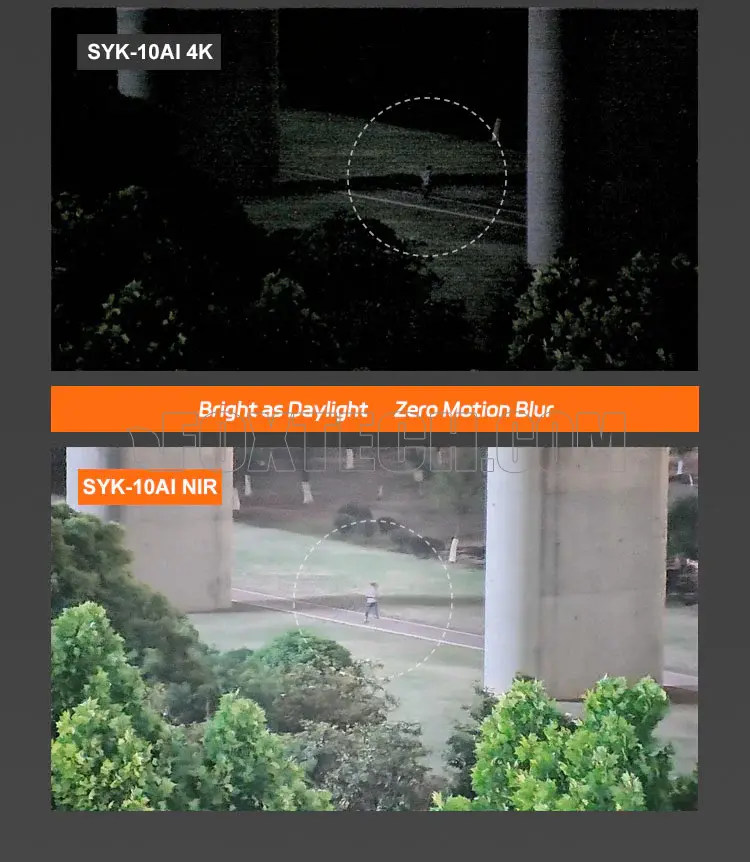

Equipped with a 40X hybrid zoom camera and ultra-starlight-level image sensor, the system integrates the AI-ISP full-color night vision engine, delivering clear full-color images even under ultra-low illumination, offering a night vision experience comparable to professional-grade visual scopes.

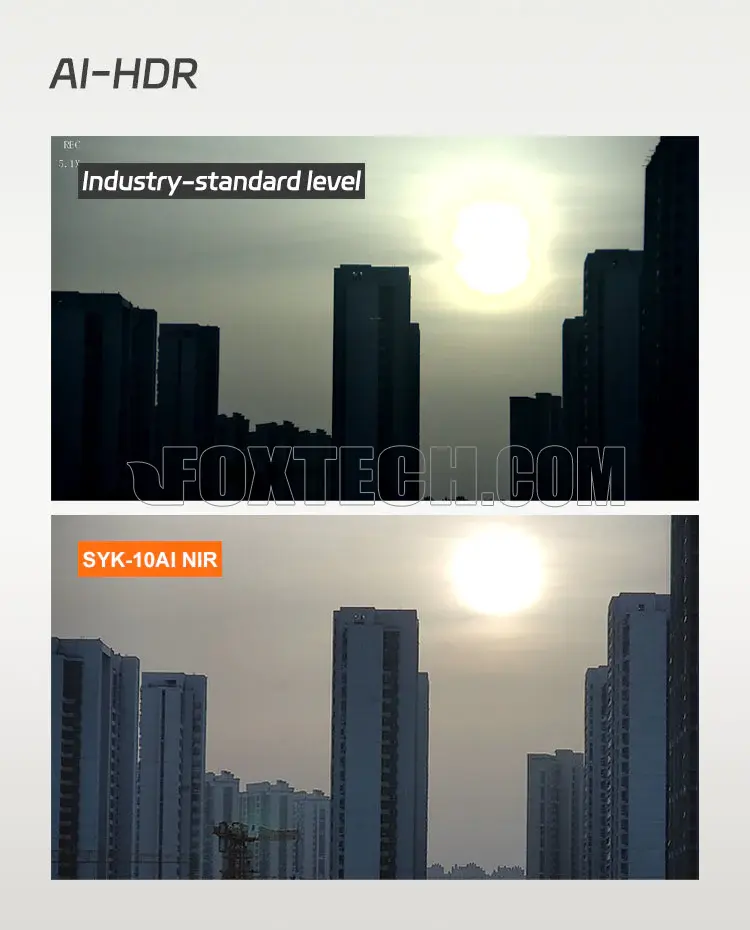

Features AI-HDR ultra-wide dynamic range capability, allowing bright and dark details to be clearly rendered even in complex lighting conditions with high contrast.

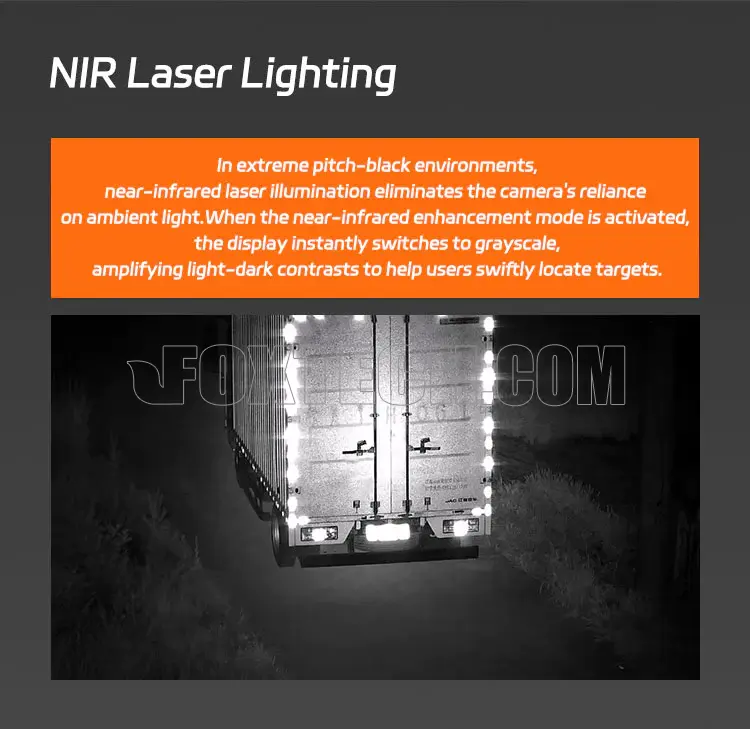

Integrated near-infrared laser illumination, ensuring clear imaging in completely dark environments where no ambient light is available.

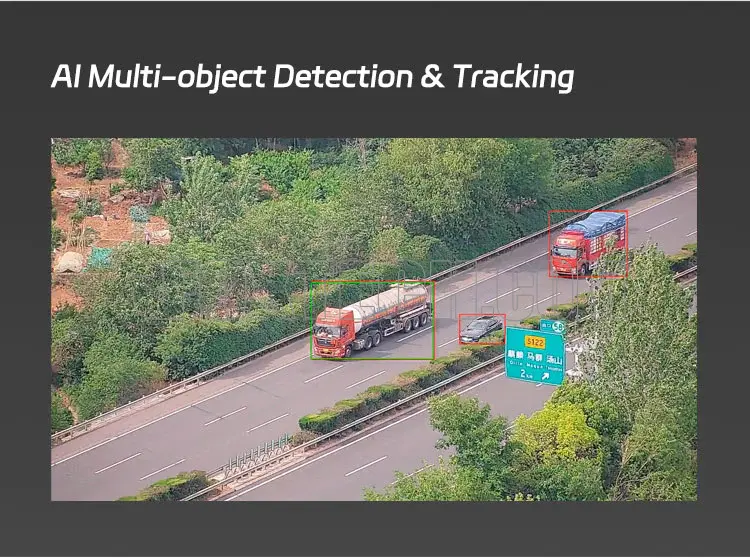

Features AI-powered multi-object detection and tracking, capable of intelligently identifying pedestrians and vehicles in the scene and locking onto any selected target for continuous tracking.

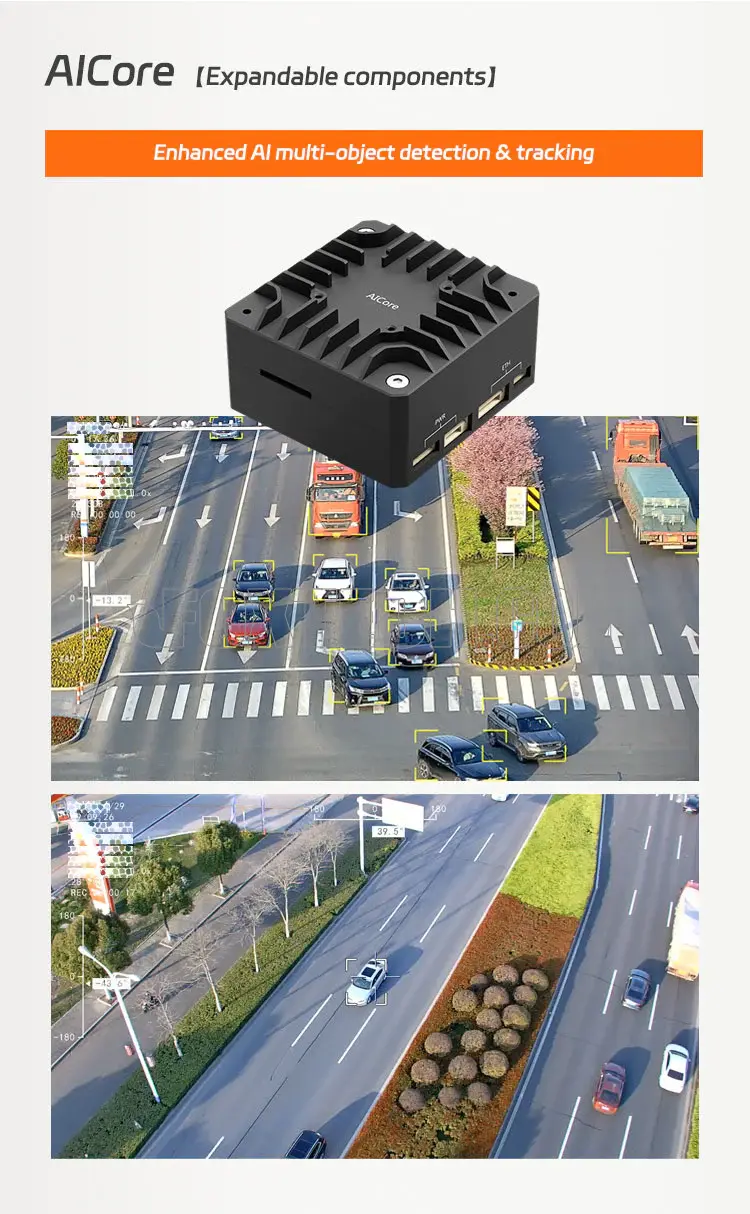

*AICore Expandable Module (Option), Enhanced AI Multi-Object Detection & Tracking.

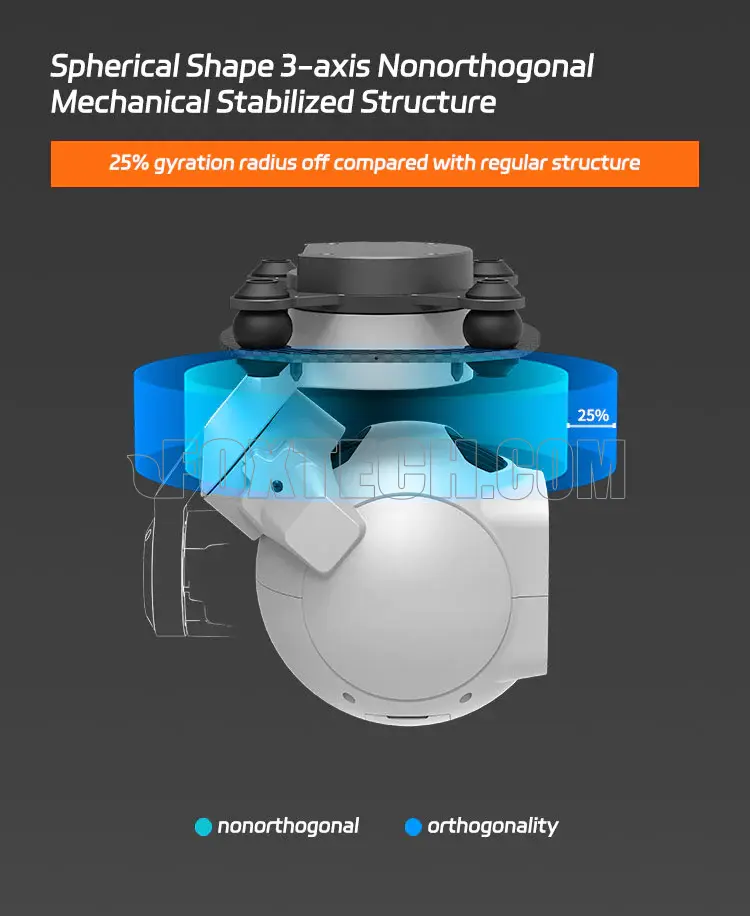

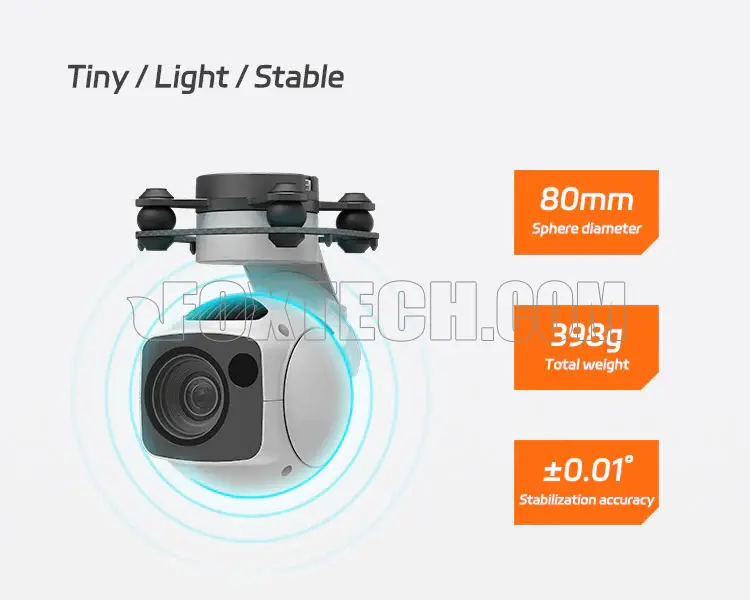

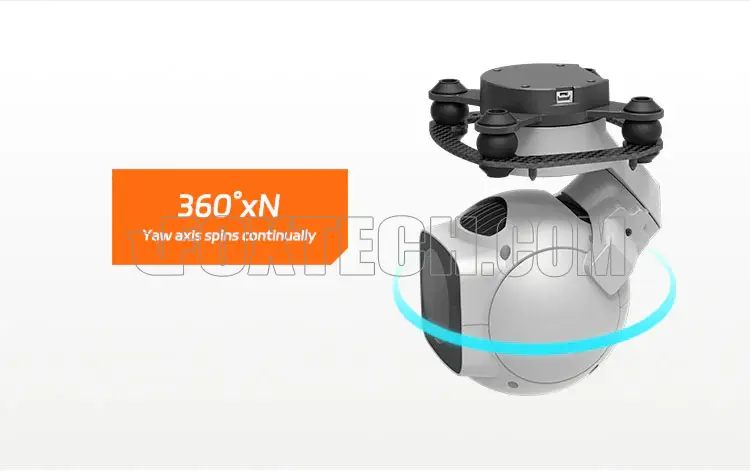

Compact spherical design with a non-orthogonal 3-axis mechanical stabilization system, minimizing rotation radius and wind resistance. The yaw axis supports 360° x N infinite rotation.

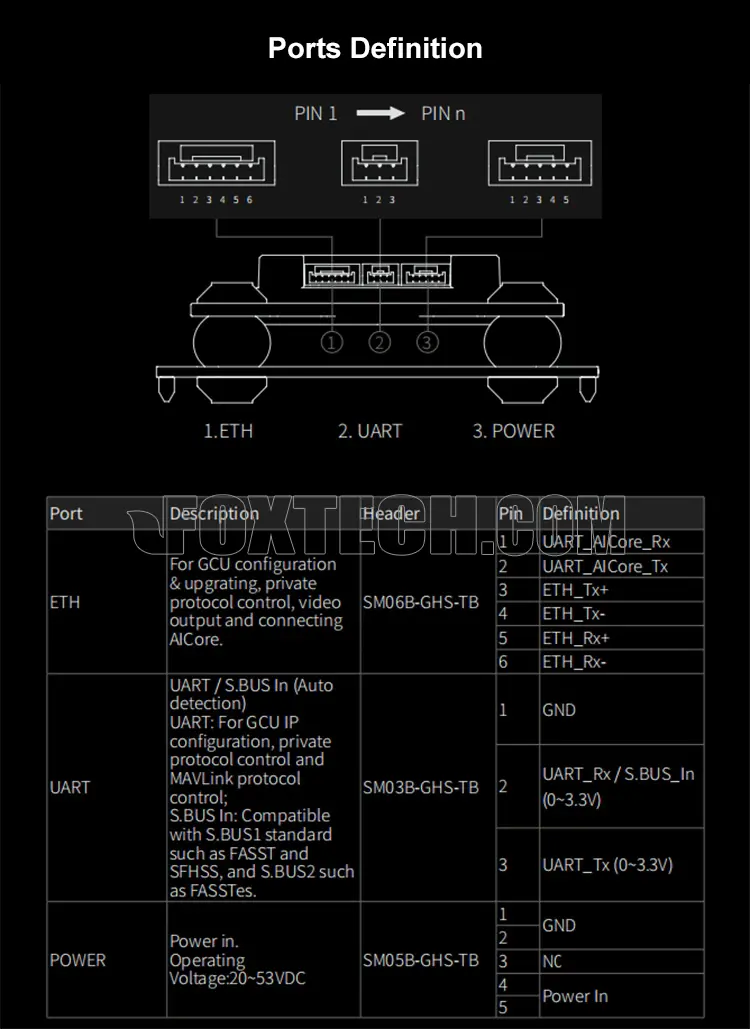

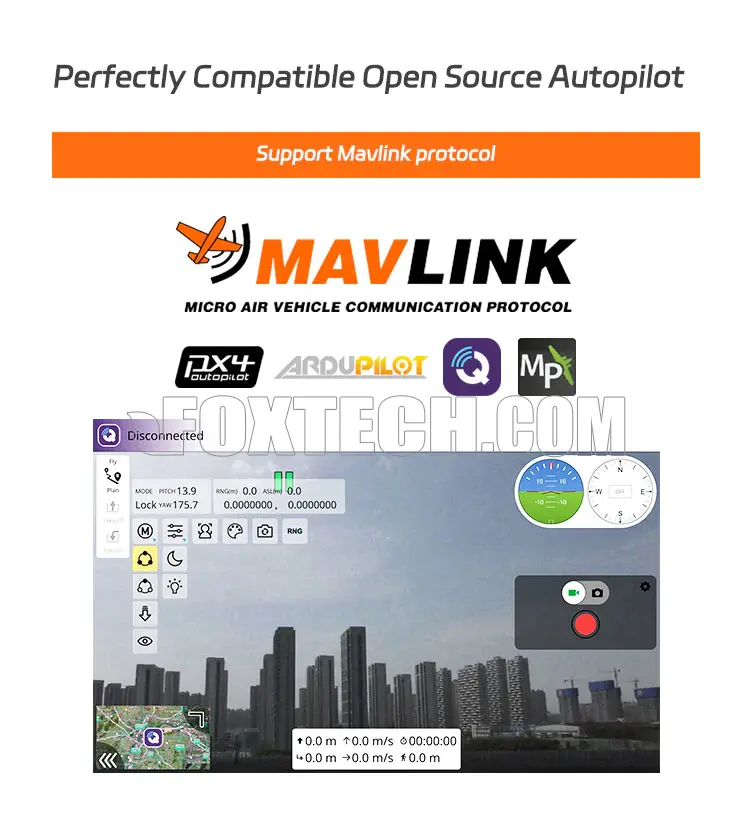

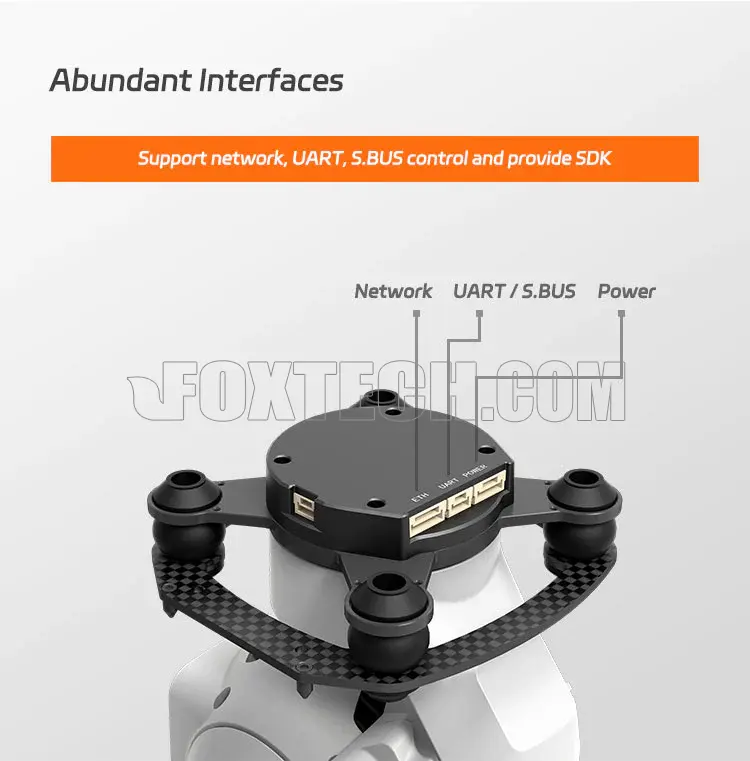

Compatible with network, serial, and S.BUS control, and supports both proprietary and MAVLink protocols for flexible secondary development.

Adopts a dual-IMU complementary algorithm, integrating IMU temperature control and onboard inertial navigation data fusion. The stabilization accuracy reaches up to ±0.01°, ensuring stable imaging even during aggressive platform maneuvers.

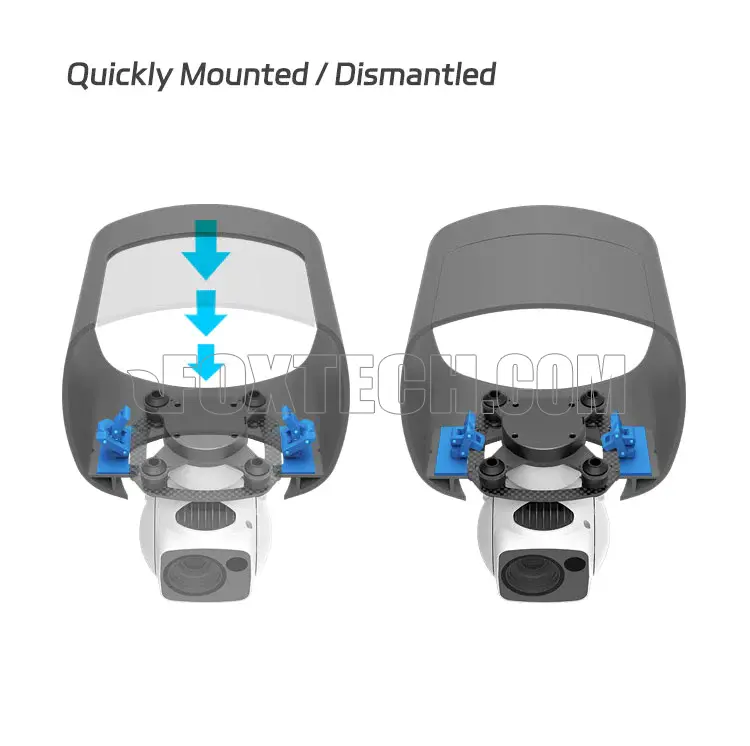

Supports both top and bottom mounting, enabling quick integration with various aerial platforms.

SSupports OSD overlay of GPS coordinates, altitude, and other information on live video; EXIF metadata for photos with geotagging; and SEI metadata embedding for real-time video and recordings (SEI support available via future firmware upgrade).

Operates on a wide input voltage range of 20–53 VDC, ensuring flexible power adaptability.

Your Purchase Includes:
1x SYK-10AI NIR Laser Lighting Full-Color Night Vision Gimbal Camera
1x J1.0 Config Module
1x Network Conversion Module
1x Power Cable
2x Net Cable
1x Network Convertor
1x Open Source Autopilot UART Cable
