T-FC100N/T-FC100S Tethered Power System for DJI FlyCart 100

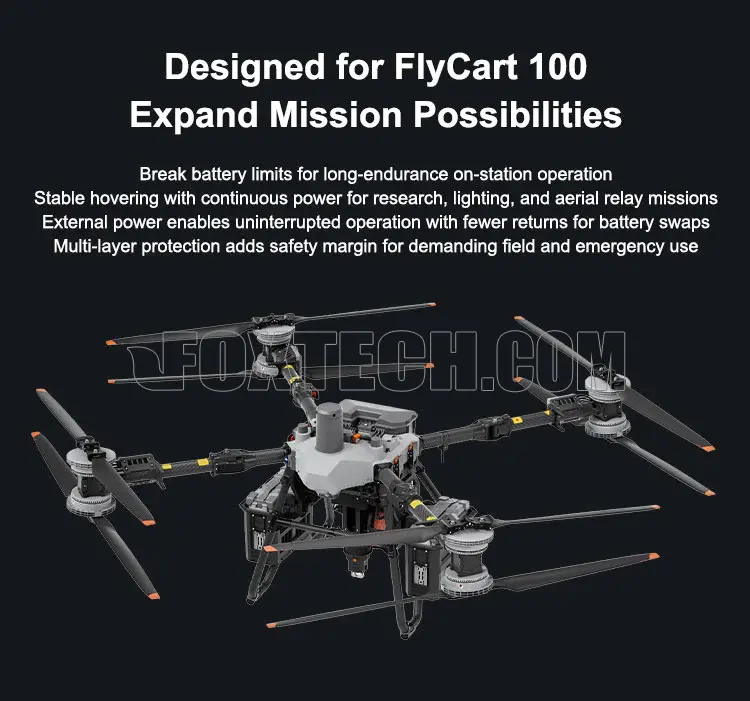

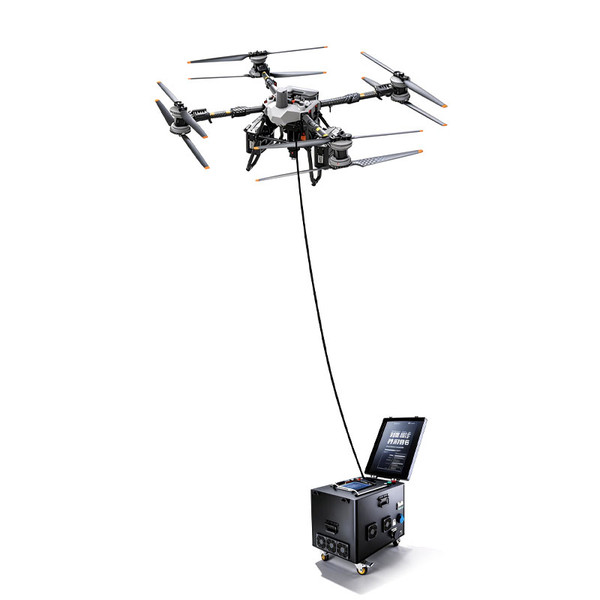

T-FC100N and T-FC100S are two tethered power solutions purpose-built for DJI FlyCart 100. By taking external AC 380V three-phase power (grid or generator compatible) through a mobile tether station and delivering regulated high-voltage DC transmission to the aircraft, it eliminates battery endurance constraints and enables long-duration, stable-hover, on-station operations. With up to 220 m tether length, the system is ideal for persistent missions such as scientific monitoring, nighttime lighting, aerial relay deployments, and security/event standby tasks.

Note: For grid power supply, the circuit breaker total power must exceed the airborne power module's rating. For generator use, generator output should be 25–32 kW.

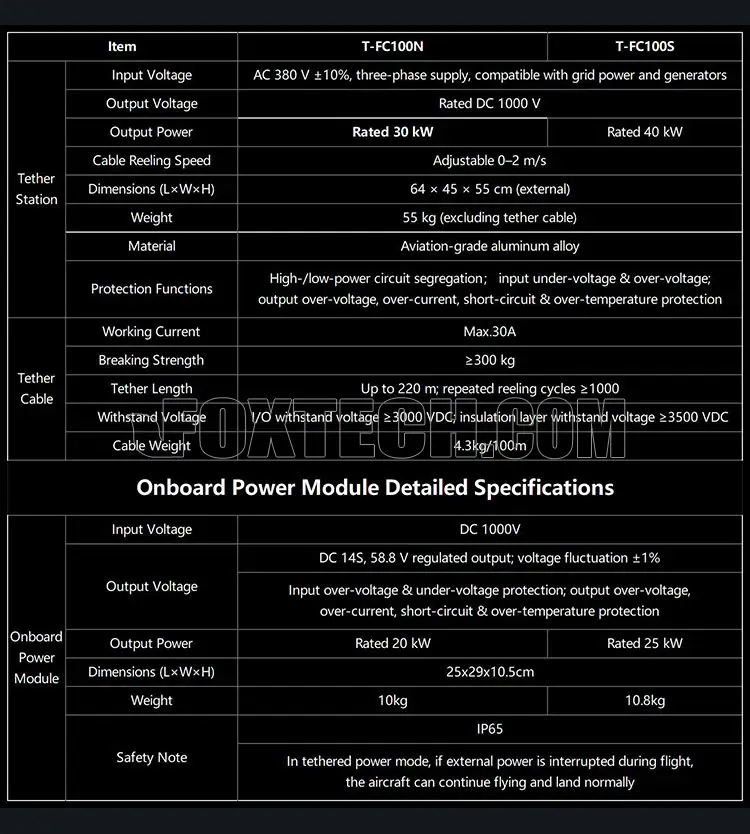

Key Features

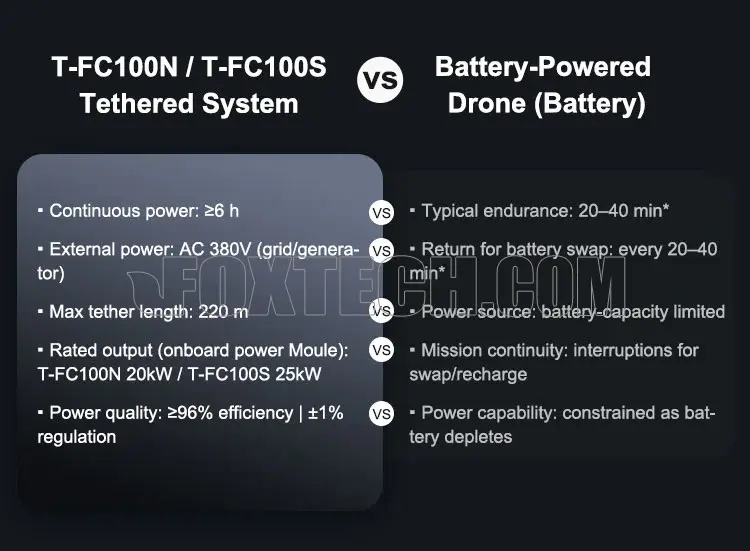

- ≥6 hours continuous powered operation for persistent hovering and on-station missions
- Up to 220 m max tether length for flexible deployment
- High-power output (two model options):
T-FC100N: 30 kW rated tether station output | 20 kW rated onboard power
T-FC100S: 40 kW rated tether station output | 25 kW rated onboard power
- Stable power quality: regulated onboard output with ±1% voltage fluctuation; ≥96% conversion efficiency
- Efficient cable handling: adjustable reeling speed 0–2 m/s
- Rapid deployment: complete system deployment ≤10 min
- Reliability & multi-layer protection: ≤1 failure per 100 flights; IP65 onboard module with under/over-voltage, over-current, short-circuit, and over-temperature protections

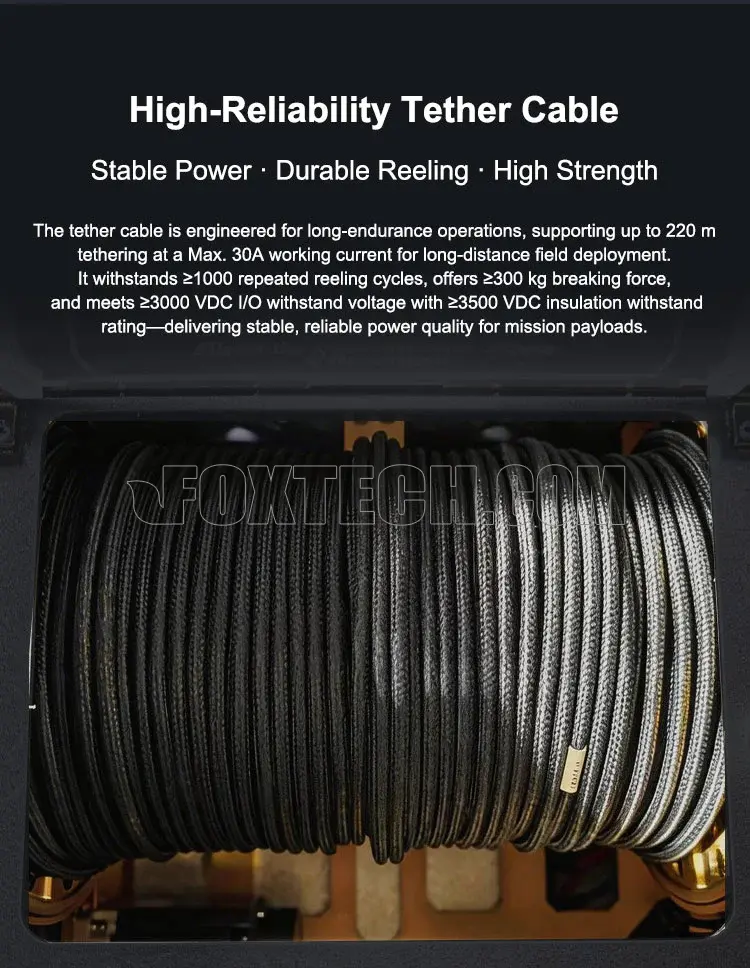

- High-strength tether cable: Max. 30A working current; ≥300 kg breaking strength; ≥1000 reeling cycles; withstand voltage ≥3000 VDC (insulation ≥3500 VDC)

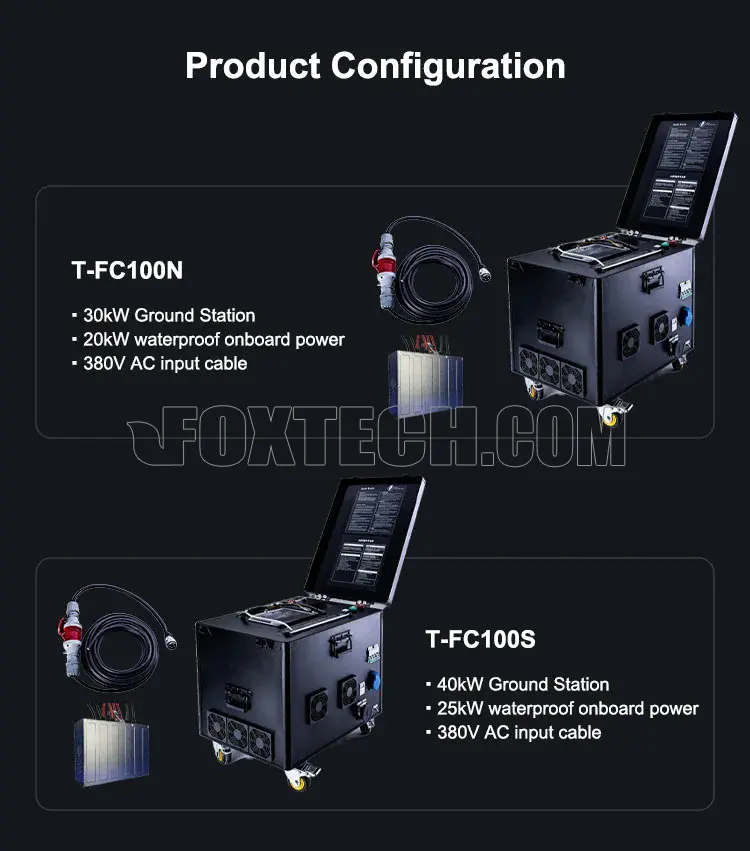

Your Purchase Includes

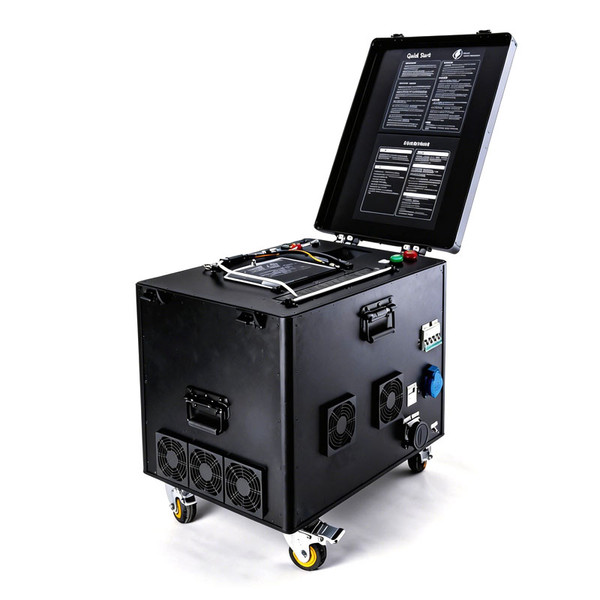

1x T-FC100N / T-FC100S Tether station (incl. tether cable)
1x Onboard power module (IP65, native-battery form factor)
1x 380V AC input cable
