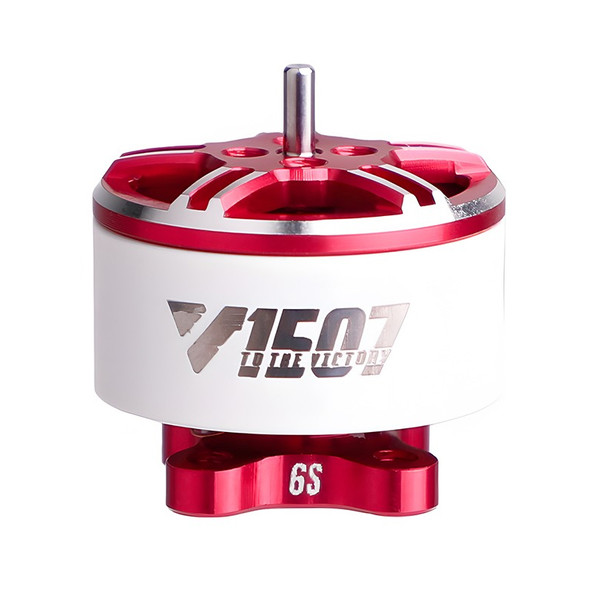

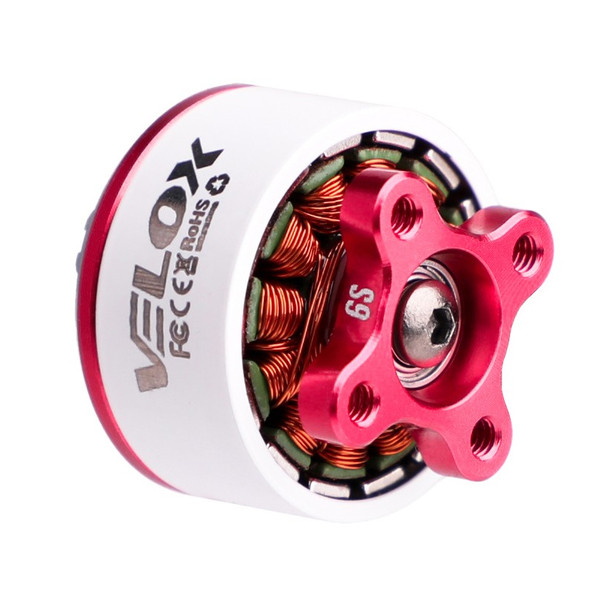

T-MOTORHOBBY VELOX V1507 3″ High Thrust Brushless Motor
- SKU:
- S260121
- Weight:
- 1.00 KGS

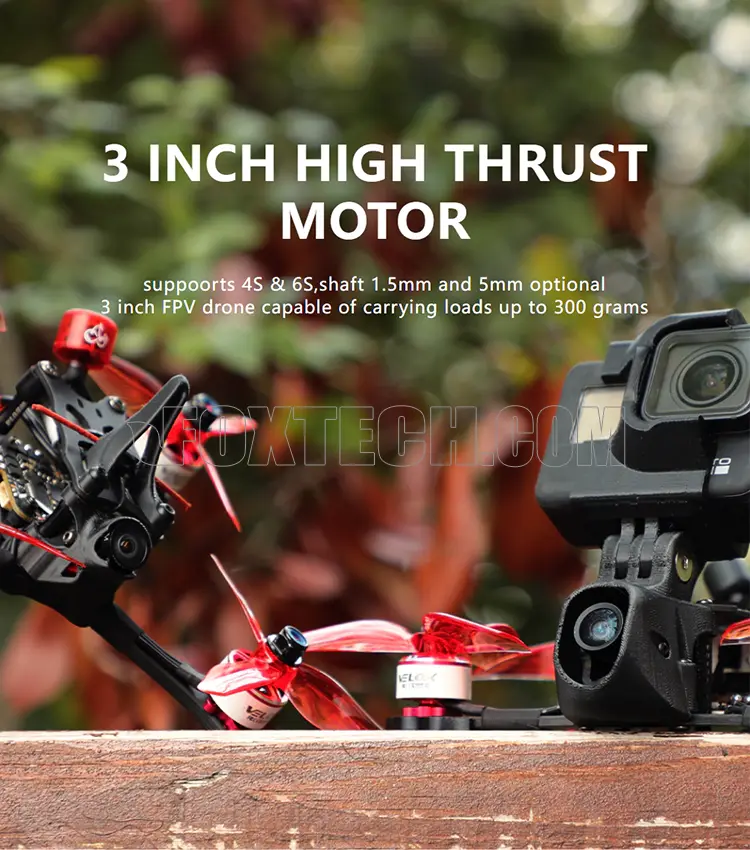

The T-MOTORHOBBY VELOX V1507 is a 3″ high thrust brushless motor designed for 4S or 6S voltage systems. It supports two shaft options: 1.5mm shaftless and 5mm single shaft for broad compatibility with various configurations.

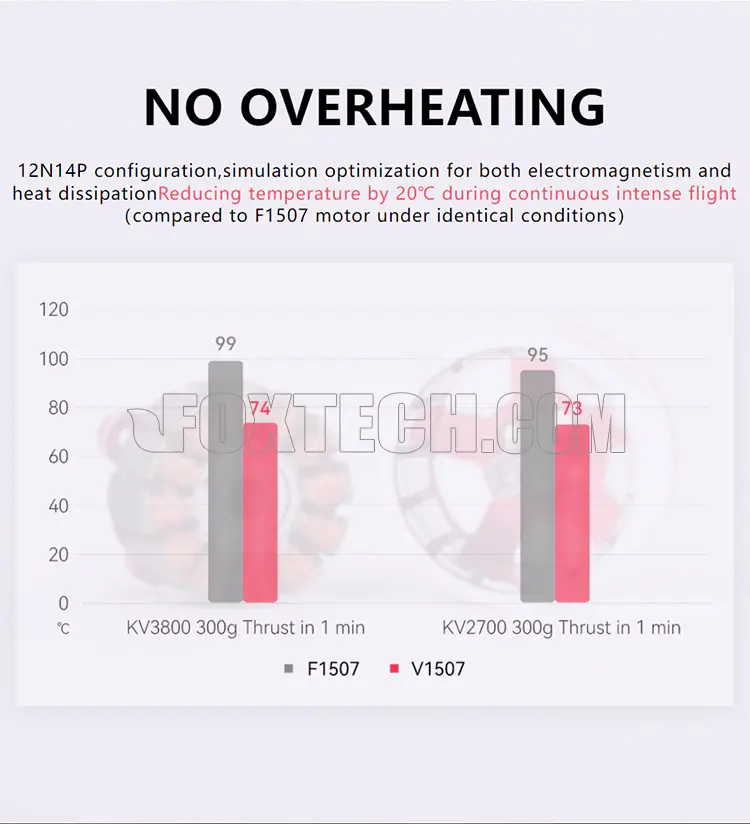

The motor features a 12N14P configuration with simulation optimization for both electromagnetism and heat dissipation, which reduces temperature by approximately 20℃ during continuous intense flight (compared to F1507 under identical conditions).

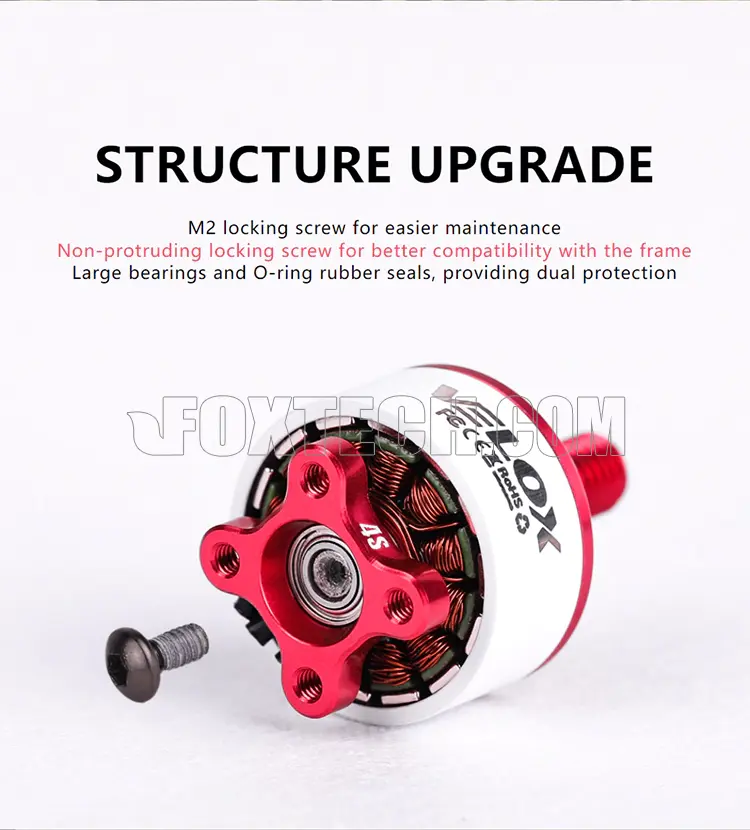

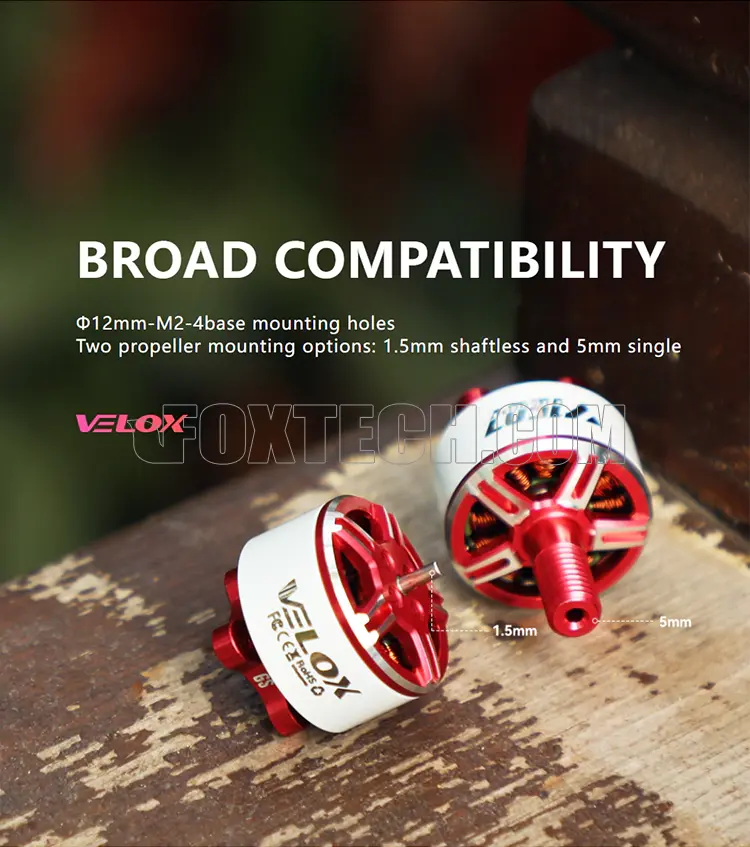

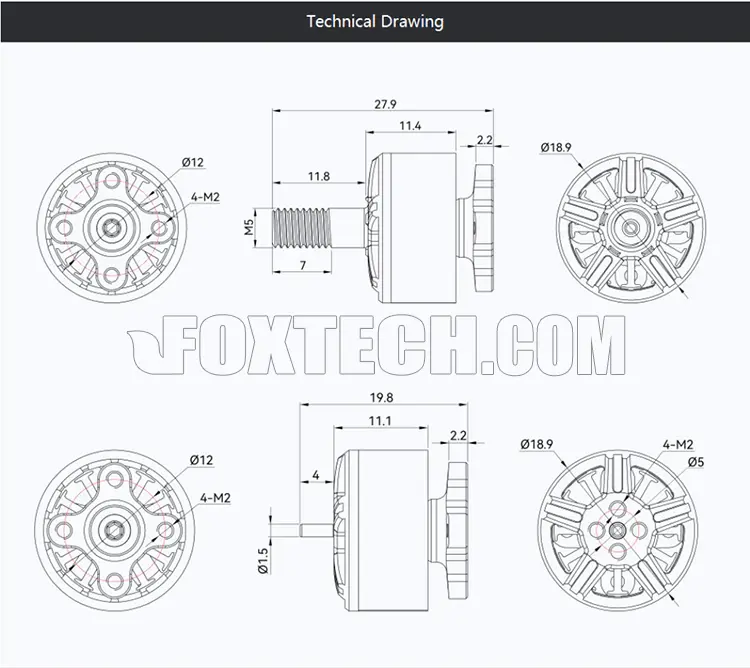

The motor uses Φ12mm-M2-4 base mounting holes and includes structural enhancements such as M2 locking screw, non-protruding design, large bearings, and O-ring rubber seals for improved durability and frame compatibility.

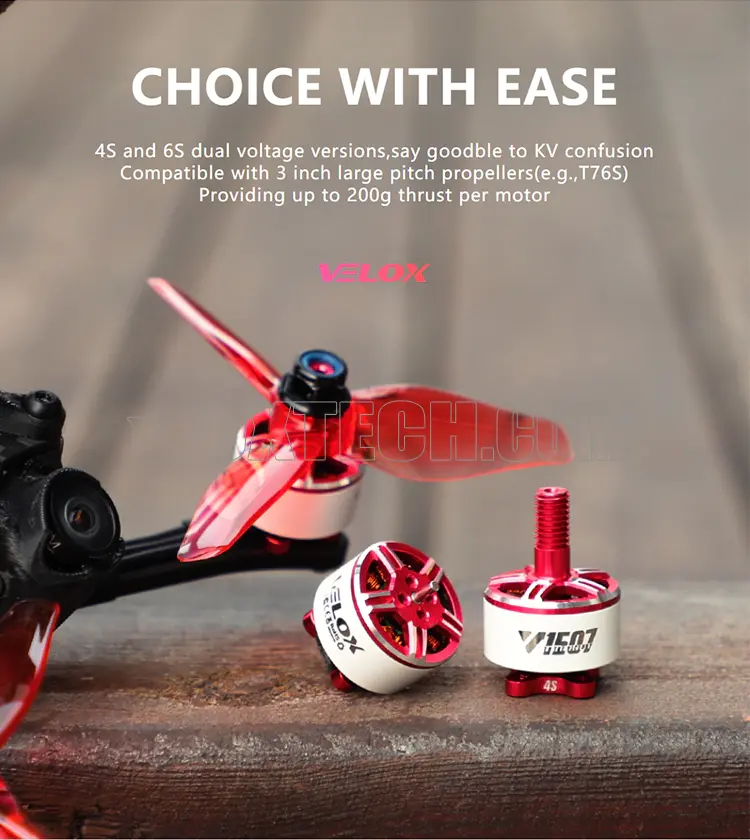

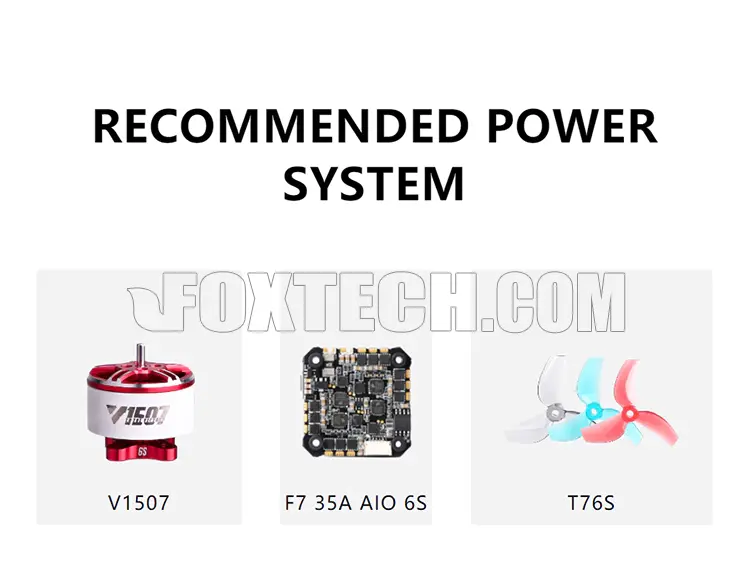

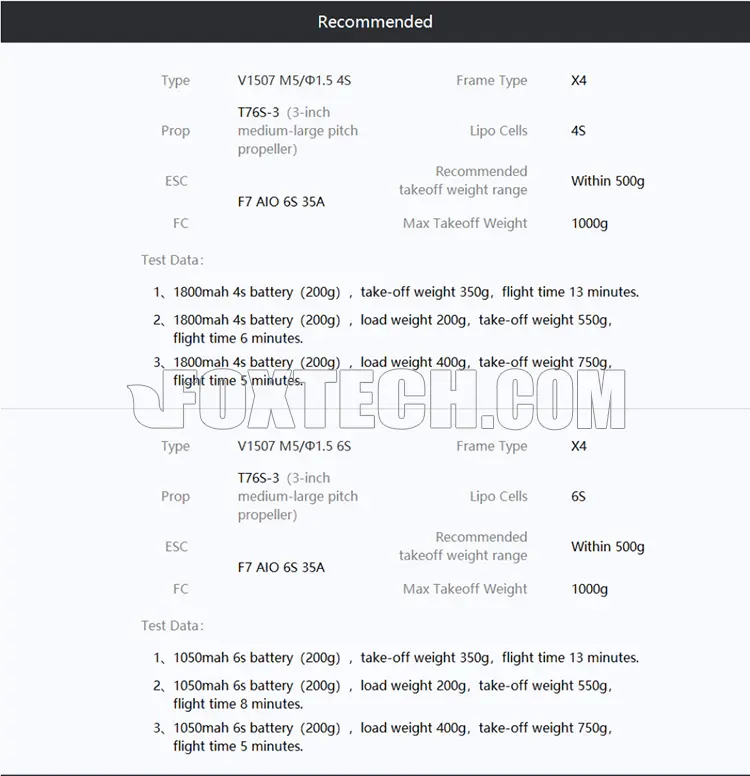

The motor’s dual voltage (4S & 6S) versions support various power systems, and it is compatible with 3″ large-pitch propellers (e.g., T76S), providing around 200g thrust per motor.
