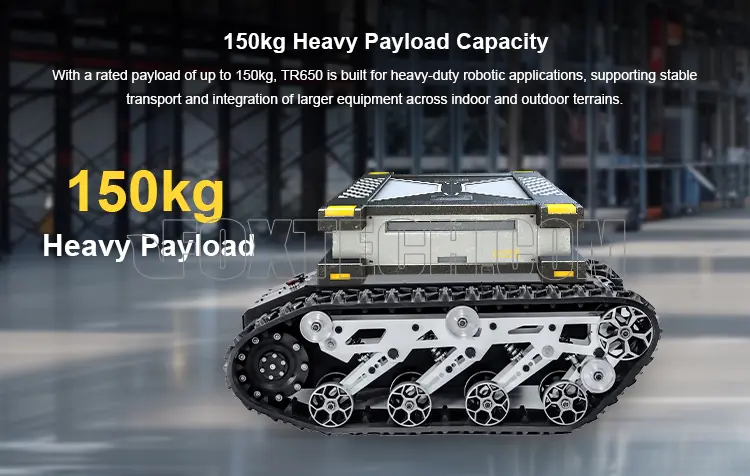

TR650 150KG Payload 2×750W All Terrain ROS/Serial Crawler Tracked Chassis
Price Available Upon Inquiry
- SKU:
- 2601231
- Weight:
- 1.00 KGS

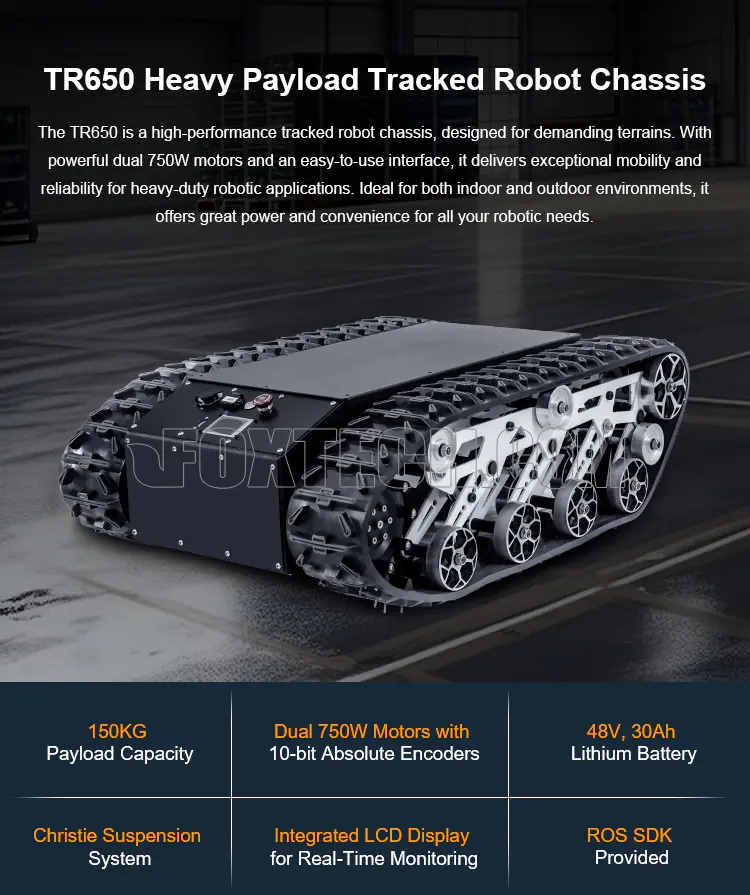

The TR650 is a high-performance tracked robot chassis, featuring a differential drive system designed for various complex terrains. Equipped with 750W*2 servo motors and 10-bit absolute encoders, it delivers strong torque and precise control for stable power output. The 48V 30Ah lithium battery ensures continuous power support, ideal for long-lasting operation and high load requirements. With its Christie suspension system, the TR650 offers enhanced passability, allowing it to easily navigate both sloped indoor environments and complex outdoor surfaces.

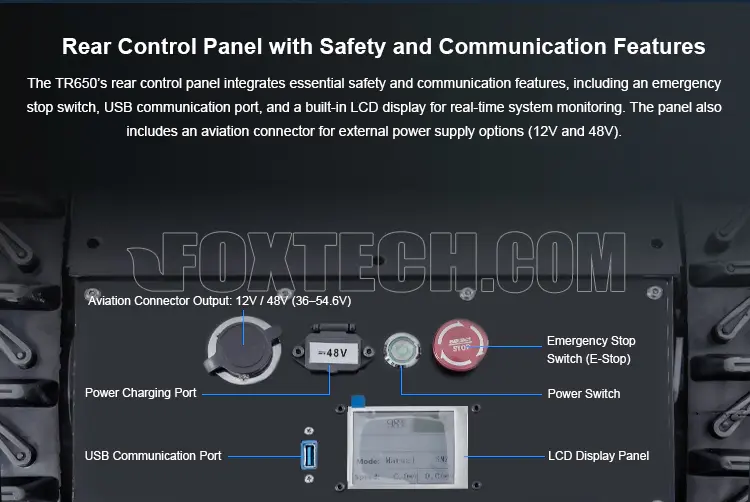

The TR650 features a removable top cover for easy maintenance and upgrades. The control panel integrates an LCD display and an emergency stop button, providing real-time monitoring and safety shutdown in emergencies. The USB plug-and-play communication interface allows users to effortlessly connect to a computer for control and data transfer. Additionally, the TR650 provides 12V and 48V external power outputs, making it compatible with a wide range of external devices.
Features：

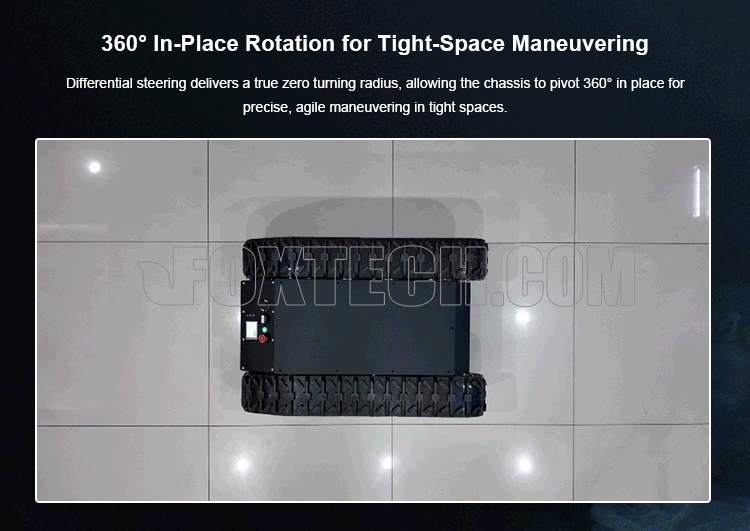

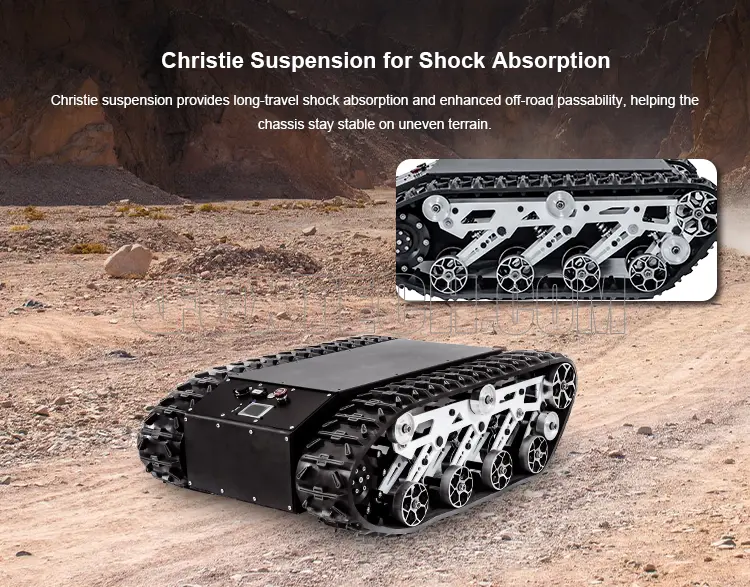

Christie Suspension + Differential Drive
2×750W Servo Motors + 10-bit Absolute Encoders
48V 30Ah Lithium Battery
Removable Top Cover
Emergency Stop (E-Stop)
Built-in LCD Display
USB Communication Interface
12V & 48V (36–54.6V) External Power Output (Aviation Connector)
Your Purchase Includes:
1x TR650 Robot Chassis
1x Battery Charger
1x USB Communication Interface
1x Aviation Connector

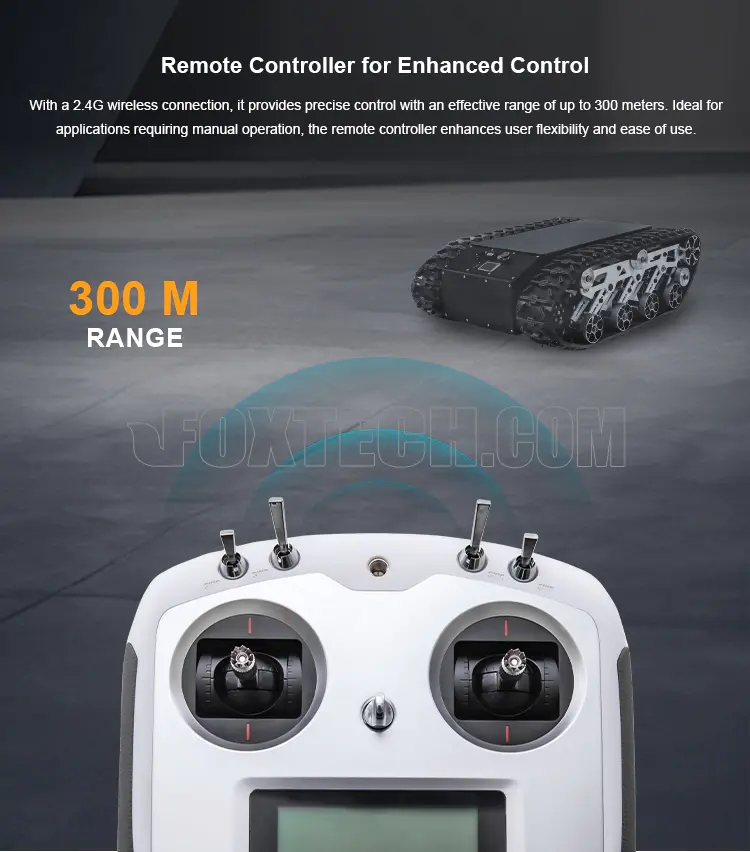

1x Remote Controller
