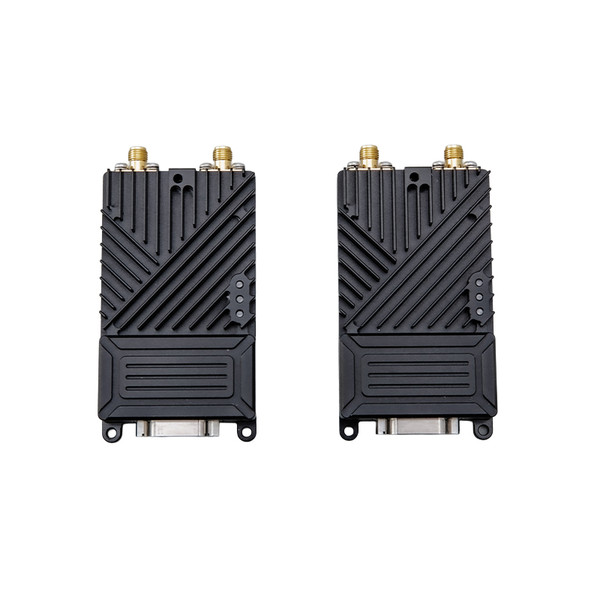

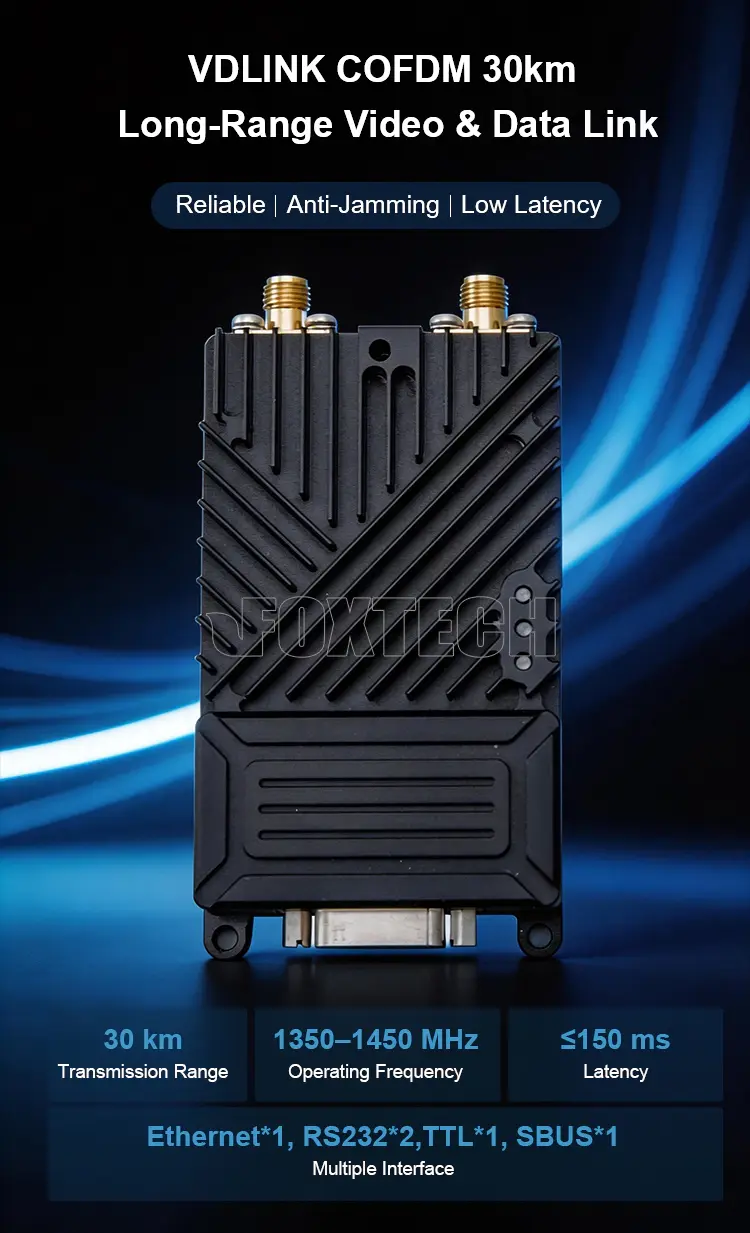

VDLINK COFDM 30km Long-Range Video & Data Transmission System | Anti-Jamming Wireless Data Link for UAV & Industrial Applications

Important Notice!
This product is subject to Chinese export control regulations and is not available for direct online purchase. Please contact our sales team to discuss compliant purchasing and shipping options.

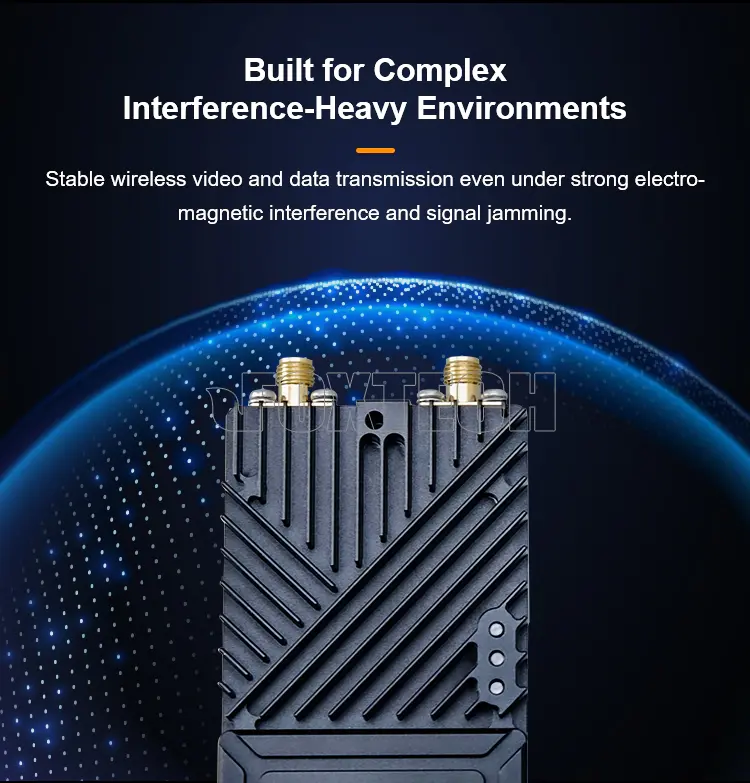

The VDLINK COFDM Series Frequency-Hopping Anti-Interference Data Link is a high-performance wireless video and data transmission system designed for reliable communication in complex and interference-heavy environments. Operating Frequency: 1350–1450 MHz (Default)，Custom Frequency Range: 600 MHz – 2.7 GHz (Customizable).

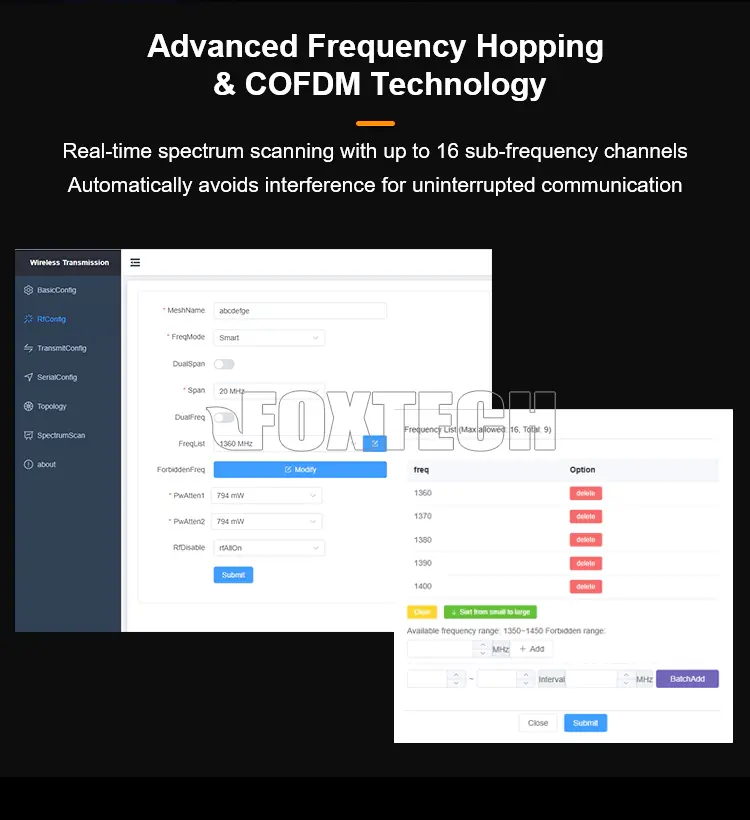

Featuring advanced frequency hopping (COFDM) technology, the system supports up to 16 preset sub-frequency channels and performs real-time spectrum scanning to automatically avoid interference, ensuring stable transmission even in the presence of signal jammers.

Built with a J30 interface and supporting Layer 2 transparent transmission, the VDLINK COFDM module enables seamless integration with various systems. It supports multiple communication modes, including TCP, UDP, serial-to-serial, and serial-to-IP, making it ideal for flexible deployment across industrial and UAV applications.

With its compact size, lightweight design, low latency, and low power consumption, this wireless data link delivers long-range, stable video and data transmission for demanding missions. It also supports multi-device co-frequency operation, allowing multiple units to work simultaneously without interference.

Perfect for point-to-point communication, UAV video transmission, power line inspection, hydrological monitoring, firefighting operations, and public safety communications, the VDLINK COFDM Series ensures secure, anti-jamming, and high-reliability connectivity in critical scenarios.

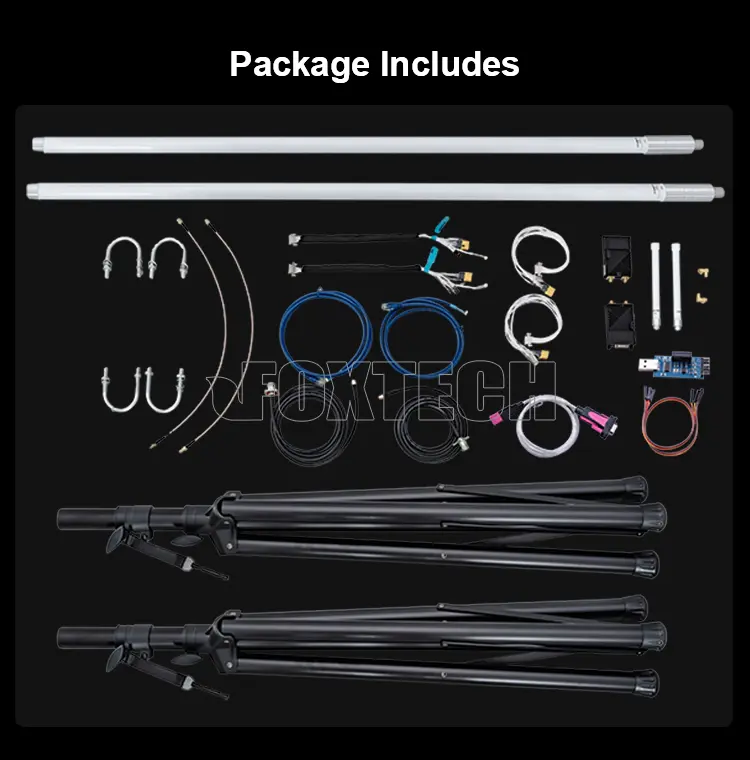

Your Purchase Includes:
1x Video Transmission Module Air Unit
1x Video Transmission Module Ground Unit
2x 10dBi Fiberglass Antennas
2x 2dBi Fiberglass Antennas
2x L-shaped Connectors
2x J30 Tail Cables
2x Feed Cables (A)
2x Tripods
2x Feed Cables(B)
1x Ethernet Cable (4-Pin to RJ45)
4x U-Bolt Clamps
1x RS232 to USB Cable
1x TTL to USB Module with Cable
