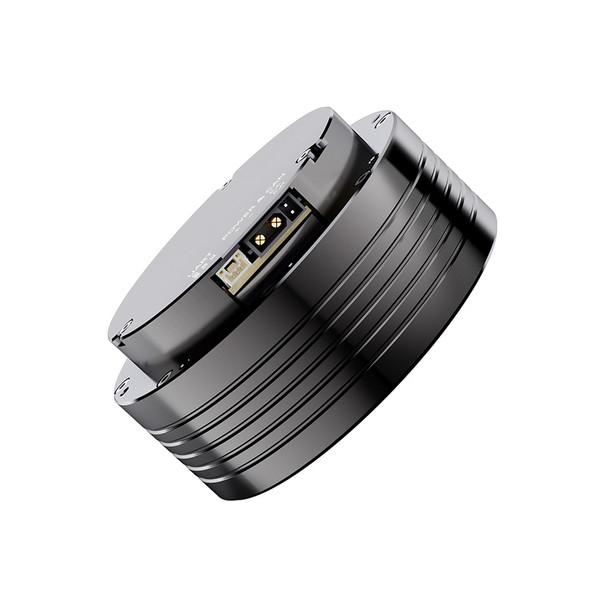

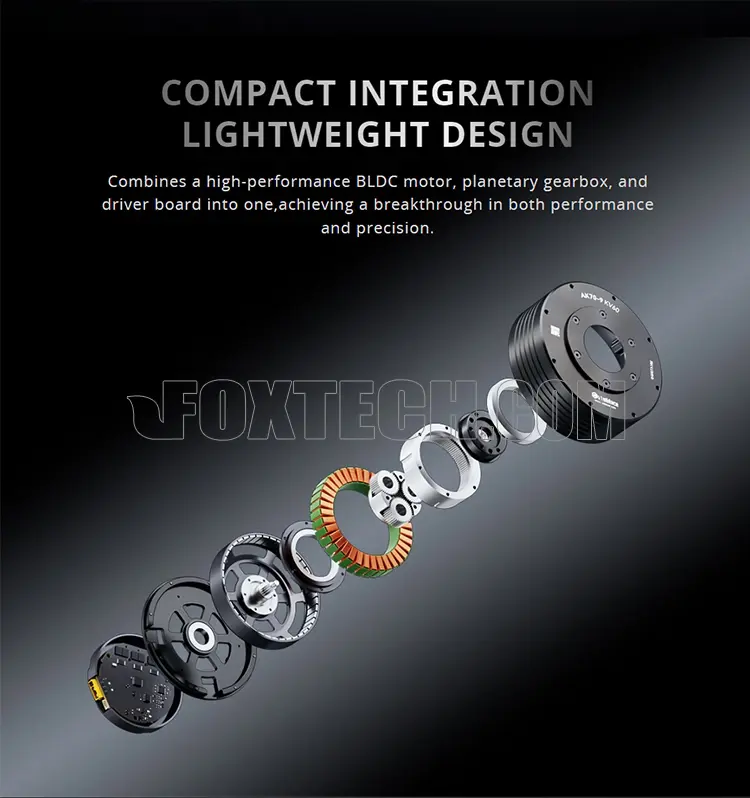

The CubeMars AK70-9 power module offers a highly integrated solution, combining a high-performance brushless motor, planetary gearbox, and driver into a single compact unit. With a built-in dual encoder, it provides high-torque, smooth operation and ensures accurate position retention even during power loss.
The upper computer supports one-click parameter identification and seamless switching between Servo and MIT modes, streamlining the tuning process. Real-time status monitoring guarantees precise control and stable communication, even in complex environments.
Designed for High-Dynamics Applications
The AK70-9 is ideal for robotic joints, precision medical devices, and industrial automation, providing a reliable and customizable solution for a wide range of applications.
Key Features:
Highly Integrated Design for efficient performance

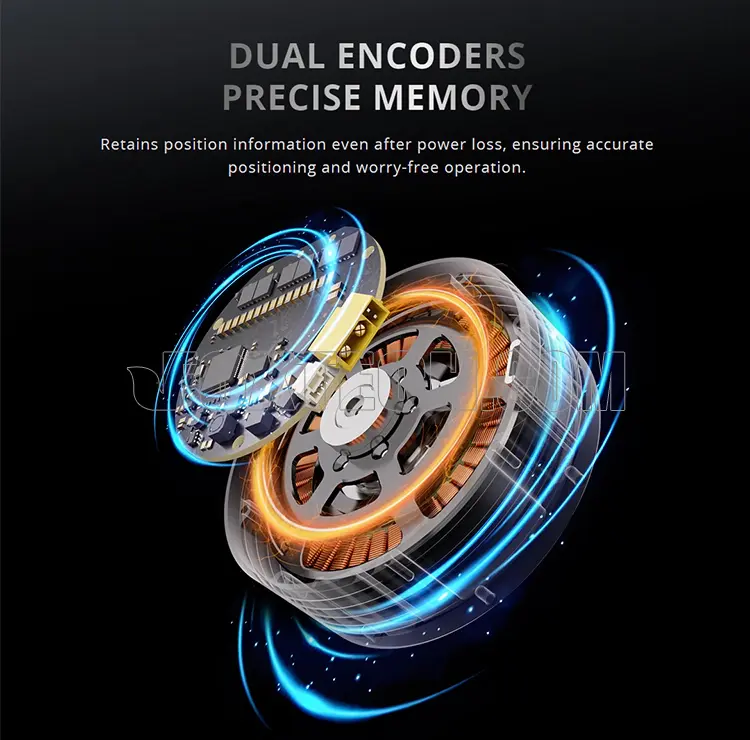

Dual Encoding for both input and output
Supports Servo/MIT Control modes for versatility
Peak Torque: 29.2 Nm for powerful performance
