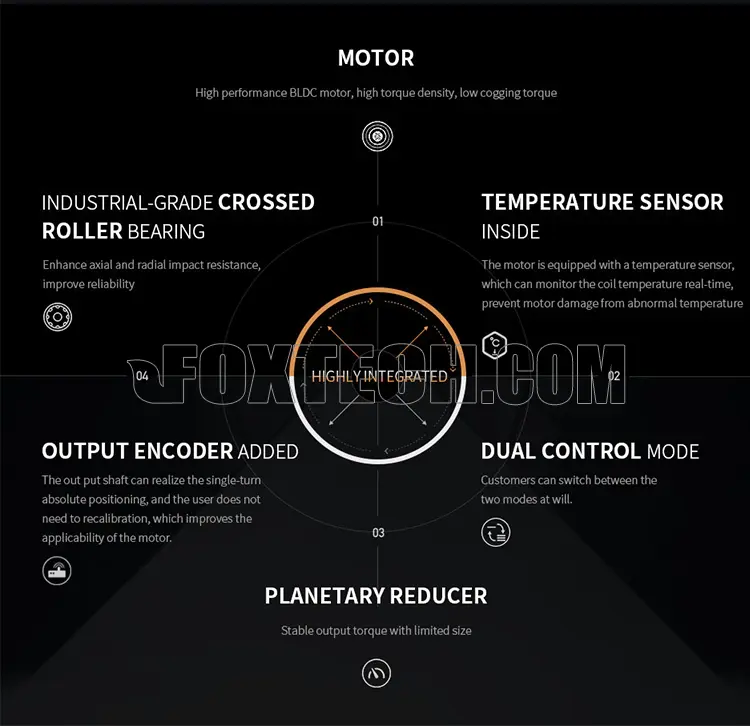

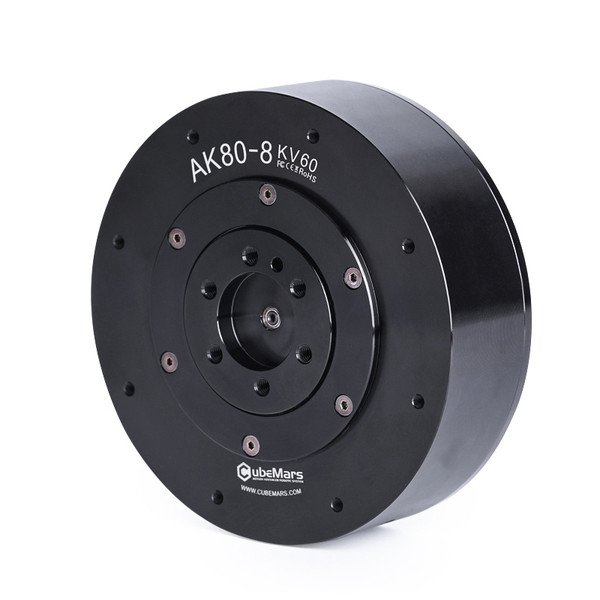

The CubeMars AK80-8 actuator combines a high-performance brushless DC motor, a self-developed planetary reducer, an encoder, and an integrated drive, delivering smooth operation with high torque. This portable drive solution offers both servo and MIT modes, allowing for synchronized control of position, velocity, and acceleration. By automatically adjusting PID settings, the AK80-8 simplifies operation and efficiently reaches the target without complexity.
CubeMars provides highly customizable motor modules to meet diverse application needs.

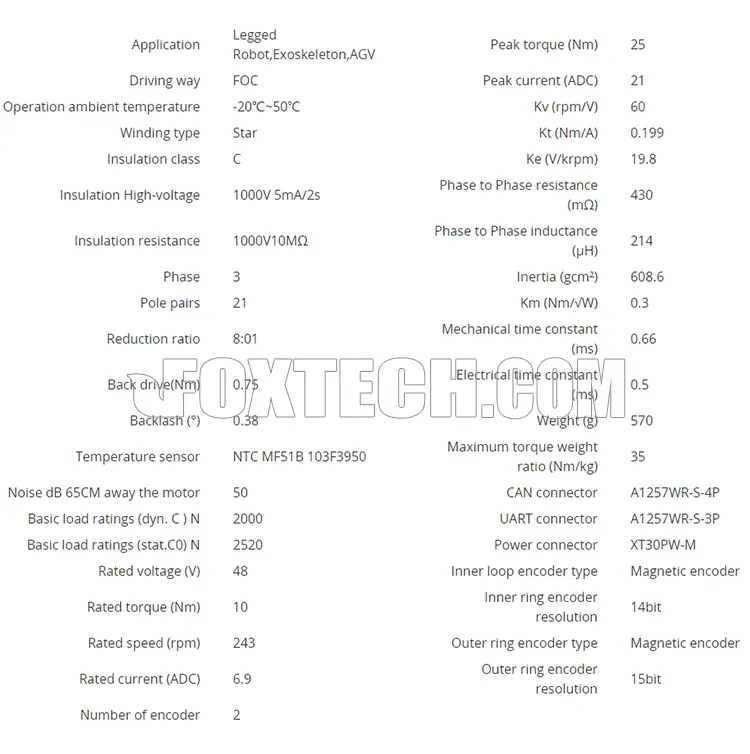

AK80-8 Actuator Specifications:
Operating Voltage: 48V
Rated Torque: 10Nm
Rated Speed: 243rpm
Key Features:
48V Joint & AGV Motor - KV60
Highly Integrated with flexible driver options
MIT and Servo Control Modes for versatile control
Input & Output Encoder for precise feedback
Long Lifetime for durability in demanding applications
Rated Torque: 10Nm for reliable performance
Ideal for Legged Robots, Exoskeletons, Robotic Arms, and AGVs
