DAMIAO
DM-D5730-1EC Direct Drive Servo Joint Motor with Built-in Driver & Single Inductive Encoder
Price Available Upon Inquiry
- SKU:
- 2602051
- Weight:
- 1.00 KGS

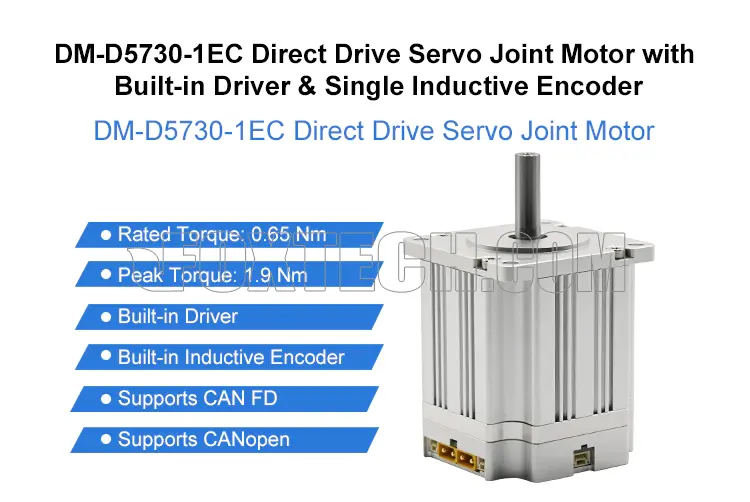

The DM-D5730-1EC is a compact direct drive servo joint motor integrating a motor, driver, and single high-precision inductive encoder into one unit.
Designed for robotic joints, AGV mechanisms, and industrial automation systems, it enables direct-load operation without external reducers, reducing mechanical complexity and improving control response.
With support for CAN FD and CANopen communication, multiple control modes including MIT hybrid control, and a lightweight integrated structure, the DM5730 is suitable for applications requiring precise position, speed, and torque control in limited installation spaces.
Key Features
High-Precision / High-Resolution Encoder
Integrated Motor & Driver, Compact Design
PC Visualization Debugging, CAN Parameter Read/Write
CAN FD Support, up to 5 Mbps
CAN Feedback: Speed / Position / Torque / Motor Temperature
Dual Temperature Protection
CAN Upgrade Support
