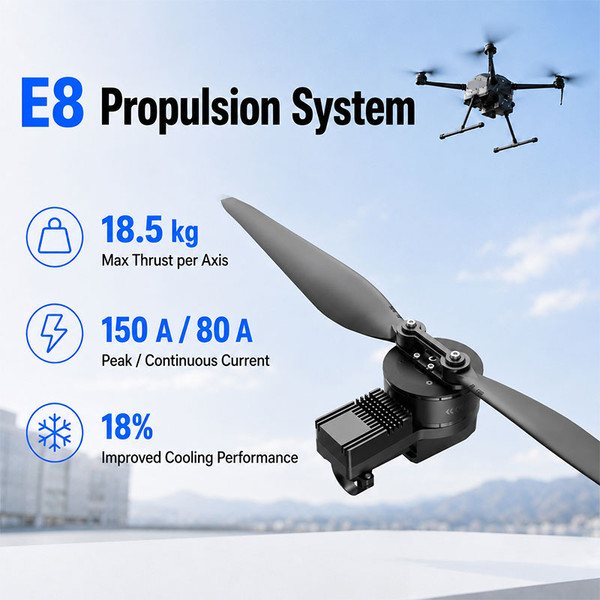

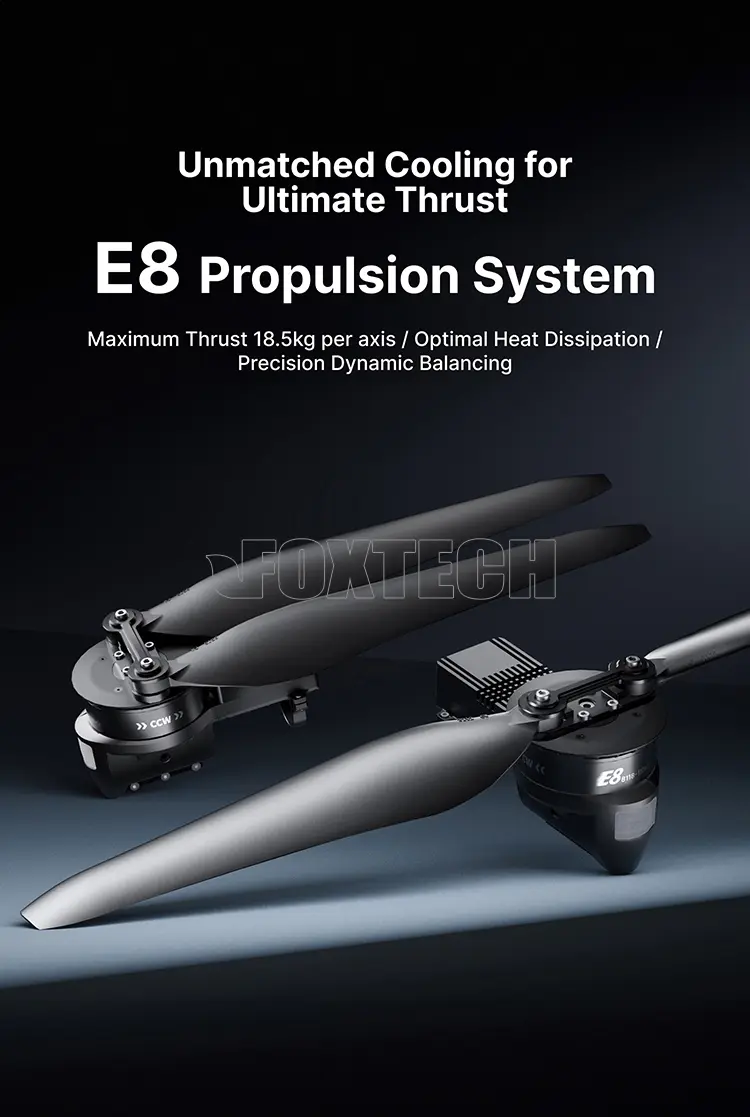

E8 Power System | High-Thrust UAV Propulsion System for Agricultural, Industrial & Heavy-Lift Drones

The E8 Power System is a next-generation integrated UAV propulsion solution engineered for industrial drones, agricultural UAVs, heavy-lift platforms, and professional aerial mapping systems.
Designed around a high-efficiency motor, advanced FOC vector-control ESC, and a 32-inch propeller platform, the E8 delivers exceptional thrust, rapid response, and reliable performance in demanding flight environments.

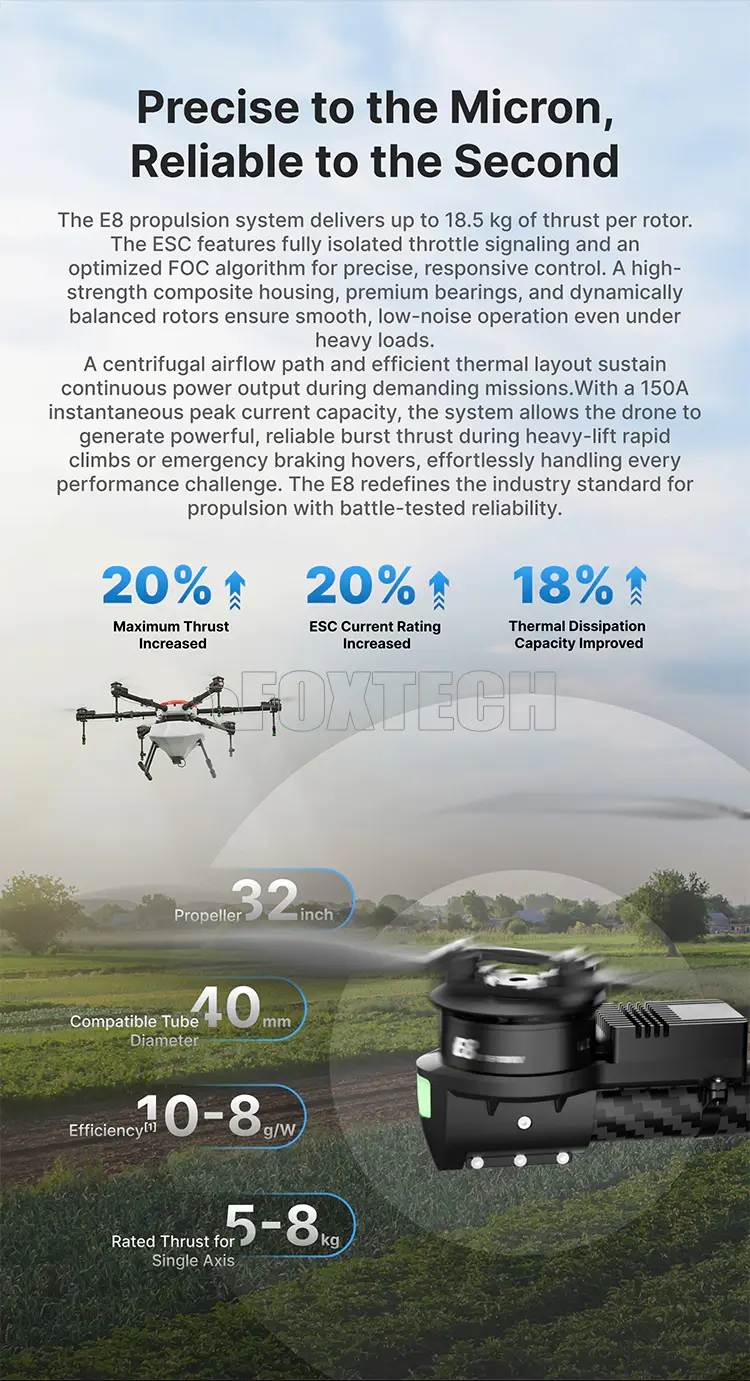

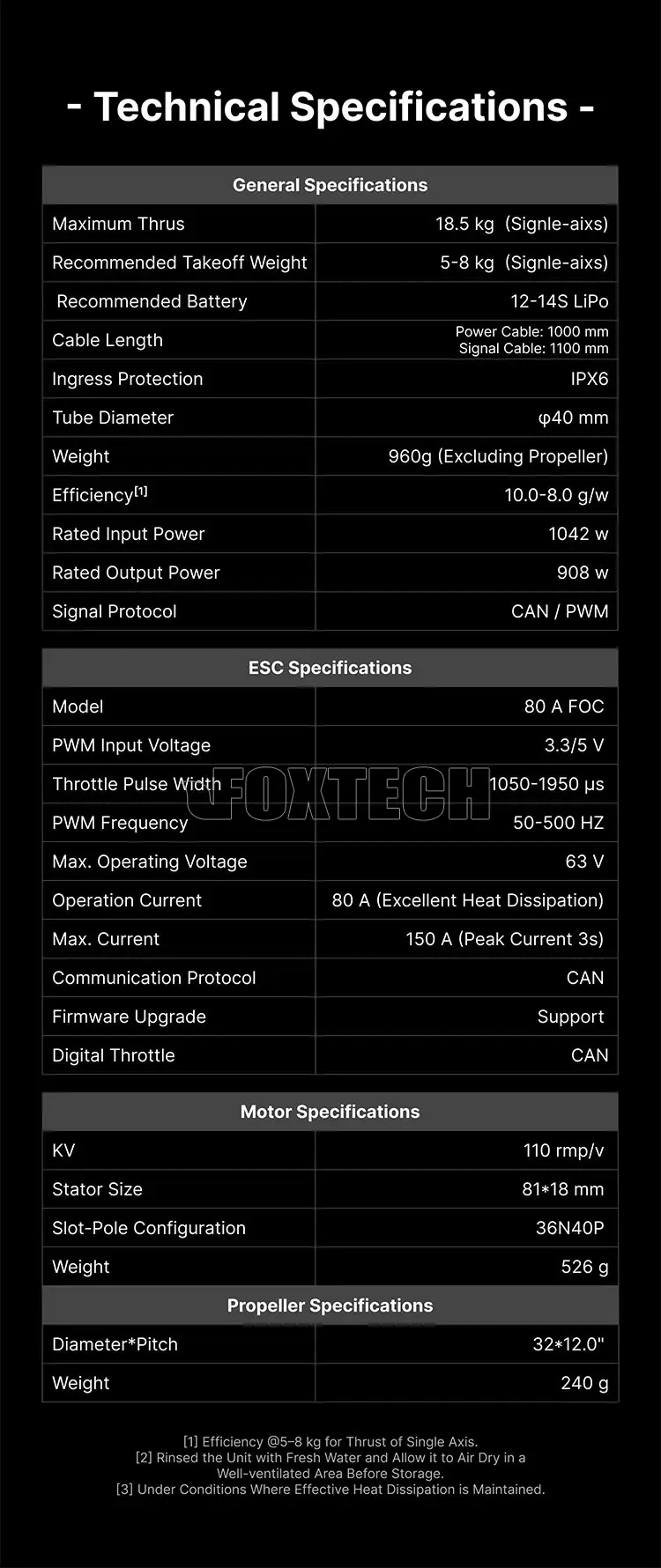

Performance Highlights

* Maximum Thrust per Axis: 18.5 kg
* Recommended Thrust Range: 5–8 kg
* Peak Current: 150 A
* Continuous Current: 80 A
* Cooling Performance Improvement: 18%
* Maximum Thrust Improvement: 20%
* ESC Current Capacity Improvement: 20%

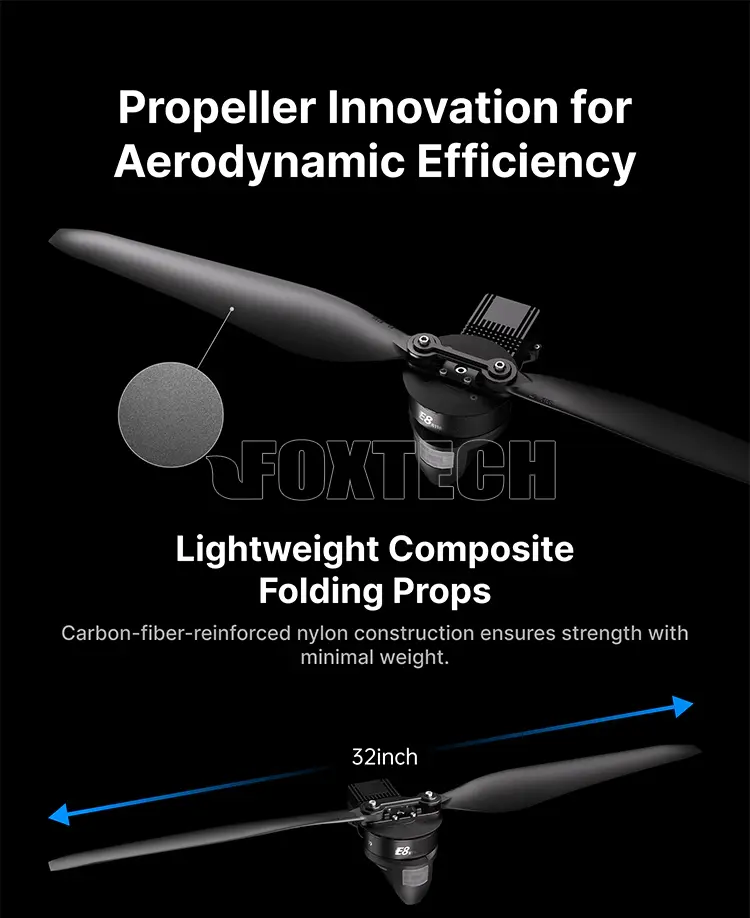

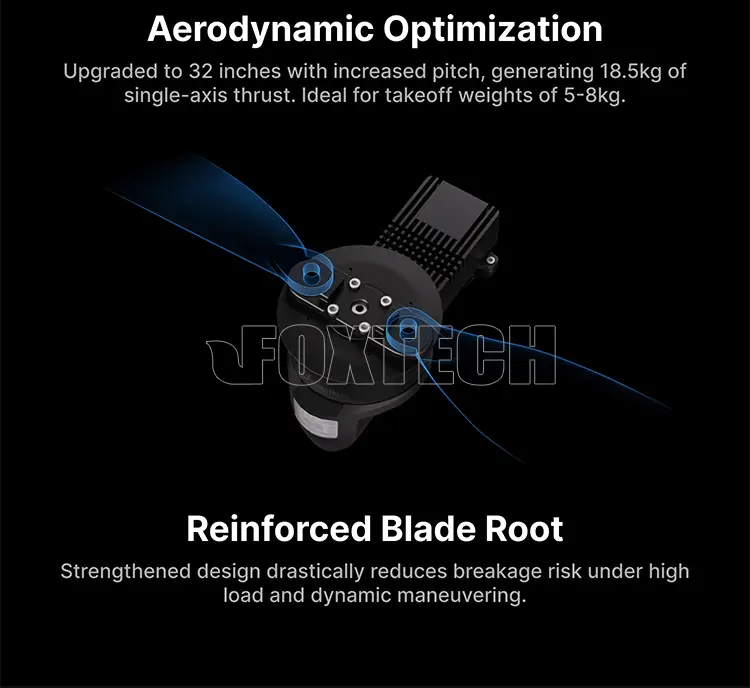

* Propeller Size: 32 Inches
* Compatible Tube Diameter: 40 mm

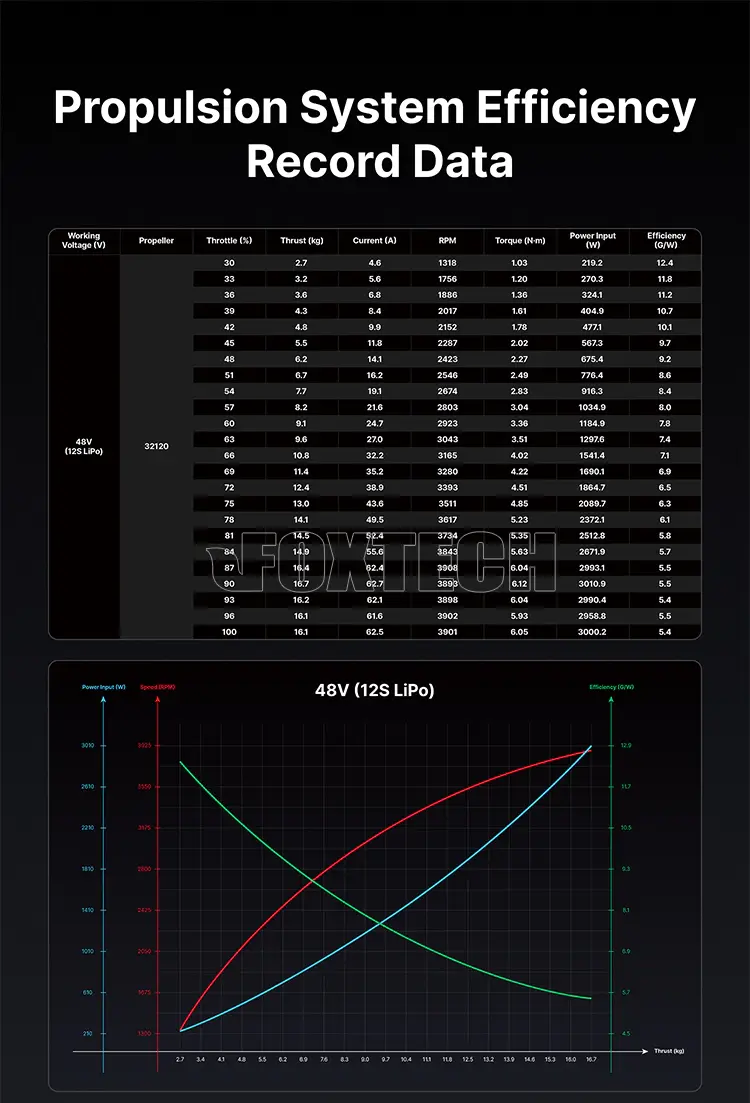

* Thrust Efficiency: 10–8 g/W
* Control Method: Advanced FOC Vector Control

With a maximum single-axis thrust of 18.5 kg, peak current capacity of 150 A, and optimized thermal management that improves cooling performance by 18%, the E8 provides the power reserve and reliability required for heavy payload operations, precision spraying, cargo transportation, and long-endurance industrial missions.

Built for professional UAV manufacturers and operators, the E8 combines intelligent control, redundant communication architecture, and comprehensive flight protection into a highly integrated propulsion platform that maximizes efficiency, safety, and operational uptime.

Key Features：
High-Thrust Performance
* Maximum thrust per axis: 18.5 kg
* Recommended thrust range: 5–8 kg per axis
* Up to 20% higher maximum thrust compared to previous-generation systems
* Designed for heavy-duty industrial and commercial UAV applications

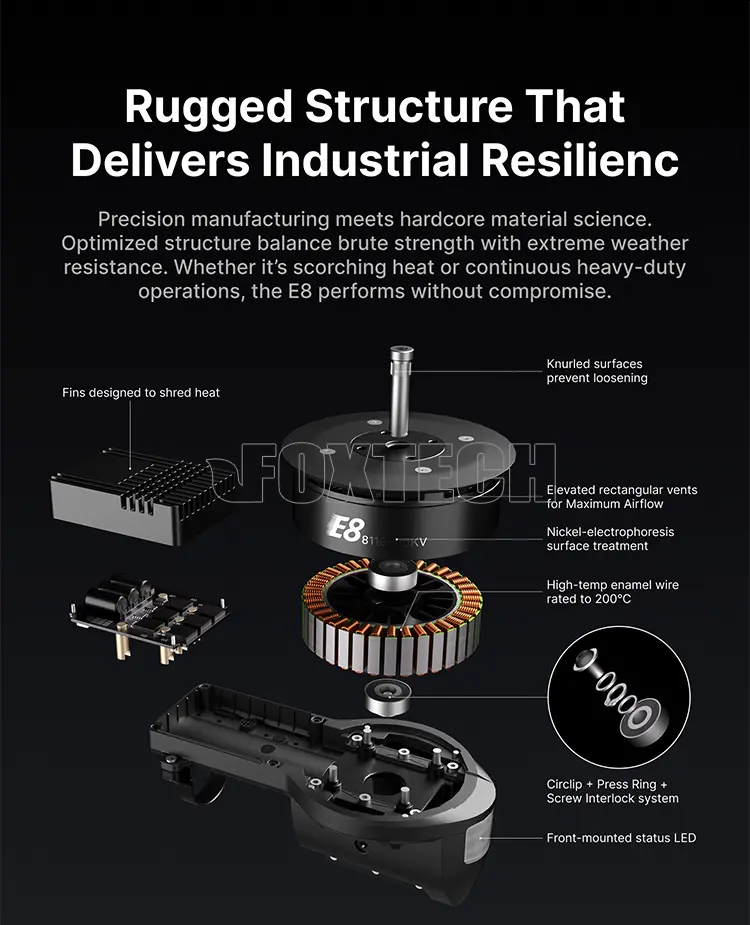

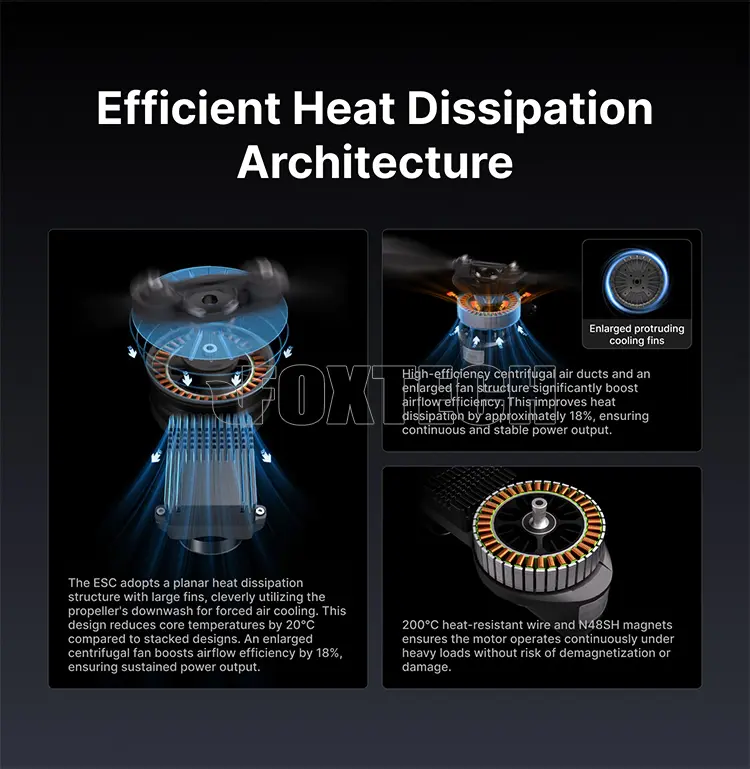

Advanced Thermal Management
* Flat-layout architecture with oversized cooling fins
* 18% improvement in cooling efficiency
* Enhanced heat dissipation for high-load and high-temperature operations
* Stable performance during long-duration missions

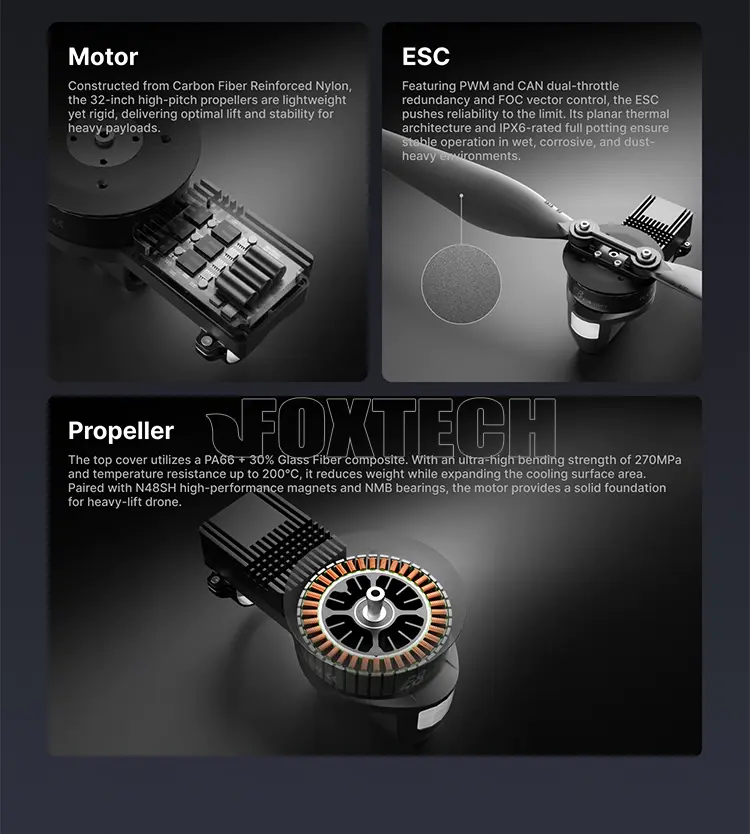

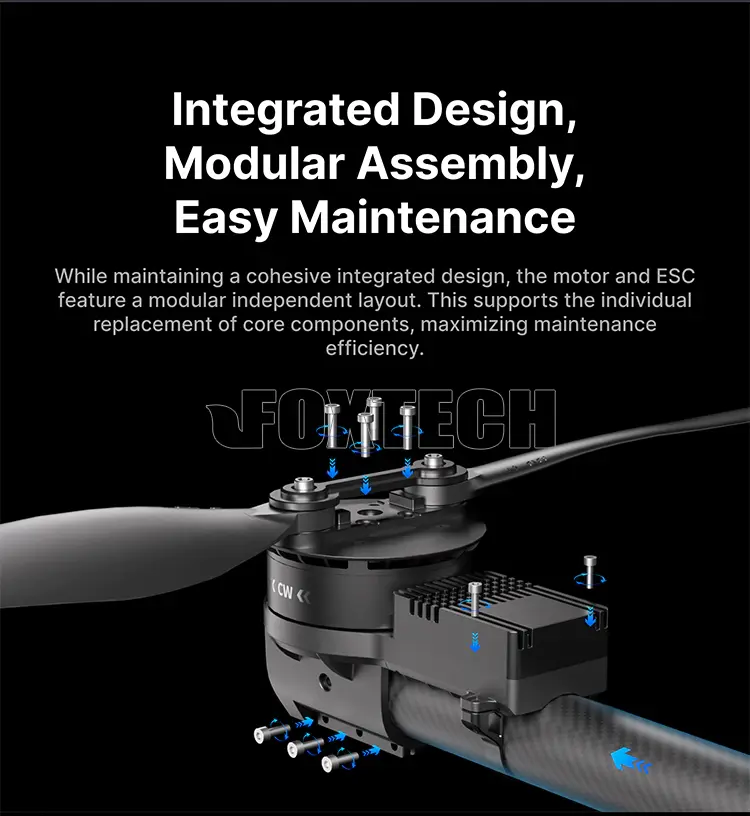

Integrated Modular Design
* Compact all-in-one architecture
* Independent motor and ESC module layout
* Supports quick replacement of core components
* Simplified installation and maintenance

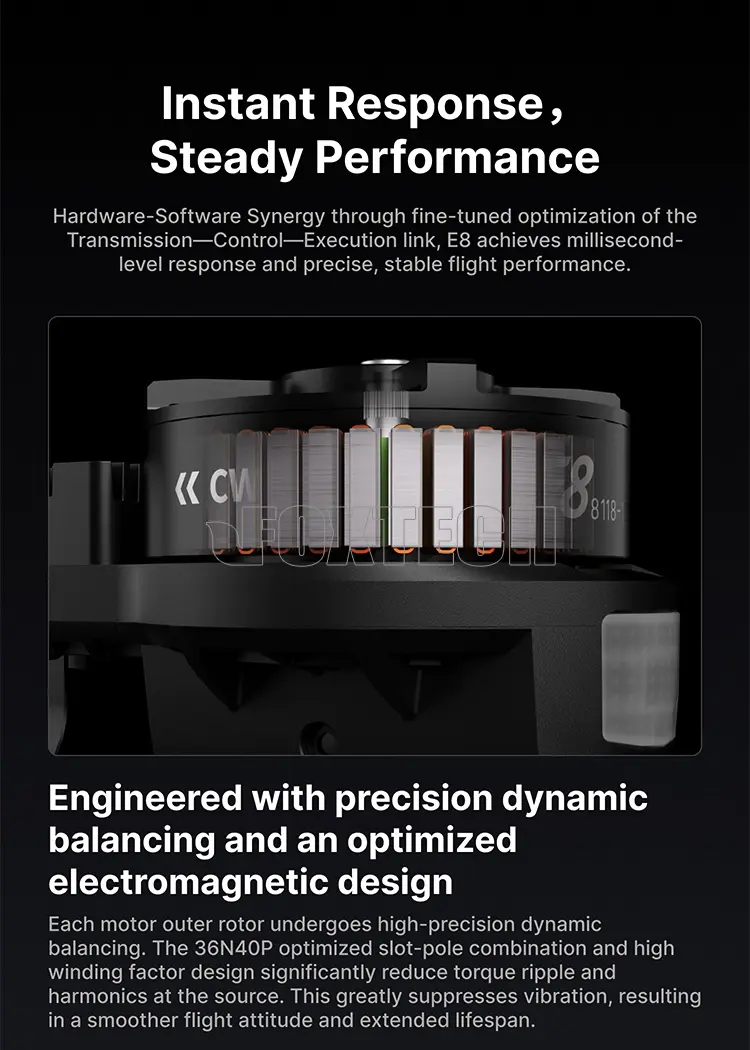

Precision Dynamic Balancing
* High-precision rotor balancing calibration
* Optimized 36N40P electromagnetic design
* Reduced torque ripple and harmonic interference
* Lower vibration and improved flight stability
* Extended airframe and propulsion system lifespan

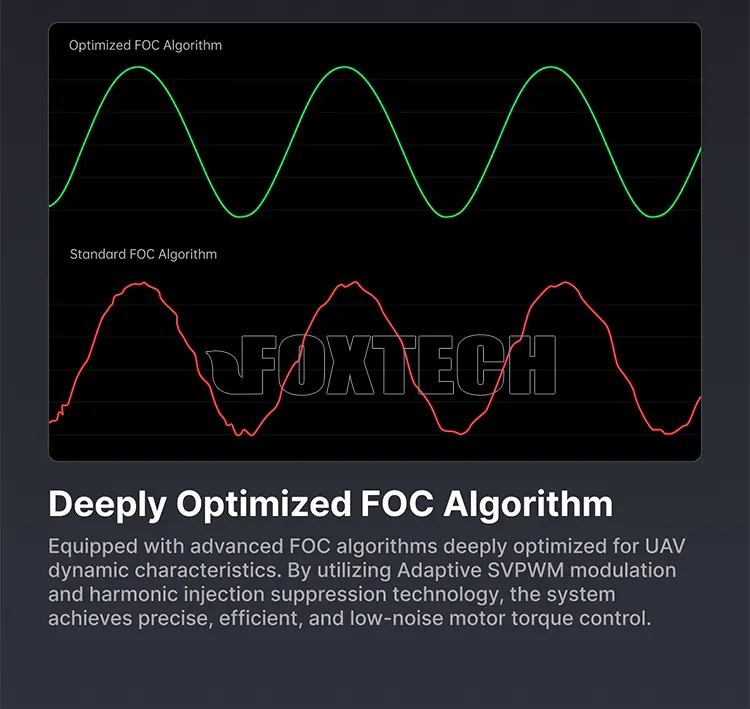

Advanced FOC Vector Control
* Deeply optimized Field-Oriented Control (FOC) algorithm
* SVPWM modulation technology
* Harmonic suppression for smooth operation
* Precise, efficient, and low-noise motor control

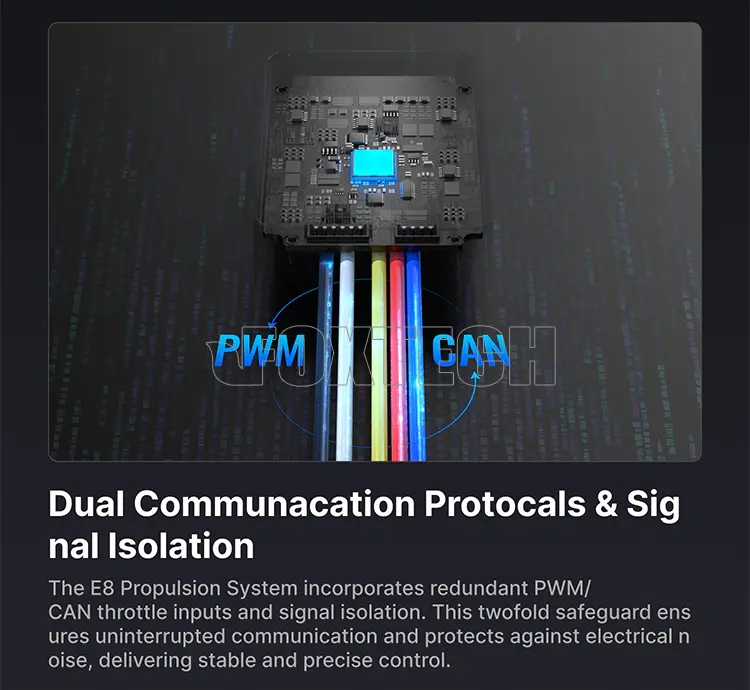

Dual Throttle Redundancy & Signal Isolation
* PWM and CAN dual-throttle redundancy
* Enhanced communication reliability in complex environments
* Isolated throttle signal design prevents power interference
* Improved safety and flight control precision

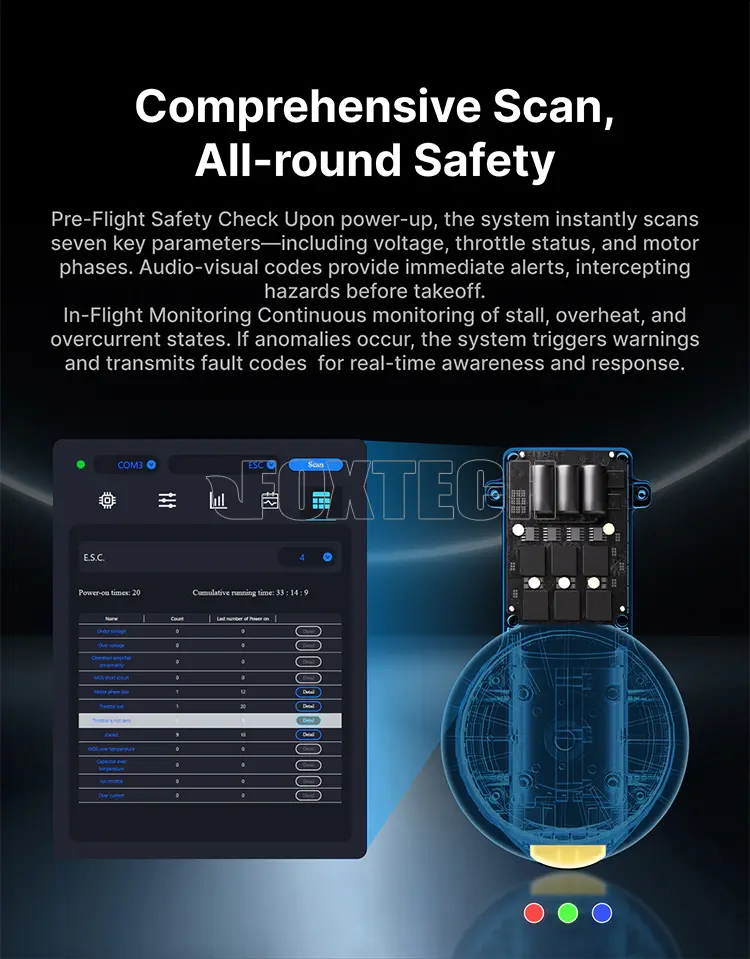

Comprehensive Protection System
* Automatic startup self-check for critical system parameters
* Over-voltage protection
* Under-voltage protection
* Motor phase-loss detection
* Over-current monitoring
* Over-temperature protection
* Stall detection and fault reporting

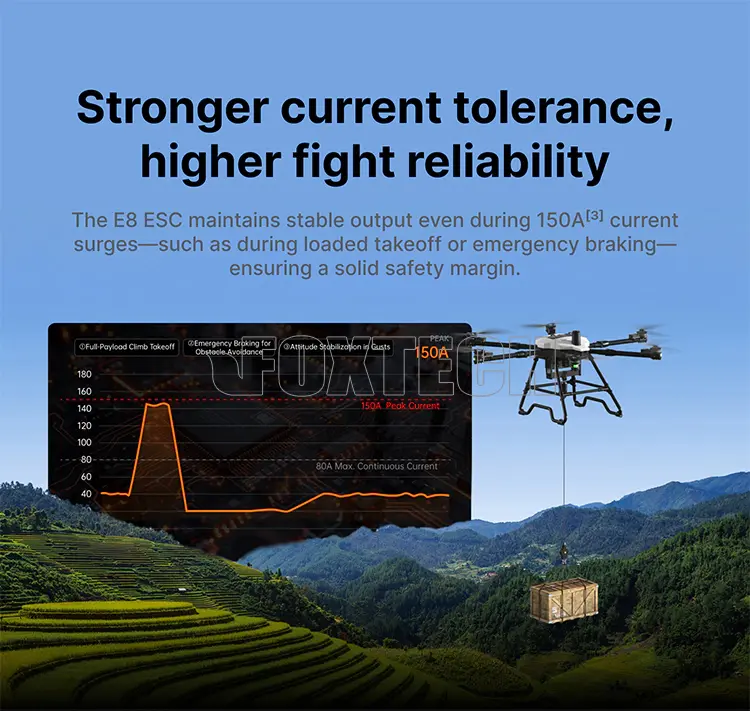

High Current Capacity for Heavy Loads
* Peak current up to 150 A
* Continuous current up to 80 A
* Maintains stable power output during demanding operations
* Ideal for fully loaded agricultural spraying and cargo transport drones

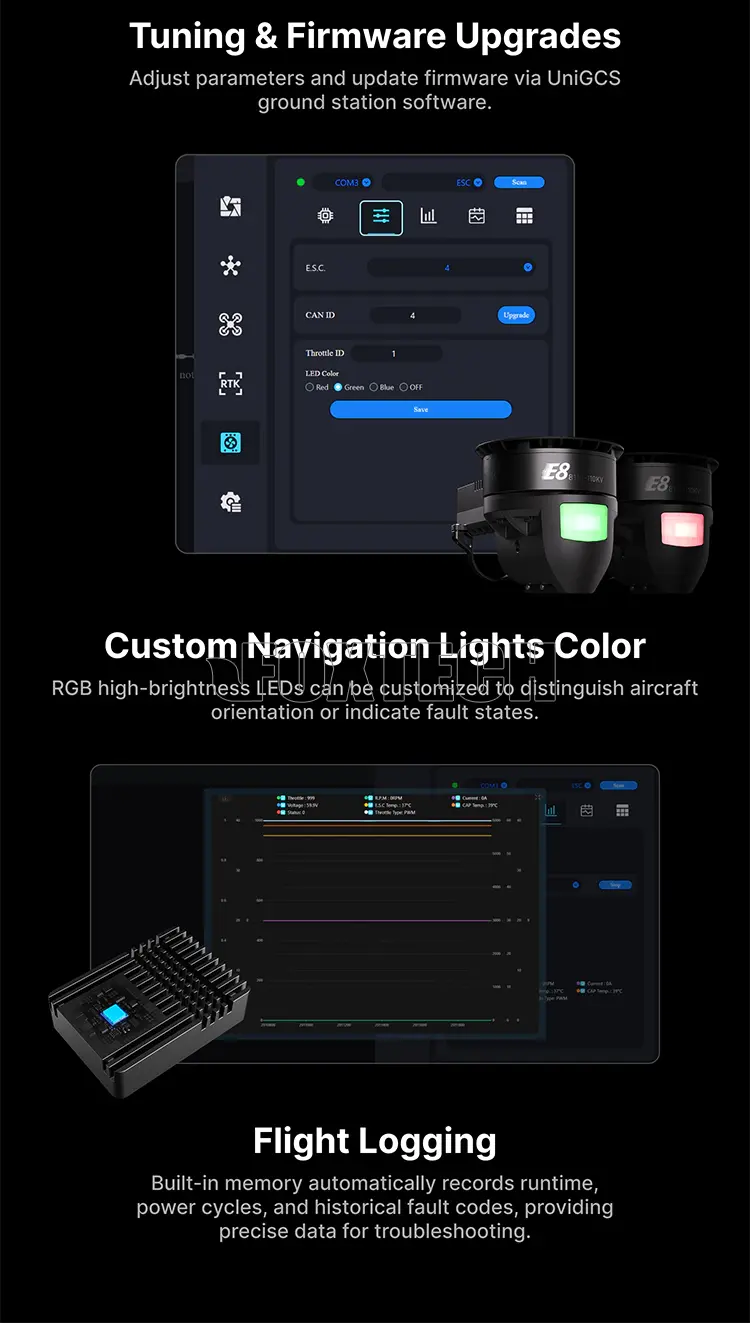

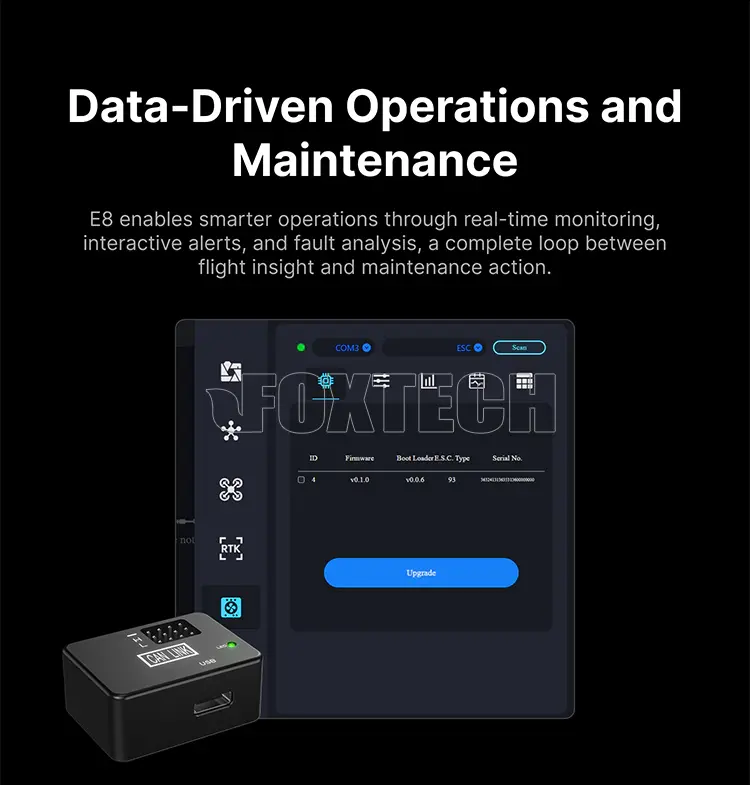

Smart Operation & Maintenance
* Real-time system status monitoring
* Visualized fault diagnosis and warning notifications
* Flight data logging and fault code storage
* Supports predictive maintenance and rapid troubleshooting

Flight Data Recording
* Built-in onboard storage chip
* Automatic recording of power cycles, operating hours, and fault history
* Simplifies maintenance and system diagnostics

Ideal For

* Agricultural Drone Manufacturers
* Industrial UAV Integrators
* Heavy-Lift Drone Developers
* Logistics Drone Solution Providers
* Aerial Surveying & Mapping Companies
* Utility Inspection Service Providers
* Smart City Infrastructure Contractors
* UAV Training Institutions
* Research Organizations & Universities
* Commercial Drone OEM/ODM Projects
