The EFT V3/V3-E (new version) 480A High Current Power Distribution Board is specifically designed for UAVs. It serves as a central hub for distributing power to various components of the aircraft, such as motors, flight controller, and other electronics.
Note (V3):
Yellow XT90 connector is for 12S power (for ESC)
Yellow XT60 connector is for 6S flight controller power
Blue XT60 connector is for 12S power (not for ESC and can not be applied for 3s-6s flight controller)
Note (V3-E):
Two power lines can be directly connected to two 6S battery;
The eight XT60 female interface output is 12S, to transfer power supply;
2 XT30 female connector facing up for the 6S power interface, the two XT30 male connector facing up to 12S power connector.
Your Purchase includes:
1x EFT V3(V3-E new version) Power Distribution Board
| ModeL | EFT V3 |
| Max Current | 480 A |
| Size | 150*16 mm |
| Weight | 200 g (without cable) |
| Suitable Drone Type | Quadcopter,Hexacopter |
| Cable Length | 20 cm |
| Model | EFT V3-E |
| Max Current | 480 A |
| Size | 120*14 mm |
| Weight | 130 g (without cable) |
| Suitable Drone Type | Octocopter |
Related Products
Tarot
High Current Quadcopter Hub (TL8X010)
The high current multicopter hub is made of environmental materials, CNC processed. It is suitable for large Quadcopter. The hub is plated by 24K gold and its fanshaped design guarantees the stable...
CUAV
CAN PMU High Precision Power Detection Unit
CUAV CAN PMU is a UAV power management unit module with a built-in STM32F4 processor. It runs CUAV ITT algorithm, which are able to accurately real-time measure UAV voltage and current. CAN PMU...
Foxtech

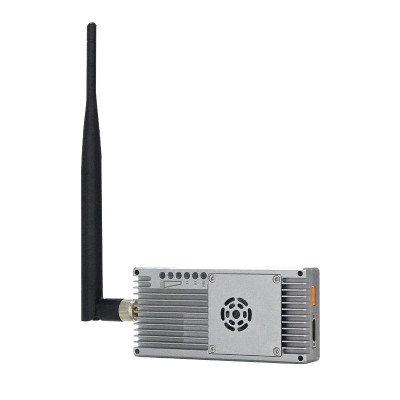

Dlinkos SN100-6 High-Power 100km Star Network Data Transmission Module
