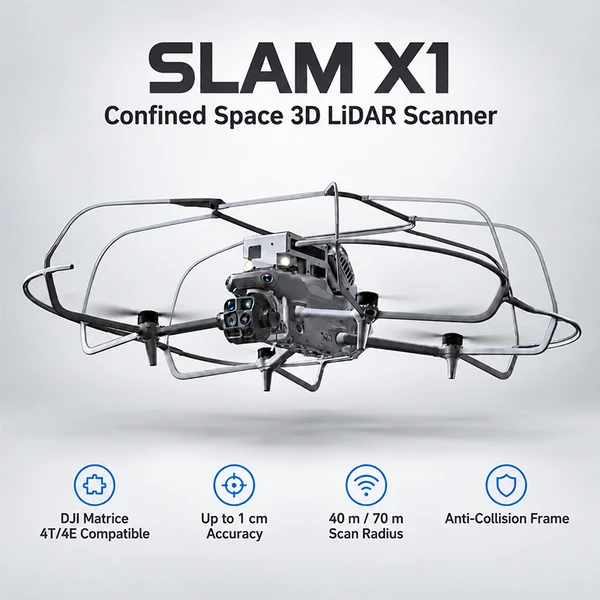

SLAM X1 Collision-Protected Flying 3D LiDAR Scanning System for DJI Matrice 4T/4E | Confined Space Mapping

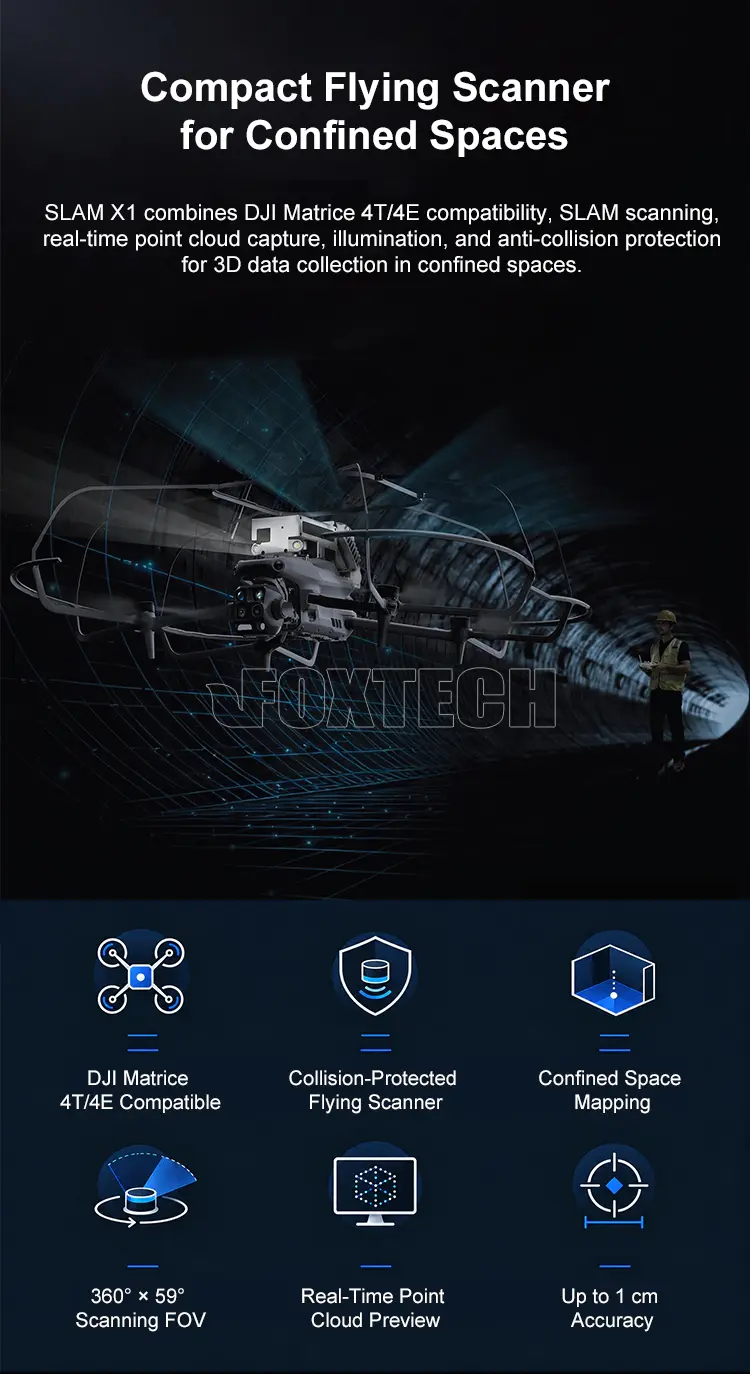

SLAM X1 is a collision-protected flying 3D LiDAR scanning system designed for DJI Matrice 4T/4E flight platforms. With a compact body, full-coverage anti-collision frame, controllable illumination, global-shutter image sensor, and SLAM scanning technology, it supports real-time 3D point cloud data capture in confined, narrow, and hard-to-access environments.

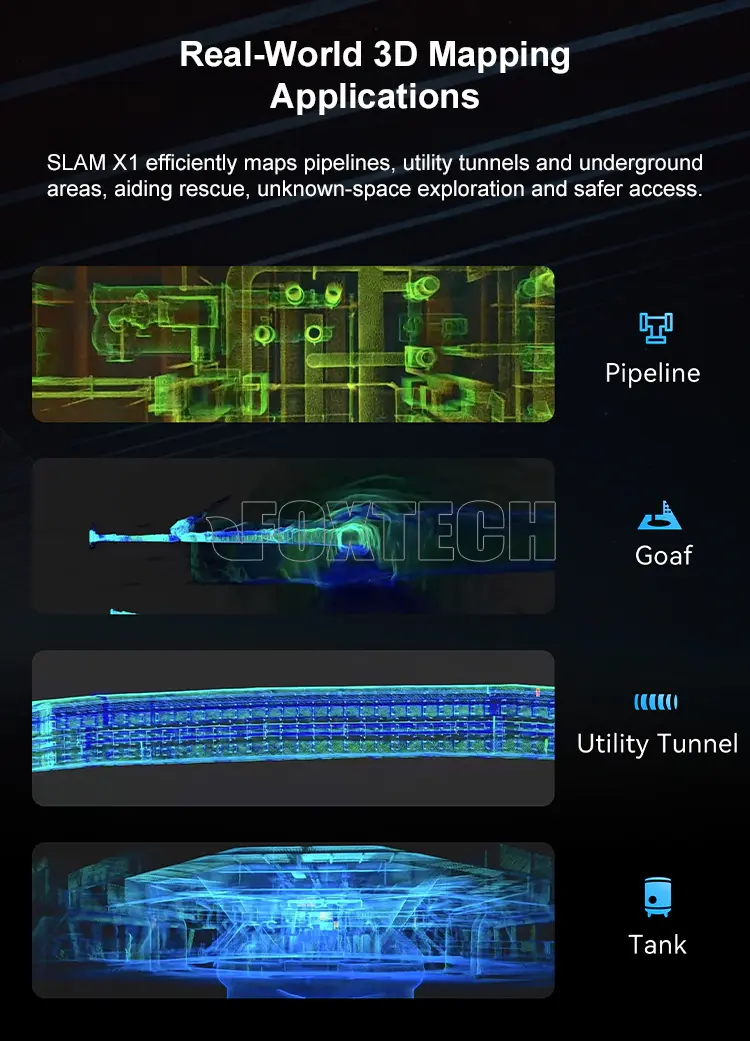

IDEAL FOR
- Confined Space Mapping
- Tunnel and Culvert Scanning
- Pipeline and Pipe Gallery Inspection
- Tank Interior Scanning
- Underground Space Surveying
- Emergency Rescue and Unknown Space Exploration

NOTE:
DJI Matrice 4T/4E aircraft is not included in the purchase.

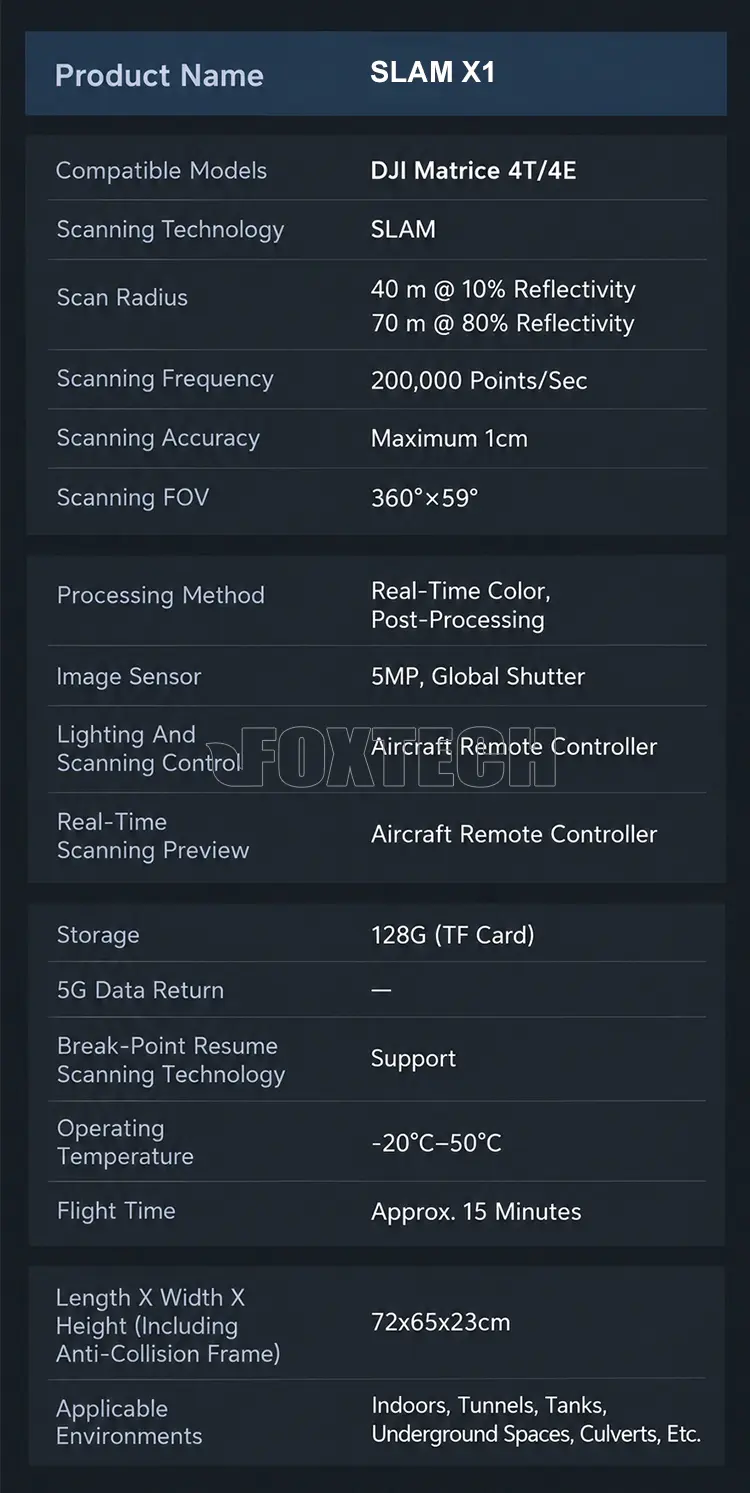

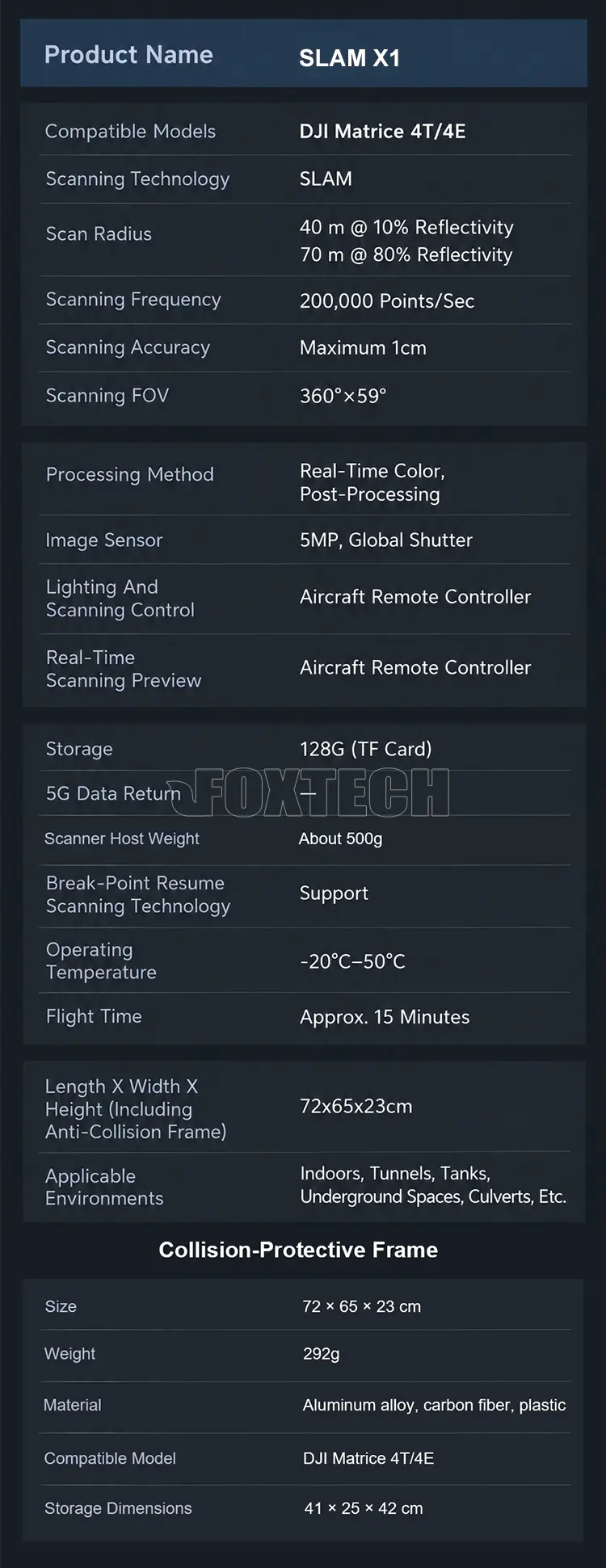

The system provides a 40 m scan radius at 10% reflectivity, 70 m scan radius at 80% reflectivity, 200,000 pts/s scanning frequency, up to 1 cm scanning accuracy, and 360° × 59° scanning field of view. It supports real-time colorized point cloud output, controller-based scan preview, laser control point recording, resume scanning, and post-processed point cloud output for flexible field operation and data processing.

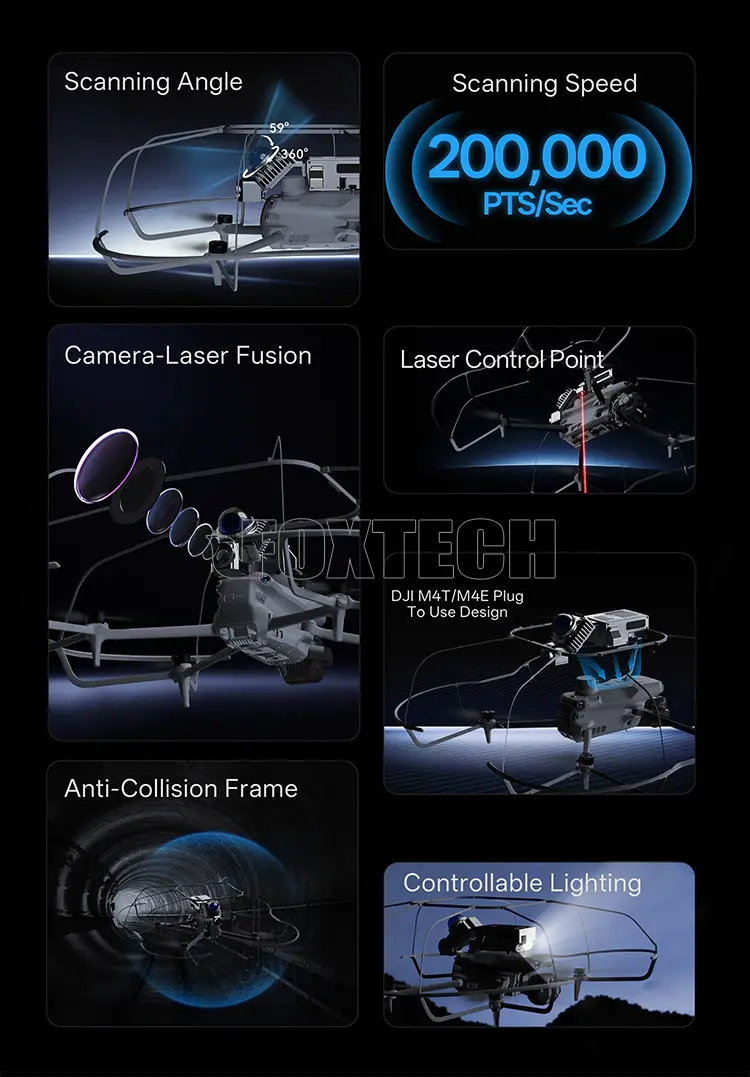

KEY FEATURES
- Compatible with DJI Matrice 4T/4E
Designed for DJI Matrice 4T/4E flight platforms, SLAM X1 enables quick integration for users who already own compatible M4 series platforms.
- Full-Coverage Anti-Collision Frame
The full-coverage anti-collision frame helps protect the system during narrow-space operation, reducing collision risks in tunnels, culverts, tanks, and other restricted environments.

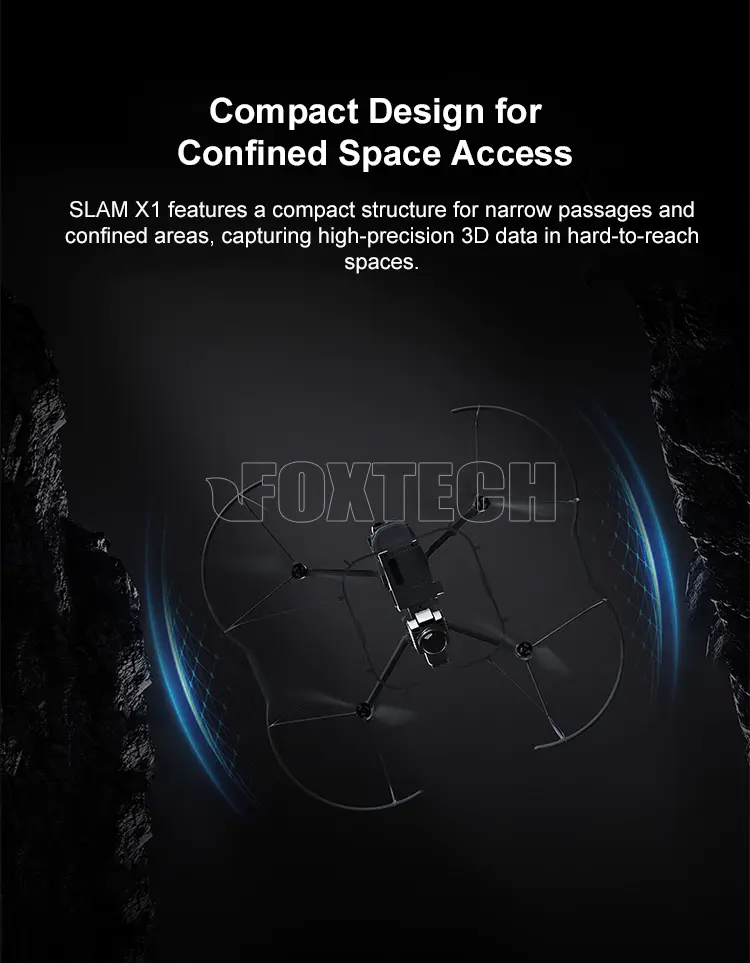

- Compact Design for Narrow Spaces
The compact system design allows SLAM X1 to pass through narrow passages and restricted areas, helping collect 3D data from locations that are difficult or unsafe for personnel to access.

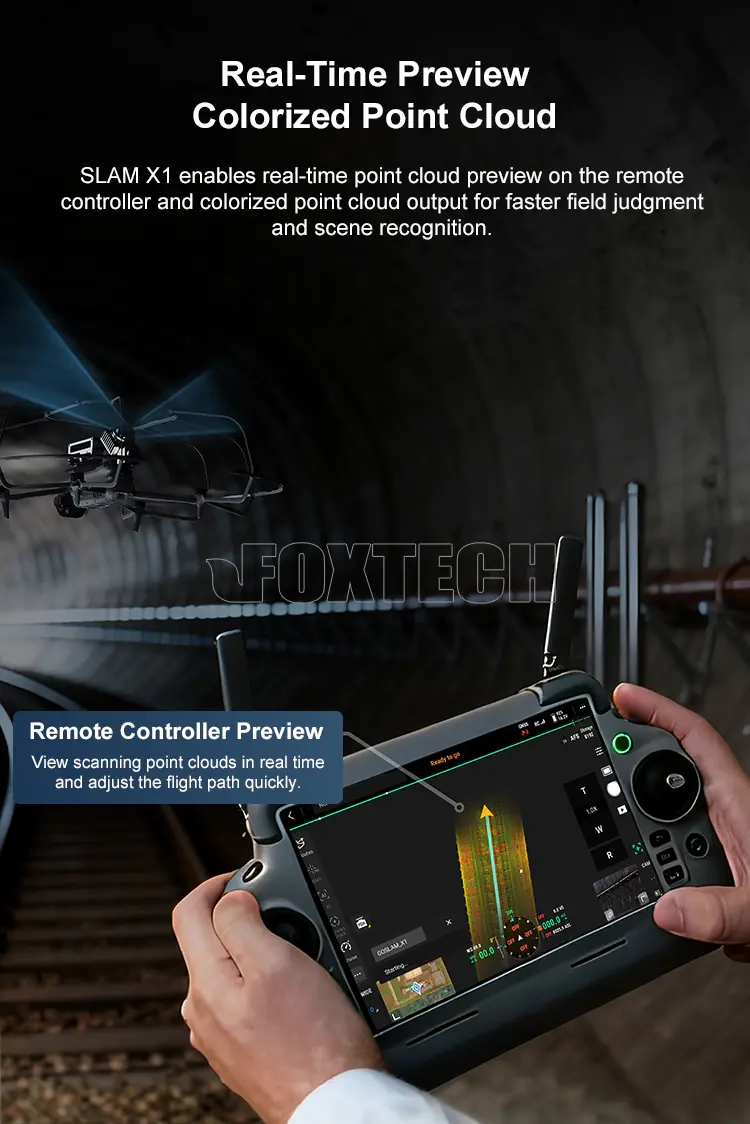

- Real-Time Point Cloud Preview
Operators can preview scanning point cloud data directly on the controller, making it easier to monitor the field environment and adjust the flight path in real time.

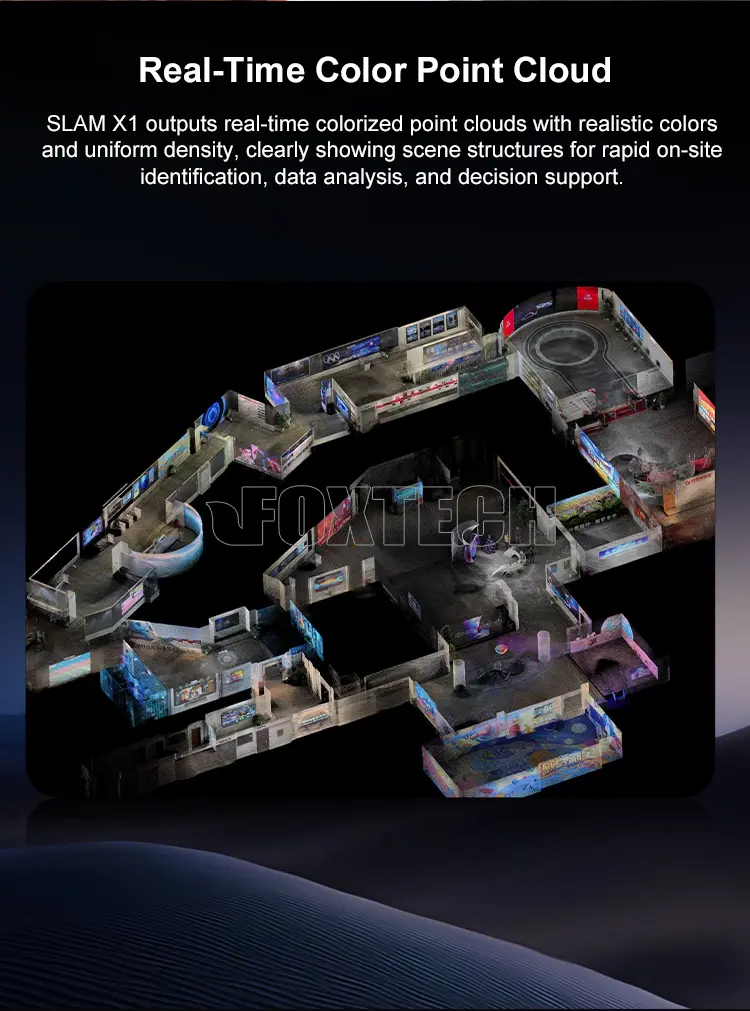

- Real-Time Colorized Point Cloud Output
SLAM X1 supports real-time colorized point cloud output with realistic color and uniform density, helping users quickly identify scene structures and support on-site analysis.
- Laser Control Point Recording
The laser control point function enables non-contact point marking and position recording, supporting later coordinate transformation and reference-plane positioning.
- Resume Scanning Without Manual Re-Stitching
For large or complex scenes, SLAM X1 supports resume scanning after battery replacement or temporary stops, with automatic data registration to reduce manual re-stitching work.
- Built-In Illumination for Dark Environments
The built-in front illumination helps improve visibility in low-light or dark environments, supporting clearer visual feedback during field operation.

YOUR PURCHASE INCLUDES
SLAM X1 Host ×1
Anti-Collision Frame ×1
TF Card ×1
Card Reader ×1
Spare Countersunk Screws M2.5 ×4
Spare Soft Rubber Pads ×2
Type-C Interface Dust Plug ×1
Hand-Tighten Screws ×8
Hex L-Shaped Allen Screwdriver ×2
Lens Cleaning Cloth ×1
Spare Strap ×1
