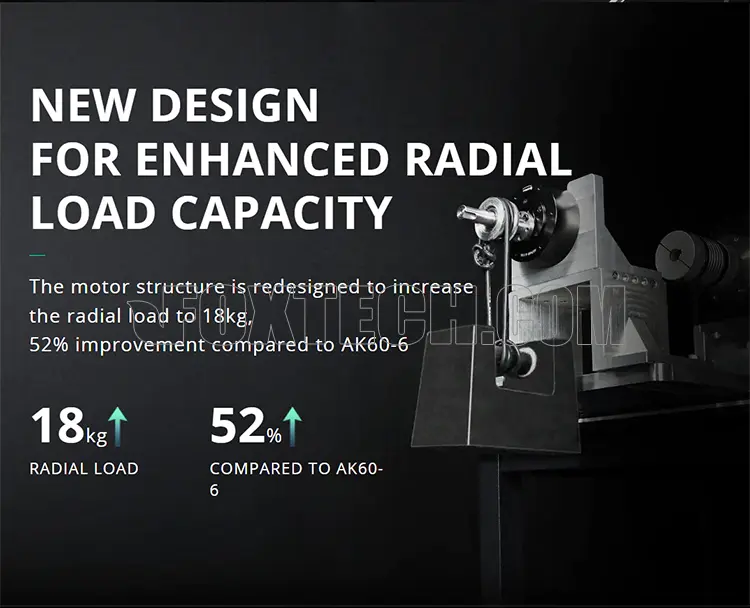

The CubeMars AKA series is specifically designed for applications that require high radial load capacity, such as wheeled robots and AGVs. With a revolutionary structural design, this series offers exceptional performance in demanding environments. Compared to the AK60-6 module motors, the AKA series increases radial load by over 52% under the same torque conditions, significantly extending the lifespan of the module.
Innovative Plug Design for Enhanced Durability

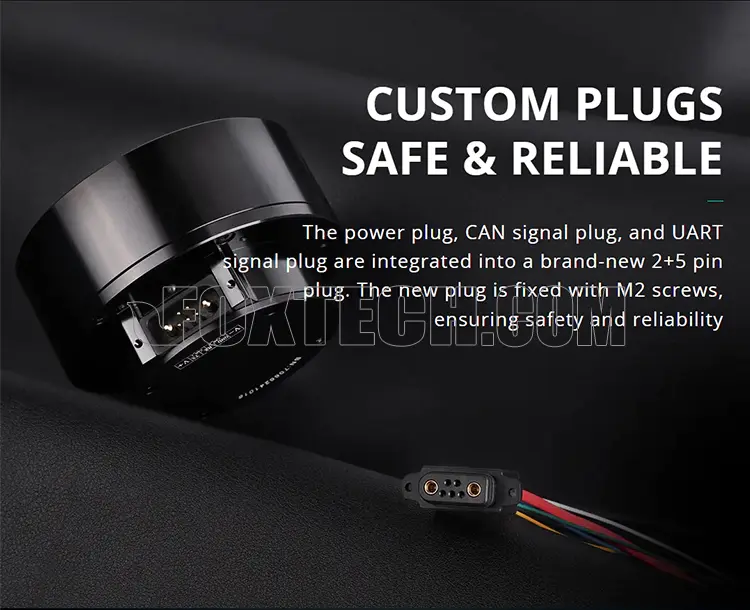

Addressing the common issues with traditional module motor plugs, the AKA series introduces a new 2+5PIN plug that integrates both signal and power lines. The plug is securely fixed with screws, ensuring robustness and durability, even in complex working conditions.
Key Features:
High Radial Load Capacity for Robust Performance
Optimized for Wheeled Robots and AGVs
Upgraded Drive System with One-Click Recognition
Durable 2+5PIN Plug for Secure, Long-Lasting Connections
