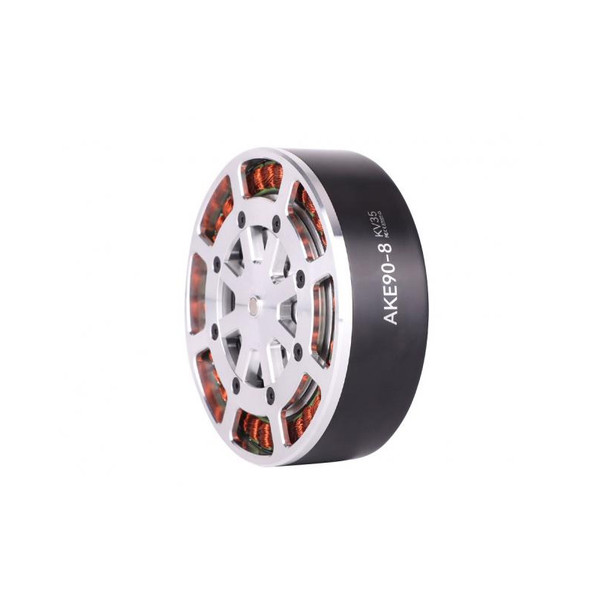

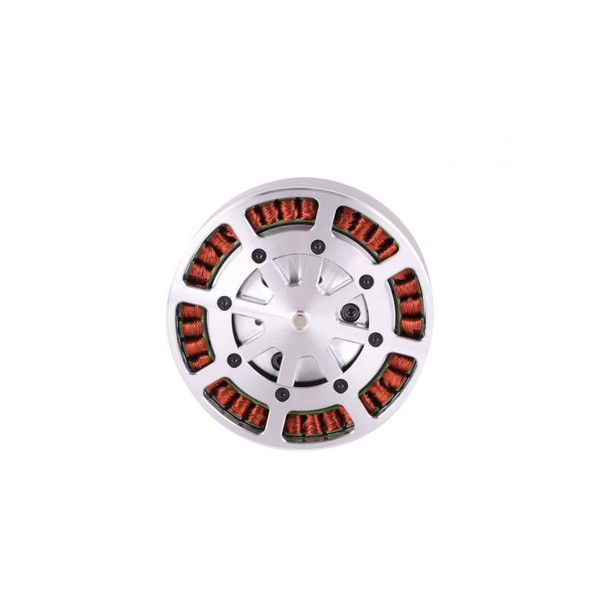

The CubeMars AKE90-8 KV35 Quasi Direct Drive is an advanced solution for industrial automation and robotics applications. Integrating both the motor and gearbox, this product is particularly ideal for exoskeletons, bipedal robots, robotic arms, and industrial collaborative robots.
Enhanced Gearbox Performance
The gearbox's core components are meticulously optimized for high load capacity and reduced weight. This results in a minimal backlash of just 9 arcminutes and an impressive torque density of 121 N·m/kg, ensuring both precision and durability for demanding tasks.
Modular Design for Simplicity
With a modular design, the AKE90-8 KV35 offers easy installation and straightforward maintenance, enhancing operational efficiency and minimizing downtime in production environments.
Innovation at Its Core
At CubeMars, innovation drives our commitment to quality. We use cutting-edge manufacturing technologies and enforce strict quality control standards to ensure every product meets the highest customer expectations.
Key Features:
Robotic Actuator with Planetary Gear
Modular Design for Easy Integration
Low Arcmin Backlash for Superior Precision
Reliable, Constantly Powerful Performance
Optimized for Exoskeleton Applications
