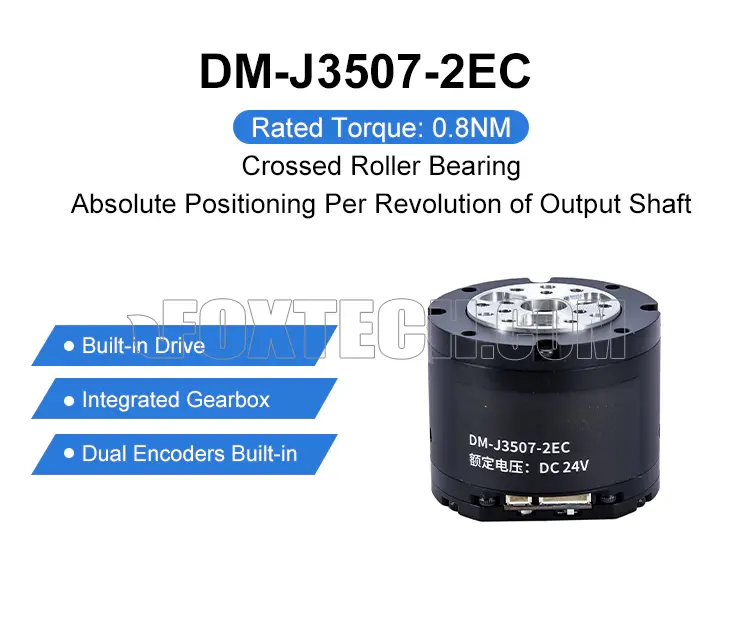

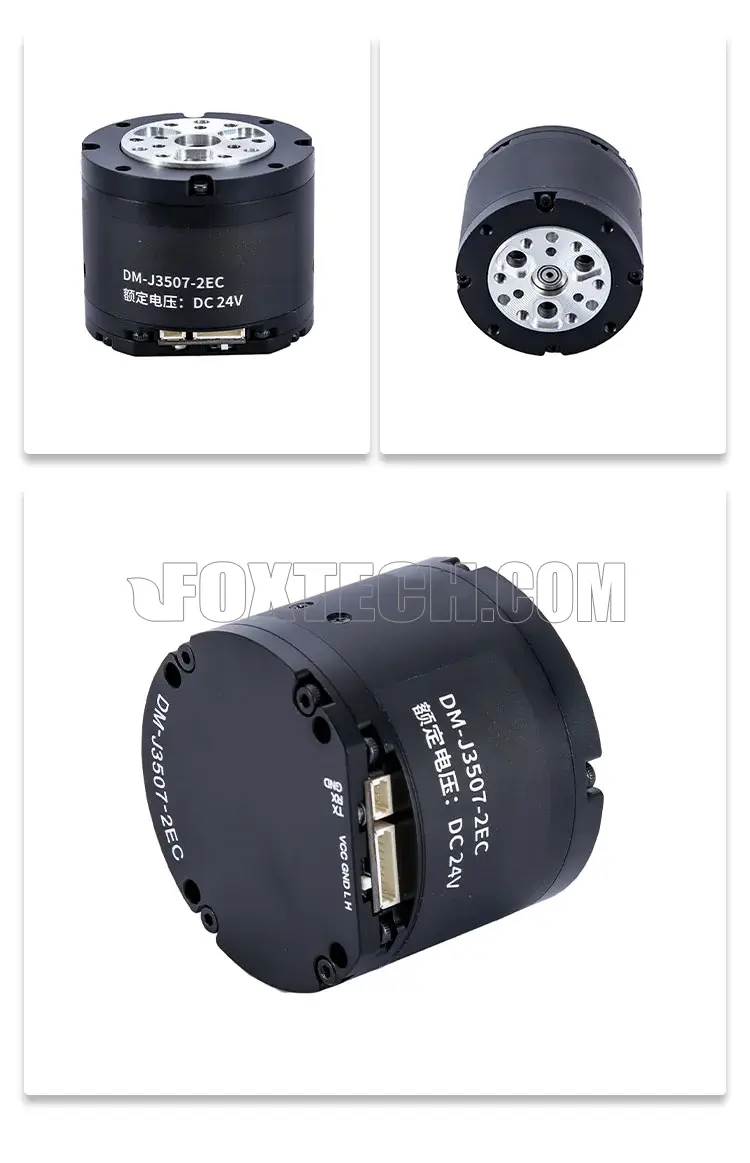

DM-J3507-2EC (24V) MIT-Driven Brushless Servo Joint Motor with Dual Encoders & Gear Reduction for Robotic Arms Actuator for Robot

The DAMIAO MIT-Driven Brushless Servo Joint Motor is a high-performance, all-in-one solution for robotic arms. Featuring an integrated driver, built-in gearbox, and dual encoders, it supports three operation modes (MIT mode, Speed mode, and Position mode), ensuring precise control and smooth motion.

Key Features
1. Dual encoders provide single-turn absolute position of the output shaft, ensuring no loss of position even after power-off.
2. Integrated motor and driver design for a compact structure and high level of integration.
3. Supports PC-based visual debugging and firmware upgrades.
4. CAN FD compatible, with a maximum baud rate of up to 5 Mbps.
5. Motor speed, position, torque, and temperature can be fed back via the CAN bus.
6. Dual temperature protection mechanism.
7. Low speed, high torque output.
8. Multiple control modes with flexible switching.

Your Purchase Includes：
1× Motor (with integrated driver)
1× Power + CAN Communication Cable: SH1.0 3-pin Connector (200mm)
1× Tuning Serial Signal Cable: SH1.0 8-pin Connector (200mm)
