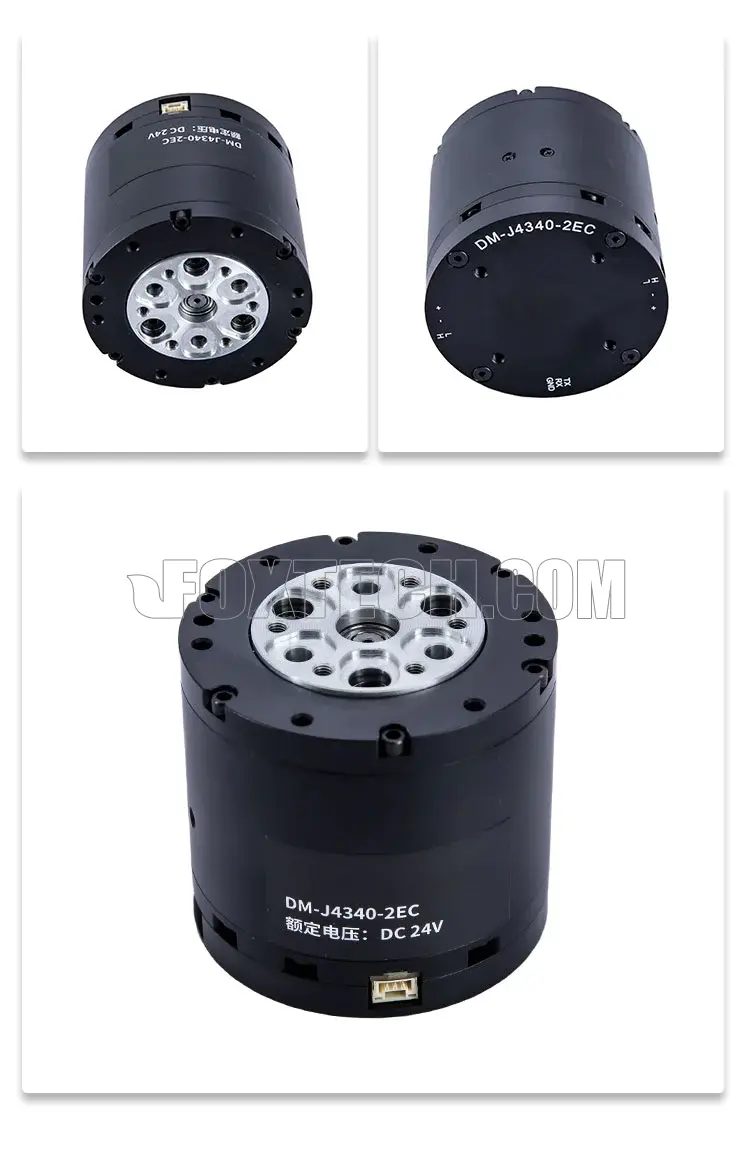

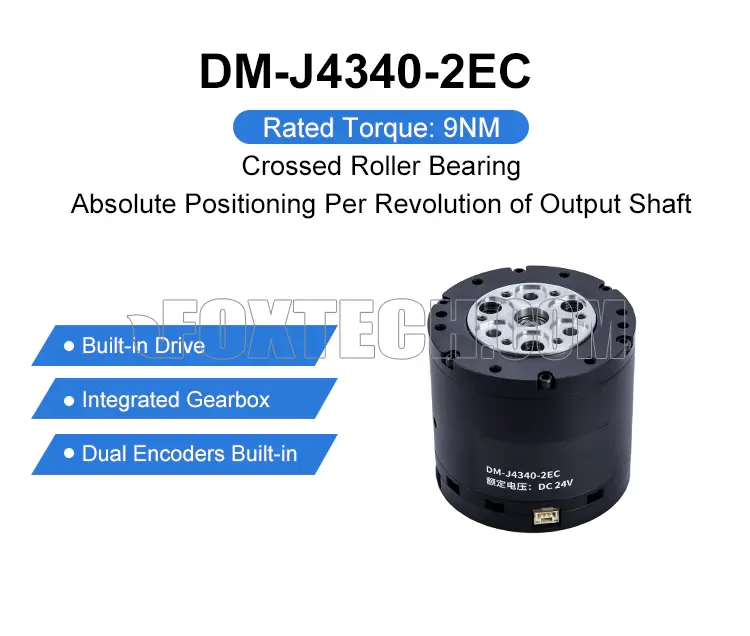

DM-J4340-2EC MIT-Driven Brushless Servo Joint Motor with Dual Encoders & Gear Reduction for Robotic Arms Actuator for Robot

The DAMIAO MIT-Driven Brushless Servo Joint Motor is a high-performance, all-in-one solution for robotic arms. Featuring an integrated driver, built-in gearbox, and dual encoders, it supports three operation modes (MIT mode, Speed mode, and Position mode), ensuring precise control and smooth motion.

Key Features
1. Dual encoders provide single-turn absolute positioning of the output shaft, ensuring no loss of position even after power-off.
2. Integrated motor and driver design offers a compact and highly integrated structure.
3. Supports PC-based visual tuning and firmware upgrades.
4. CAN bus enables real-time feedback of motor speed, position, torque, and temperature.
5. Equipped with dual overtemperature protection mechanisms.
6. Trapezoidal acceleration and deceleration supported in position mode.

Your Purchase Includes
1× Motor (with integrated driver)
1× Power & CAN Communication Cable: XT30(2+2)-F Single-ended Connector (100mm)
1× Tuning Serial Signal Cable: GH1.25 3-pin (Reverse-facing, 300mm)
