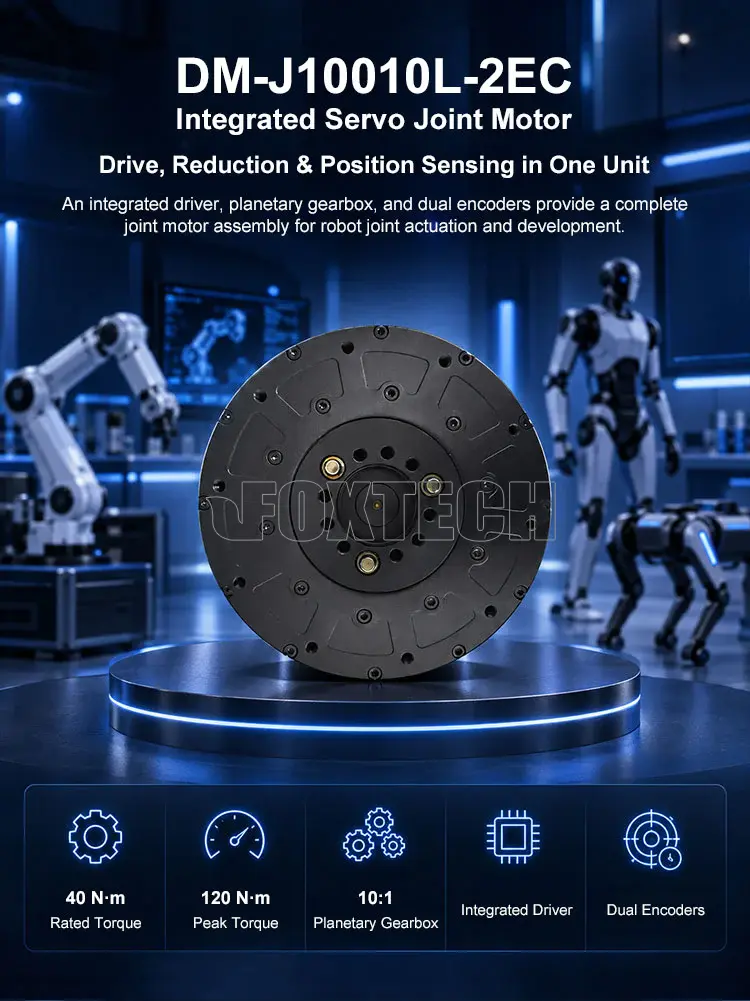

DM-J10010L-2EC Servo Joint Motor with Dual Encoders & 10:1 Planetary Gearbox for Robot Joint Control

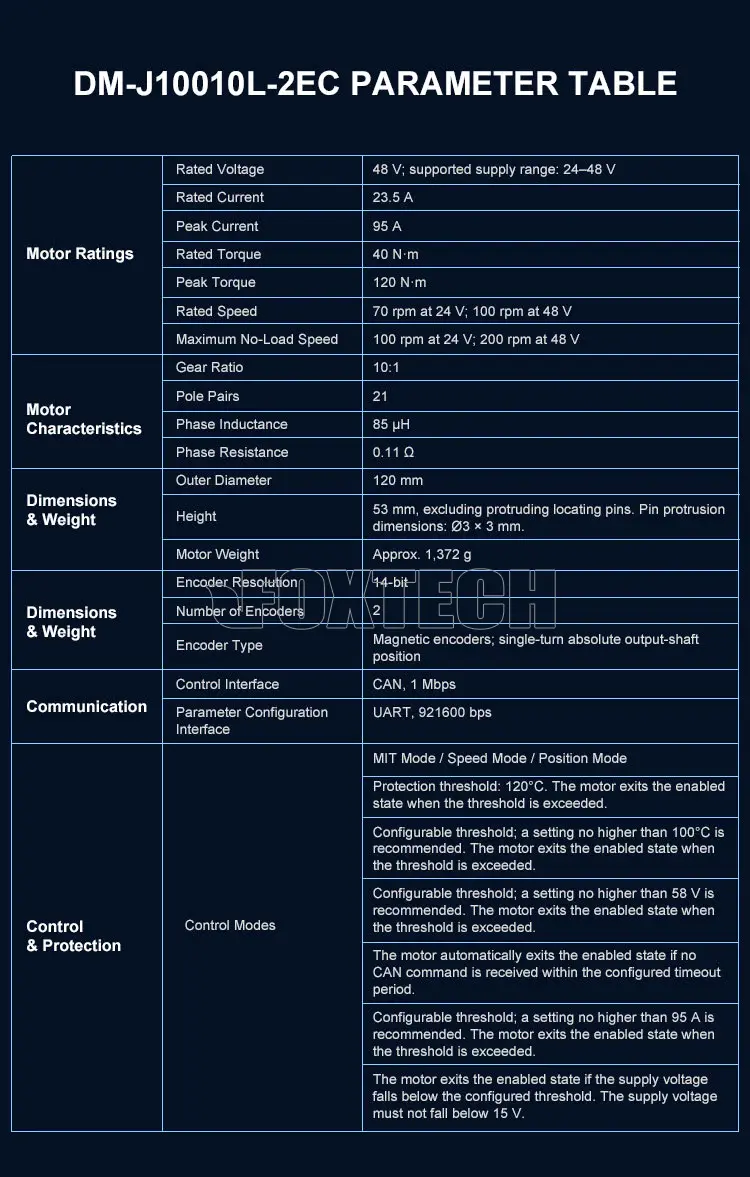

The DAMIAO DM-J10010L-2EC is an integrated servo joint motor for robot joint actuation and motion control development. It delivers 40 N·m rated torque and 120 N·m peak torque, with a supported supply range of 24–48 V.

IDEAL FOR
Robot Joint Actuation · Joint Mechanism Development · Motor Control Testing

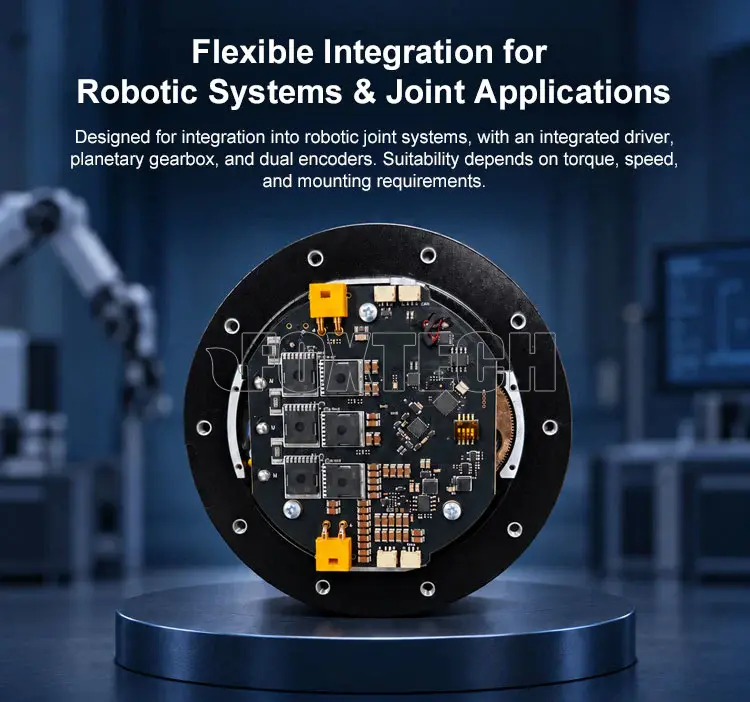

An integrated driver, a 10:1 planetary gearbox, and dual magnetic encoders combine drive, reduction, and position sensing in one unit. The motor supports MIT, position, and speed control modes, with CAN communication and UART-based parameter setup and firmware updates.

KEY FEATURES

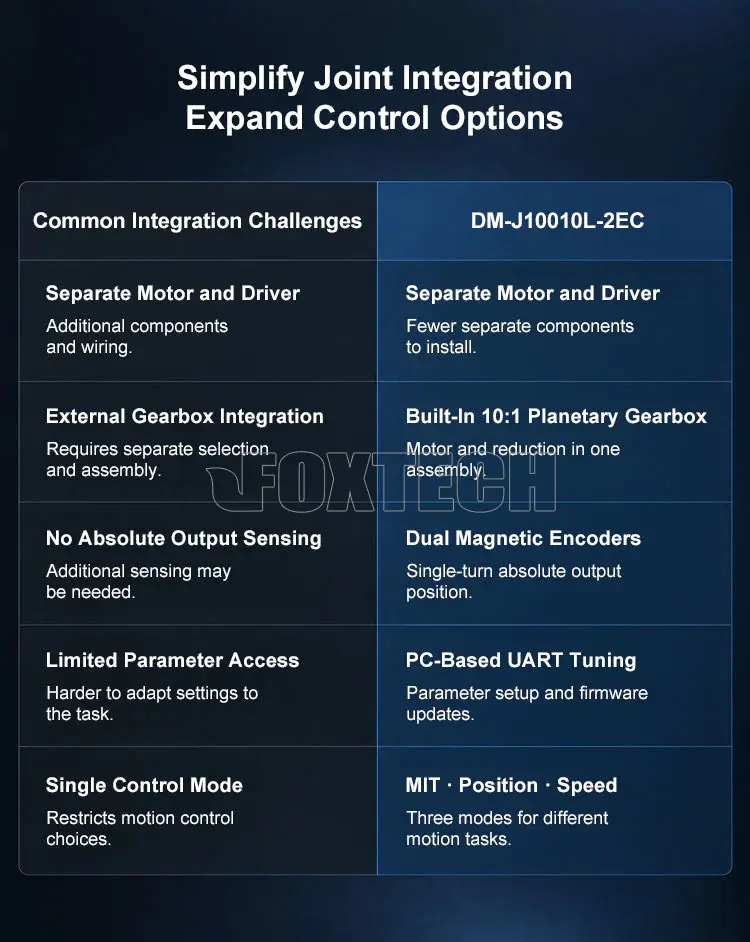

- Integrated Joint Design
Combines the motor, driver, planetary gearbox, and dual encoders in one assembly.
- 40 N·m Rated / 120 N·m Peak Torque
Provides rated and peak torque specifications for joint drive selection.
- 10:1 Planetary Reduction
Features a built-in planetary gearbox with a 10:1 reduction ratio.
- Dual Encoders with Absolute Output Position
Uses dual magnetic encoders and supports single-turn absolute output-shaft position feedback.
- Three Control Modes
Supports MIT, position, and speed modes for different motion control tasks.

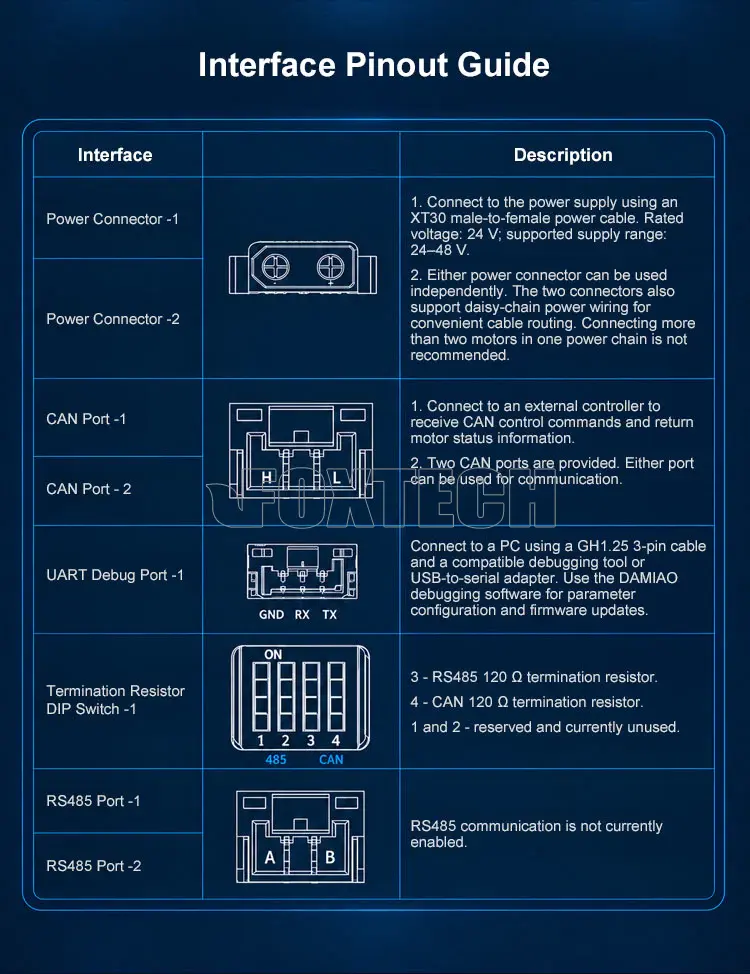

- CAN Communication & UART Tuning
Receives control commands and returns motor status over CAN; supports parameter setup and firmware updates through the UART debugging interface.
- Multiple Protection Functions
Includes driver and motor overtemperature, overvoltage, undervoltage, overcurrent, and communication-loss protection.

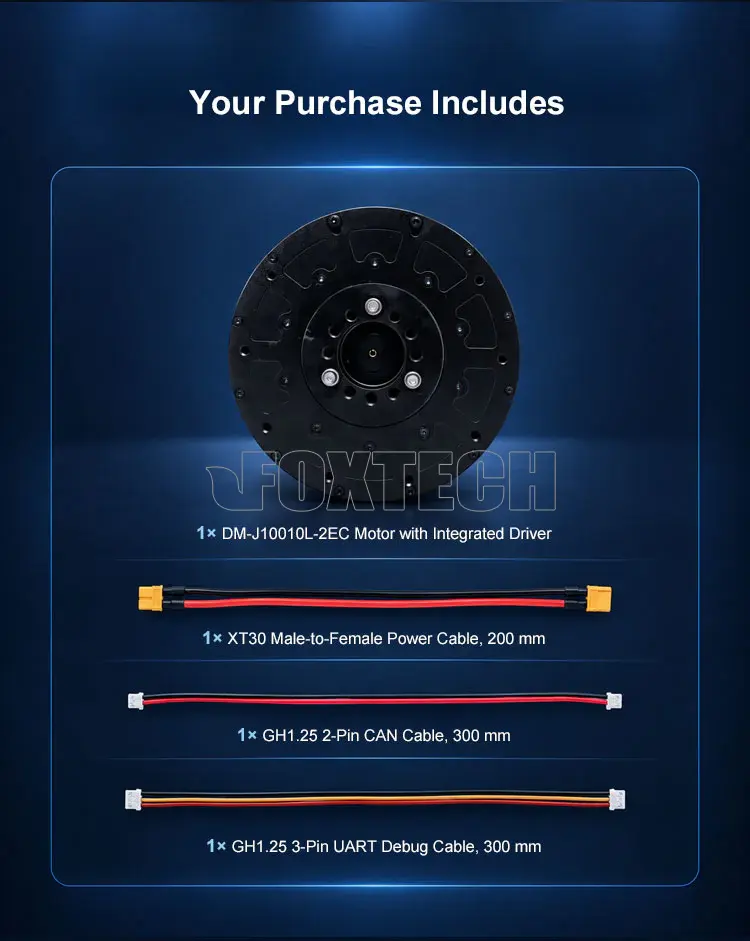

YOUR PURCHASE INCLUDES
1× DM-J10010L-2EC Motor with Integrated Driver
1× XT30 Male-to-Female Power Cable, 200 mm
1× GH1.25 2-Pin CAN Cable, 300 mm
1× GH1.25 3-Pin UART Debug Cable, 300 mm
